Used CSM Instruments Open Platform With Nano Scratch Testing System 10μN to 1N 120VAC
$28,000.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for CSM Instruments. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-208941
C6-1-A

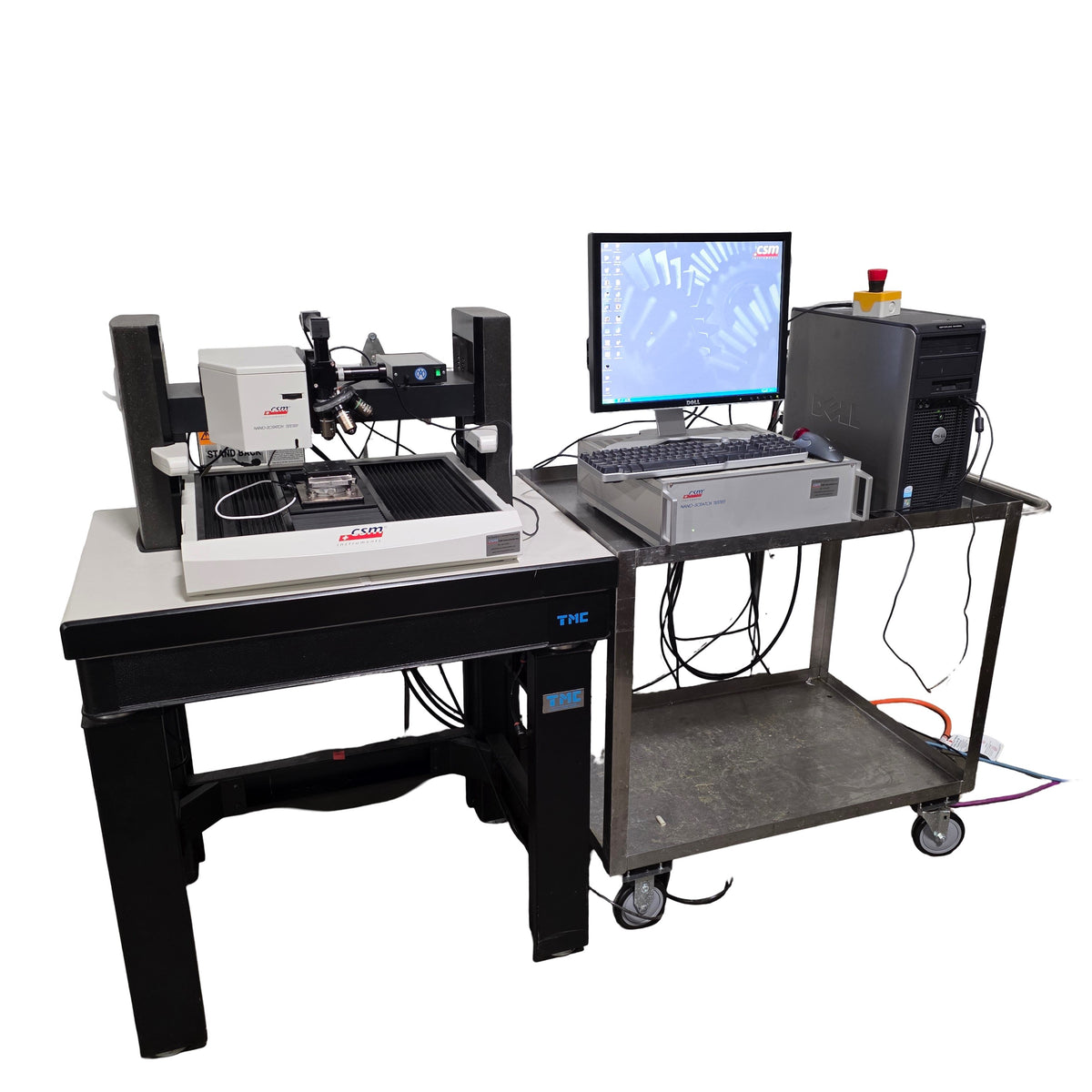

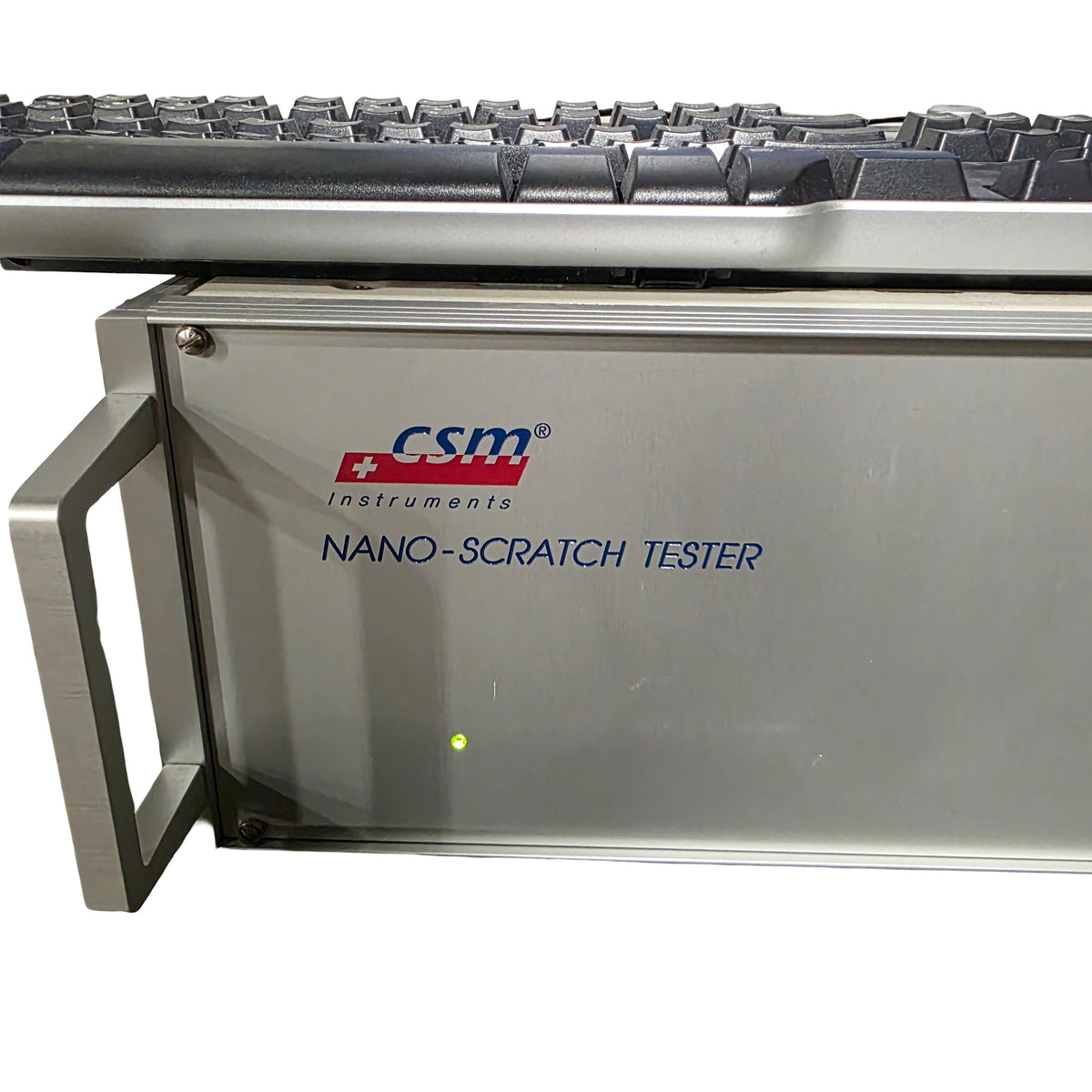

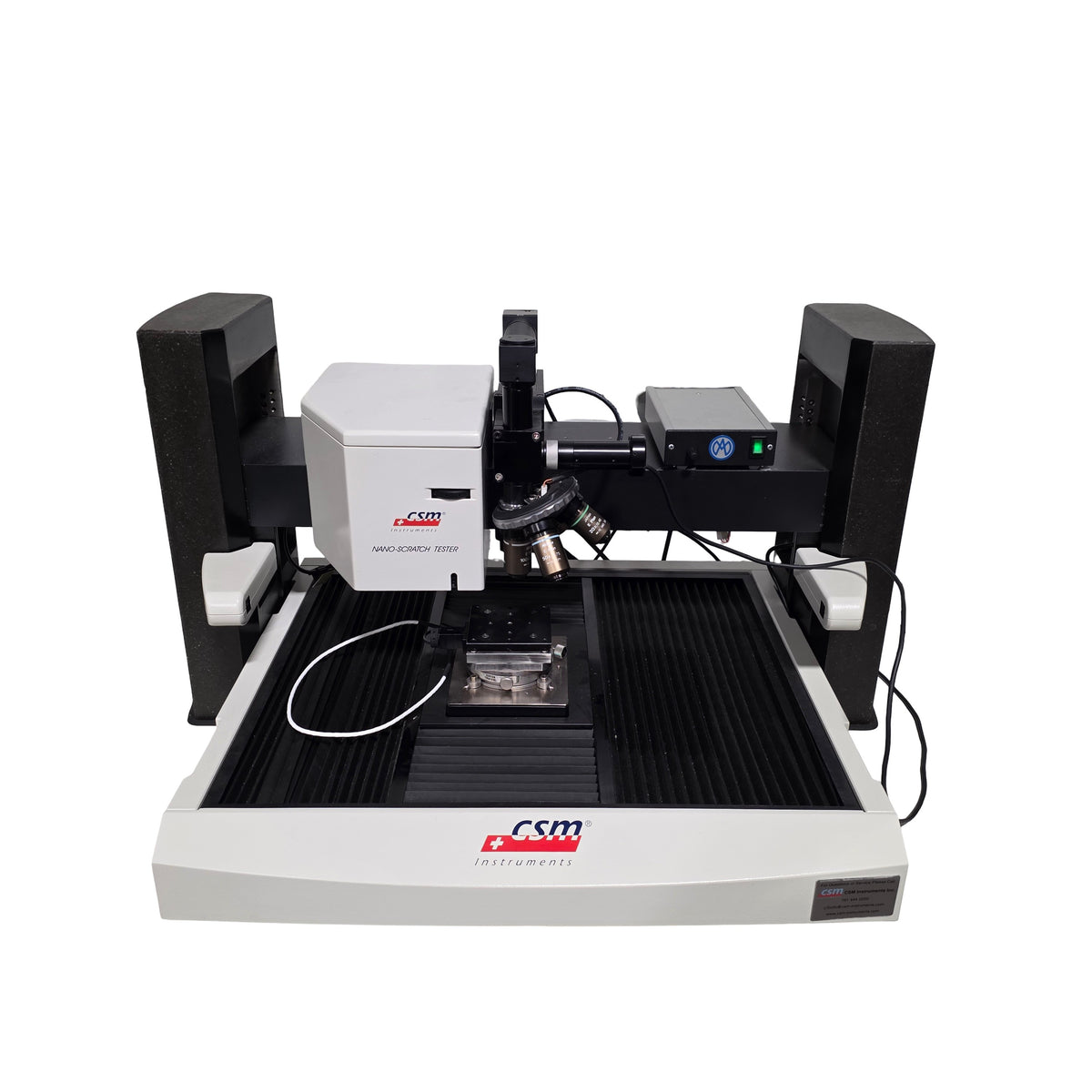

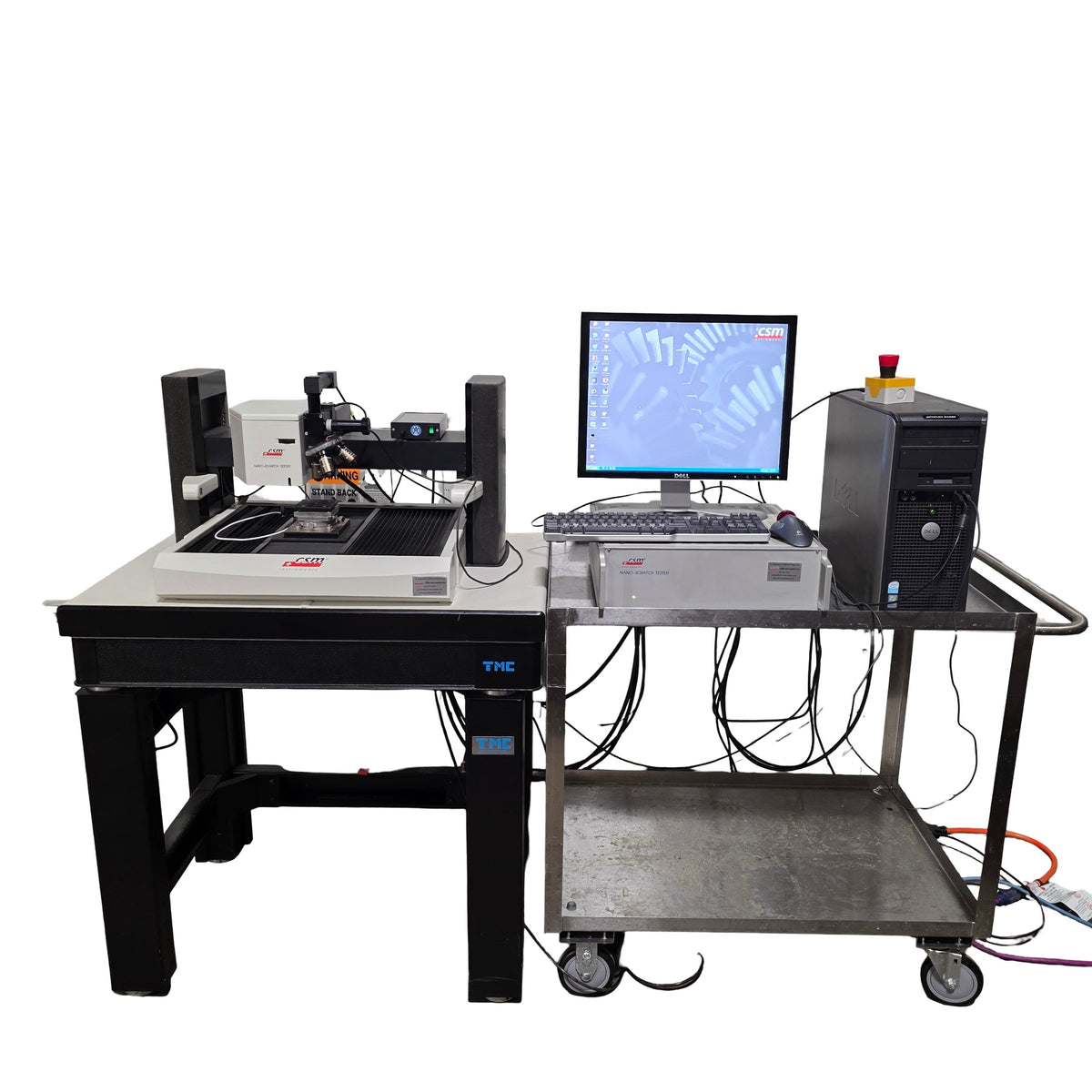

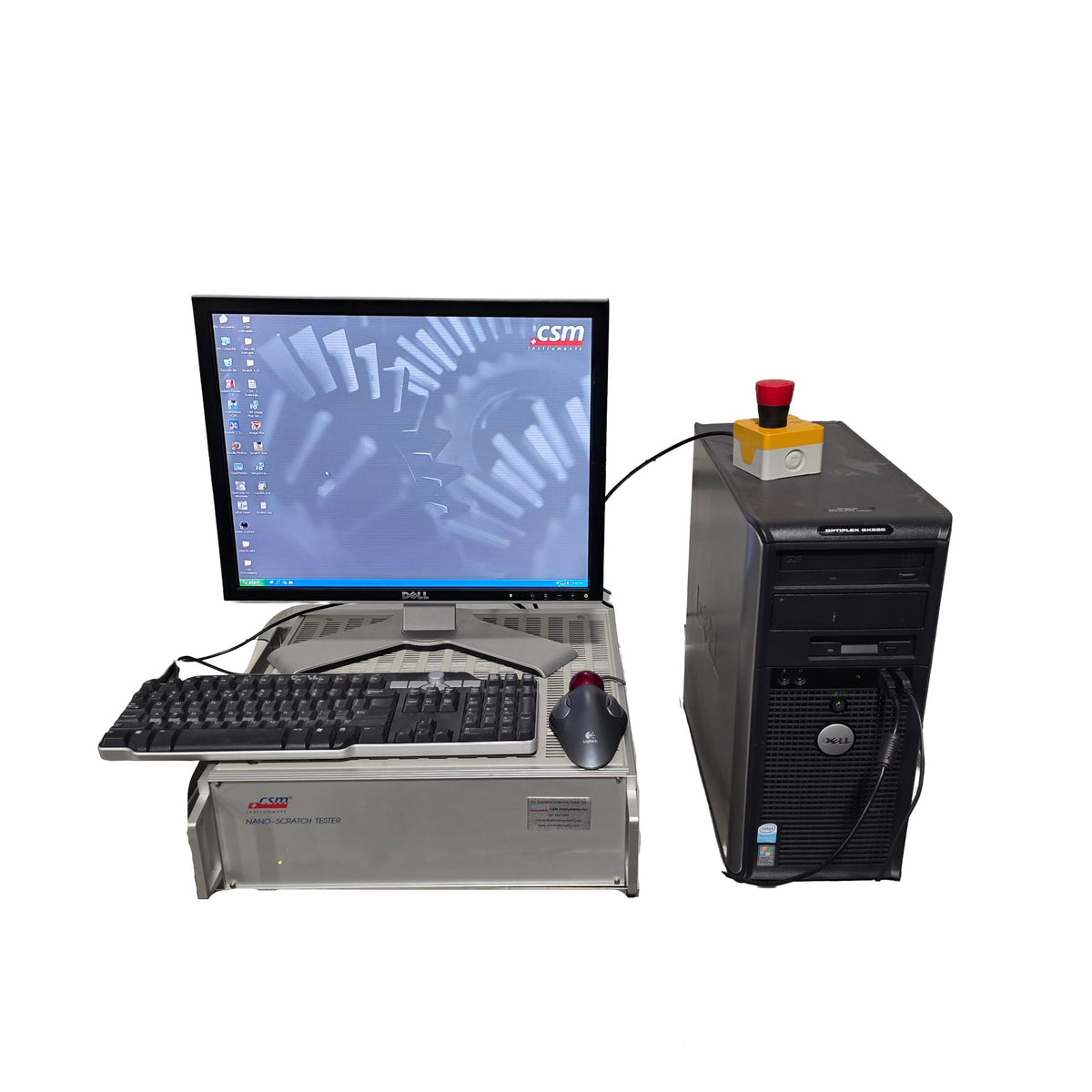

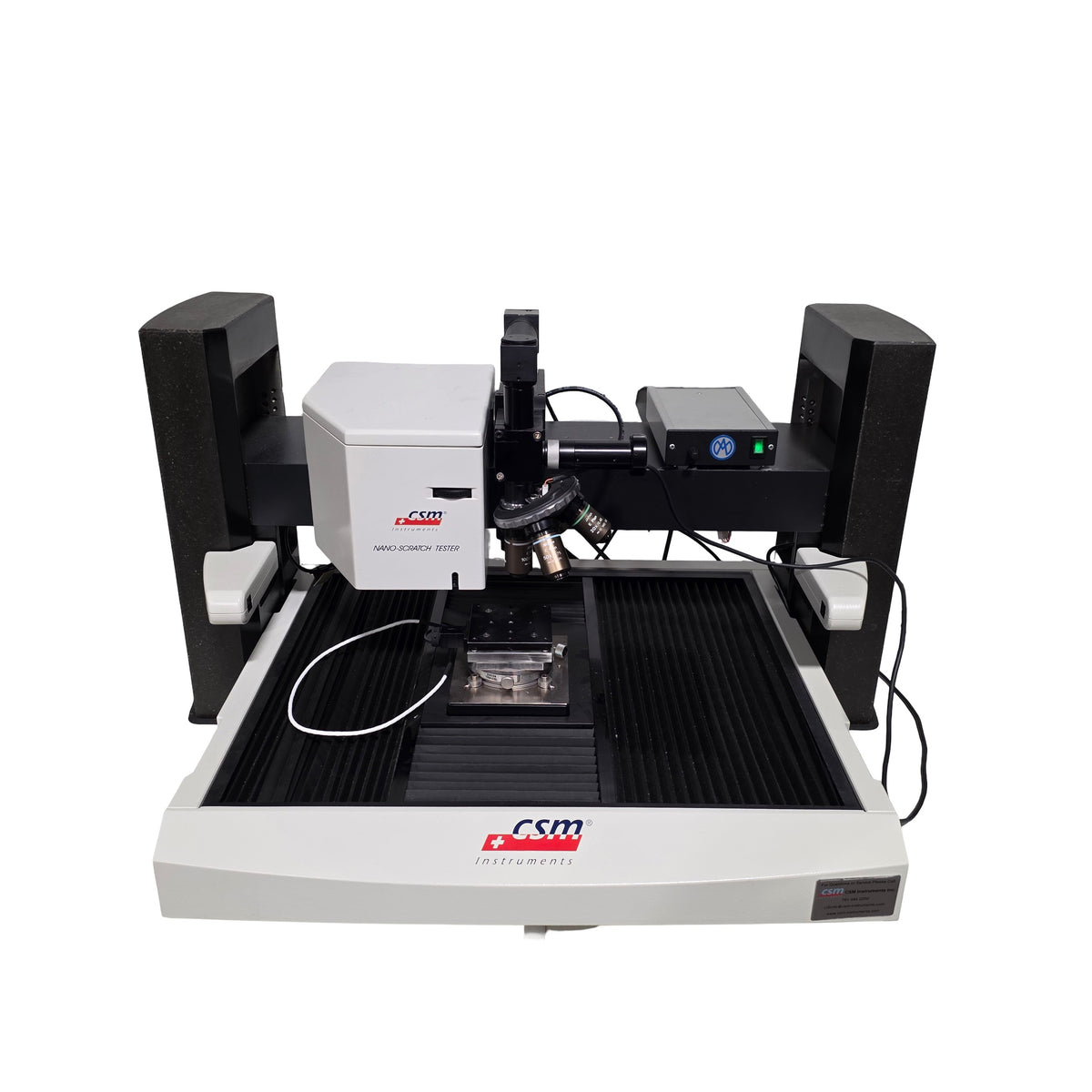

From our inventory we are selling a CSM Instruments Open Platform With Nano Scratch Testing System 10µN to 1N 120VAC.

Specifications:

  • Model #: NST
  • More Information:
    • CSM Instruments Open Platform With Nano Scratch Testing System
    • Normal Force Range: 10µN to 1N
    • Load Resolution: 0.15µN
    • Max Friction Force: 1N
    • Friction Resolution: 0.3mN
    • Max Scratch Length: 120mm
    • Scratch Speed: 0.4-600mm/min
    • Max Depth: 2mm
    • X, Y Stage: 245mm x 120mm
    • X, Y Resolution: 0.25µm

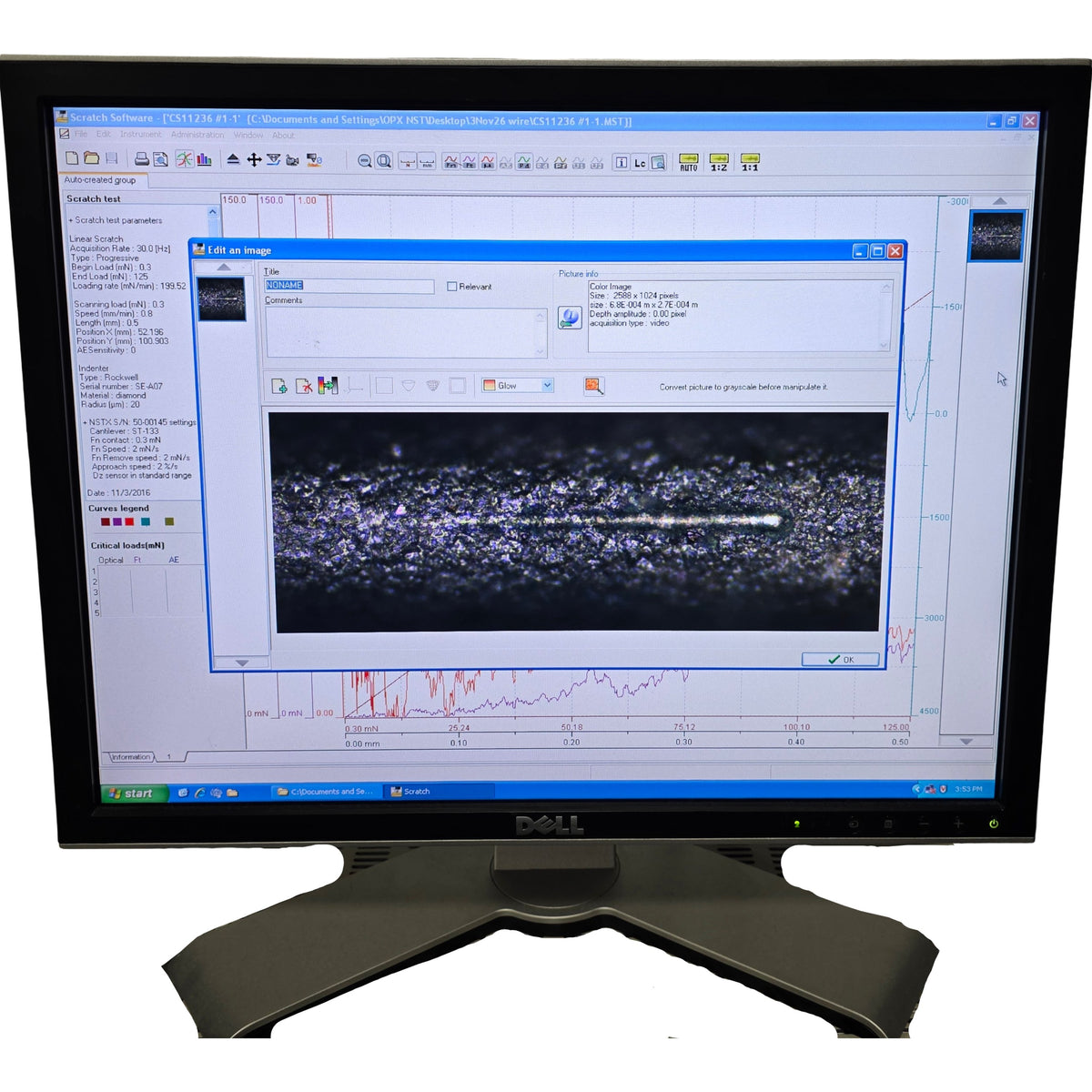

    • Video Microscope Magnification: 200x, 800x, 4000x
    • Video Microscope Resolution: 768x582
    • Power Requirements: 120VAC

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
