Specifications:

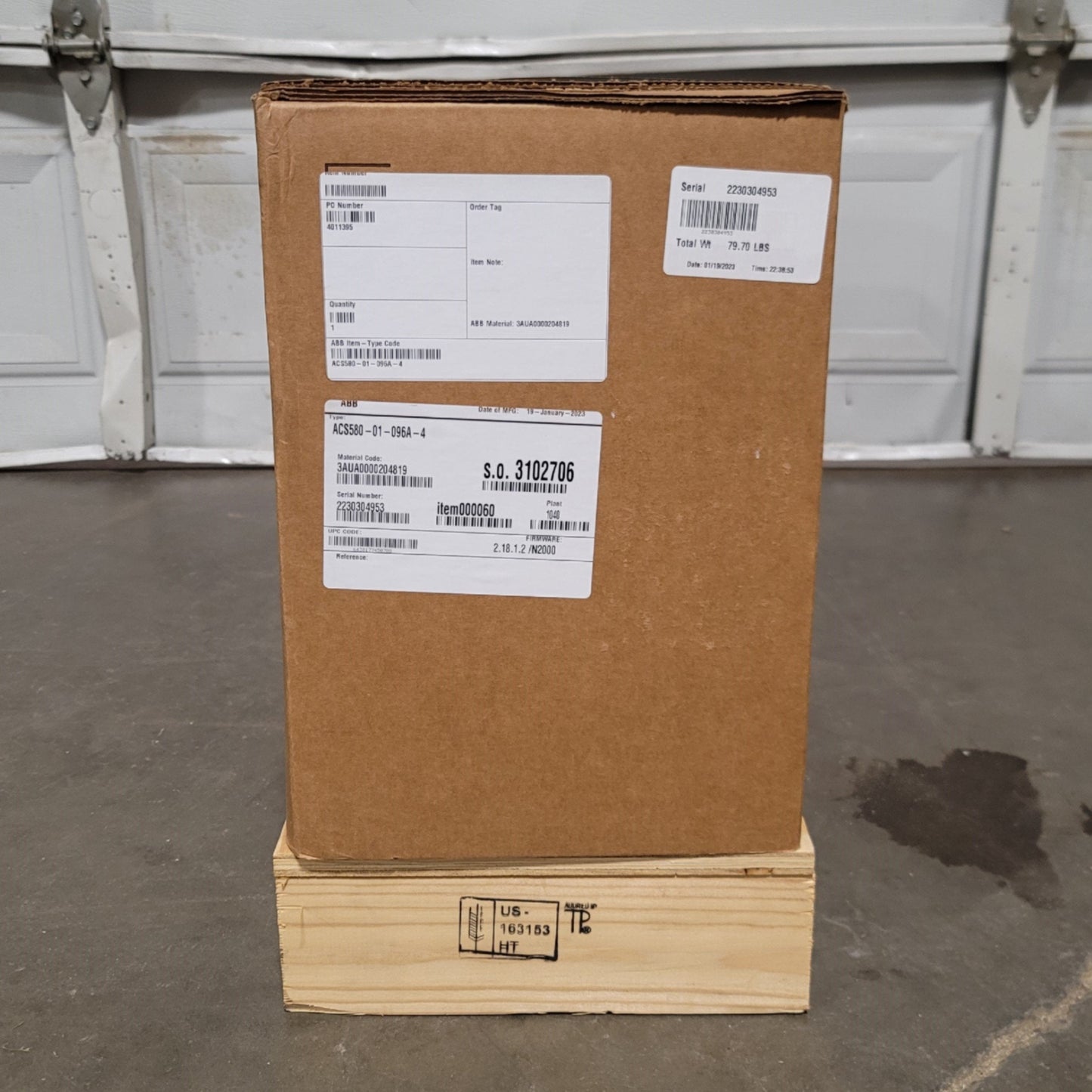

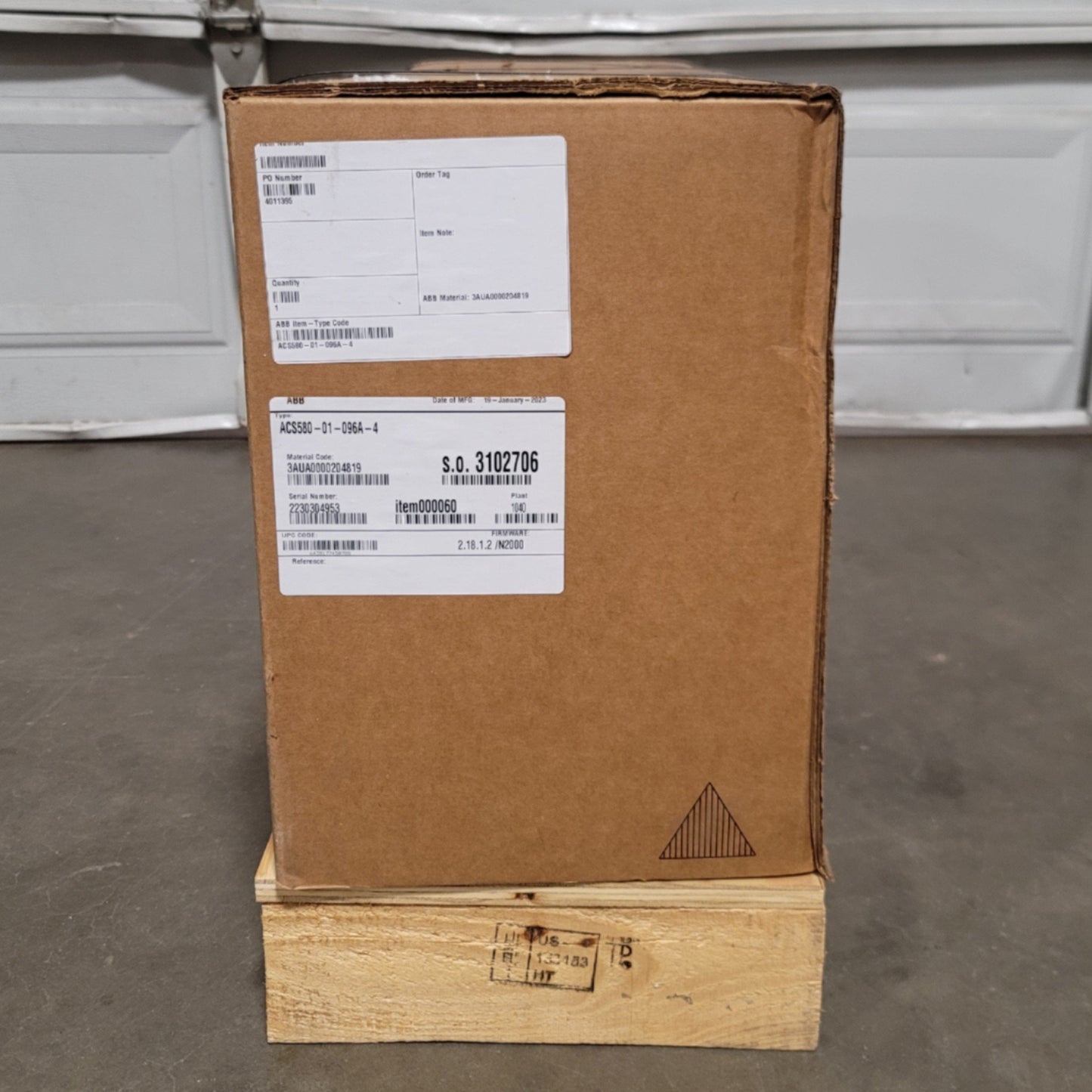

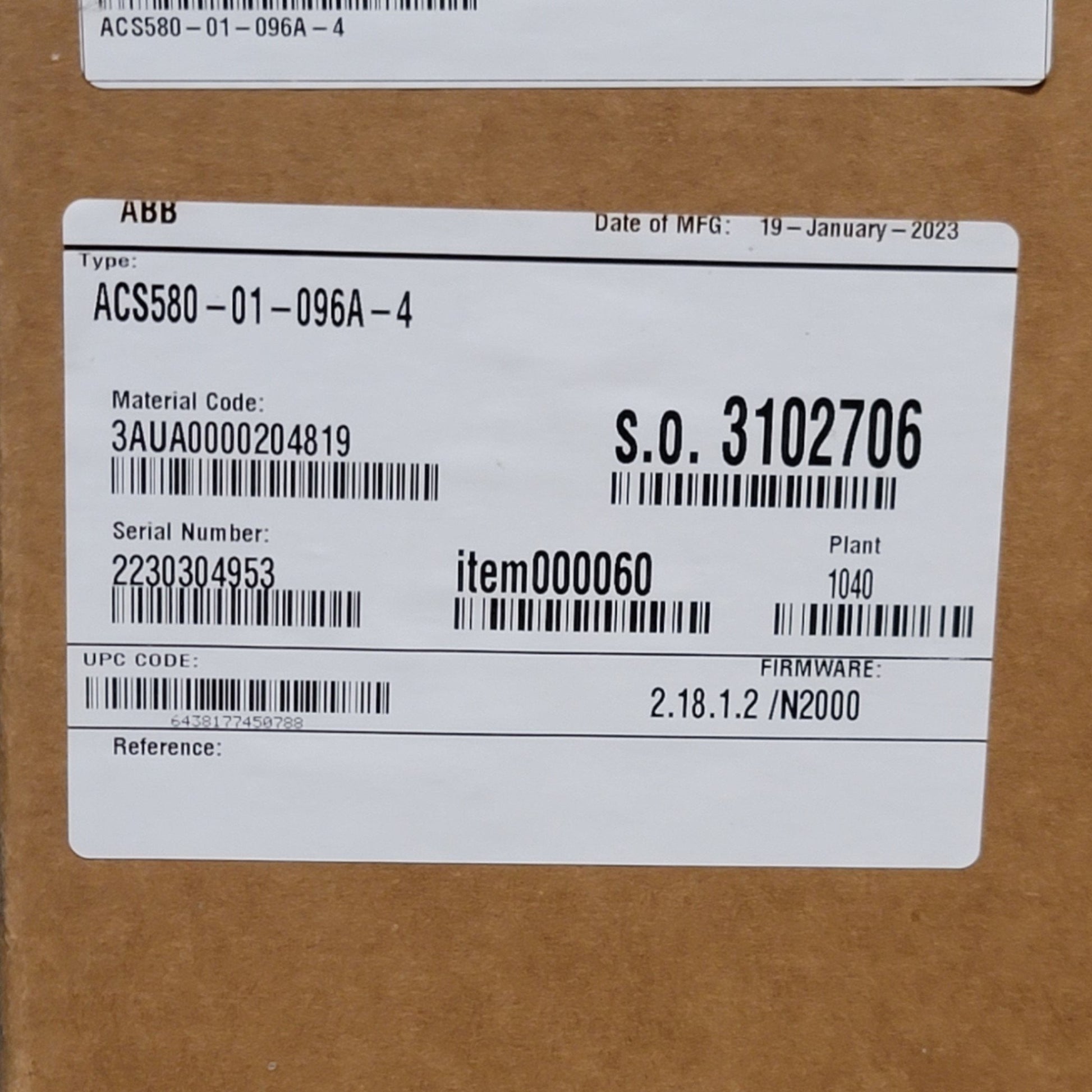

• Model #:  ACS580-01-096A-4
• More Information:
• ABB Variable Frequency Drive
• Rated Output Power: 75HP
• Input Voltage: 380-500VAC 3-Phase
• Input Current: 96A
• Output Voltage: 0-Input Voltage 3-Phase
• Output Frequency: 0-500Hz
• Analog Inputs:
• Two Single Ended:
• 0 (2) to 10 V, Rin > 312kO
• 0 (4) to 20mA, Rin = 100 O
• Analog Outputs:
• Two Current Outputs: 0 to 20 mA, load < 500 O
• Digital Inputs:
• Six Digital Inputs: 15 V...24 VDC With Internal Or External Supply
• Input Impedance: Pull-Up Or Pull-Down (PNP Or NPN) (DI1 To DI5); NPN (DI6) 2.4 kO
• Digital Outputs:
• Three Relay Outputs: Form C
• Maximum Switching Voltage: 250VAC/30VDC
• Maximum Continuous Current: 2A

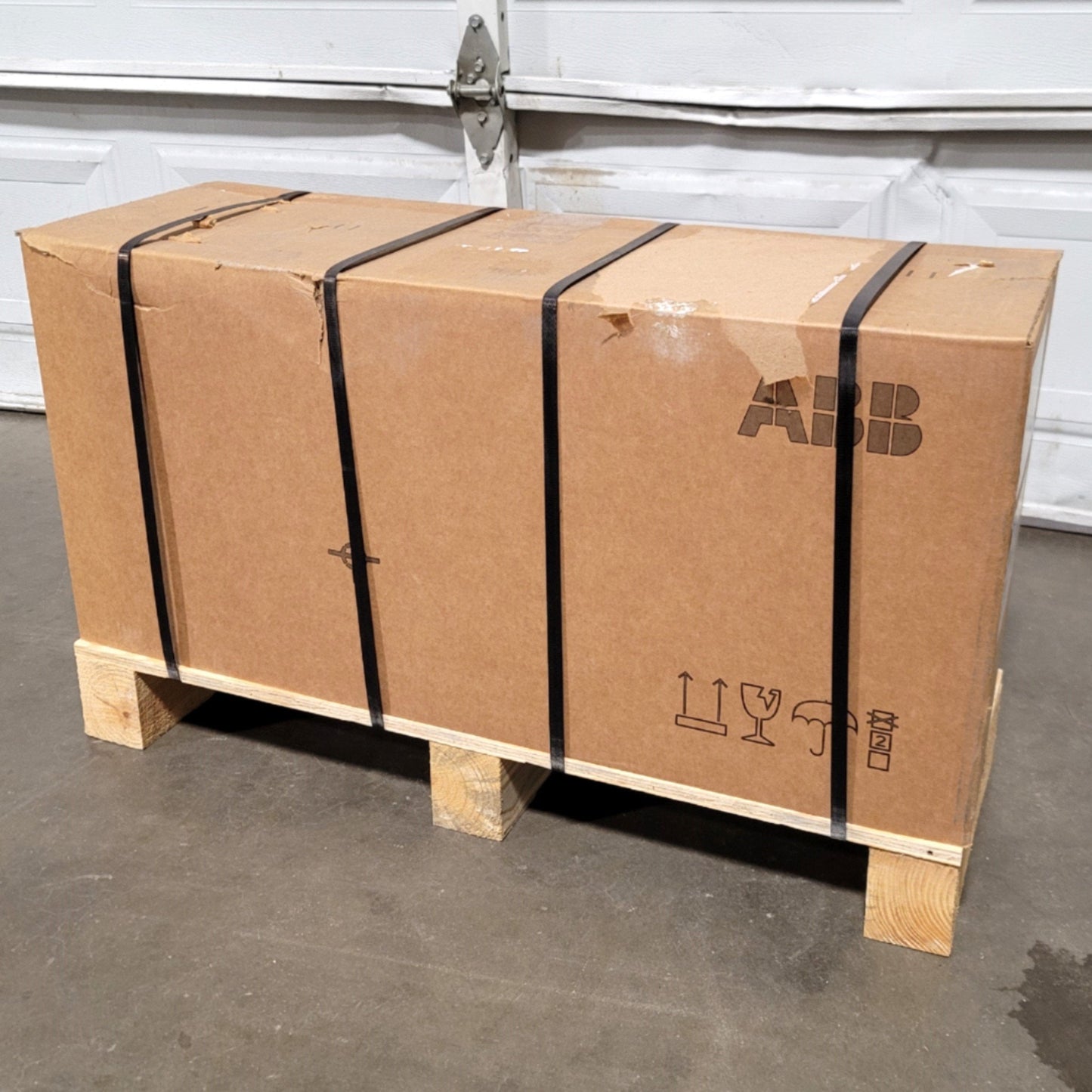

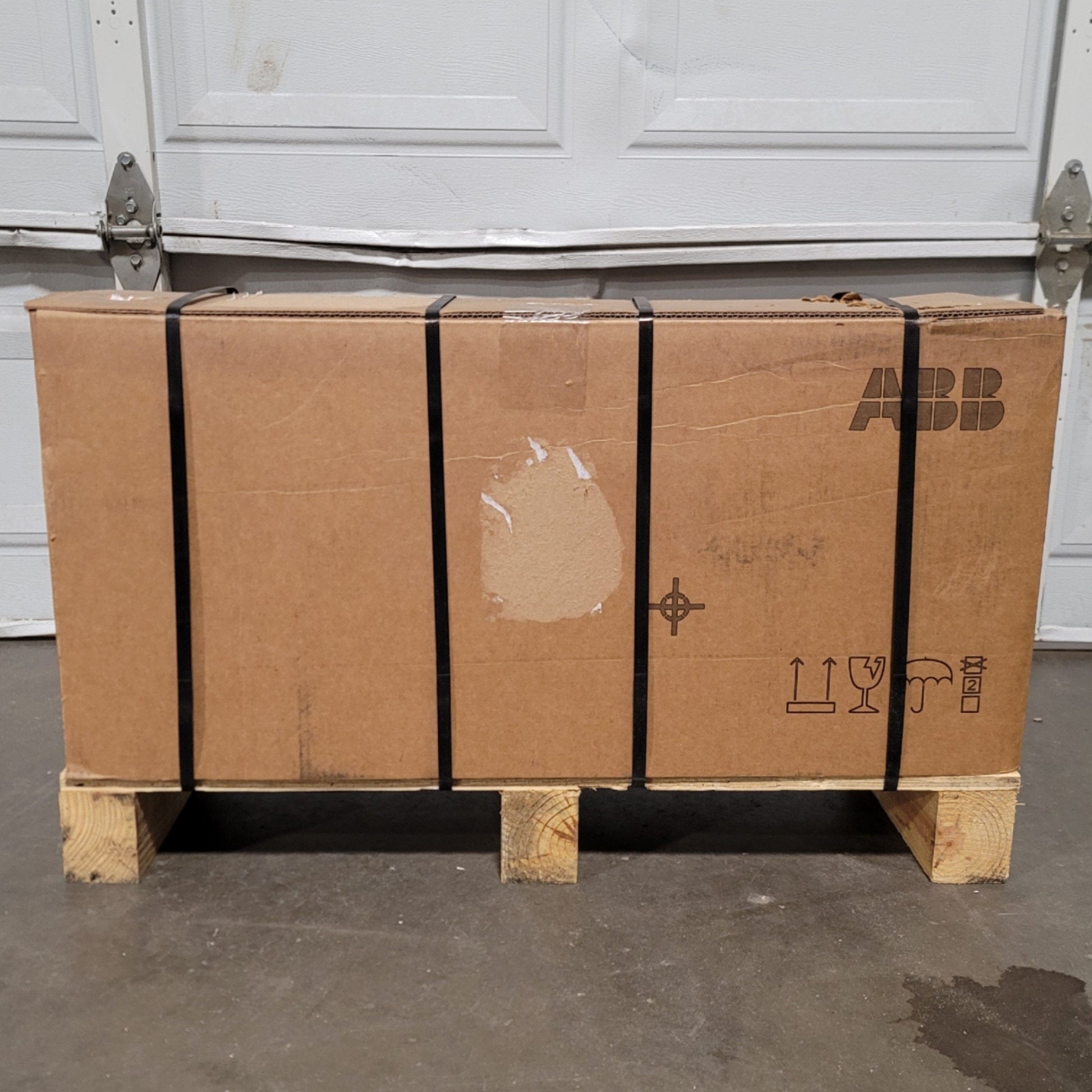

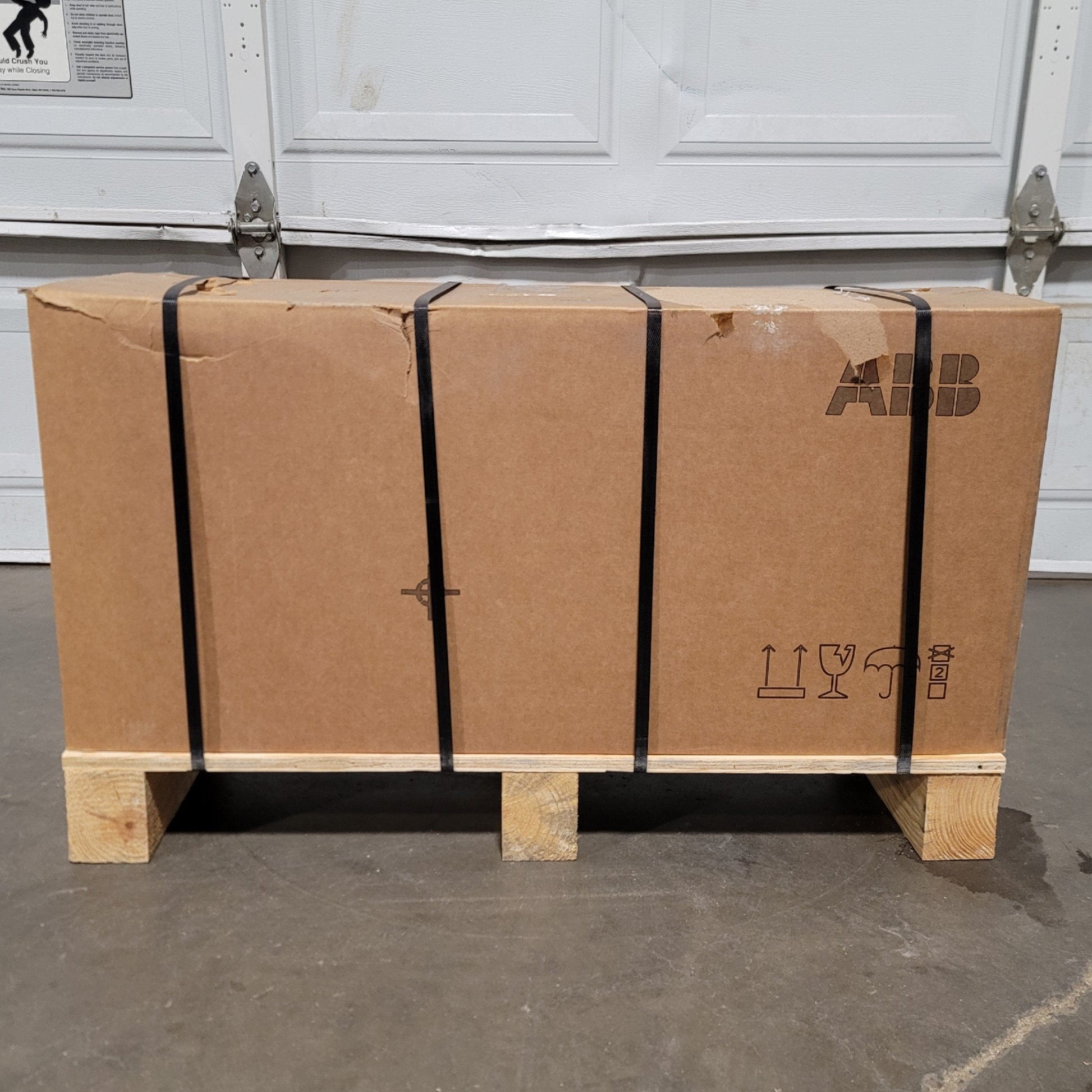

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
