New ICP 13of22 Electret Array Microphone 1/4", 18-30VDC, 2-20mA <150 Ohm SMB coaxial
$310.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have more than 5 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for ICP. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: New
SKU: SB-192080
ST45-3-H

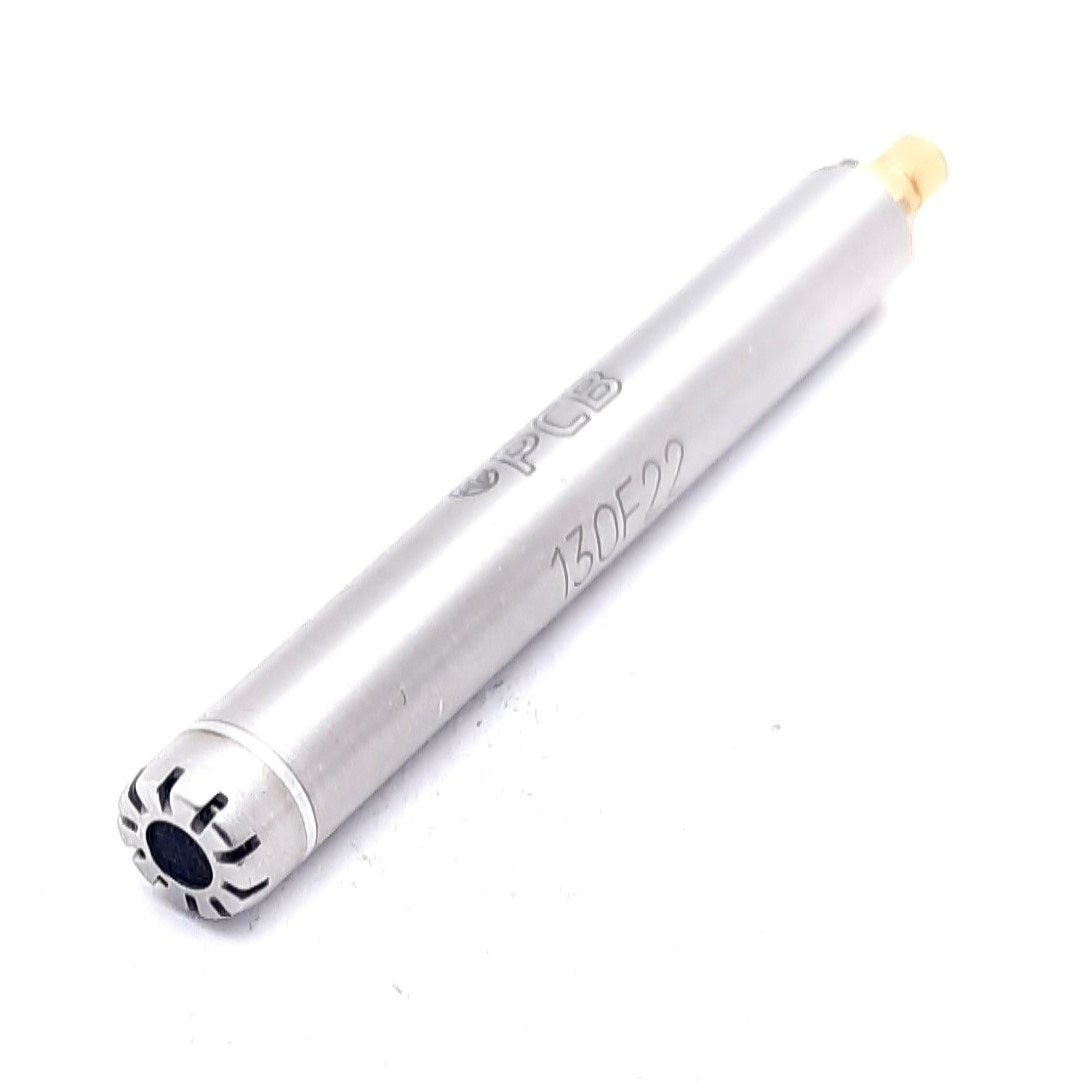

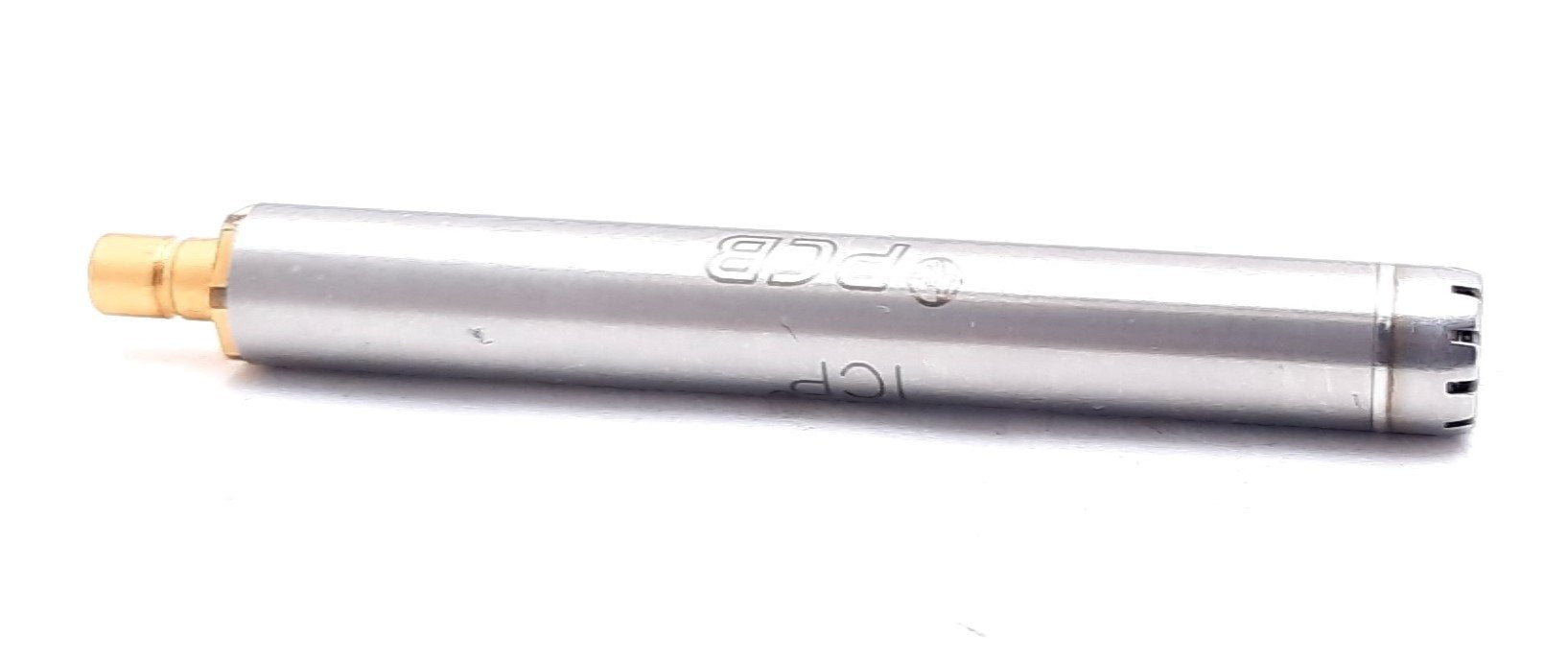

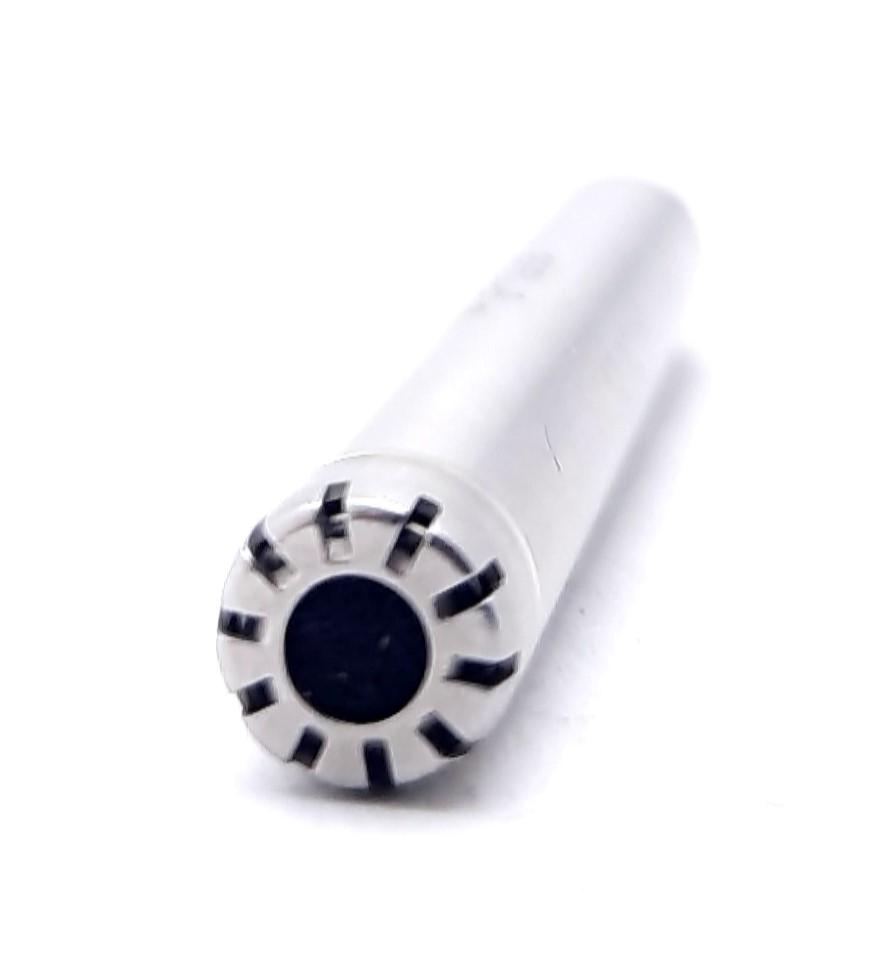

From our inventory we are selling a ICP 13of22 Electret Array Microphone 1/4", 18-30VDC, 2-20mA, <150 Ohm SMB Coaxial.

Specifications:

  • Model #: 13of22
  • More Information:
    • Electret Array Microphone
    • Nominal Microphone Diameter: 1/4"
    • Frequency Response Characteristic (at 0° incidence): Free-Field
    • Frequency Response (±2 dB): 20 to 10000 Hz
    • Frequency Response (±3 dB): 10 to 16000 Hz
    • Frequency Response (±4 dB): 10 to 20000 Hz
    • Sensitivity: 45 mV/Pa
    • Excitation Voltage: 18 to 30VDC
    • Constant Current Excitation: 2-20mA
    • Output Bias Voltage: 5.5-14VDC
    • Output Impedance: <150 Ohm

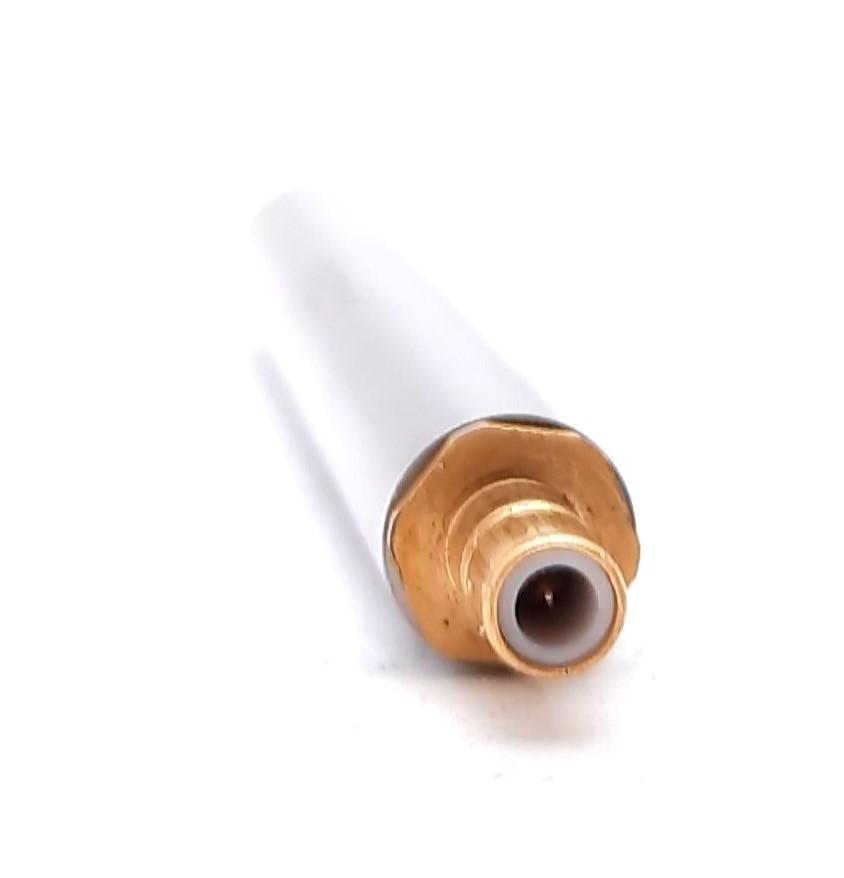

    • Electrical Connector (Output): SMB Coaxial Socket
