Specifications:

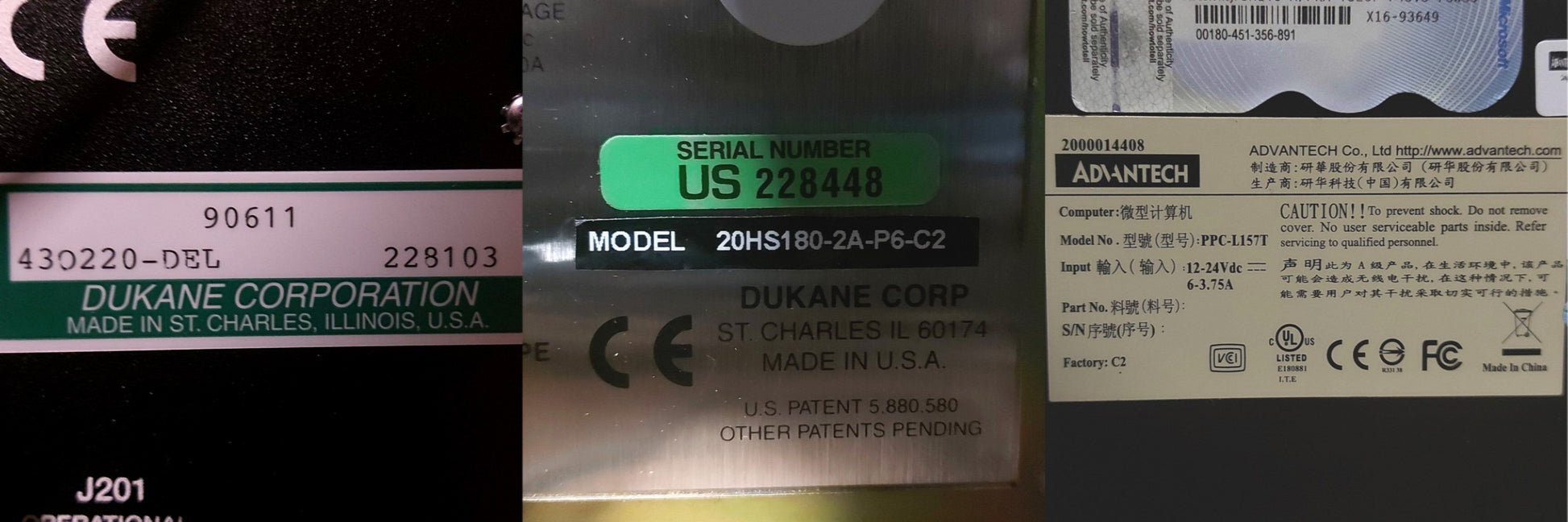

• Model #: 43Q220-DEL, 20HS180-2A-P6-C2
• More Information:

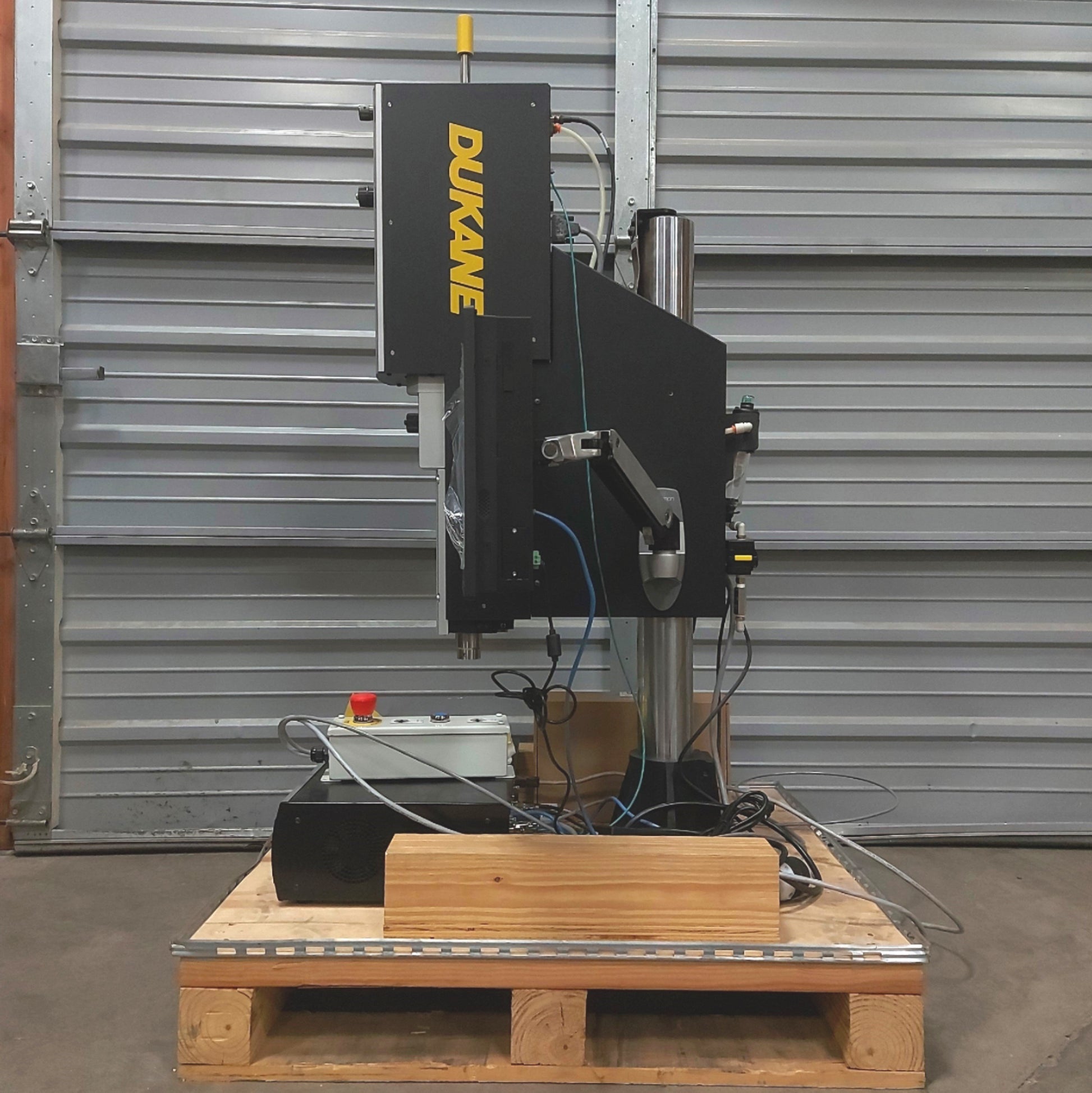

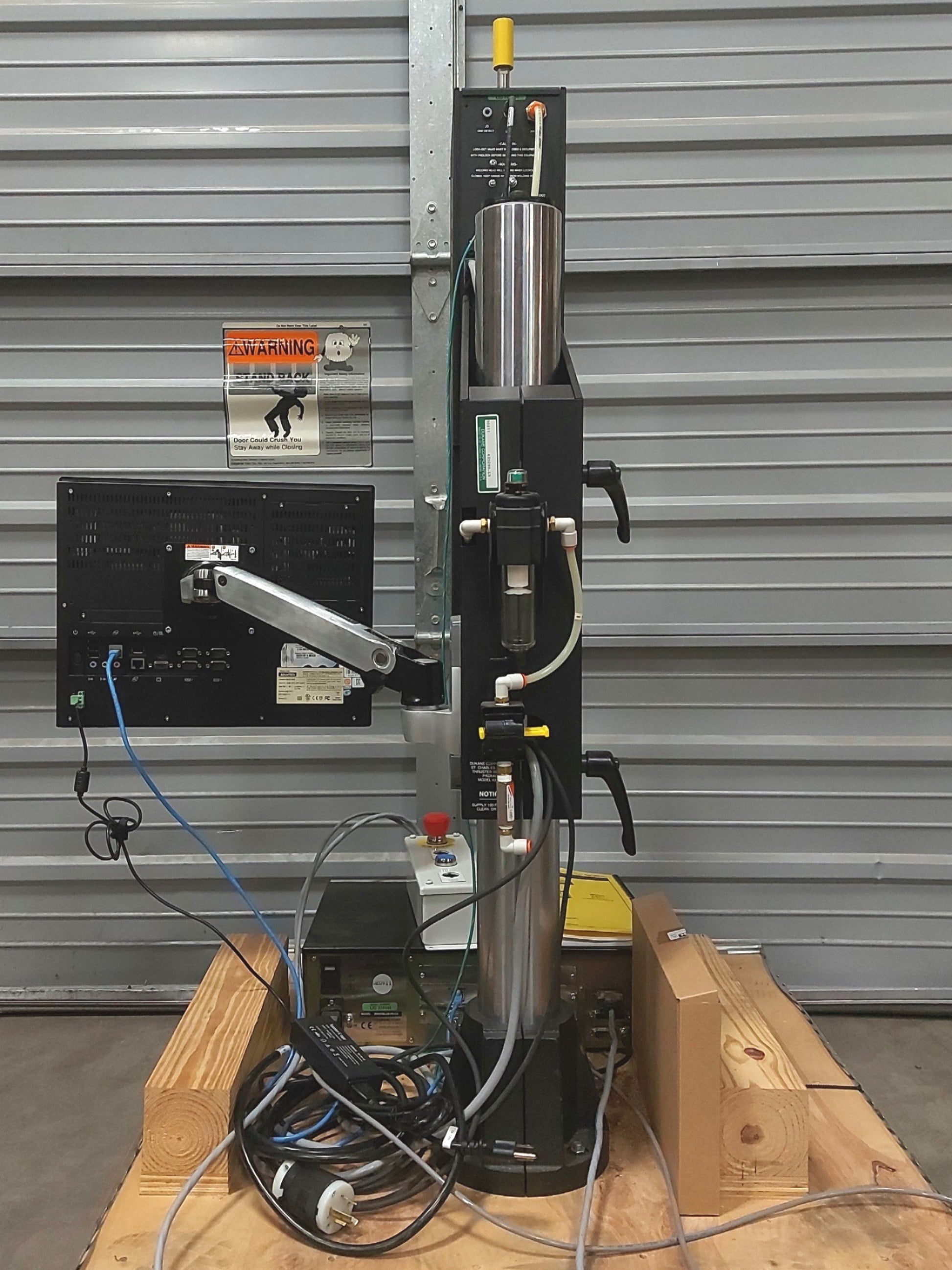

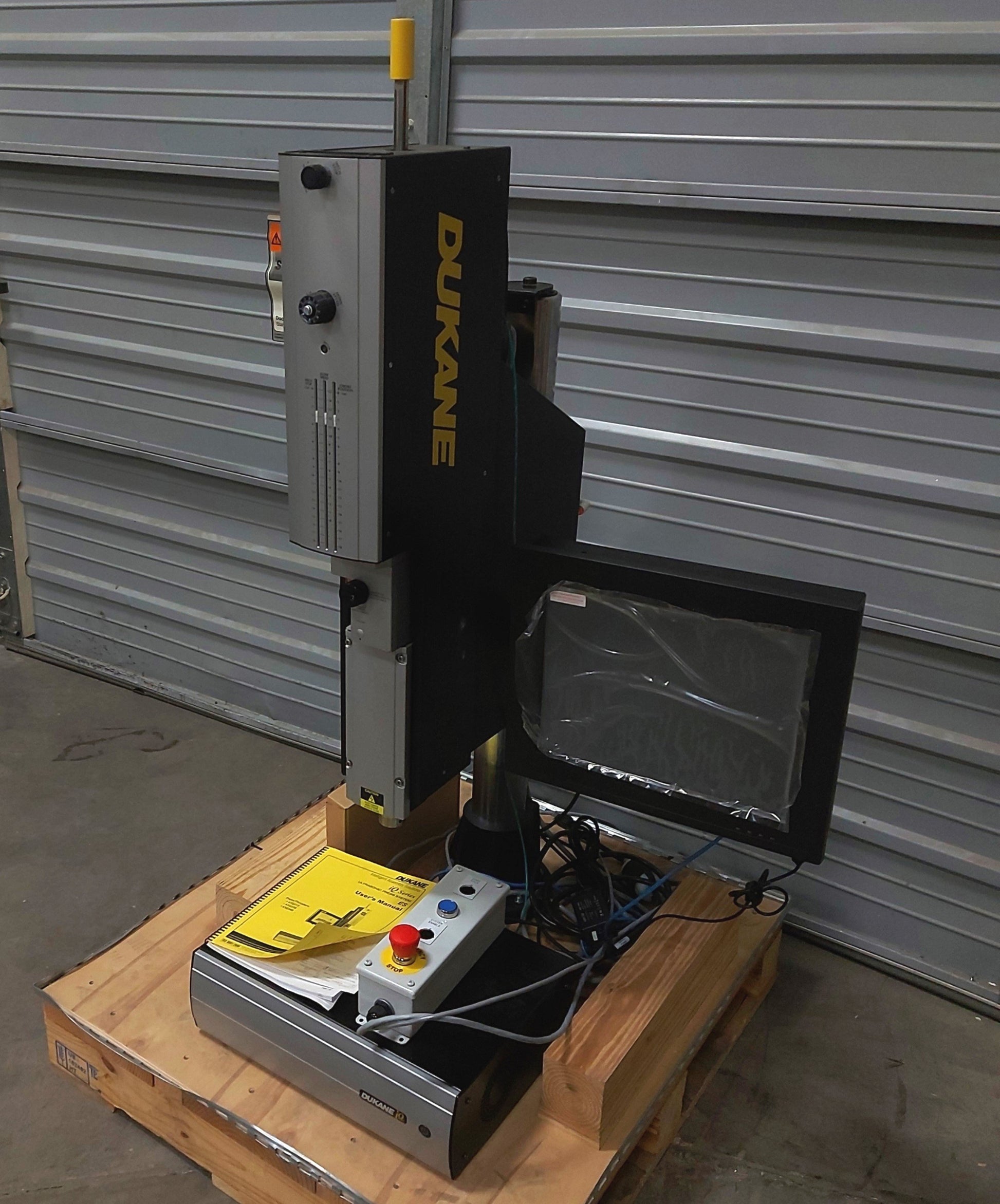

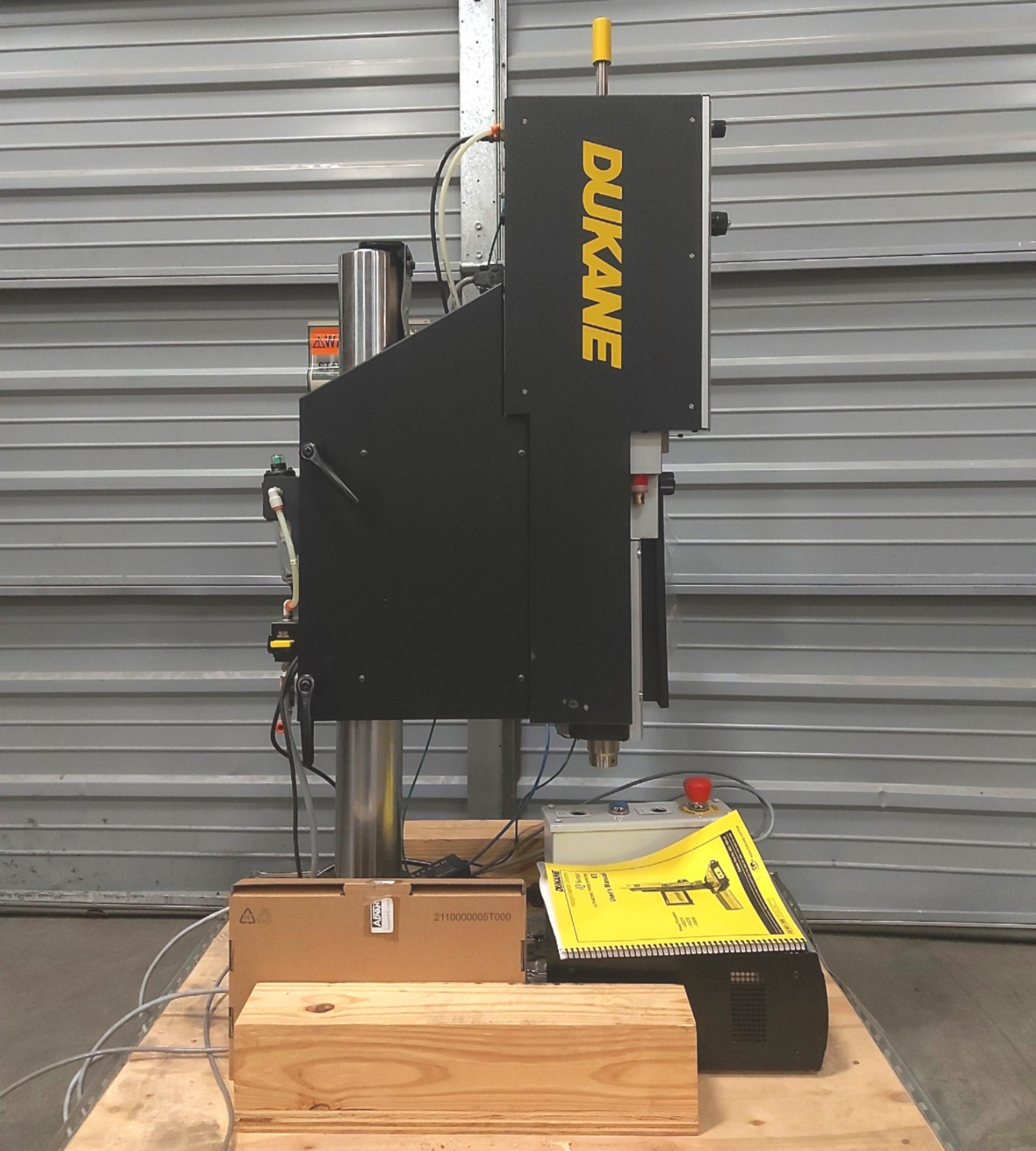

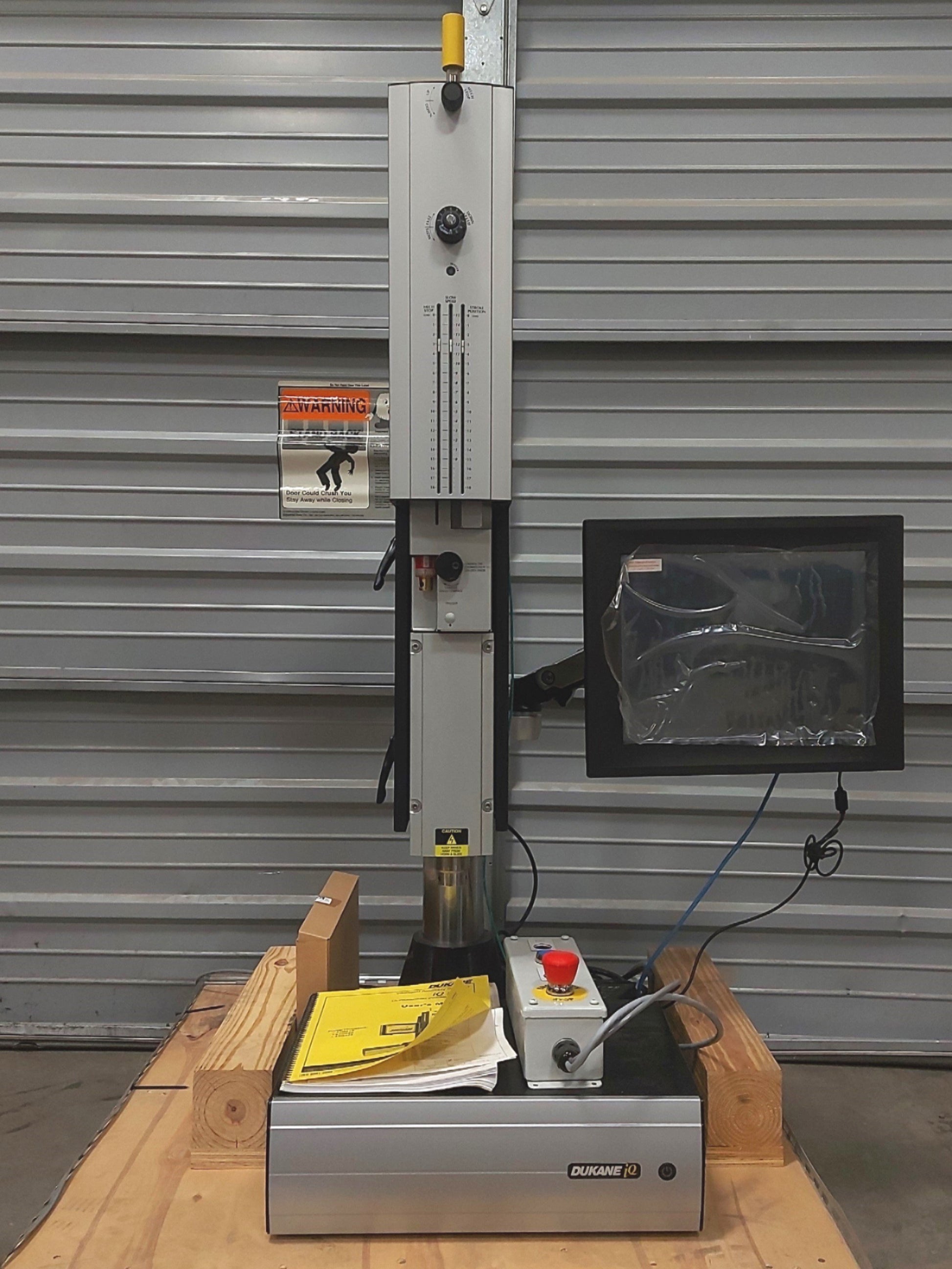

• IQ ES Ultrasonic Welder Pneumatic Press System
• Options: Distance Encoder, Electronic Pressure Regulator, Load Cell

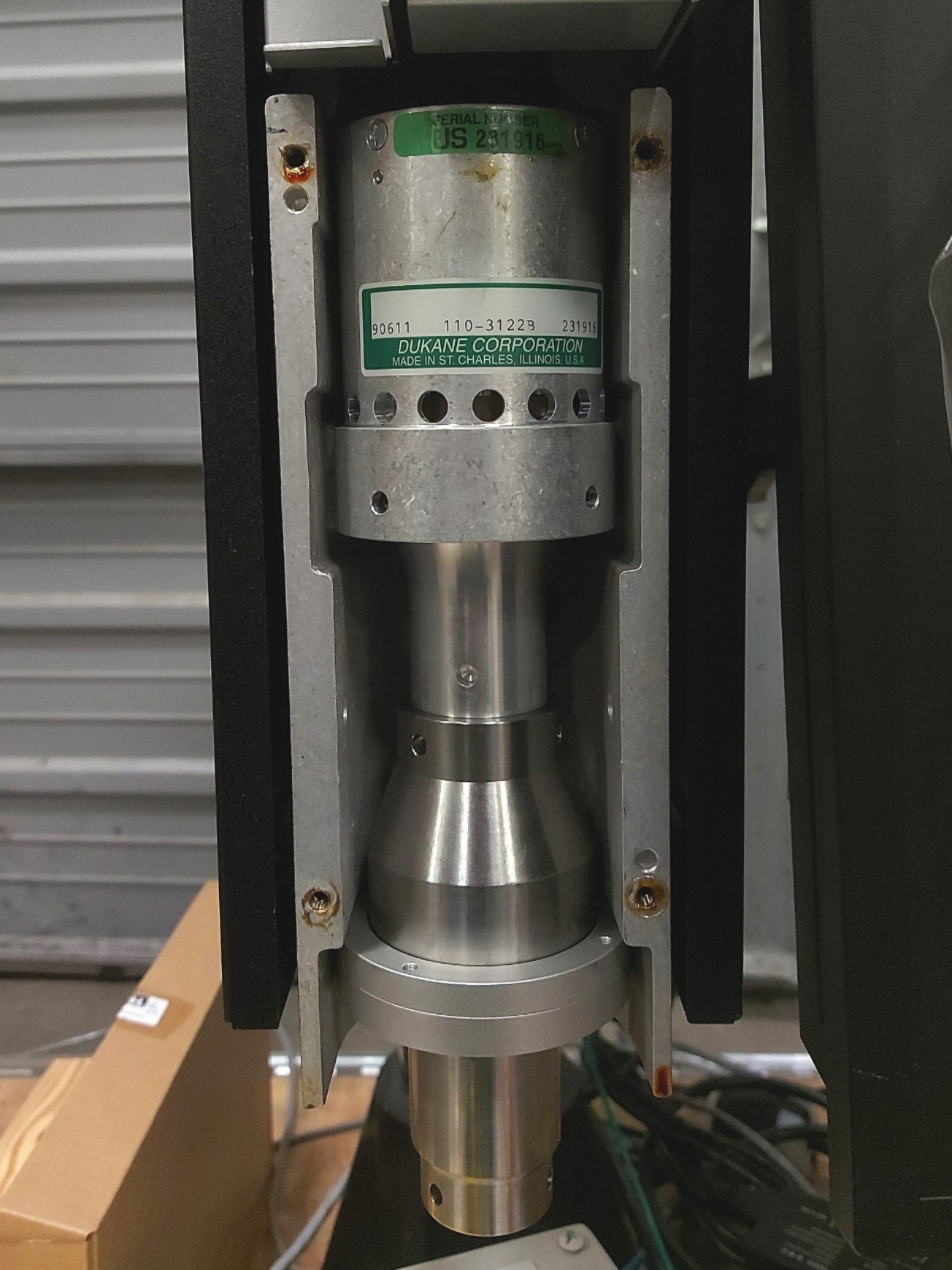

• Ultrasonic Frequency: 20kHz
• Ultrasonic Power: 1800W
• Stroke: 7"
• Air Cylinder Diameter: 2.5"
• Force @110PSI: 540lb
• Supply Pressure: 110PSI
• Air Fitting: 3/8"NPT or 8mm OD Push to Connect

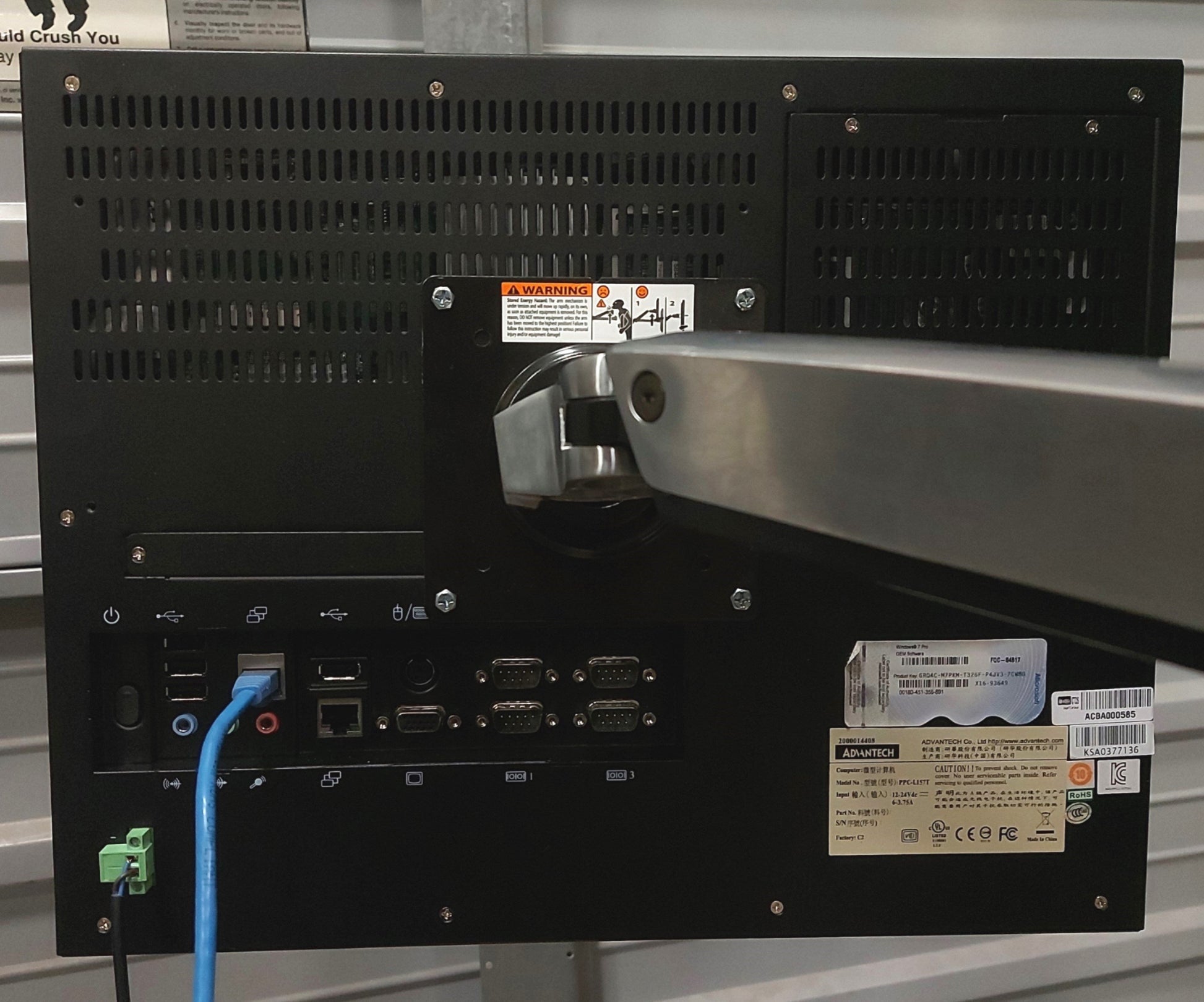

• HMI: Advantech PPC-L157T-R80-XE 15" Touchscreen Intel Atom N270 1.6GHz
• Cables: All Required Cables Are Included (Safety Circuit Will Need to be Implemented or Defeated)
• HMI Power Requirements: 120VAC 50/60Hz
• Press Power Requirements: 24VDC 2A (Supplied by Generator)

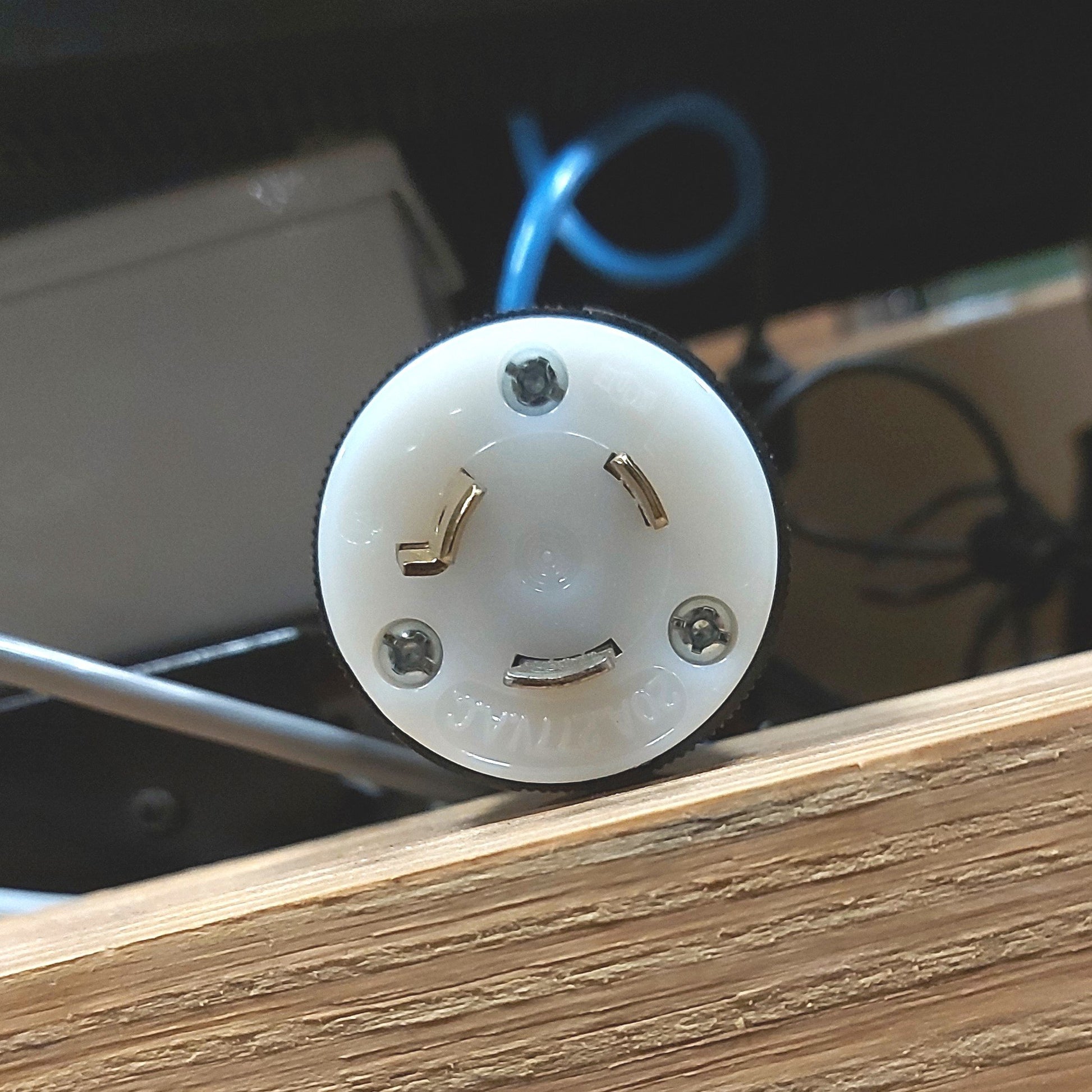

• Ultrasonic Generator Power Requirements: 1-Phase 200-240VAC 12A 50/60Hz
• Press Dimensions: 56.94 x 28.8 x 18.6"

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
