Specifications:

• Model #:  PX8000-D-HE/G5/M2
• More Information:

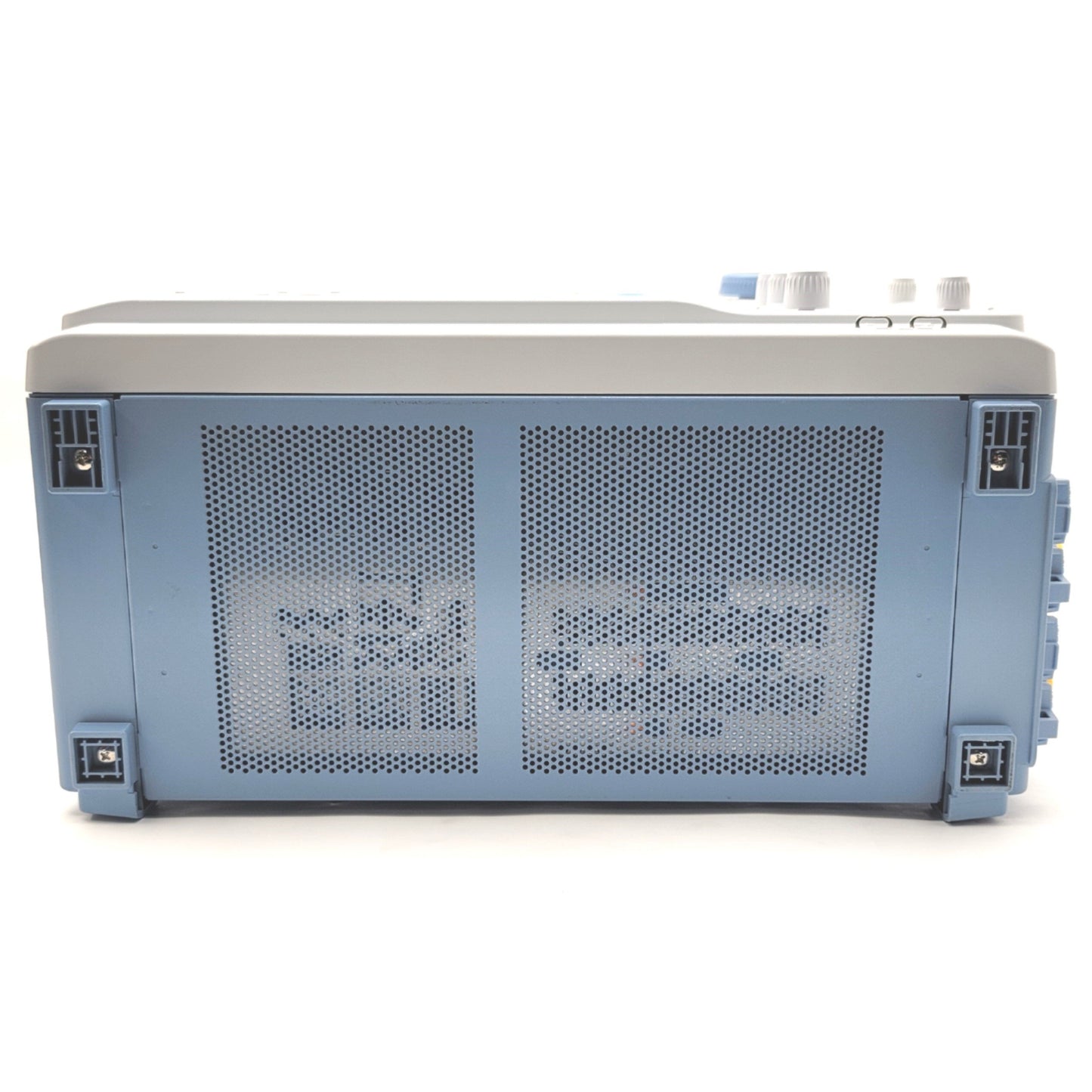

  • Yokogawa Precision Power Scope
  • Included Modules:
    • 4x 760811 Voltage Modules
      • 12-bit sampling at up to 100MS/s
      • DC to 20MHz bandwidth (-3dB)
      • 1.5V to 1000Vrms direct input
      • 45Hz to 1kHz accuracy: 0.1% of reading, +0.1% of range
      • Max 1000 Vrms common mode voltage
    • 4x 760812 Current Modules
      • 12-bit sampling at up to 100MS/s
      • DC to 10MHz bandwidth (-3dB, direct input)
      • DC to 20MHz bandwidth (-3dB, sensor voltage input)
      • 10mA to 5Arms direct input
      • 50mV to 10Vrms sensor input
      • 45Hz to 1kHz accuracy: 0.1% of reading, +0.1% of range
      • Max 600 Vrms common mode voltage
  • Line Voltage: 100-120/220-240VAC
  • Voltage direct input range:
    • 1.5/3/6/10/15/30/60/100/150/300/600/1000 Vrms
  • Current direct input range:
    • 10 m/20 m/50 m/100 m/200 m/500 m/1/2/5 Arms
  • Current sensor input range:
    • 50 m/100 m/200 m/500 m/1/2/5/10 Vrms
  • Frequency range:
    • DC to 20 MHz (-3 dB, voltage and current  sensor input)  DC to 10 MHz (-3 dB, current direct input)
  • Power basic accuracy (45 Hz to 66 Hz):
    • ñ(0.1% of reading + 0.1% of range)
  • Influence of power factor error (cos ? = 0):
    •  ñ0.15% of S (apparent power)
  • A/D converter:
    • Maximum sampling rate 100 MS/s  Resolution 12-bit
  • Acquisition memory:
    • 100 M points per channel (/M2 option)
  • Maximum waveform viewing time:
    • 20 minutes (not dependent on the memory size)
  • History memory:
    • This function can save up 1,000 records of waveform data and display and calculate them as needed(when the /M2 option installed)
  • Waveform display:
    • Up to 16 waveforms can be displayed.  Voltage and current waveforms and simultaneous power waveform can be displayed.
  • Snapshot:
    • Waveform at an arbitrary moment on the screen can be saved.
  • De-skew (phase compensation) function:
    • Phase difference between the voltage and current modules is compensated.
  • Trend measurement (waveform measurement, MATH):
    • Voltage, current, and power waveform calculation for each cycle
  • Calculation in the specified period (waveform parameter calculation, MEASURE):
    • Average value between cursors can be measured.
  • Simultaneous harmonic measurement:
    • Up to the 500th order harmonic measurement  (/G5 option)
  • 2-channel FFT function available as standard
  • External storage:
    • USB port (?2), SD card
  • Video output:
    • RGB analog, video output
  • Display:
    • 10.4-inch color TFT XGA display
  • GP-IB, Ethernet, and USB communication available as standard
  • Sensor power supply:
    • 4CH DC power supply ñ15Vdc Max. of 1A/CH
  • External dimensions:
    • 355 (W) ? 259 (H) ? 180 (D) mm

Item Specifics & Seller Notes:
Item Is New Without Original Packaging.
