Specifications:

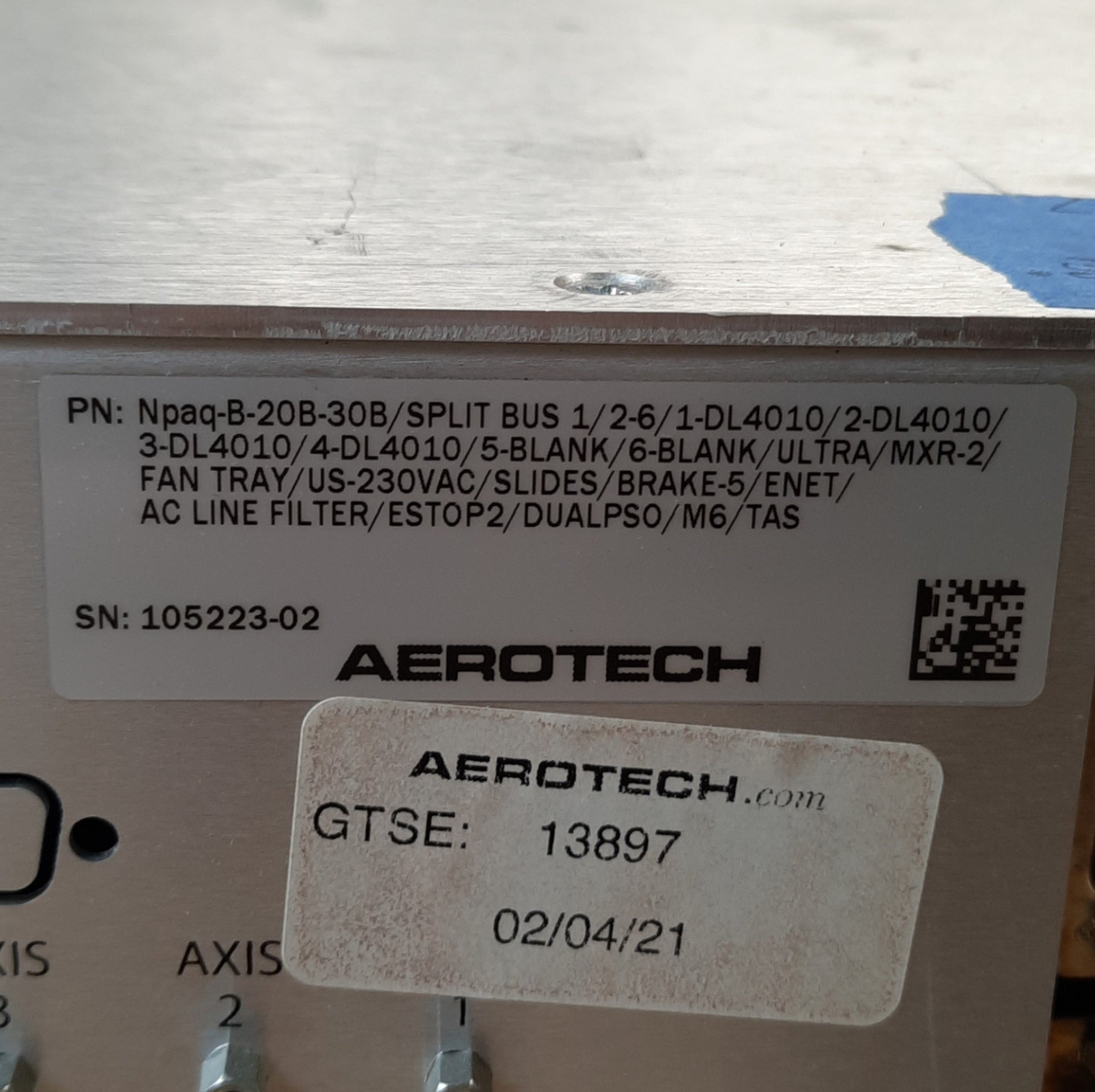

• Model #: Npaq-B-20B-30B/SPLIT BUS 1/2-6/1-DL4010/2-DL4010/3-DL4010/4-DL4010/5-BLANK/6-BLANK/ULTRA/MXR-2/FAN TRAY/US-230VAC/SLIDES/BRAKE-5/ENET/AC LINE FILTER/ESTOP2/DUALPSO/M6/TAS
• More Information:

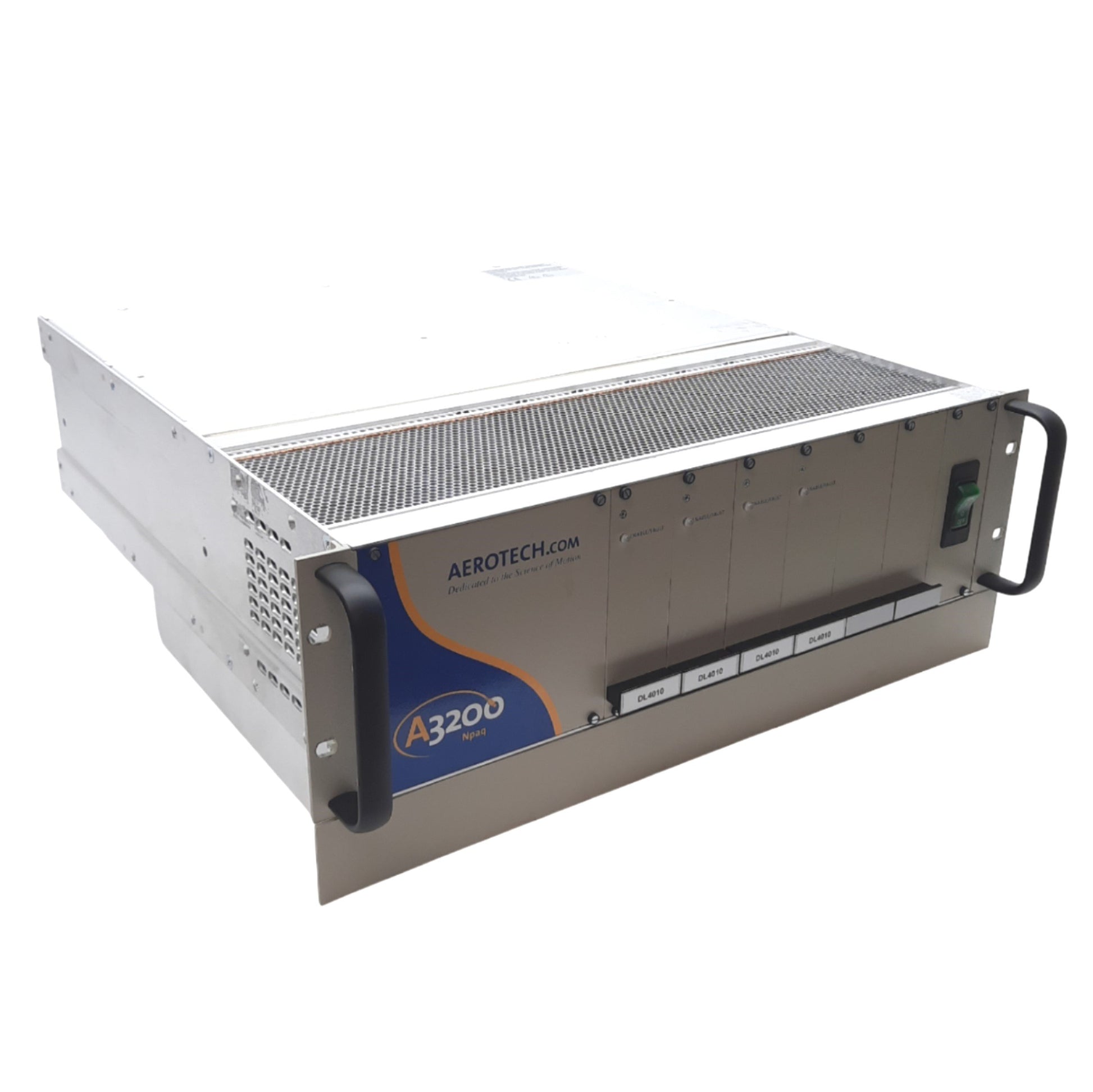

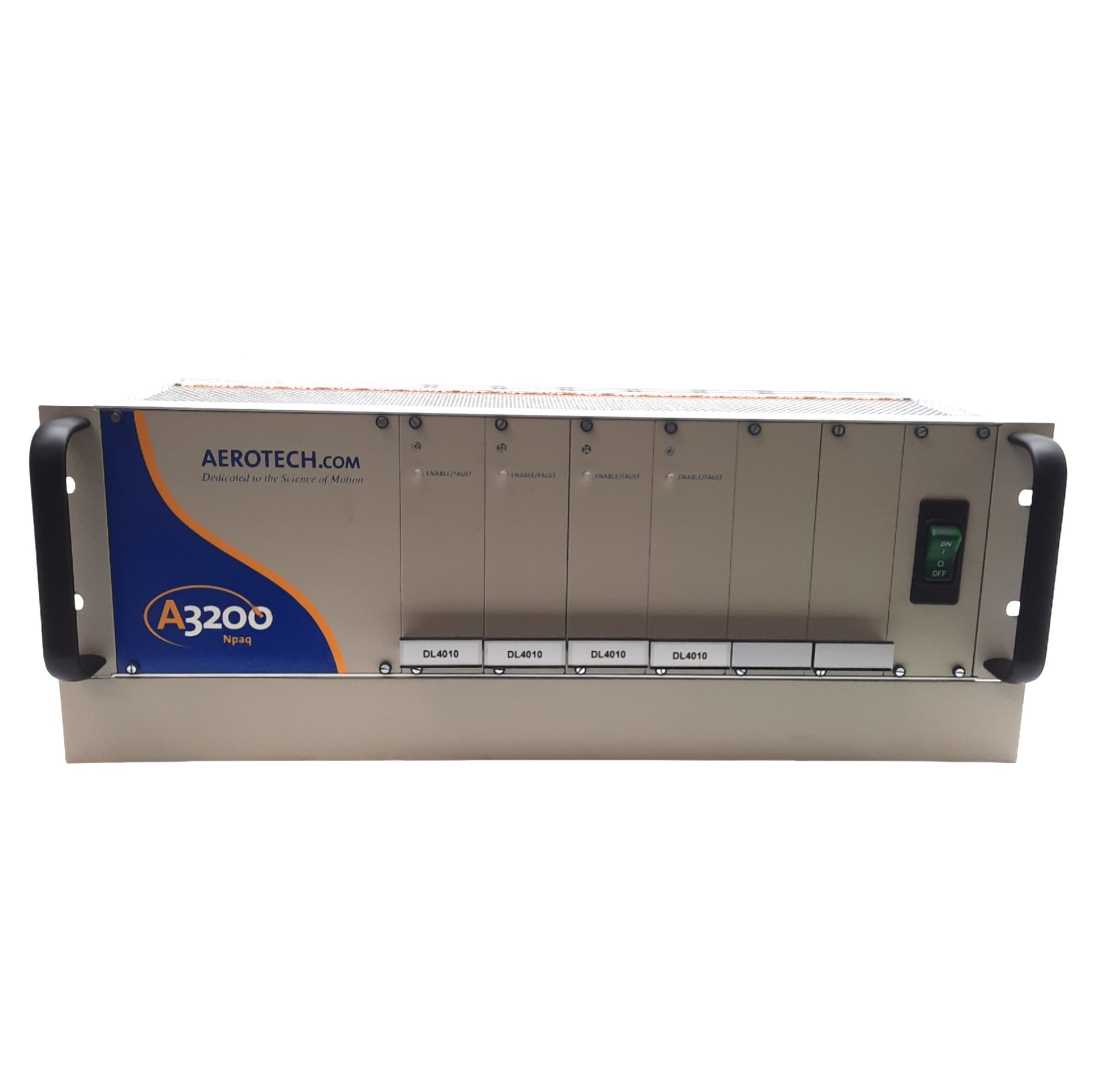

  • 6-Axis Drive Rack Mount Controller
    • Power Input: 230VAC
    • Bus Voltage 1 (Vbus 1): ±20VDC (175W) bipolar
    • Bus Voltage 2 (Vbus 2): ±30VDC (175W) bipolar
    • Amp 1-4: Brushless Driver ±40V 5A cont, 10A Peak, Linear DC
    • Amp 5 & 6: Empty
    • Split Bus: Axis 1 Vbus 1; Axis 2-6 Vbus 2

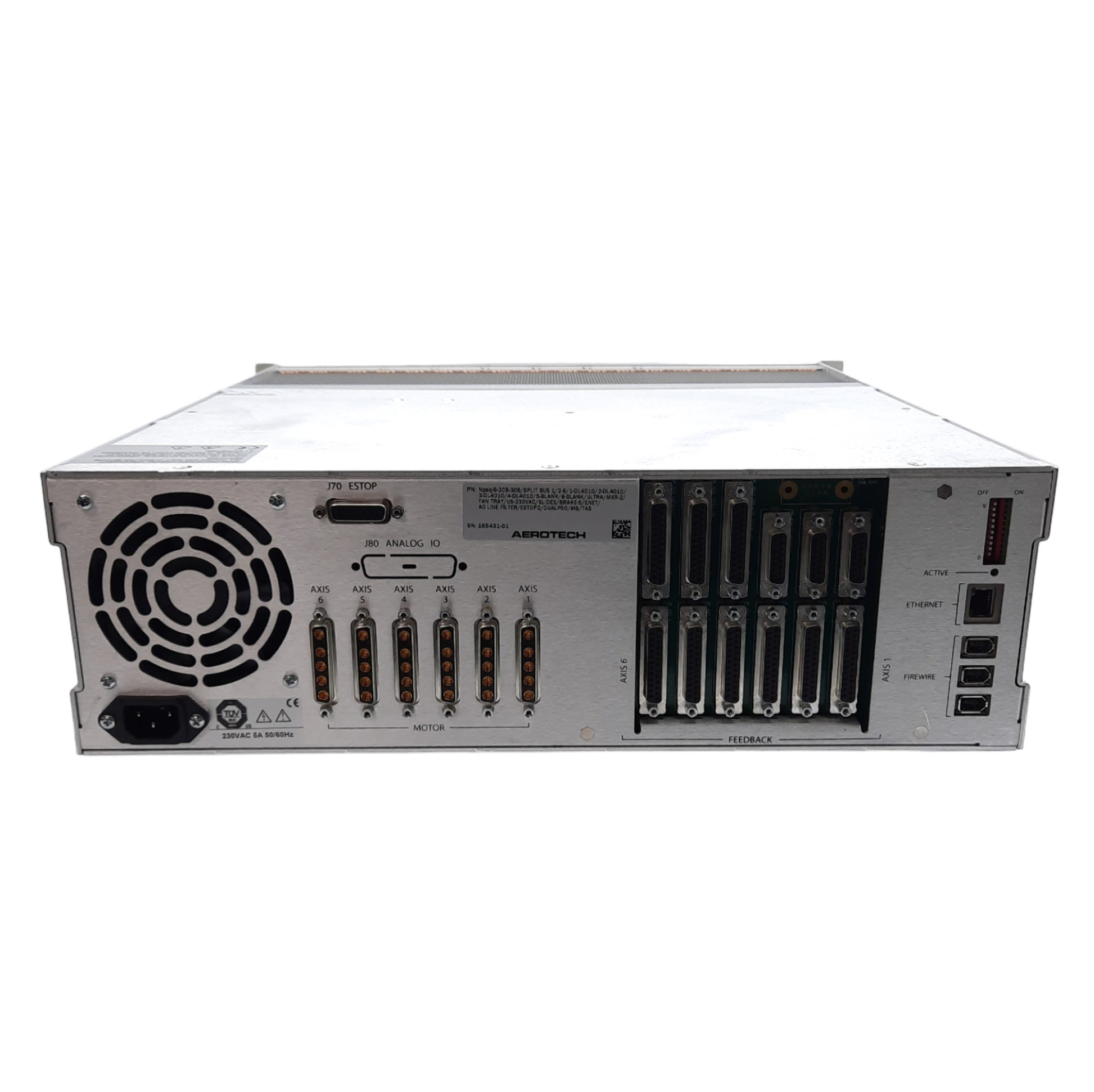

    • Ethernet Port: 10/100 Base-T RJ45
    • Emergency Stop: 2x Positive Guided Relays
    • Dual-Axis PSO (Position Synchronized Output)
    • Encoder Multiplier: x65536 multiplier for axes 1-5, 450 kHz input, real-time output for PSO operation (programmable resolution), 3 axes max
    • Motor Output: Wiring for 2 axes
    • Integration: Testing and integration of individual items as discrete components

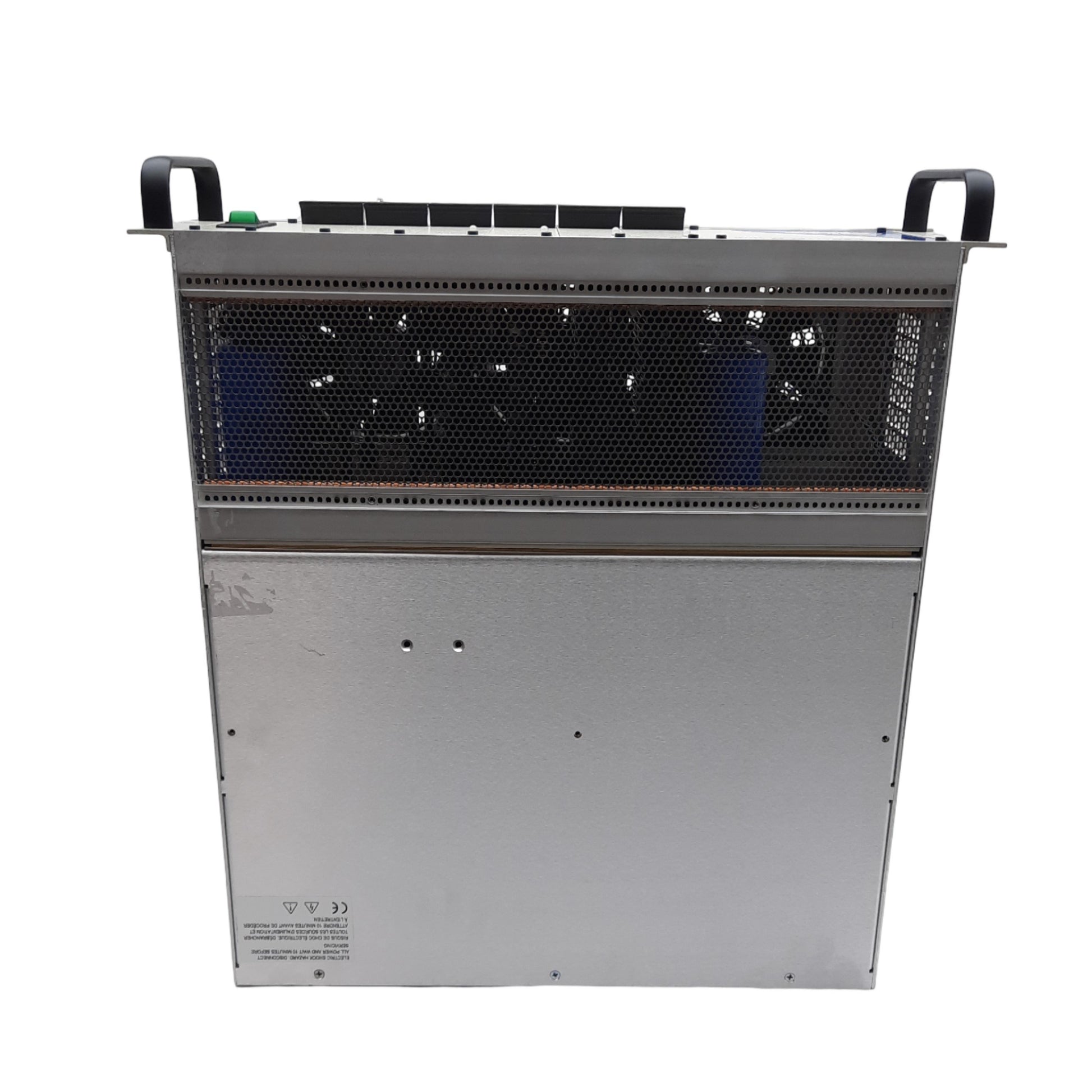

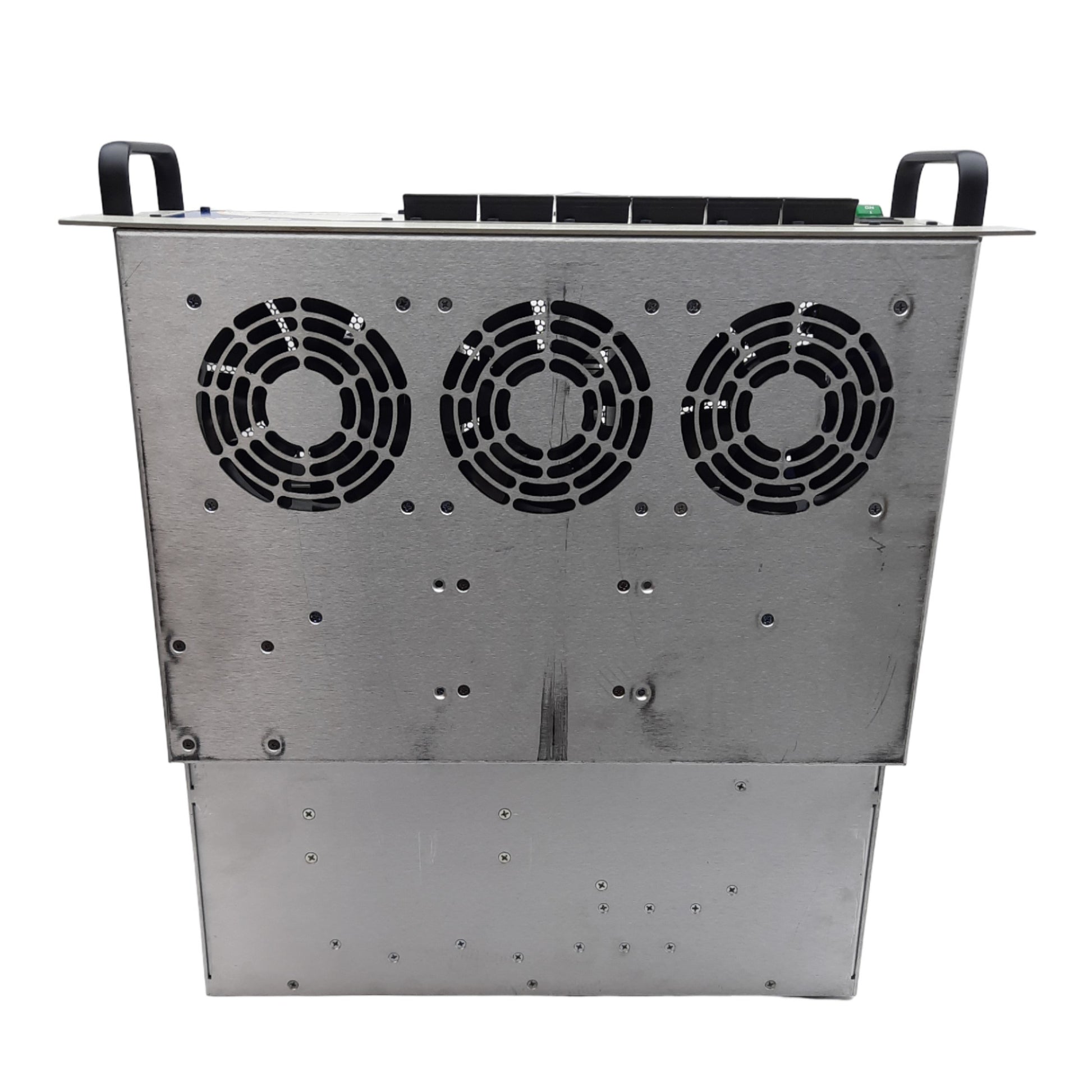

    • Fan tray for Cooling
    • Rack-Mounted drawer slides
