Used Aerotech ATS150-100 Linear Ball Screw Actuator Travel 100mm Lead 4mm NEMA23
$600.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Aerotech. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-154748
RO-5-B

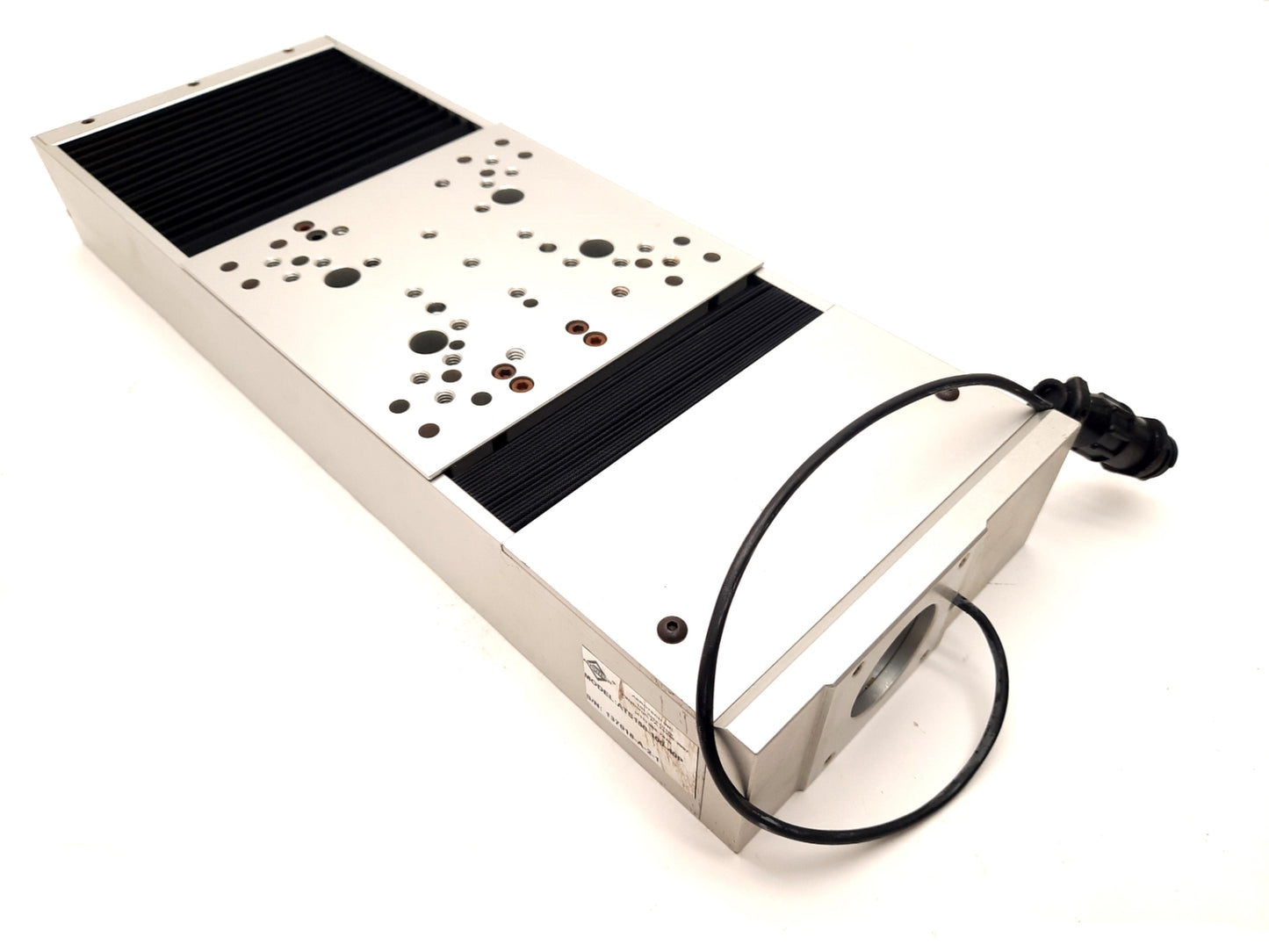

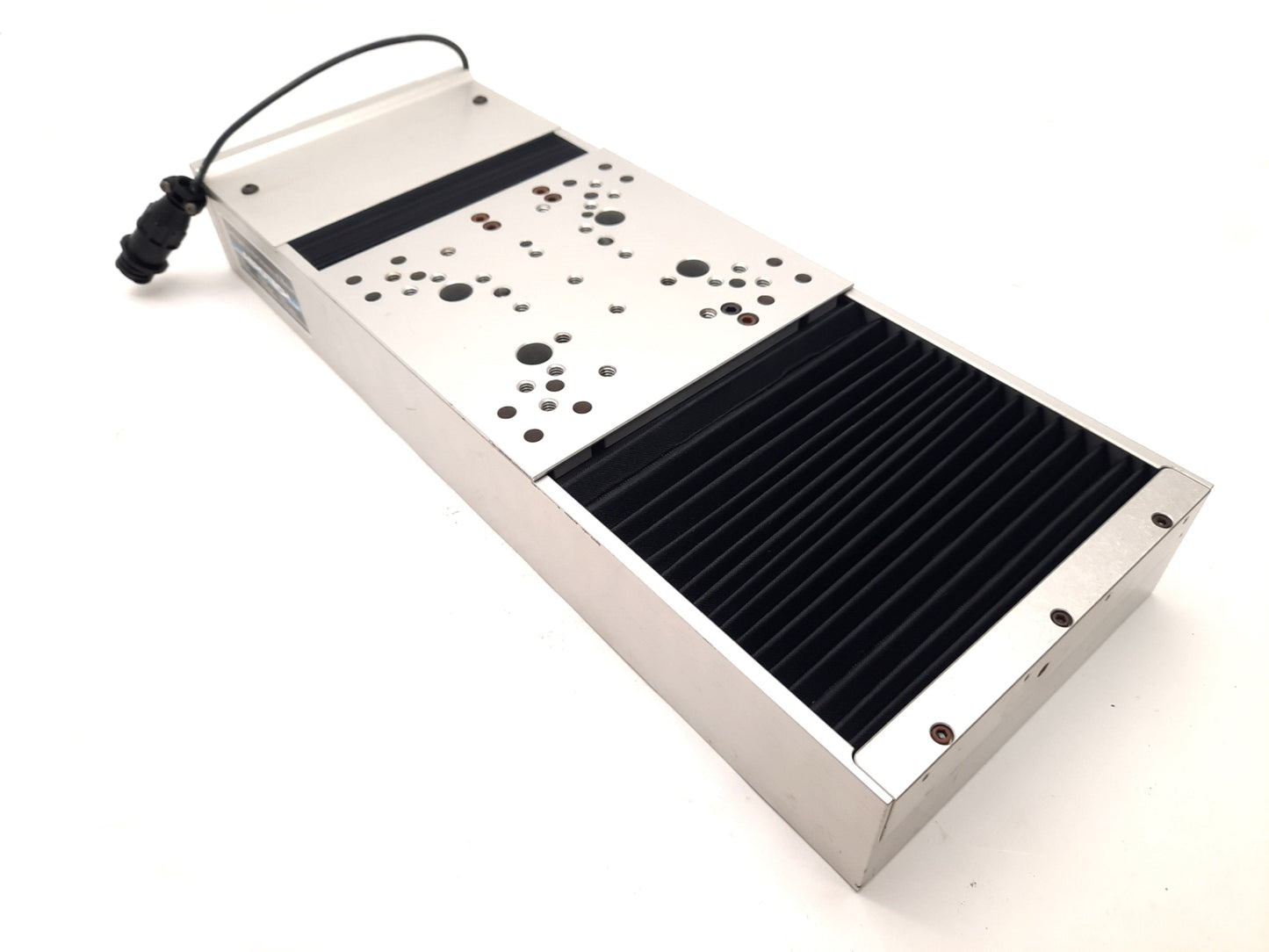

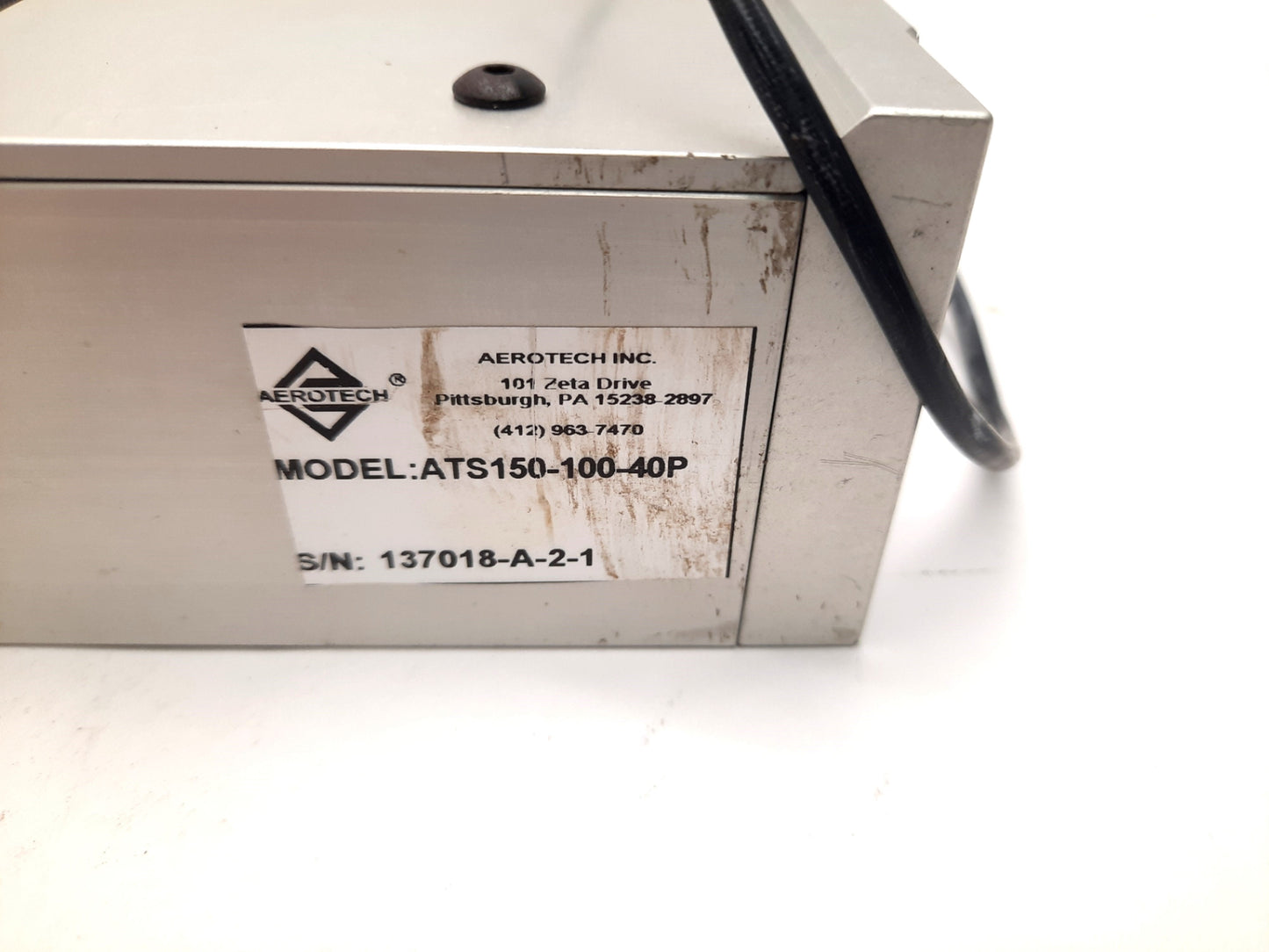

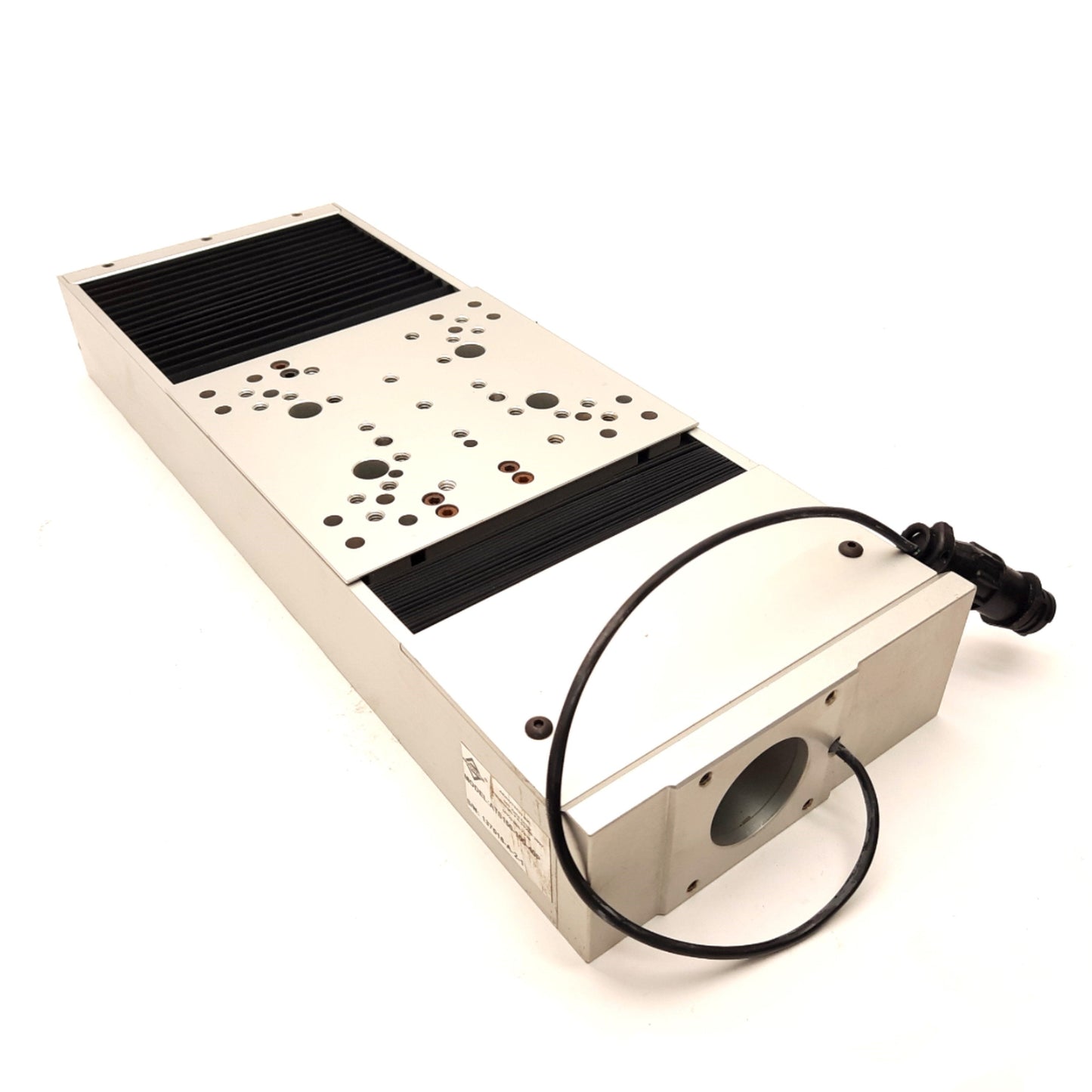

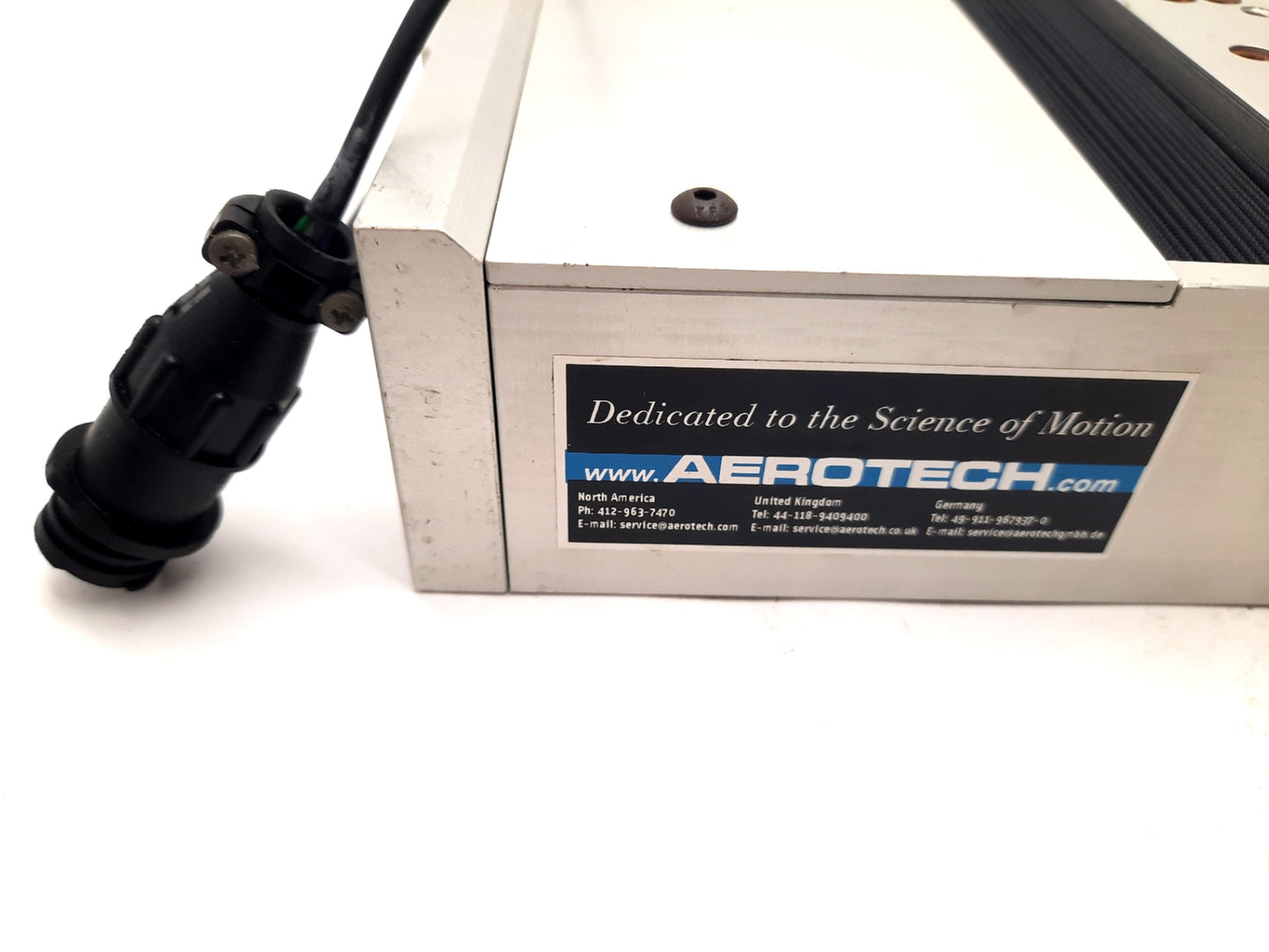

From our inventory we are selling an Aerotech ATS150-100 Linear Ball Screw Actuator Travel 100mm Lead 4mm NEMA23.

Specifications:

  • Model #: ATS150-100
  • More Information:
    • Linear Ball-Screw Stage
    • Motor Mount: NEMA 23
    • Shaft Diameter: 8mm
    • Travel: 100mm (4")
    • Drive Screw: 4mm/Rev Ball Screw
    • Max Speed: 115mm/s (4 1/2inch/s)
    • Max Load:
      • Horizontal: 99lbs (45kg)
      • Vertical: 55lbs (25kg)
      • Side: 55lbs (25kg)
    • Stage Dimensions: 150 x 150mm
    • Stage Thread: 1/4-20
    • Dimensions 412 x 150 x 58mm
