Specifications:

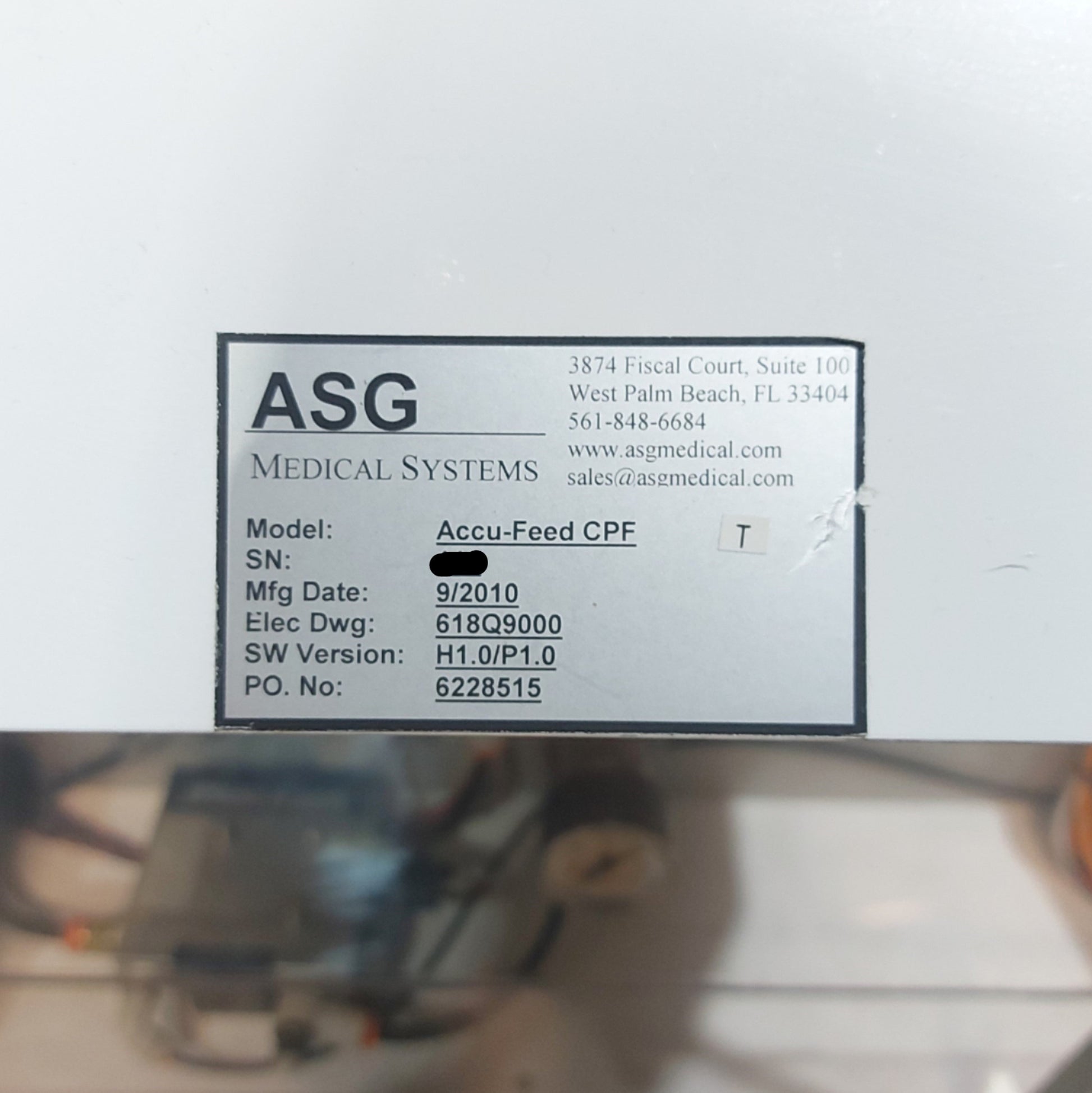

• Model #: Accu-Feed CPF
• More Information:
• Center Pick Feeder
• Applications: Plastic Stick Tubing, Nitinol/Stainless Steel Wire, Coils
• HMI: 7" Color Touchscreen
• Speed: 24"/sec
• Feed Rate: 1 Part Every 4sec
• Repeatability: ñ0.01"
• Minimum Material Length: 8"
• Max Material Length: 28"
• Min Material OD:
• Wire: .008"
• Tube: .030"
• Max Material OD:
• Wire: .040"
• Tube: .350"
• Air Requirements: 90PSI @ 0.1-5CFM
• Air Port: 1/4" P2C
• Power Requirements: 120VAC 50/60Hz
• Dimensions: 29 1/2 x 24 1/4 x 19 1/4"

Item Specifics & Seller Notes: Fully functional

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
