Specifications:

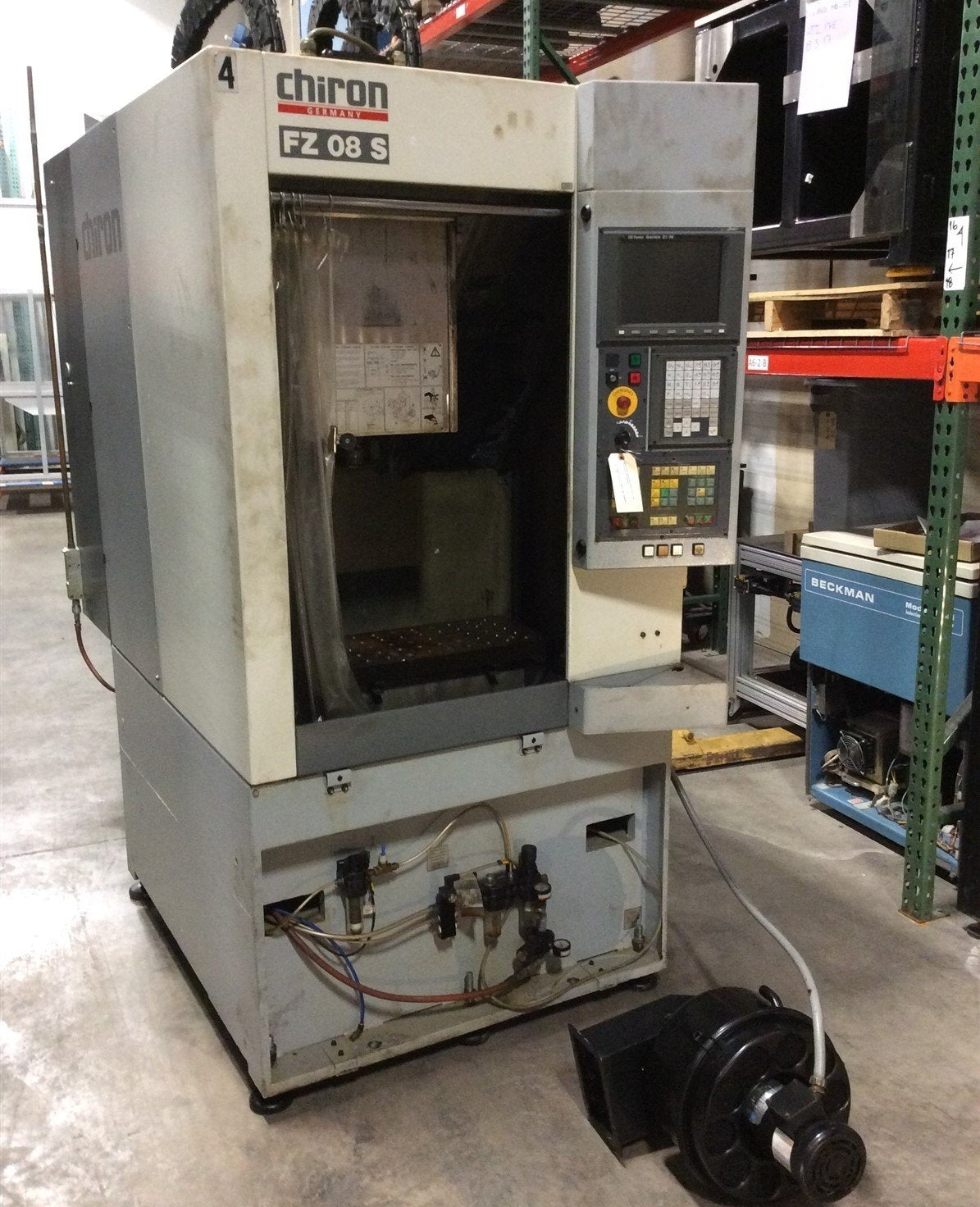

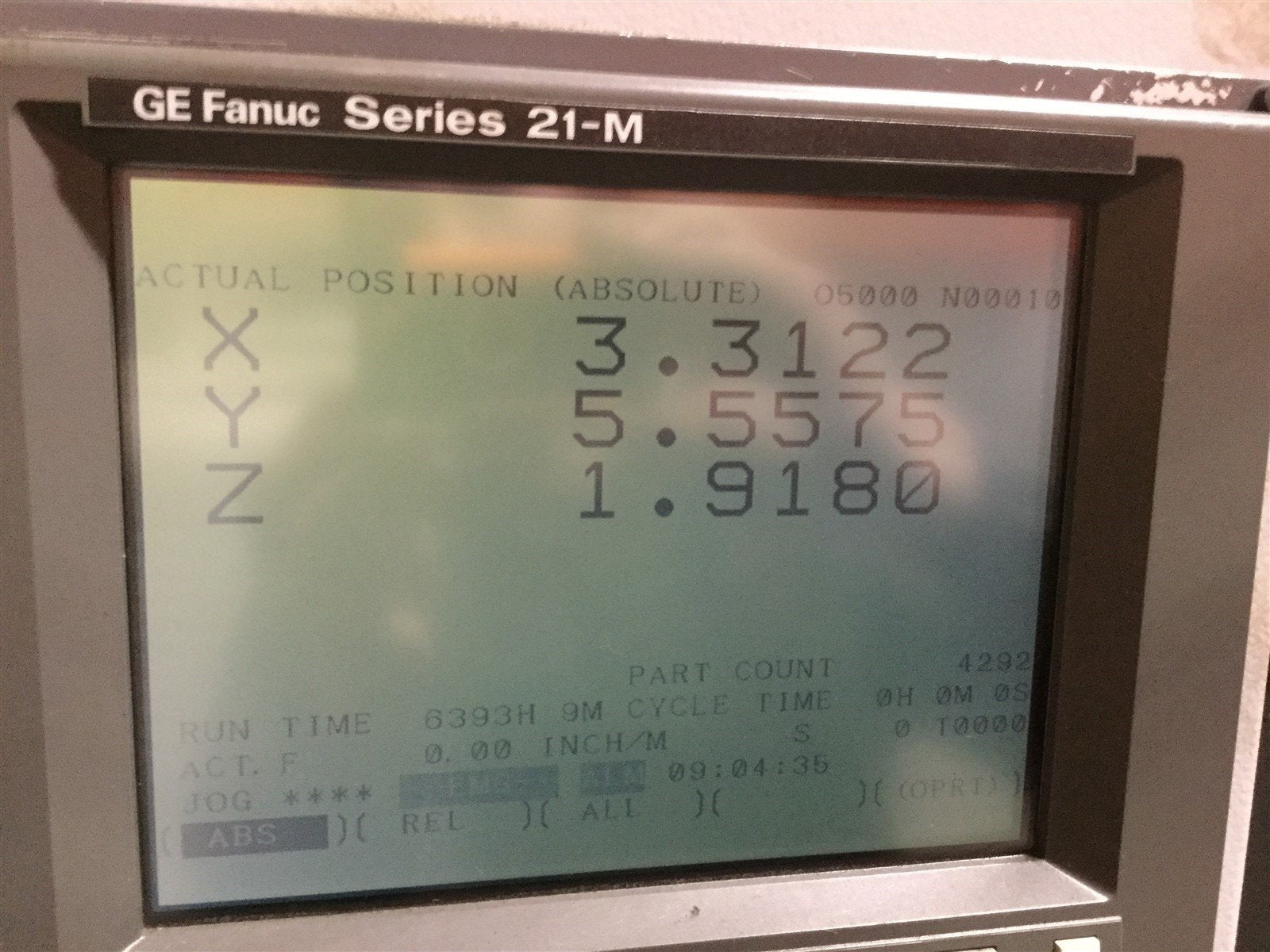

• Model #: FZ-08S    Year: 1996   Hours: 6393H 9M (As seen on operator display)
• More Information:
• Removed From A Fully Operational Medical Device Manufacturer.  Machine Is In Very Good Condition and Ready to Run.
• No C-Axis Positioner
• Drilling Capacity: 16 mm
• Tapping Capacity: M12
• Cutting Capacity: 20cmCu/min

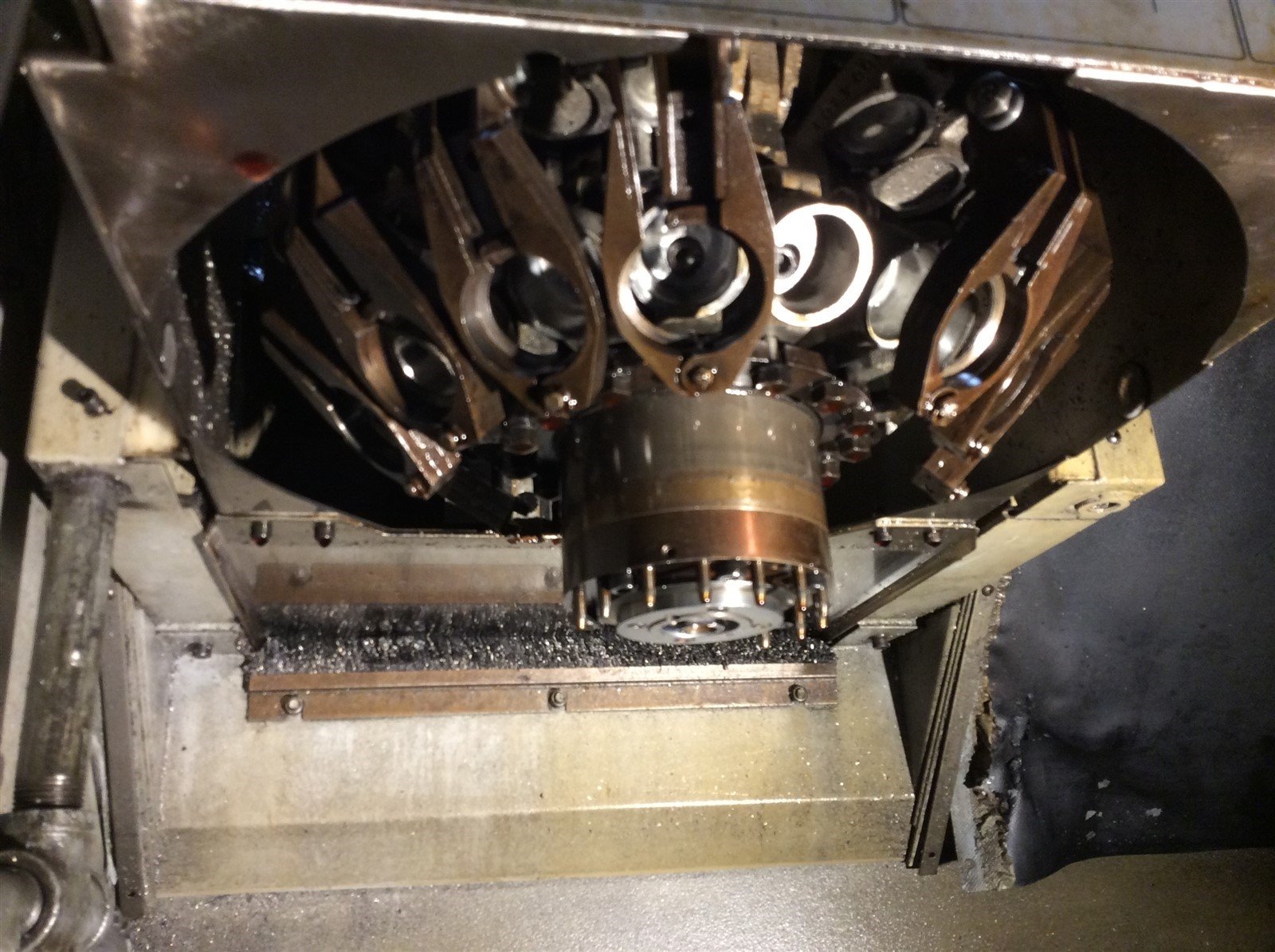

• Tool Places: 12
• Tool Taper: HSK-A32
• Tool Diameter Maximum: 40 mm (if adj. places unoccupied 63mm)
• Max Tool Weight: .7 Kg
• Max Tool Length: 160 mm
• Spindle Drive: 3.7 kW
• Speed Range: 20-10,500 min-1
• Max. Torque: 23 Nm
• Front Spindle Bearing Diameter: 40 mm
• Tool Clamping: 2500 N
• Clearance of Spindle to Cover: 200-450 mm
• Clearance Spindle Nose to Table Surface: 170-420mm
• Travel X-axis: 300 mm
• Travel Y-axis: 250 mm
• Feed Force X/Y Axis: 2000 N
• Travel Z-axis: 250 mm
• Feed Force Z-axis: 3000 N
• Rapid Traverse X/Y Axis: 40 m/min
• Rapid Traverse Z Axis: 60 m/min

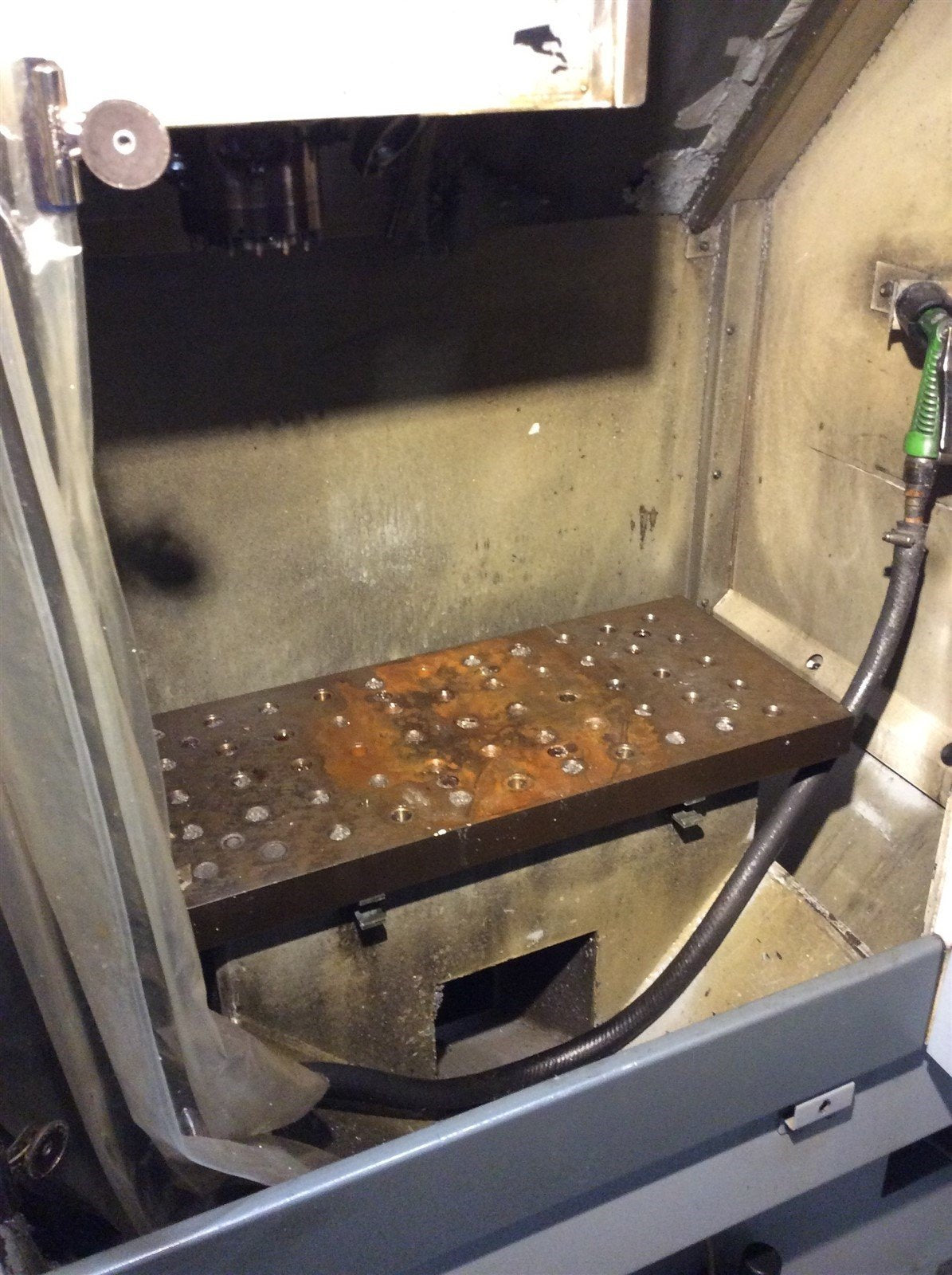

• Fixed Table Clamping Surface: 620 x 270 mm
• Grid Location Pattern: M16 x 15H7 x 50mm
• Max Table Load: 150 kg
• Coolant Equipment, Tank Capacity: 100L (Pictured Separately)

• CNC Control: Fanuc 21
• X-Axis:      12"
• Y-Axis:      10"
• Z-Axis:      10"
• Motor:      2.0 HP @ 100%
•                 5.0 HP @ 25%

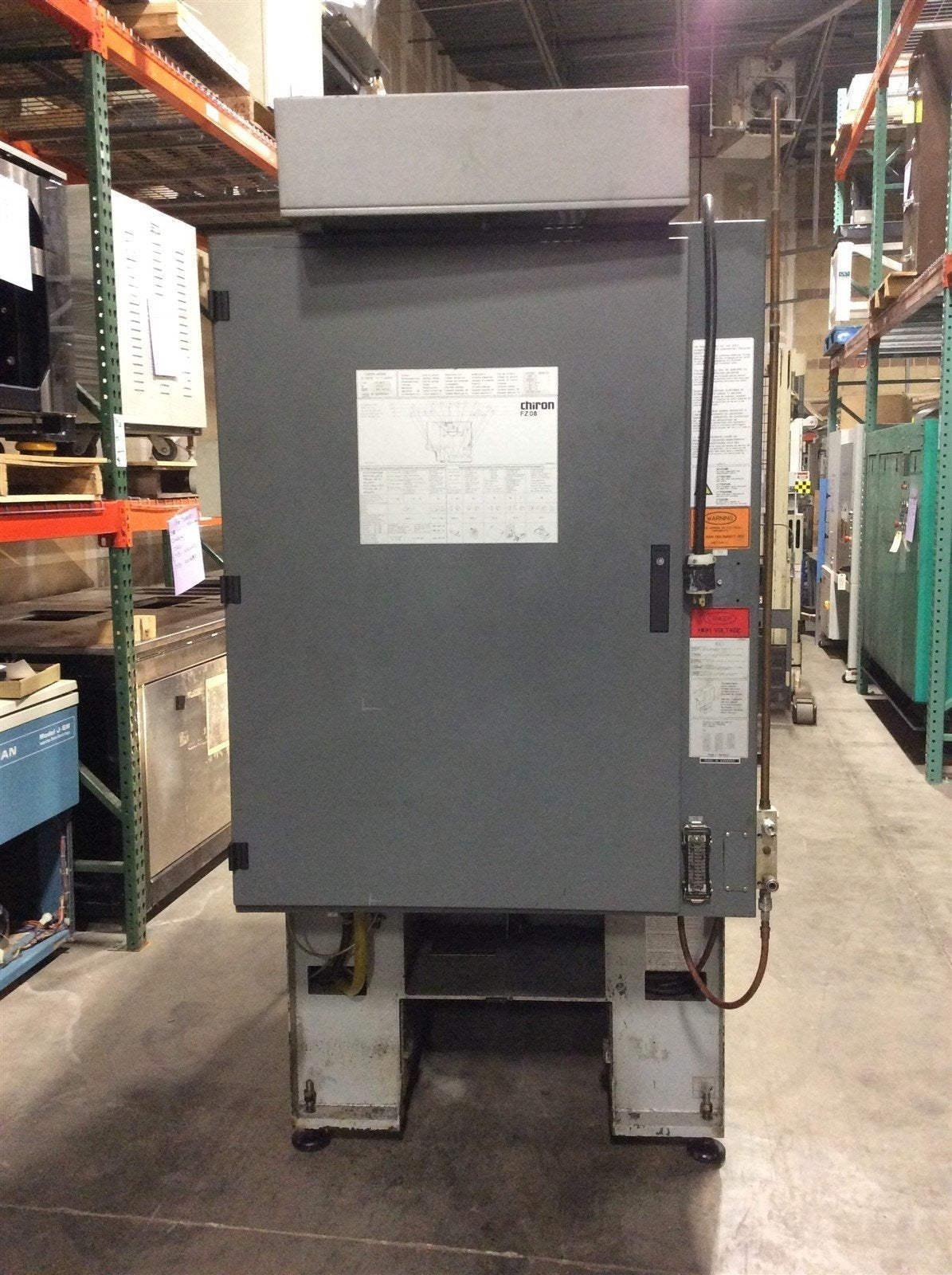

• Electrical Requirements: Wired For 480V 3P 60hz 30A w/ Installed Multi-Tap Transformer
• Equipped With: Workpiece Table, AC Servo Motors, Steel Covers on All Axes, 3 Axes Continuous Path Control, Machine Enclosure, Mini-Operating Panel, Coolant Equipment w/Chip Container, Installation Elements, Rigid Tapping, Royal Filtermist Collector.
