Specifications:

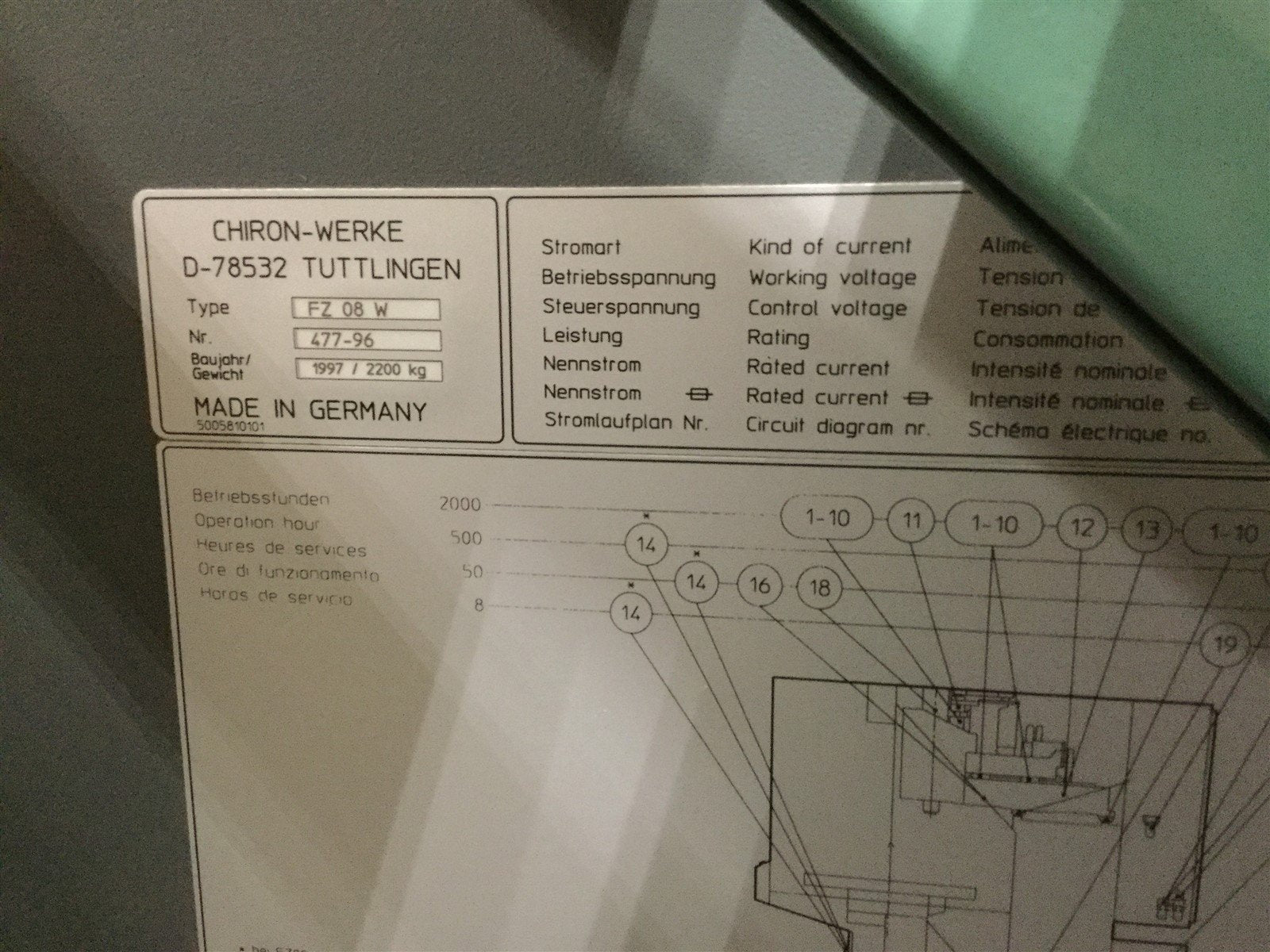

• Model #: FZ-08W Serial #: 477-96  Year: 1997  Hours: 40597H 18M (As seen on operator display before testing caused it to zero)
• More Information:

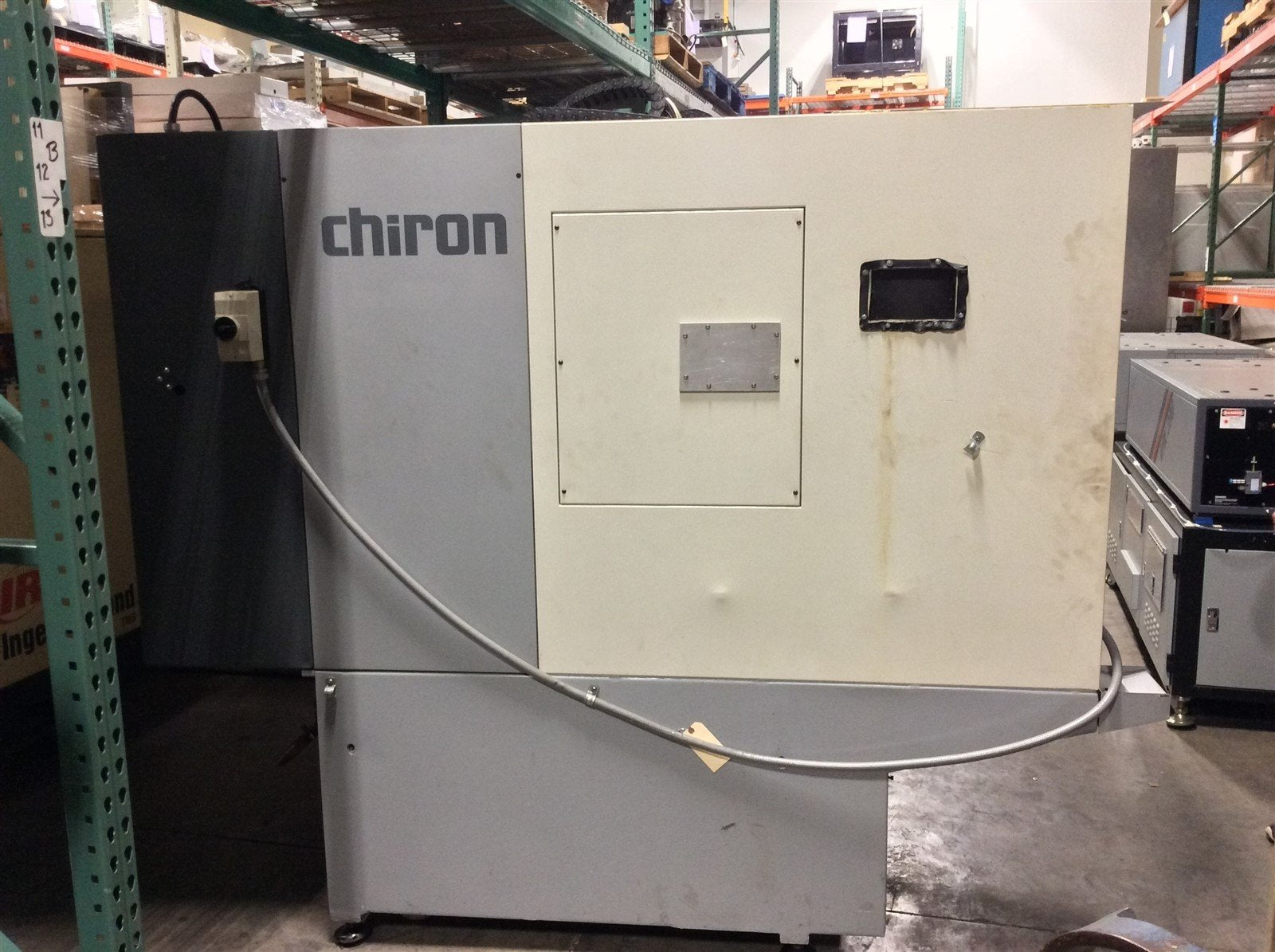

  • Removed From A Fully Operational Medical Device Manufacturer.  Machine Is In Very Good Condition and Ready to Run.

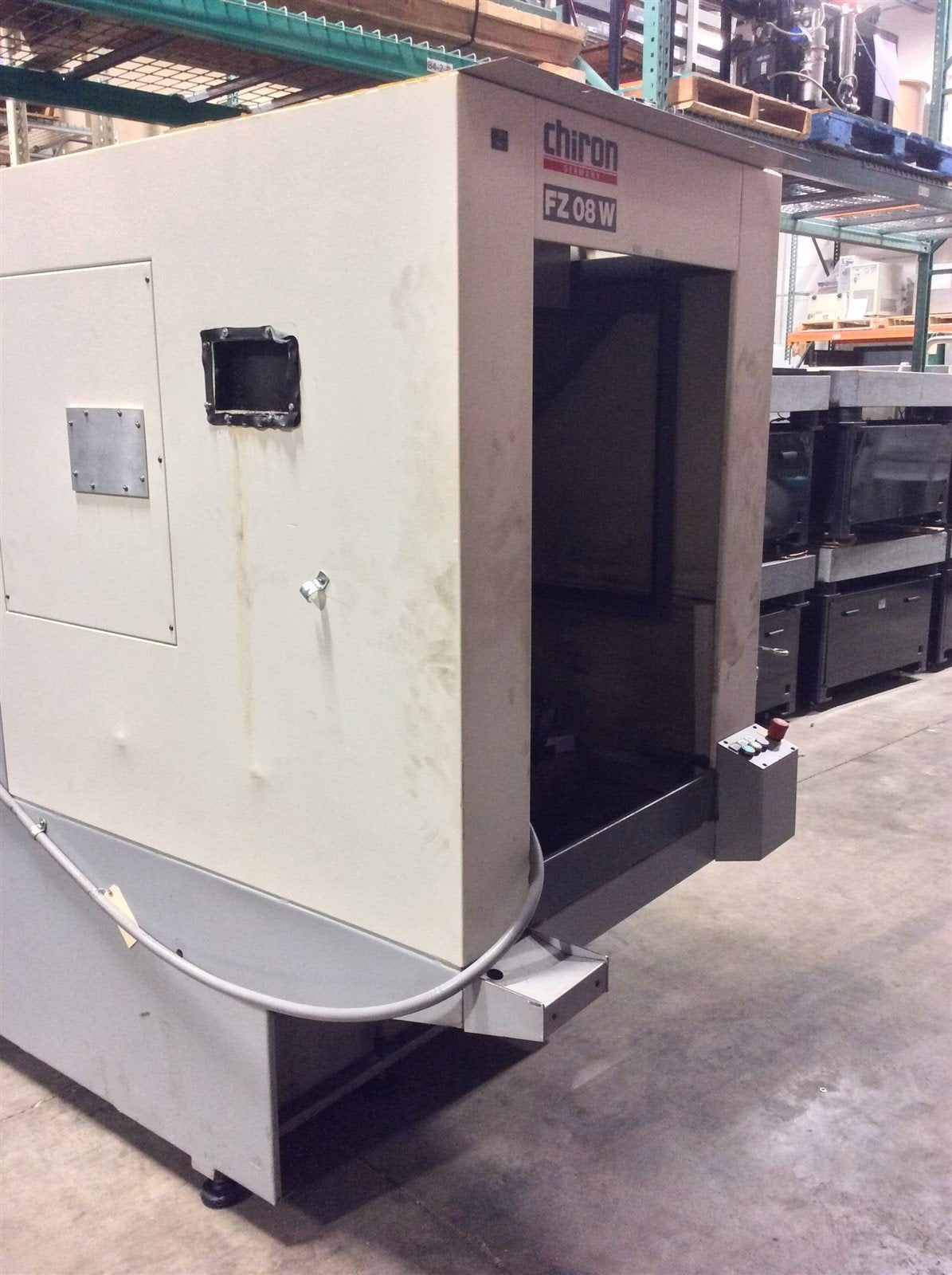

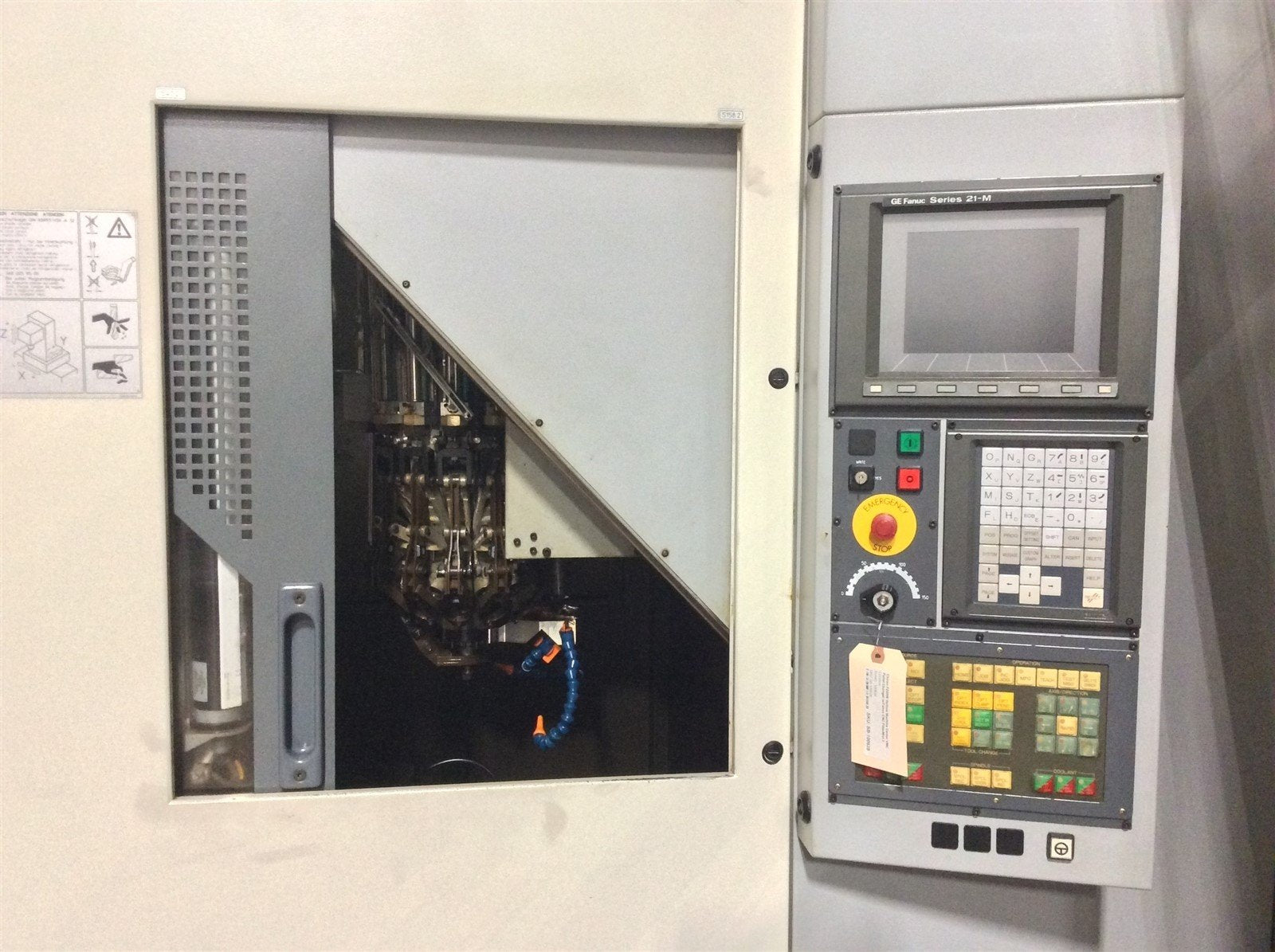

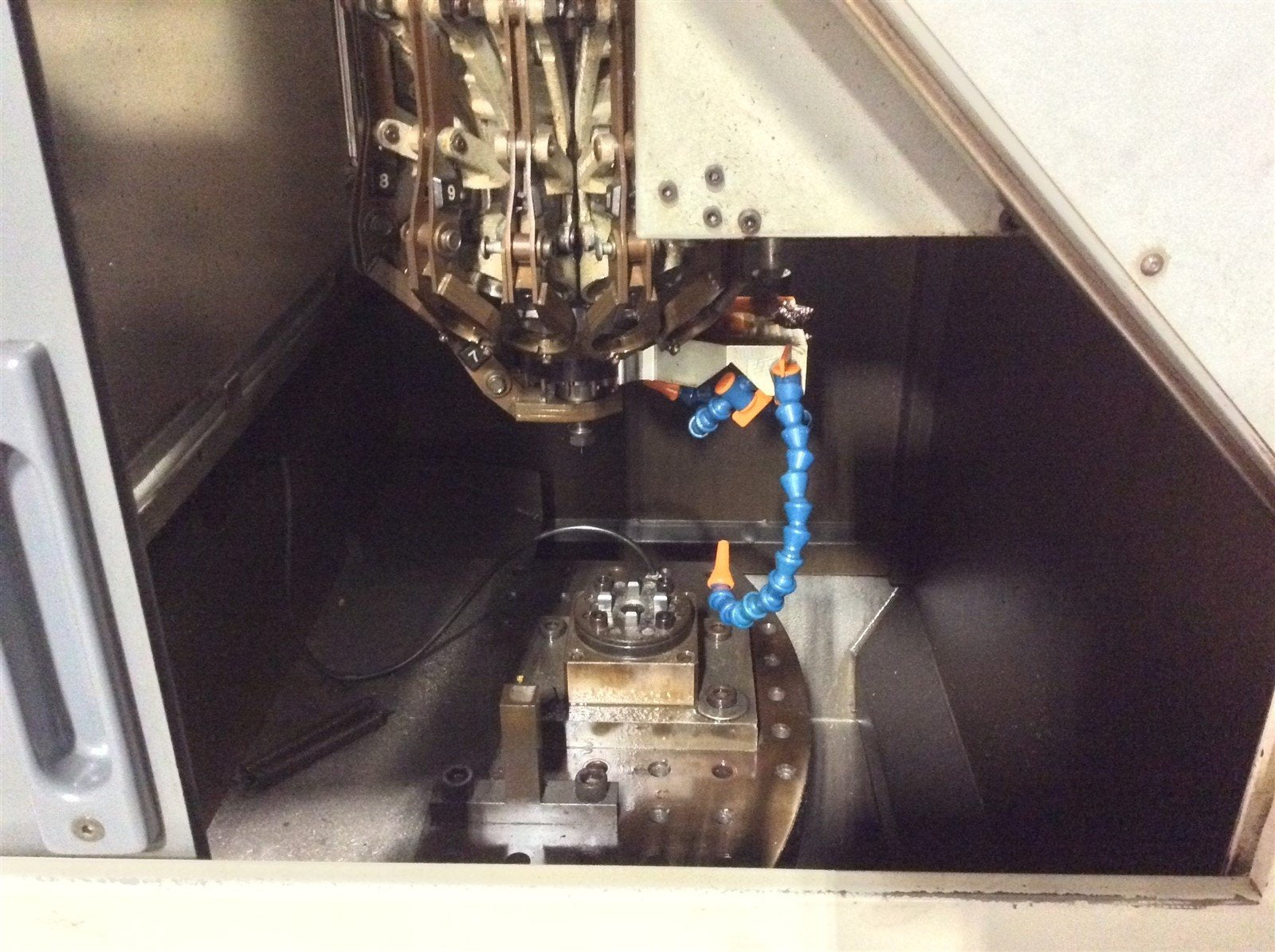

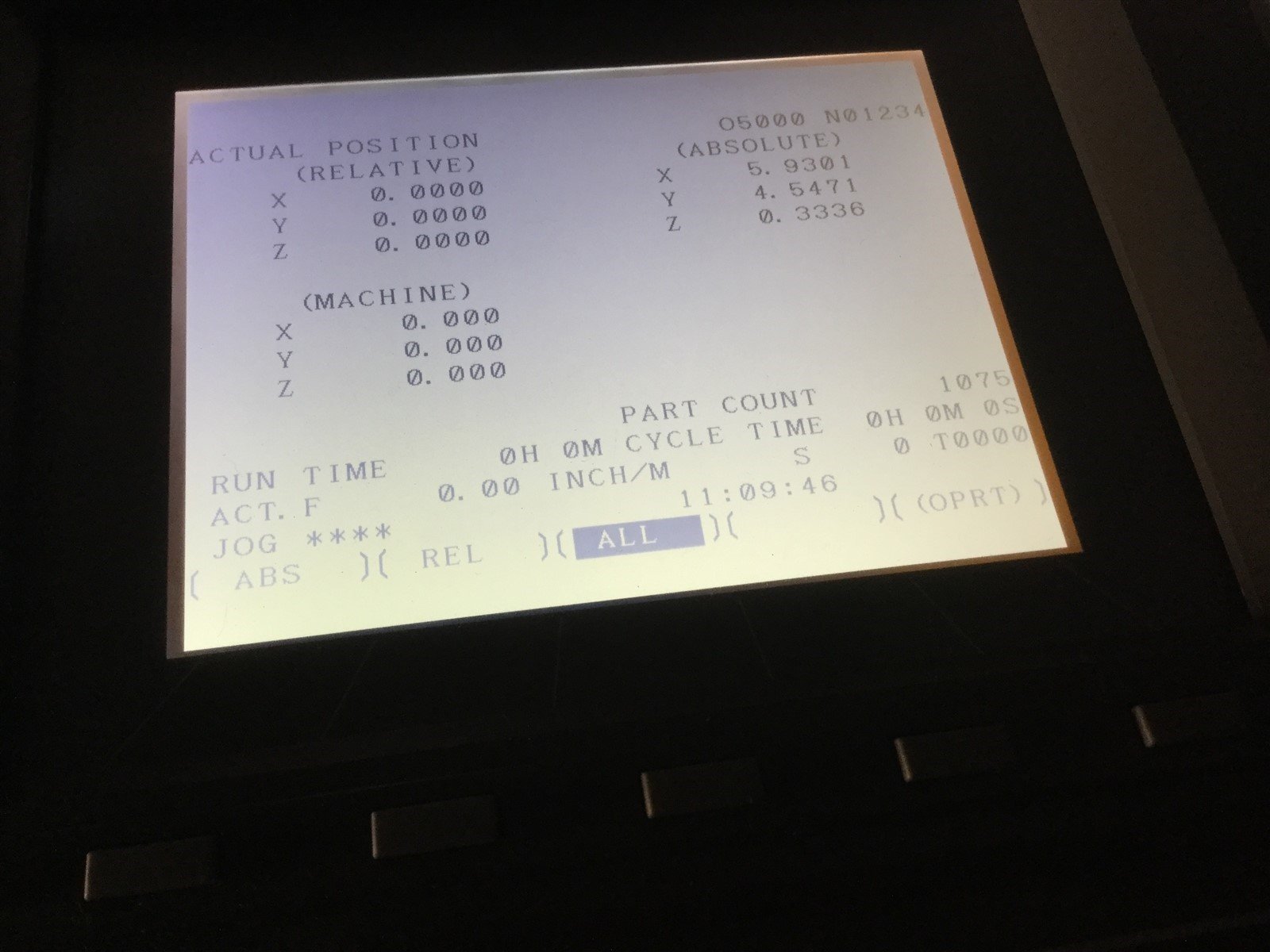

    Loading Side Doors Have Been Removed, Metal Guarding Missing On Milling Head, No Plexi Top, As Pictured.   Please Also Note: The Operator Display Is Working However The Brightness Is A Bit To High To See The Screen Head On, This Is Noticeably Different Then Others Tested.
    • Drilling Capacity: 16 mm
    • Tapping Capacity: M12
    • Cutting Capacity: 20cmCu/min
    • Tool Places: 12

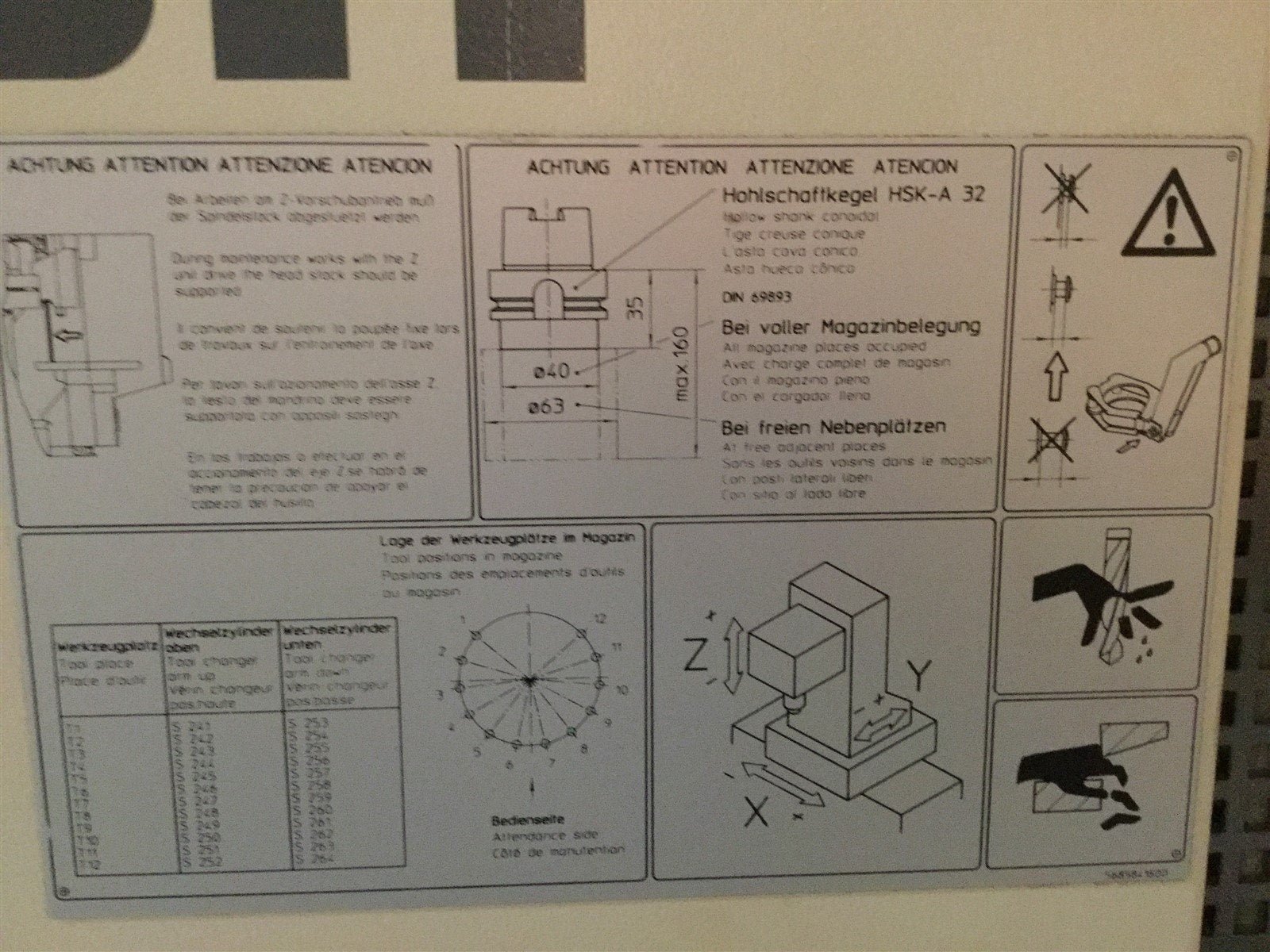

    • Tool Taper: HSK-A32
    • Tool Diameter Maximum: 40 mm (if adj. places unoccupied 63mm)
    • Max Tool Weight: .7 Kg
    • Max Tool Length: 160 mm
    • Spindle Drive: 3.7 kW
    • Speed Range: 20-10,500 min-1
    • Max. Torque: 23 Nm
    • Front Spindle Bearing Diameter: 40 mm
    • Tool Clamping: 2500 N
    • Clearance of Spindle to Cover: 200-450 mm
    • Clearance Spindle Nose to Table Surface: 170-420mm
    • Travel X-axis: 300 mm
    • Travel Y-axis: 250 mm
    • Feed Force X/Y Axis: 2000 N
    • Travel Z-axis: 250 mm
    • Feed Force Z-axis: 3000 N
    • Rapid Traverse X/Y Axis: 40 m/min
    • Rapid Traverse Z Axis: 60 m/min

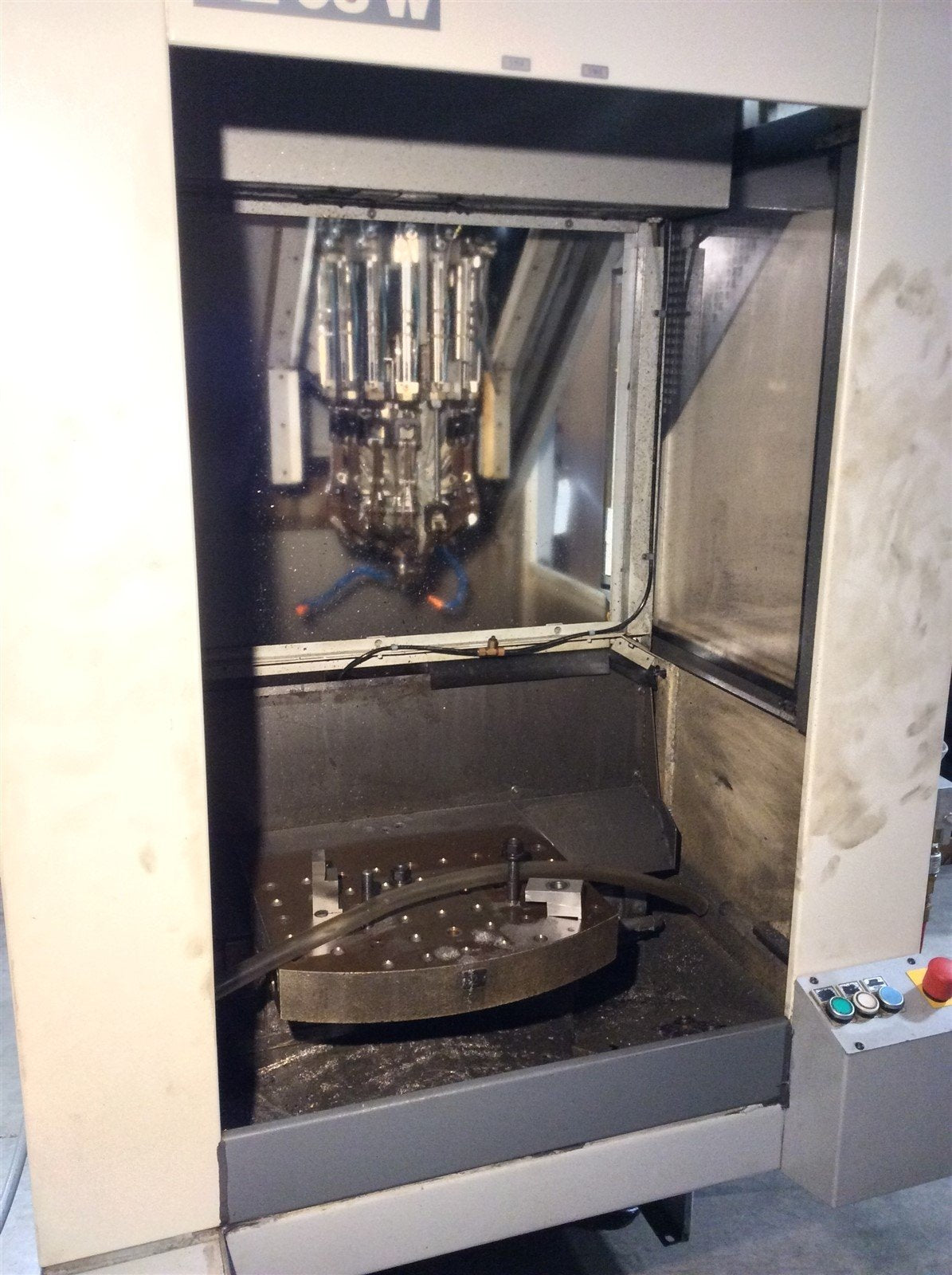

    • Swivel Table: 0/180 Deg
    • Clamping Surface: 2 x 450 x 600 mm
    • Grid Location Pattern: M16 x 15H7 x 50mm
    • Max Table Load Each Side: 75 kg

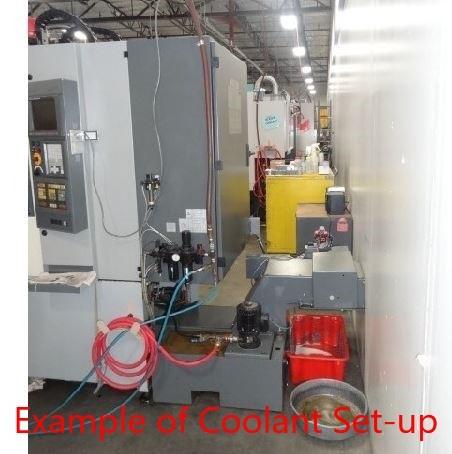

    • Coolant Equipment, Tank Capacity: 100L (Pictured Separately)

    • CNC Control: Fanuc 21
    • X-Axis:      12"
    • Y-Axis:      10"
    • Z-Axis:      10"
    • Motor:      2.0 HP @ 100%
                      5.0 HP @ 25%

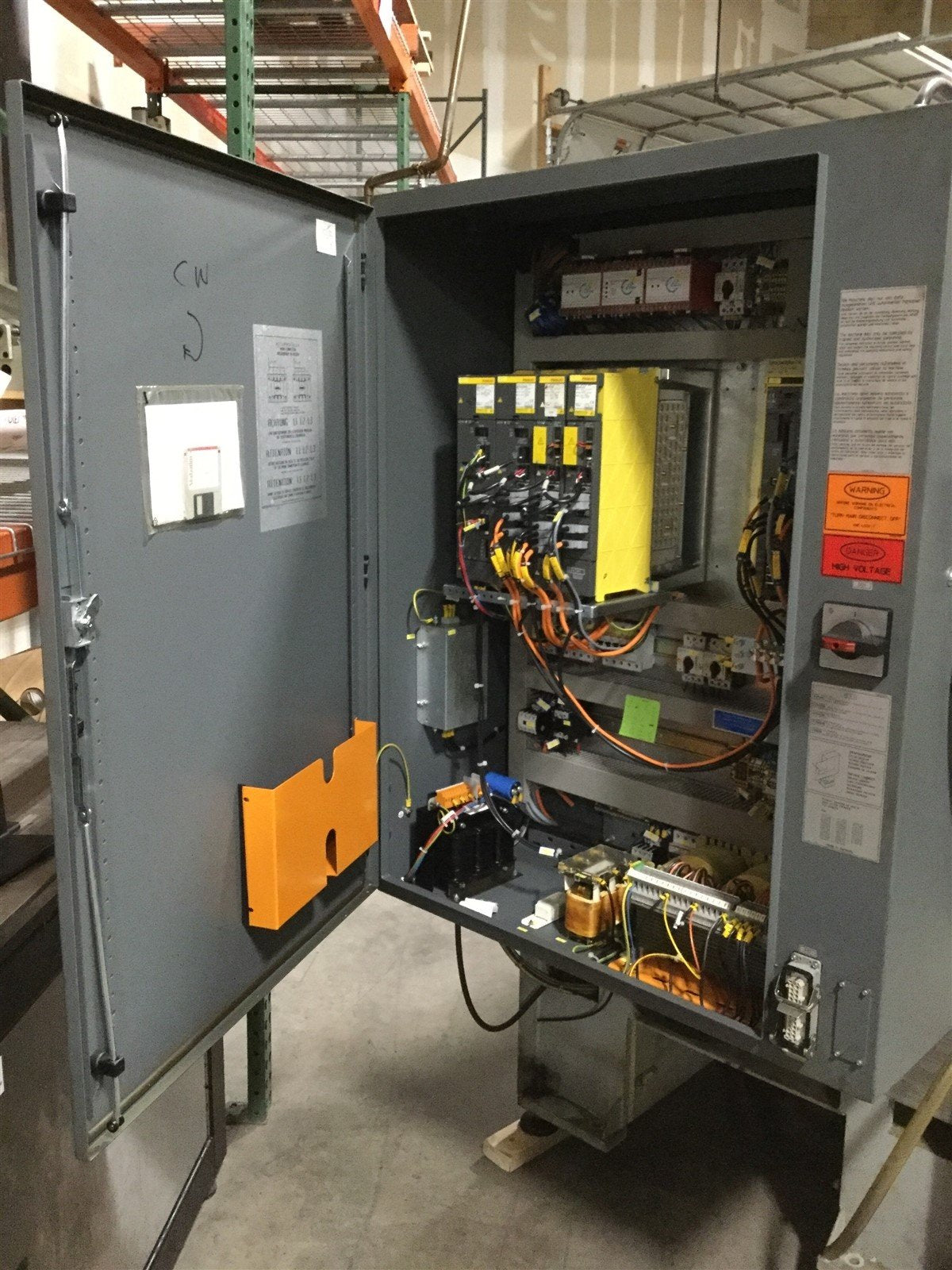

    • Electrical Requirements: Wired For 480V 3P 60hz 30A w/ Installed Multi-Tap Transformer
• Equipped With: Workpiece Swivel Table, AC Servo Motors, Steel Covers on All Axes, 3 Axes Continuous Path Control, Machine Enclosure, Mini-Operating Panel, Coolant Equipment w/Chip Container, Installation Elements, Rigid Tapping, Royal Filtermist Collector.
