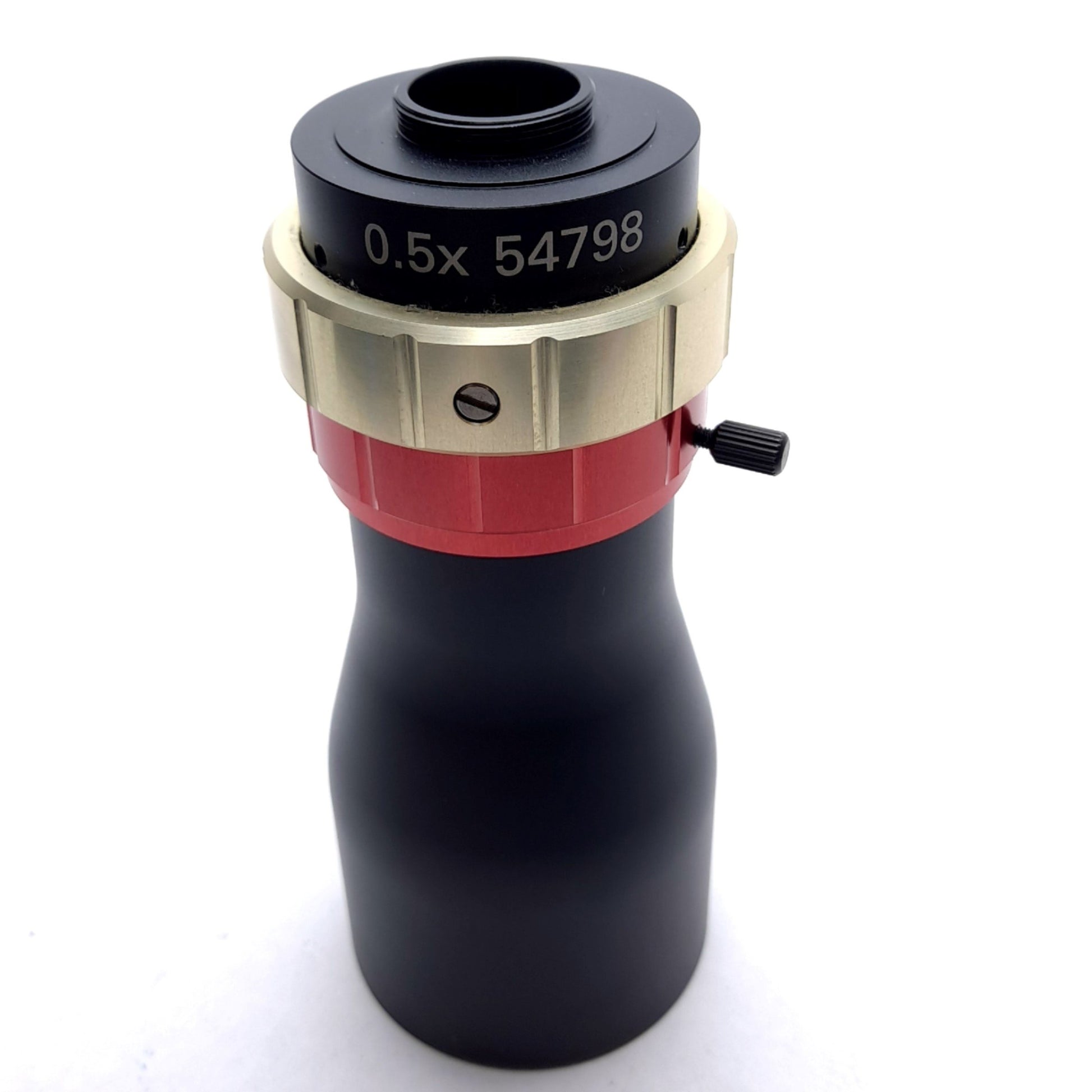

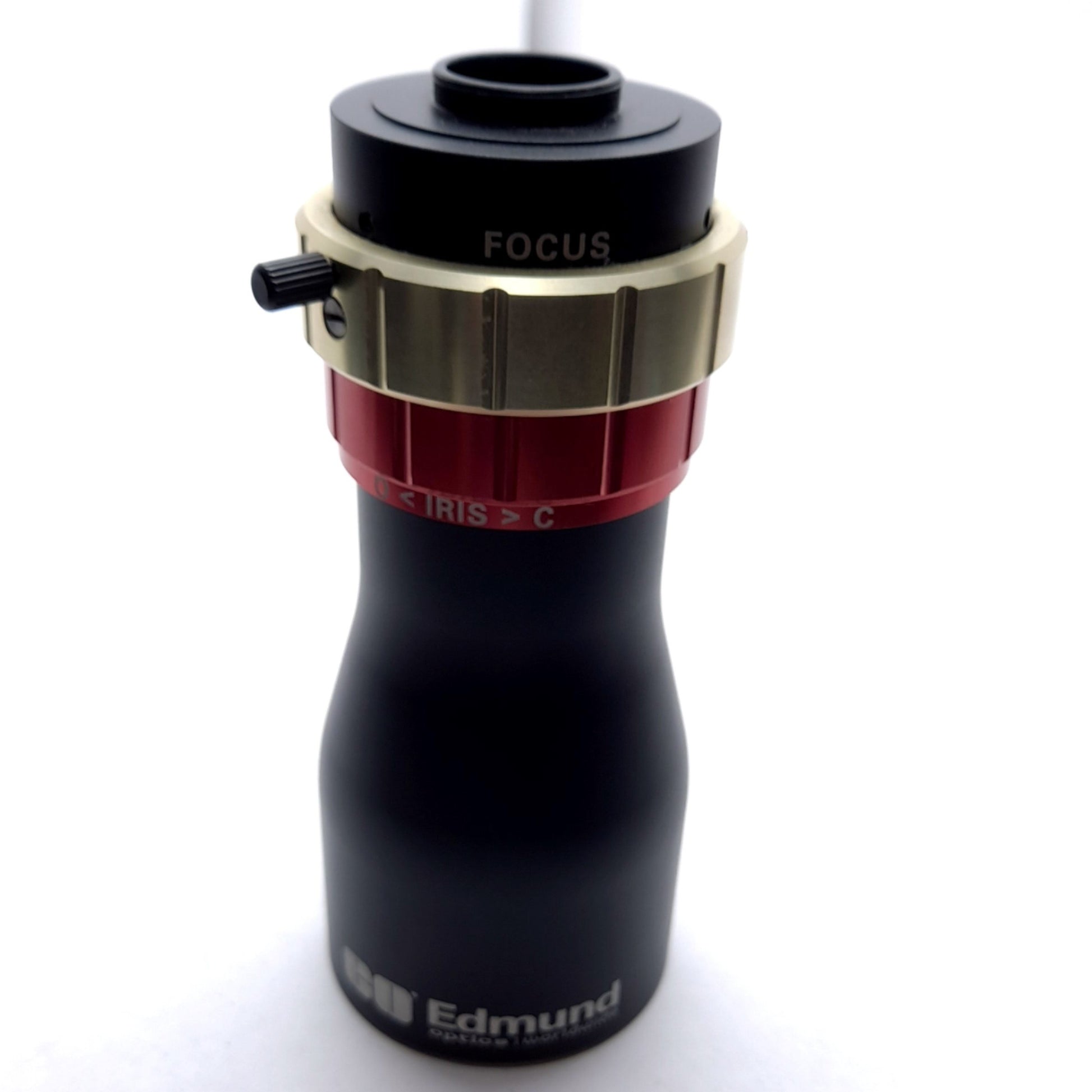

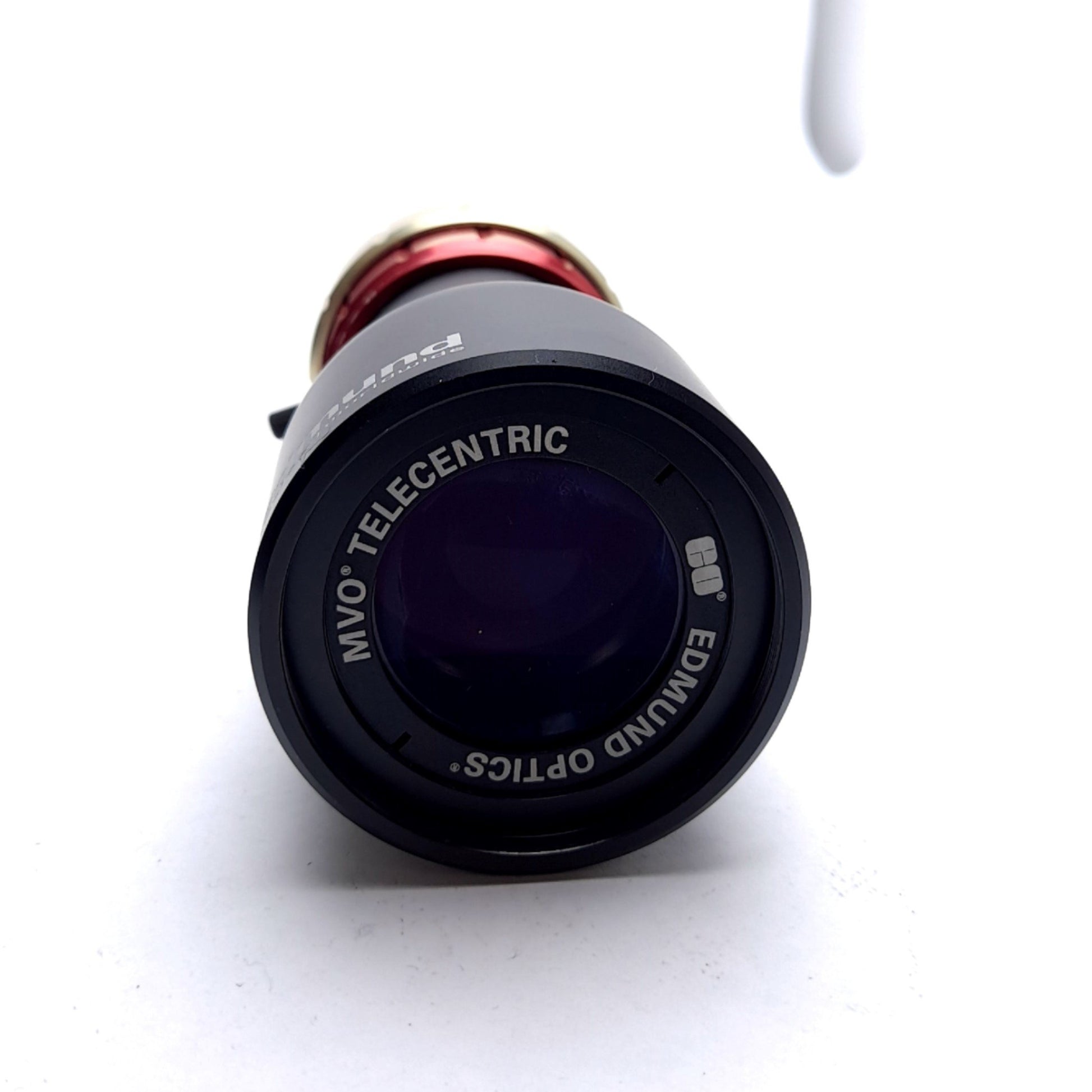

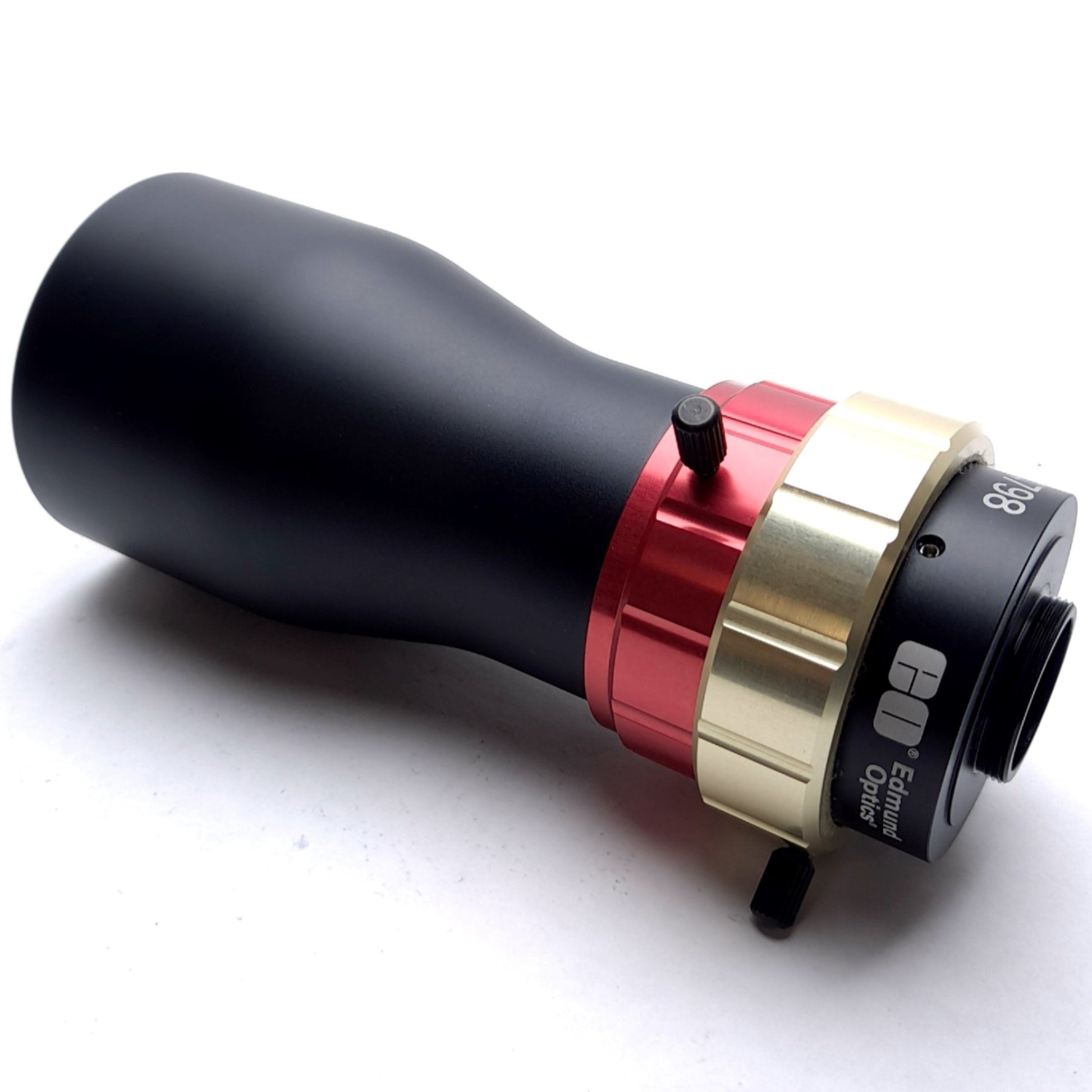

Used Edmund Optics 54-798 Telecentric GoldTL Lens 0.5X 2/3" Style: VIS, C mount
$1,700.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Edmund Optics. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-170169
ST59-5-J

From our inventory we are selling a Edmund Optics 54-798 Telecentric GoldTL Lens 0.5X 2/3" Style: VIS, C mount .

Specifications:

  • Model #: 54-798
  • More Information:
    • Edmund Optics Telecentric Lens
    • Length excluding Threads (mm):150.00
    • Horizontal Field of View, 2/3" Sensor:17.6mm
    • Maximum Diameter (mm):65.00
    • Numerical Aperture NA, Object Side:0.042
    • Resolution, Image Space MTF @ f/10:>55% @ 40 lp/mm
    • Horizontal Field of View, 1/1.8" Sensor:14.4mm
    • Typical Distortion @ 588nm (%):0.015
    • Primary Magnification PMAG:0.5X
    • Working Distance (mm):117 - 142
    • Style:VIS
    • FOV @ Max Sensor Format, H x V (mm):17.6 x 13.2
    • Horizontal Field of View, 1/2" Sensor:12.8mm
    • Filter Thread:M58 x 0.75 (Female)
    • Number of Elements (Groups):8 (5)
    • Typical Telecentricity @ 588nm (ø):<0.025
    • Type:Telecentric Lens
    • Maximum Sensor Format:2/3"
    • Mount:C-Mount
    • Aperture (f/#):f/6 - f/25
    • Depth of Field (mm): ñ2.1 at f/10 (20% @ 20 lp/mm)
