Specifications:

• Model #: FC ( FC06CAGAS6XKSGID ) , QP5 ( QP5B/S34 ) , AV2 ( AV2232001 )
• More Information:

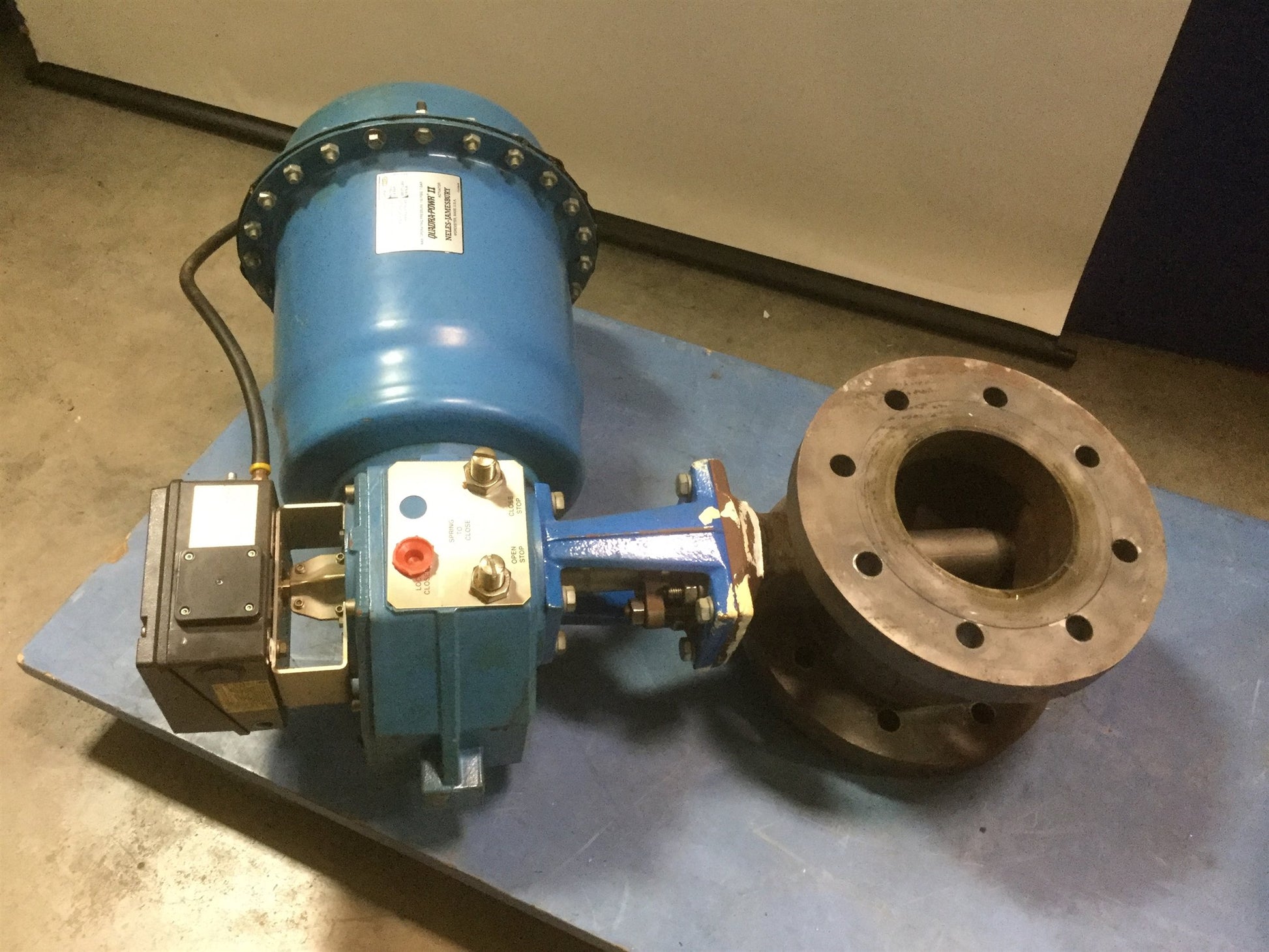

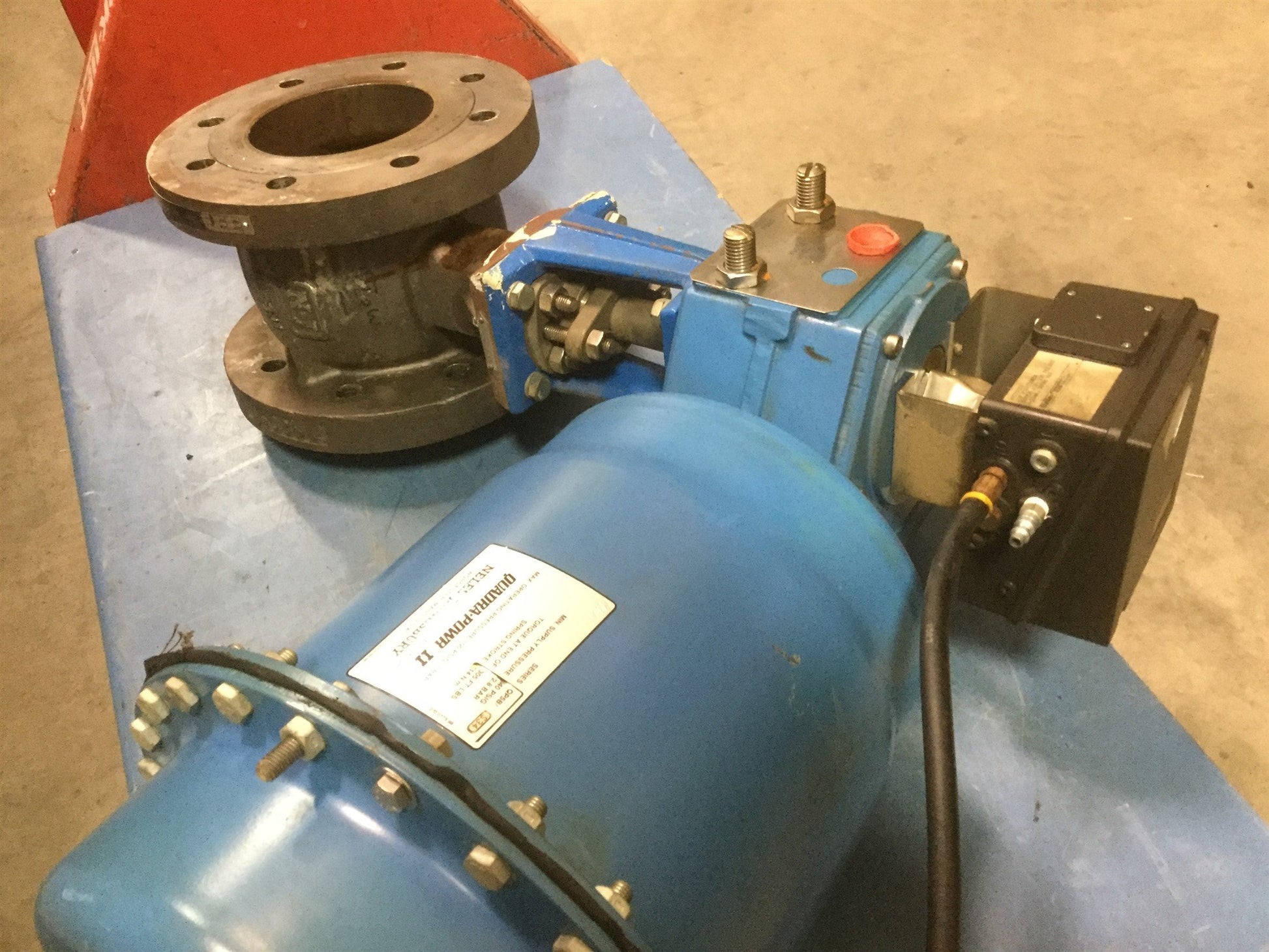

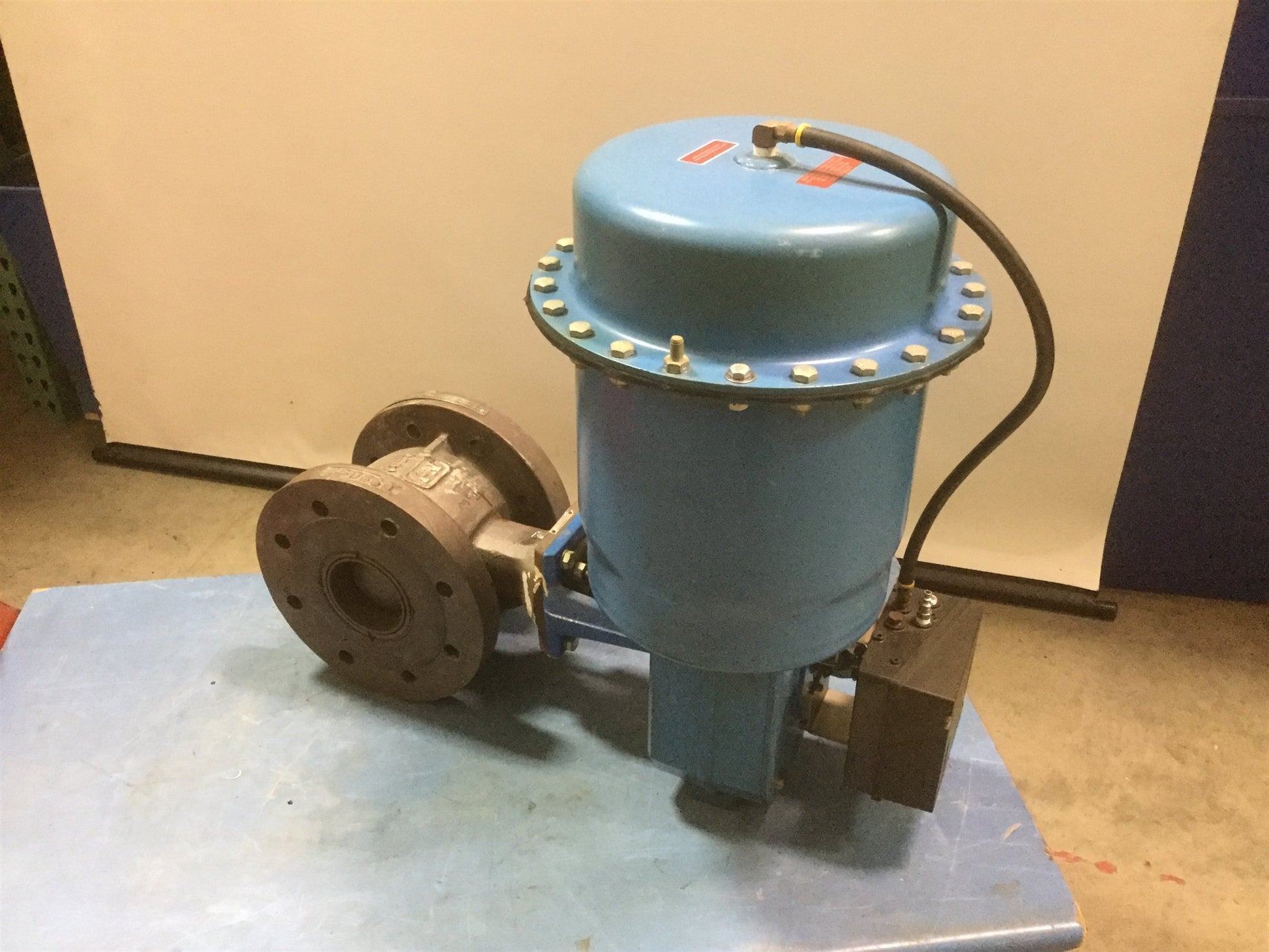

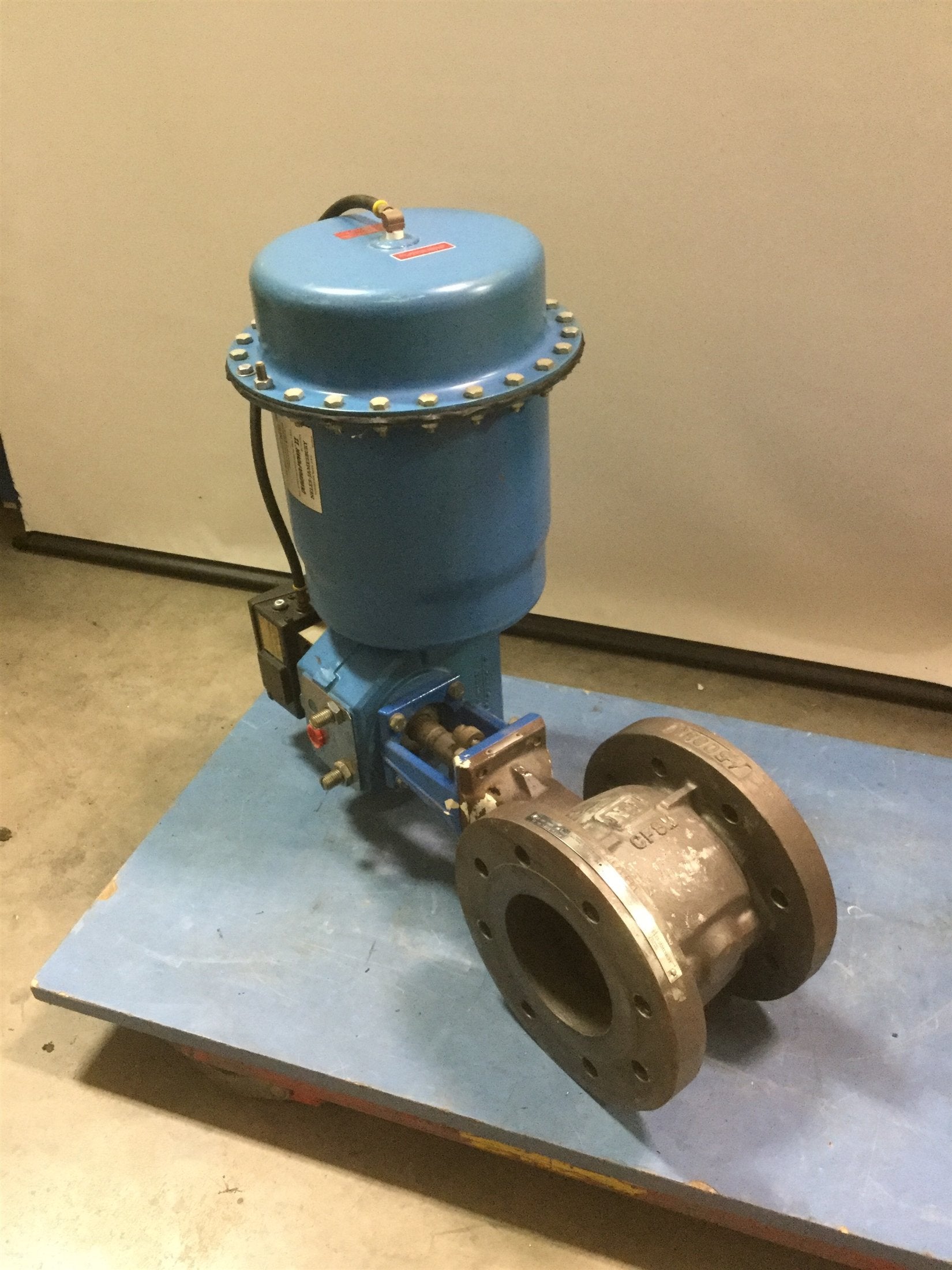

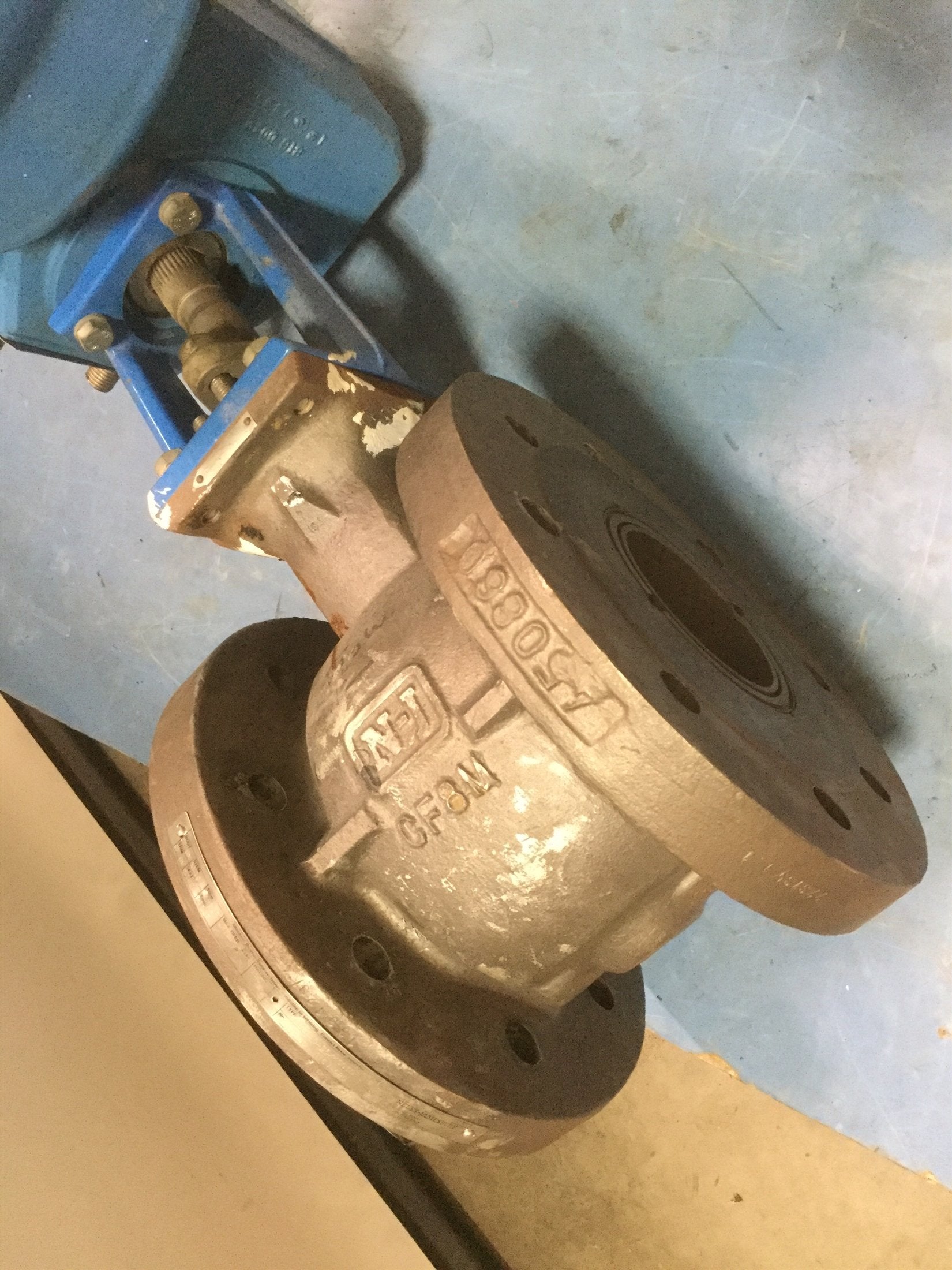

  • Finetrol FC Plug Control Valve 6" 150# w/Quadra Powr II Actuator &I/P Positioner

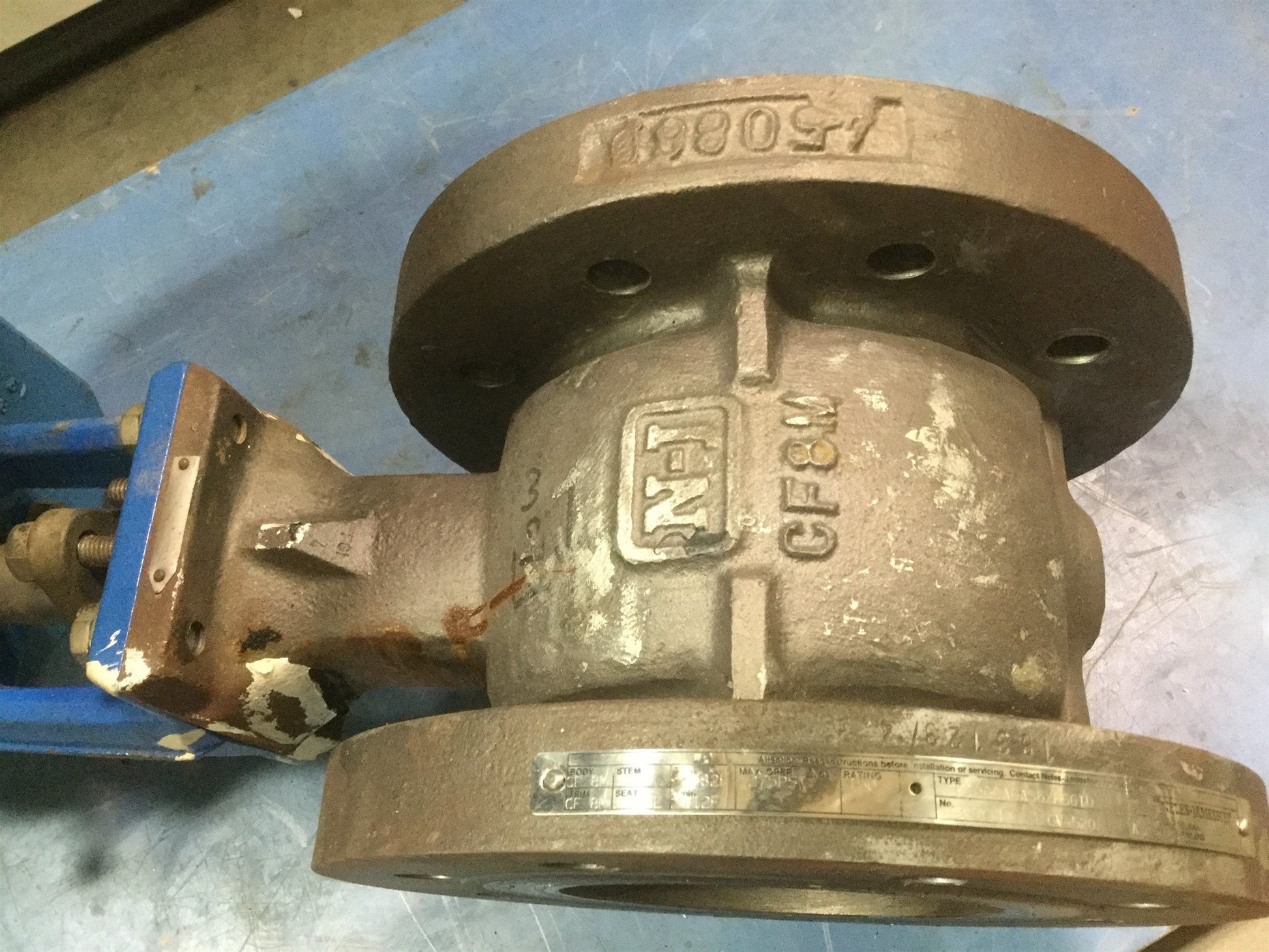

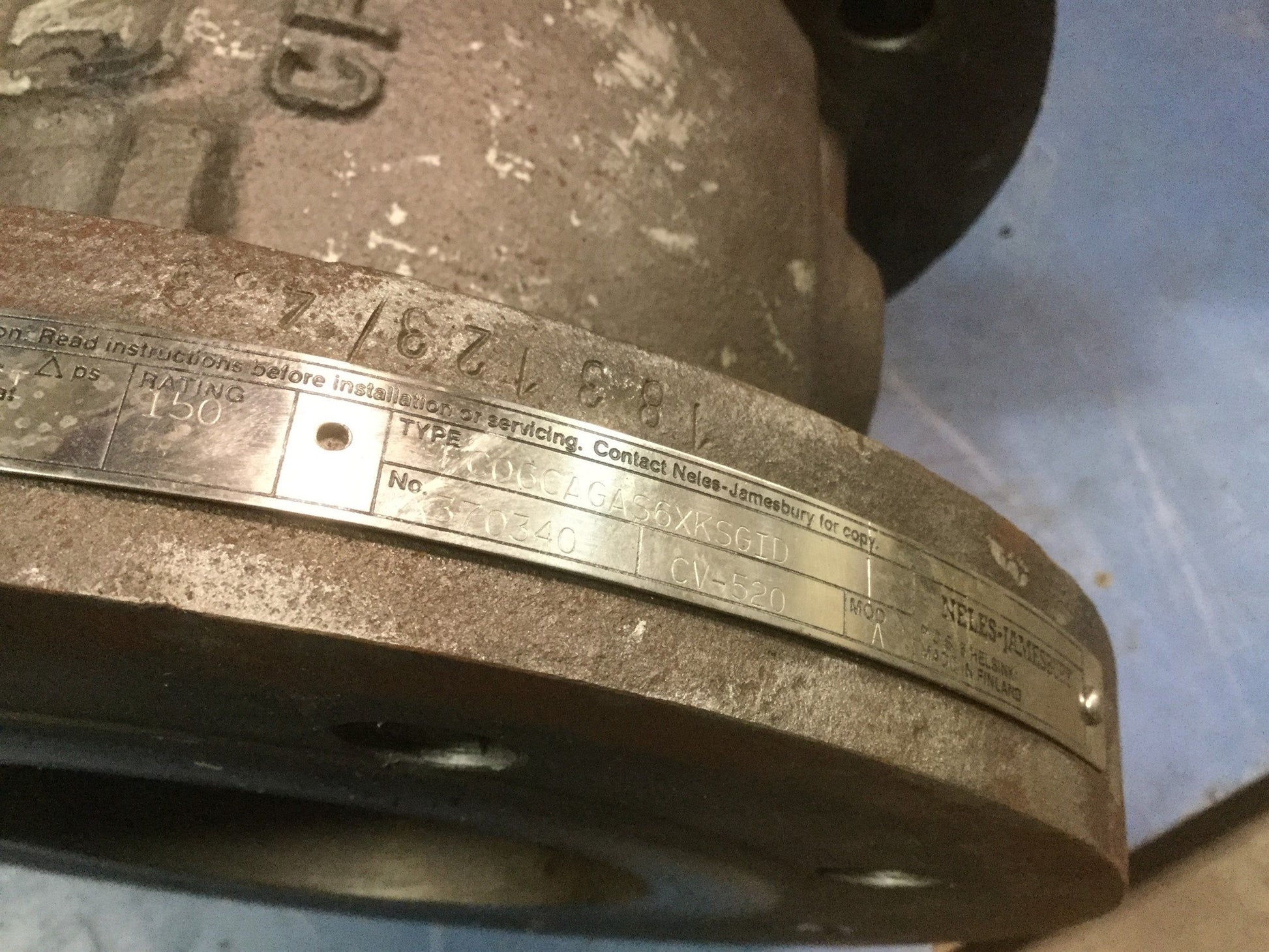

    • Finetrol FC Plug Control Valve: Neles Jamesbury FC ( FC06CAGAS6XKSGID ) Link
      • Type: Eccentric Rotary Plug Control Valve
      • Valve Size: 6"
      • Flange: 150# ASME Raised Face Flange With 300# Flange Thickness
      • Body Material: CF 8M
      • Trim Material: CF 8M
      • Stem Material: XM19
      • Seat Material: Steel
      • Max Temp: 482øF
      • Min Temp: 112øF
      • Max Operating Pressure: 275 PSI
      • Rating: 150
      • CV: 520

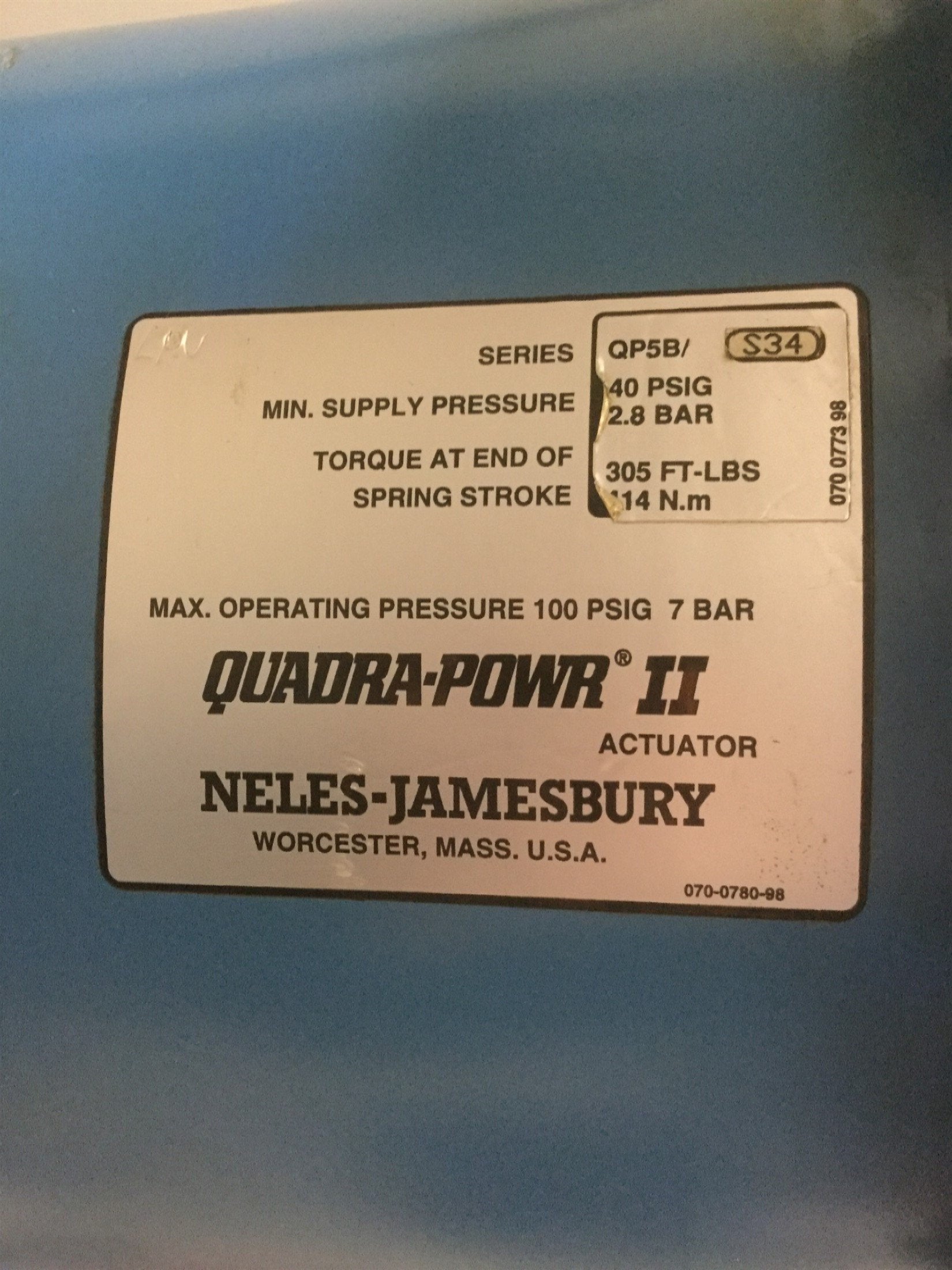

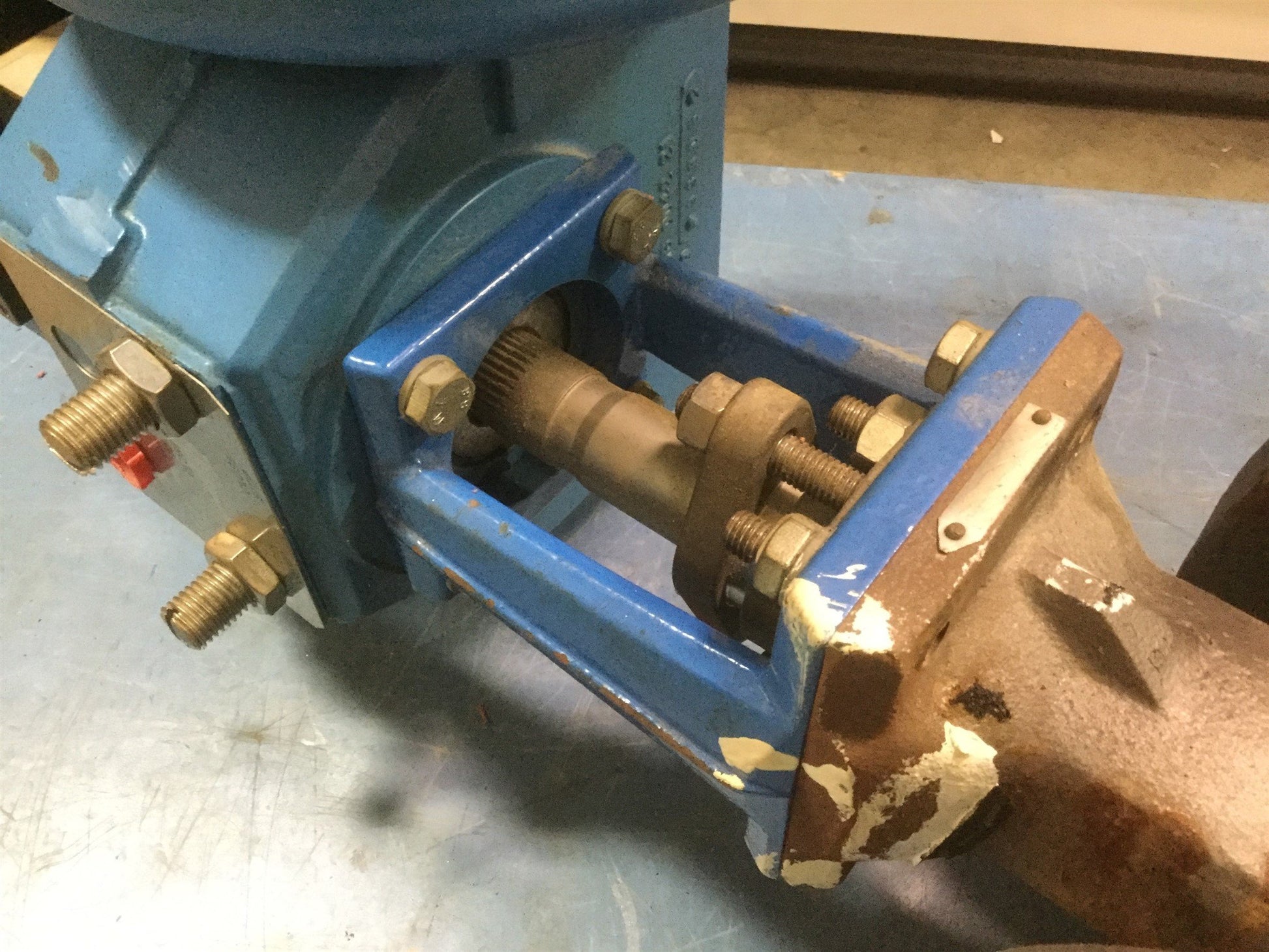

    • Quadra Powr II Actuator: Neles Jamesbury QP5 ( QP5B/S34 ) Link
      • Min. Supply Pressure: 40PSI
      • Max Operating Pressure: 100 PSI
      • Torque At End Of Spring Stroke: 305Ft-Lbs

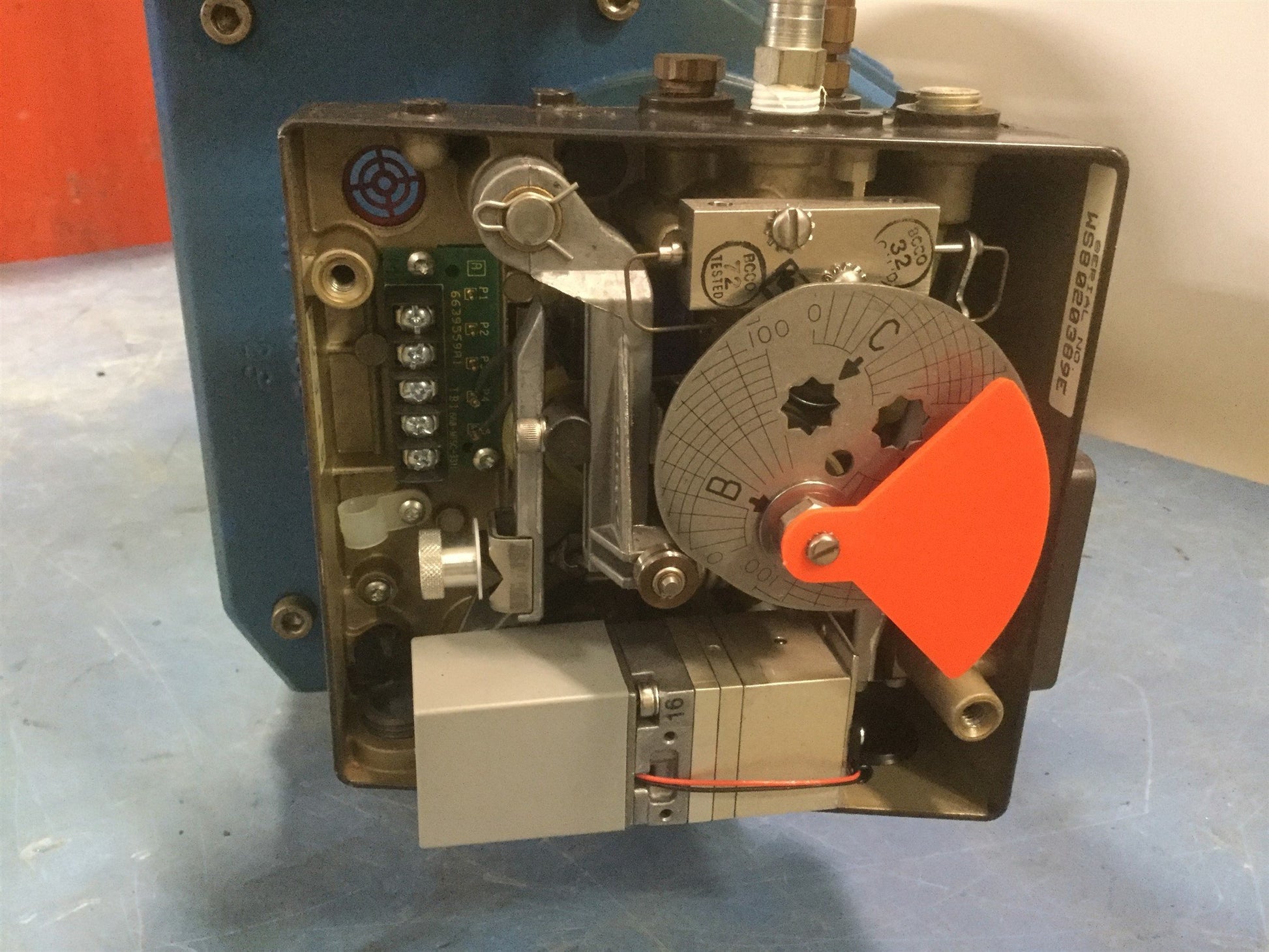

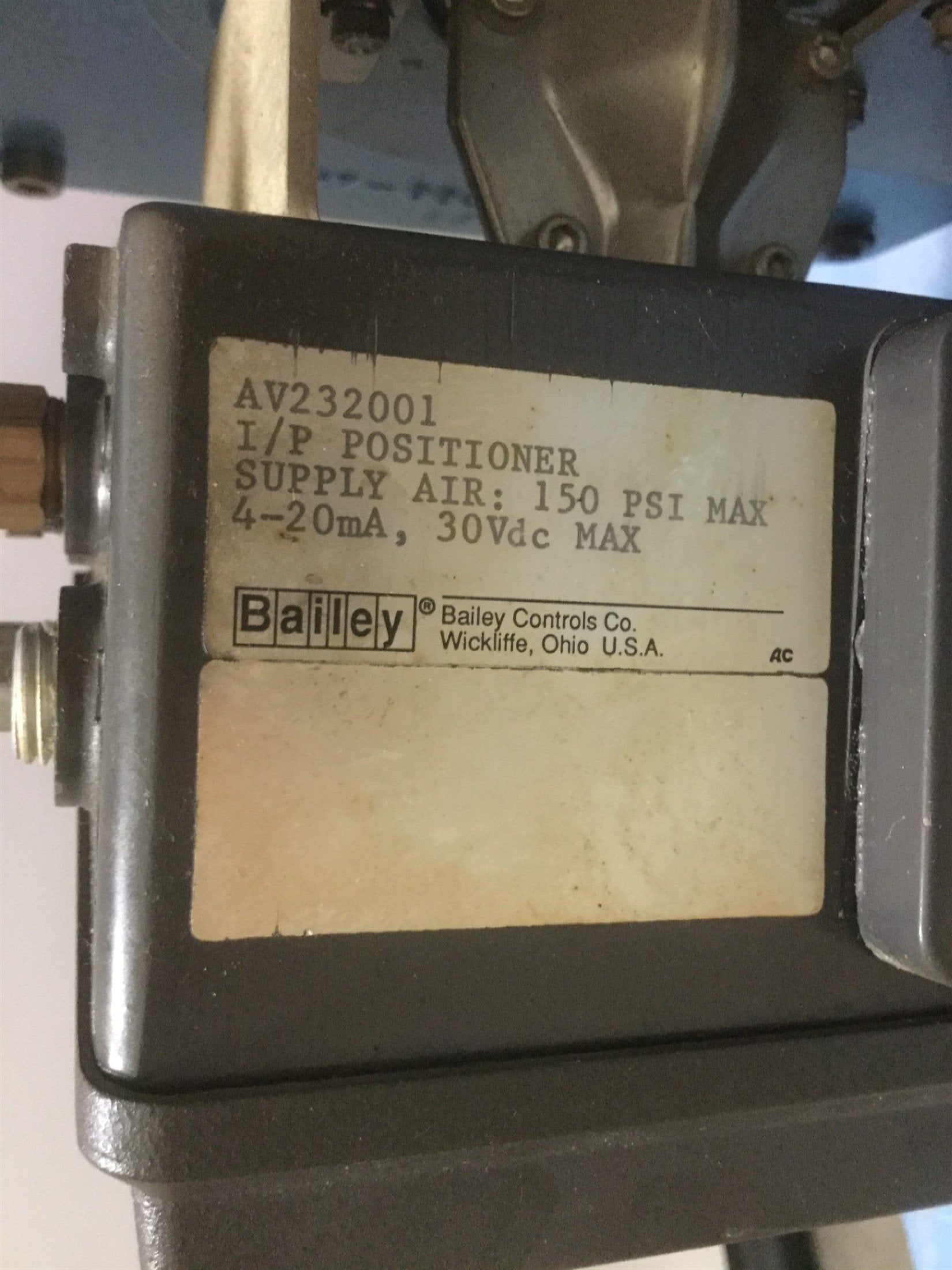

    • I/P Positioner: Bailey AV2 ( AV2232001 ) Link
      • Max Supply Air: 150 PSI
      • Control Loop: 4-20mA, 30VDC Max
      • Ports: 1/4NPT
      • NOTE: Small Leak around pilot valve area, still functions.

Item Specifics & Seller Notes:

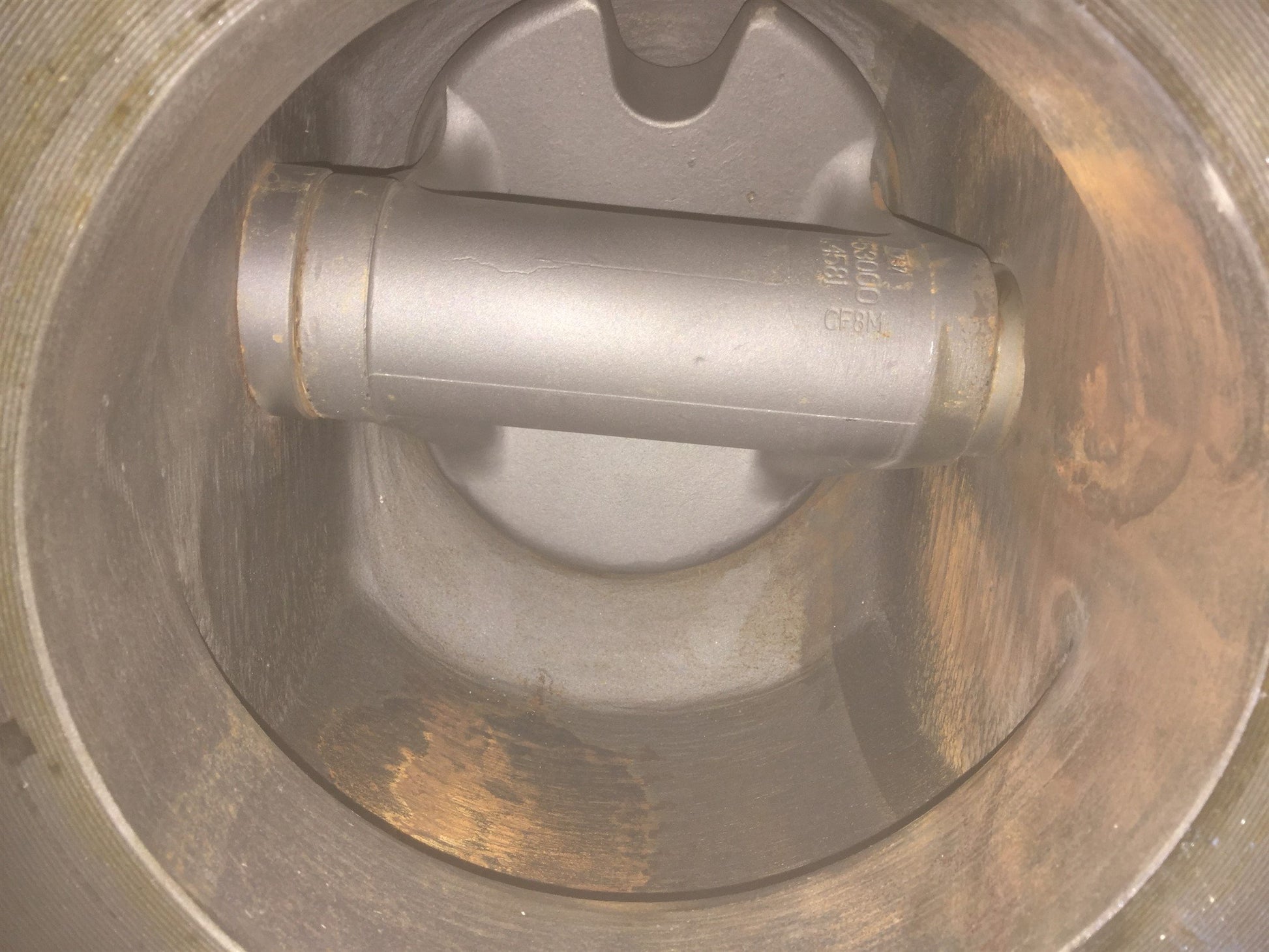

Tested, found it to have a slight leak air out the I/P positioner (possibly out the pilot valve).  Unit functions otherwise as intended.  The valves plug and seats look to be in very good condition.  The exterior cosmetic condition of the assembly is marginal at best.  Sold as pictured.
