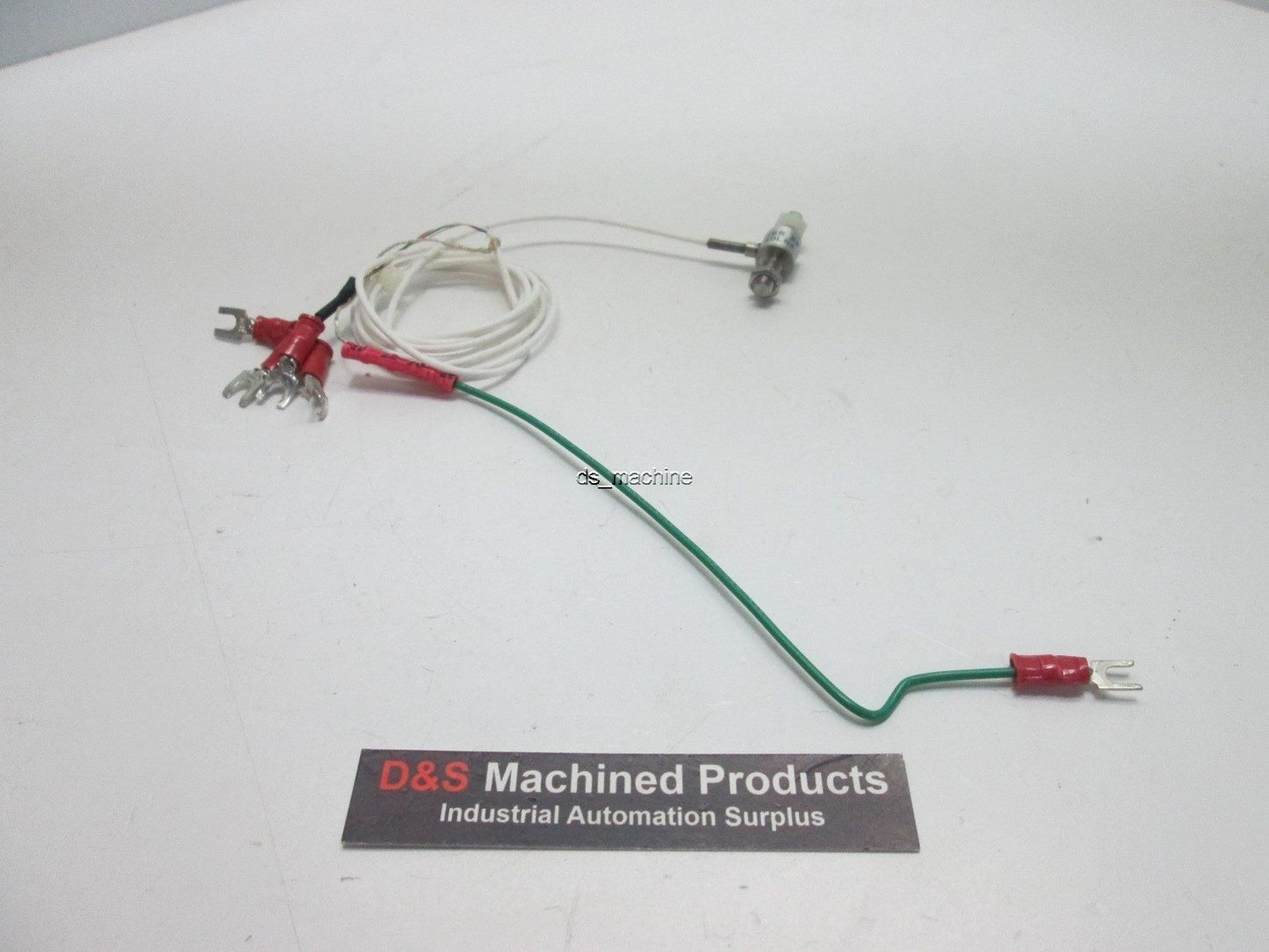

From our online store inventory, we are selling a GS Sensors XFTC100-M5M-150 Force Transducer, 150lbs Tension, 10VDC.

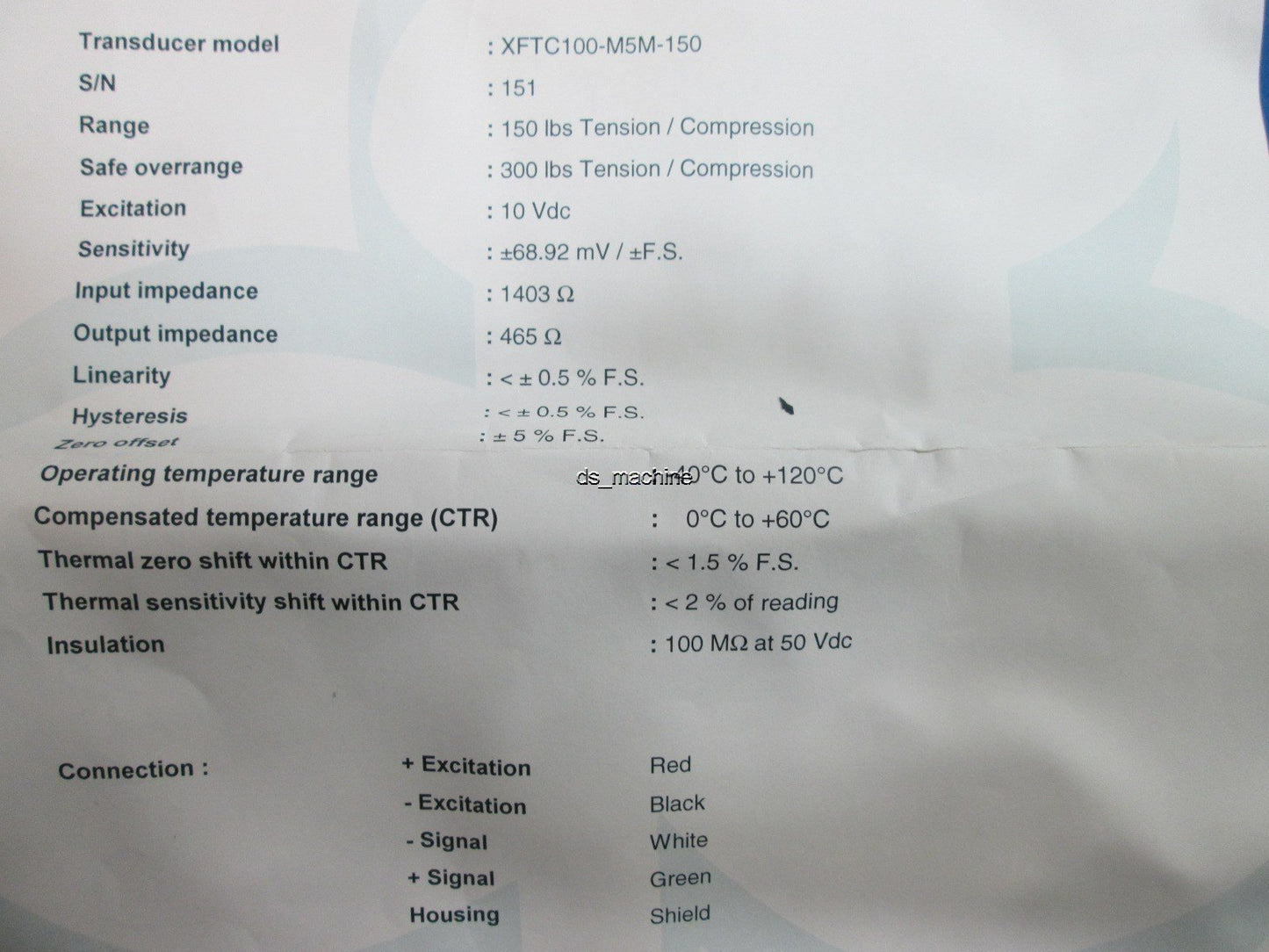

Specifications:

• Model #: XFTC100-M5M-150
• More Information:
• Transducer Model: XFTC100-M5M-150
• Range: 150lbs Tension / Compression
• Safe Overrange: 300lbs Tension / Compression
• Excitation: 10VDC
• Sensitivity: ±68.92 mV / ±F.S.
• Input Impedance: 1403 O
• Output Impedance: 465 O
• Linearity: < ±0.5% F.S
• Hystersis: < ±0.5% F.S
• Zero Offset: ±5% F.S
• Operating Temperature Range: -40ºC to +120ºC
• Compensated Temperature Range (CTR): 0ºC to +60ºC
• Thermal Zero Shift within CTR: <1.5% F.S
• Thermal Sensitivity Shift within CTR: < 2% of Reading
• Insulation: 100MO at 50VDC
• Connection:
• +Excitation RED
• - Excitation BLACK
• - Signal      WHITE
• +Signal      GREEN
• Housing     SHIELD
