Item Condition: Used
SKU: SB-216816
RU-1-B

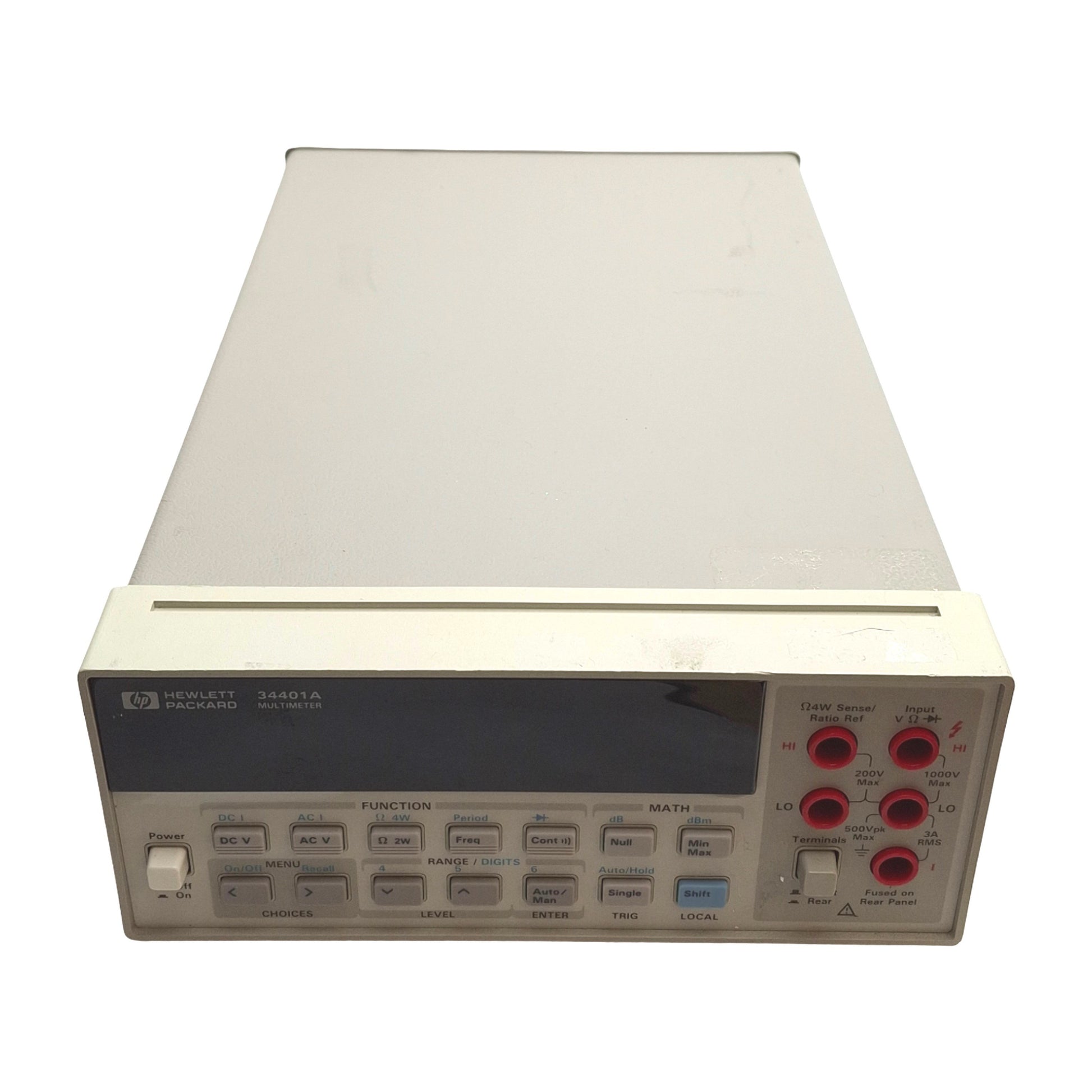

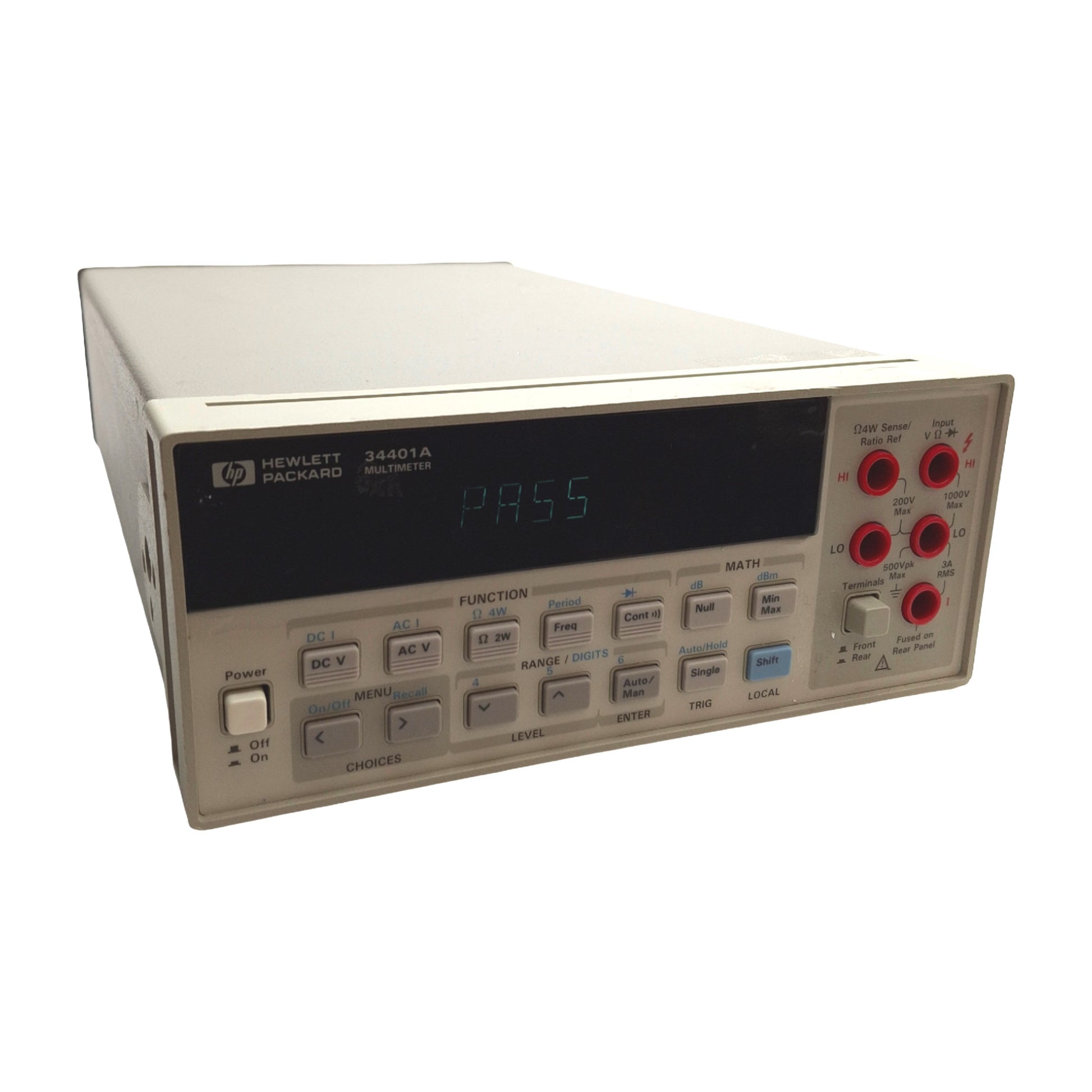

From our inventory we are selling a HP 34401A Lab Multimeter, Voltage, Current, 2/4-Wire Resistance, 120/240VAC.
Specifications:
-
Model #: 34401A
-
More Information:
- HP Laboratory Grade Multimeter
- Number Of Display Digits: 6 1/2
- Measurement Functions: DC/AC Voltage, DC/AC Current, 2- and 4-Wire Resistance, Diode, Continuity, Frequency, Period
- Measurement Ranges:
- DC: 100.0000mV, 1.000000V, 10.00000V, 100.0000V, 1000.000V
- AC:
- Voltage: 100.0000mV / 1.000000 to 750.00V
- Frequency: 3Hz-5Hz, 5Hz-10Hz, 10Hz-20kHz, 20kHz-50kHz, 50kHz-100kHz, 100kHz-300kHz6 / 3Hz-5Hz, 5Hz-10Hz, 10Hz-20kHz, 20kHz-50kHz, 50kHz-100kHz5, 100kHz-300kHz6
- Resistance: 100.0000O 1mA Current Source, 1.000000kO 1mA, 10.00000kO 100µA, 100.0000O 10µA, 1.000000MO 5.0µA 10.00000MO 500nA, 100.0000MO 500nA || 10MO
- Frequency or Period: 100mV-750V 3Hz–300kHz
- Continuity: 1000.0? 1mA Test Current
- Diode Test: 1.0000V 1mA Test Current
- Accuracy: 0.0035% DC, 0.06% AC
- Read Rate: 1000/sec
- Memory: 512 Readings
- Communication: RS-232, GPIB
- Input Impedance: 1M? ± 2% In Parallel w/100pF
- Input Protection:
- DC: 1000V All Ranges
- AC: 750Vrms All Ranges
- Resistance: 1000V All Ranges
- Power Requirements: 100/120VAC or 220/240VAC 45-440Hz 25VA
- Dimensions: 15 x 9 x 4"
Item Specifics & Seller Notes:

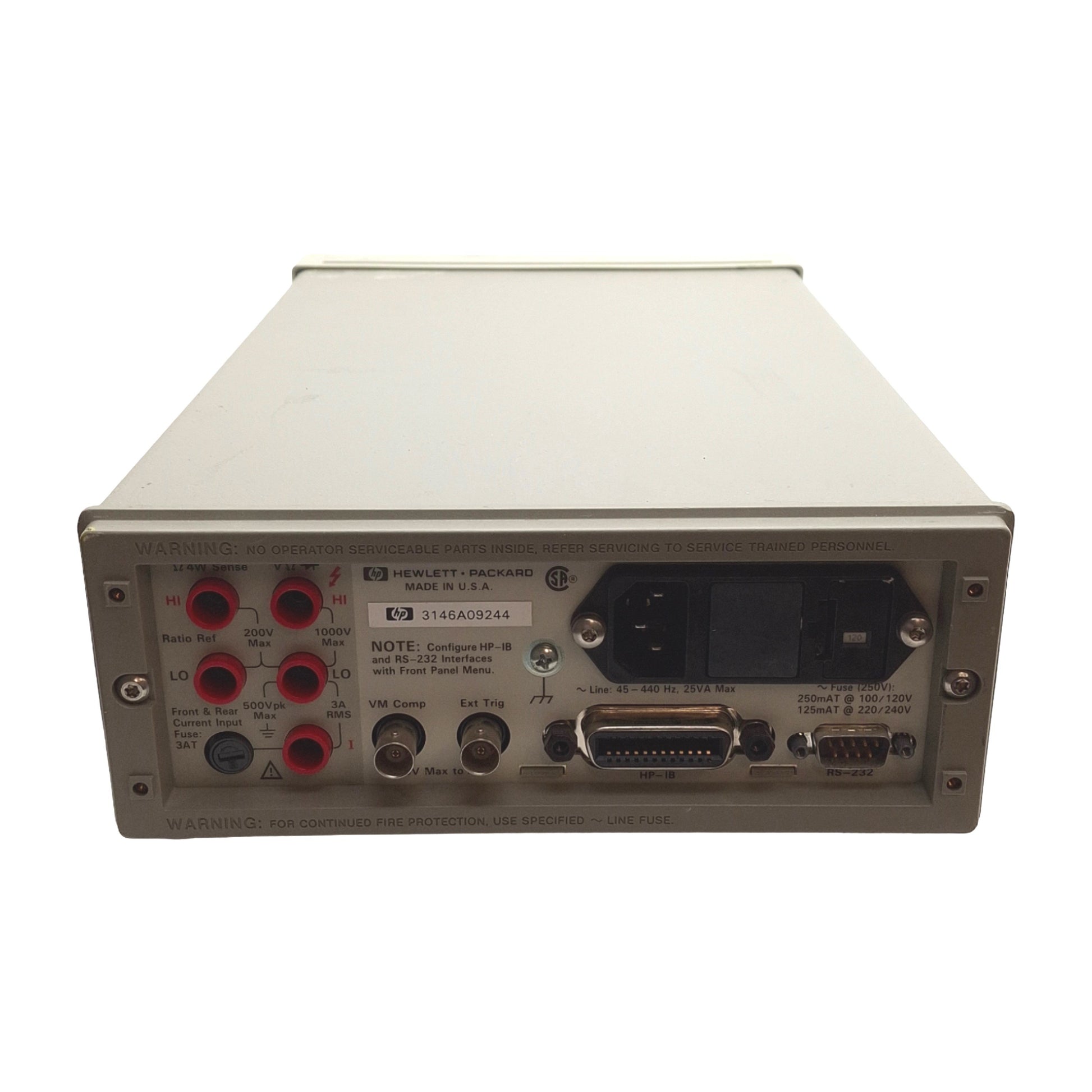

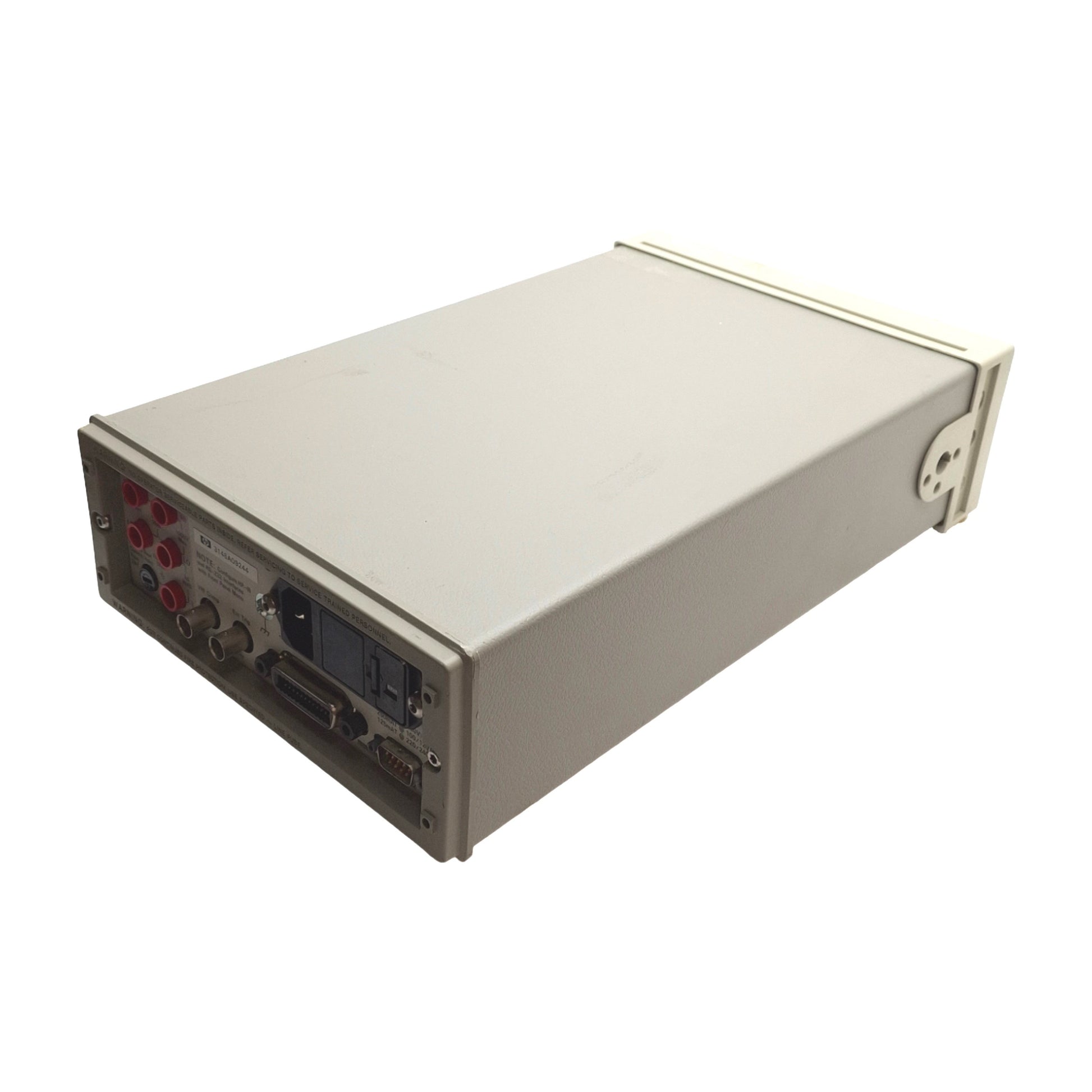

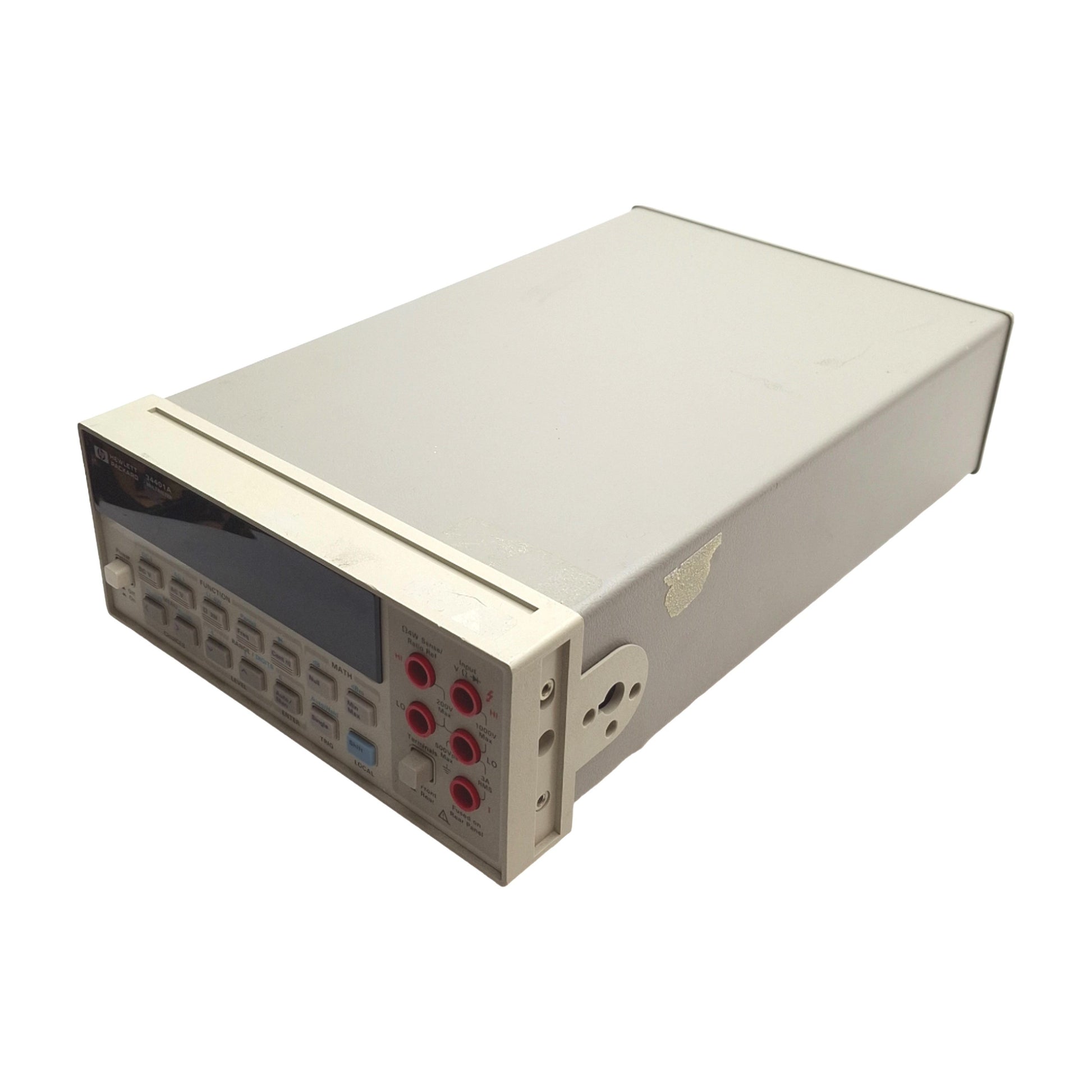

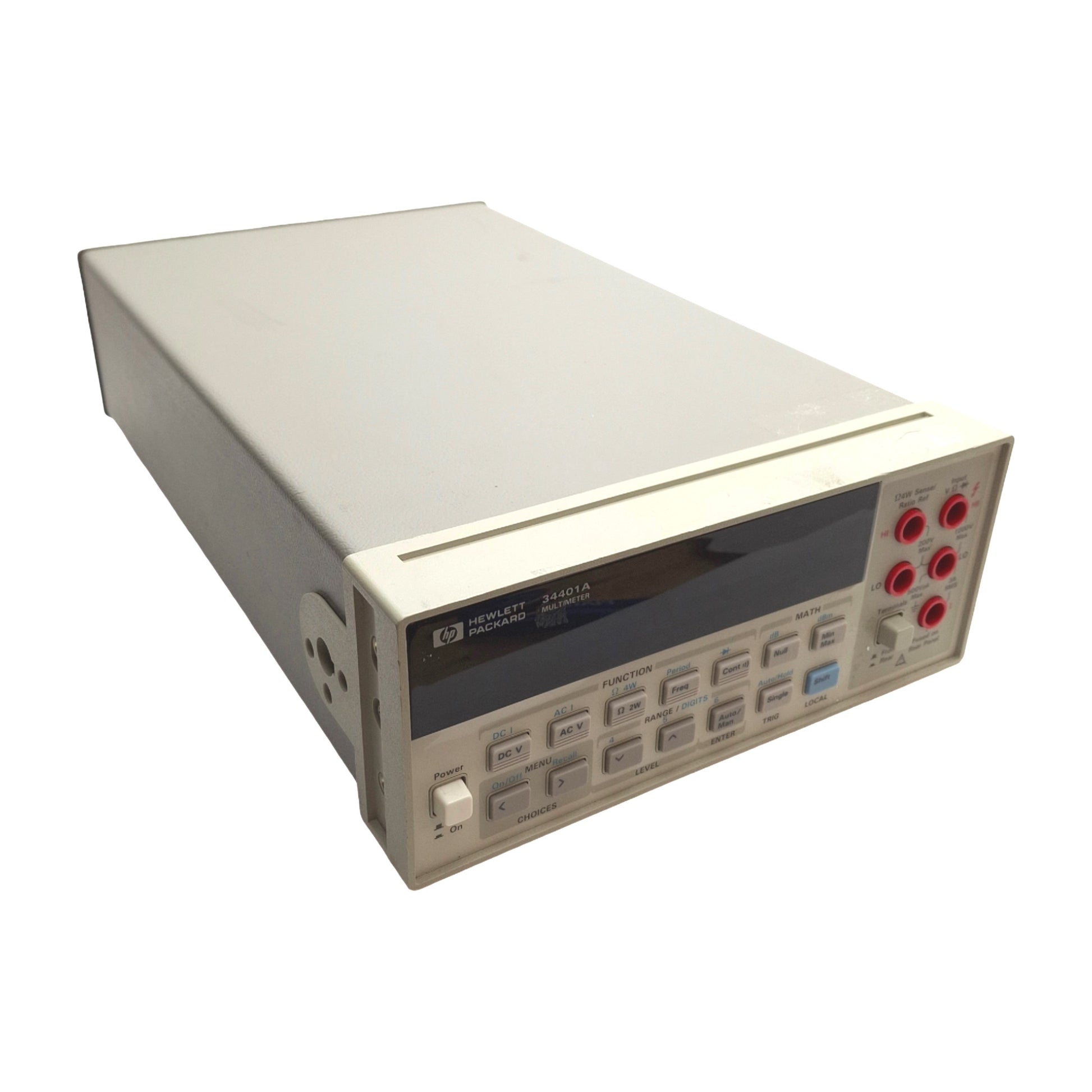

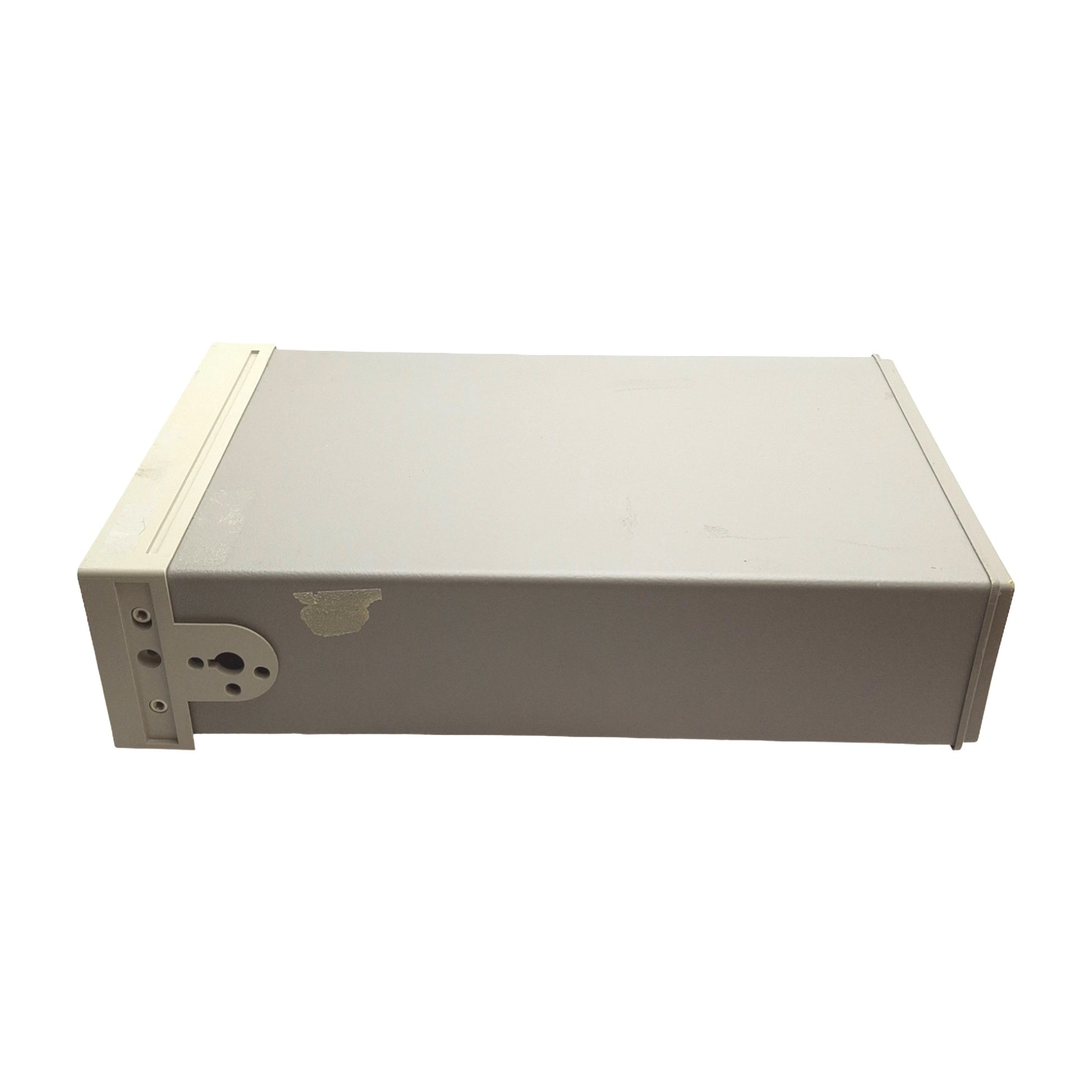

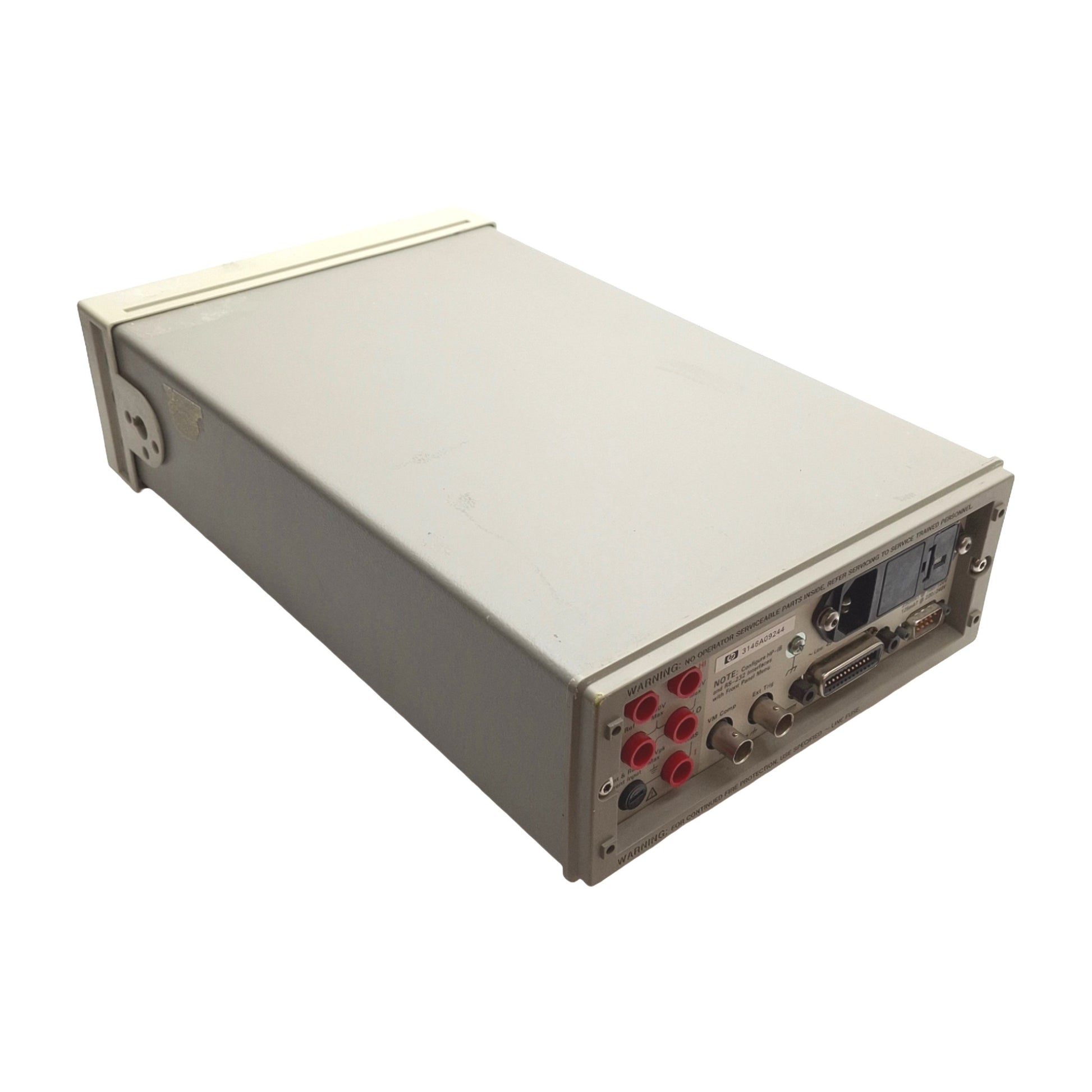

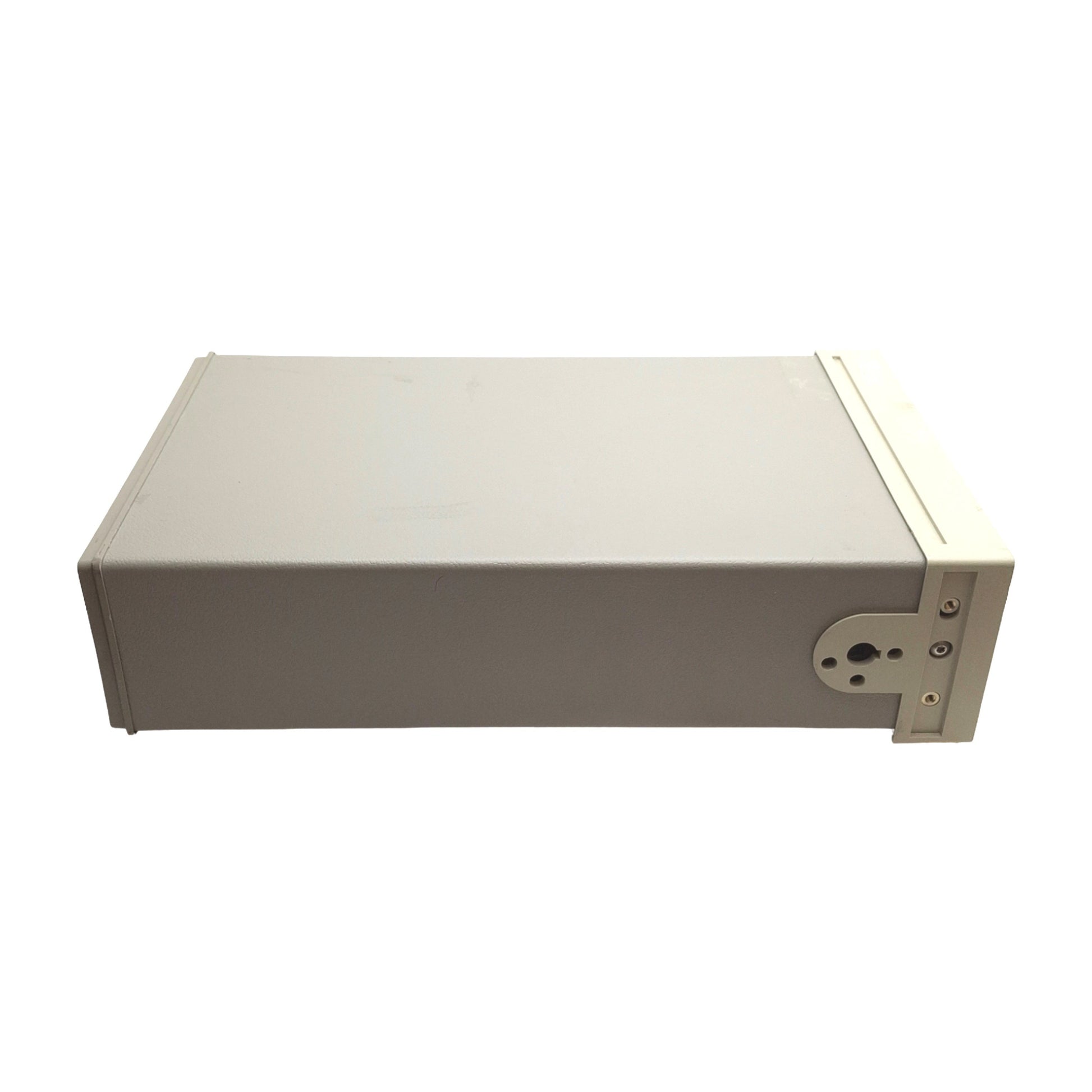

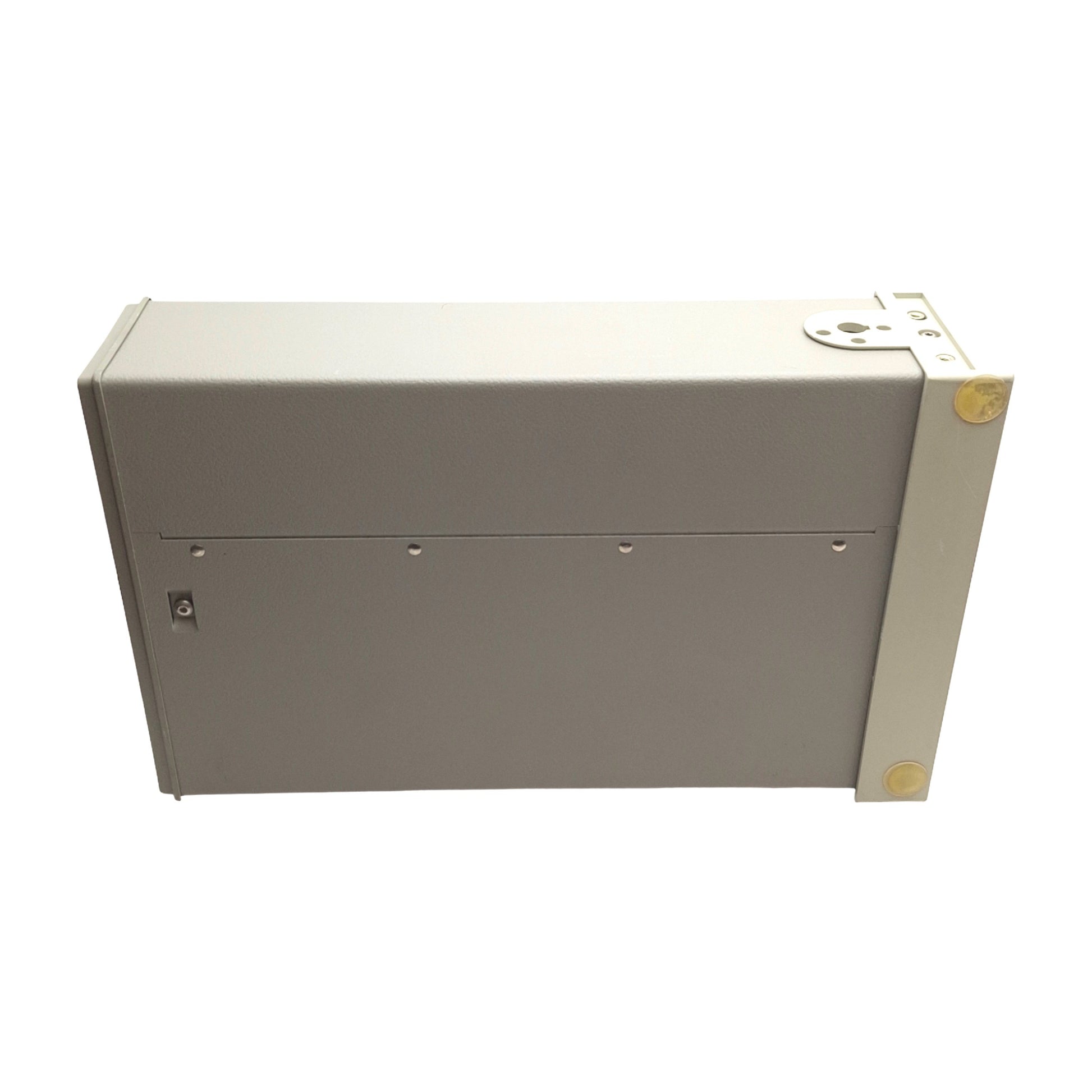

Passes Self Test, Does Not Include Probes, See Photos |
