Used MC PCM-QUAD02 Quadrature Encoder Input Board, 2-Channel, Type 2 PCMCIA, LS7266

Skip to product information
$150.00 USD
 per
Just 1 left. Order soon!
Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Measurement Computing. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-112387
ST58-4-D

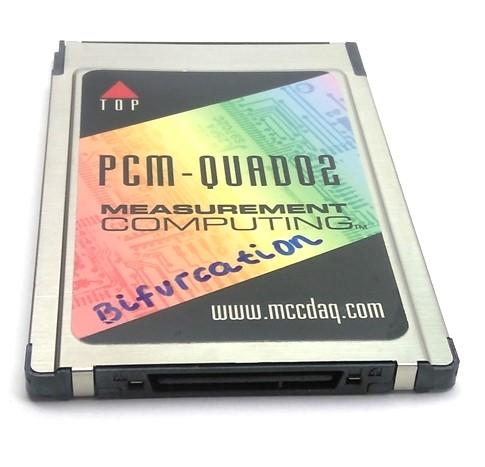

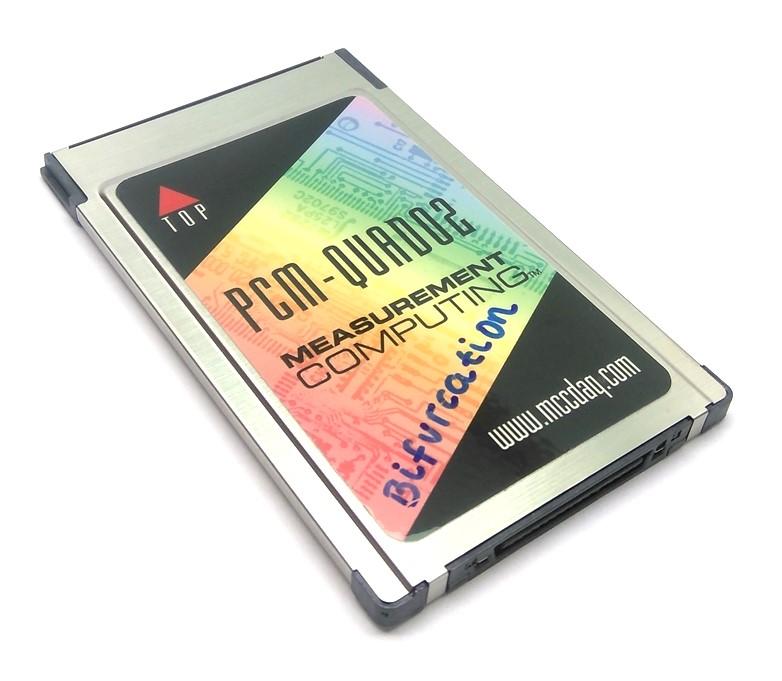

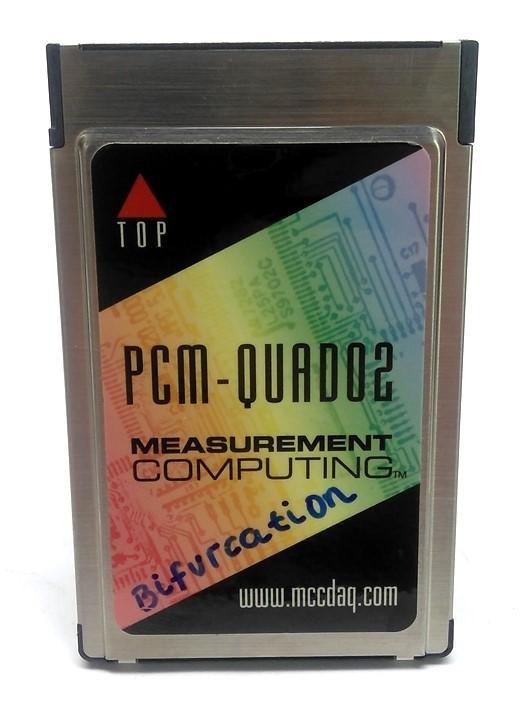

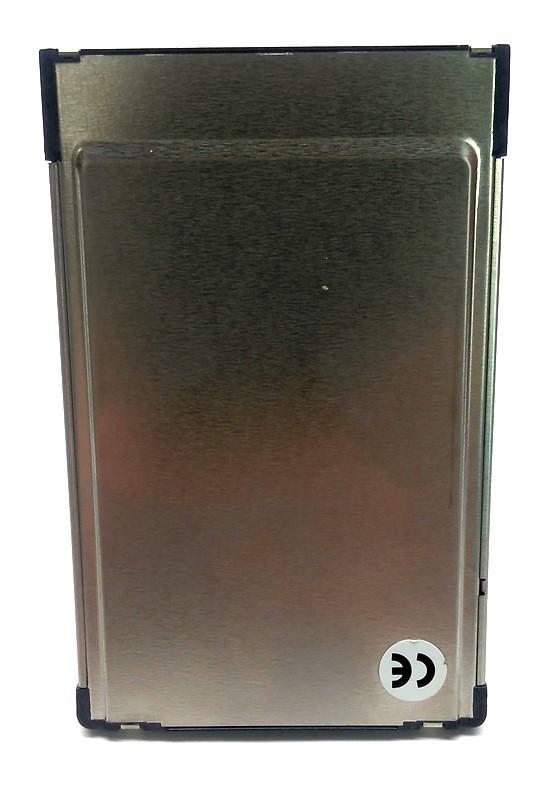

From our inventory we are selling a MC PCM-QUAD02 Quadrature Encoder Input Board, 2-Channel, Type 2 PCMCIA, LS7266.

Specifications:

  • Model #: PCM-QUAD02
  • More Information:
    • Quadrature Encoder Input Board
    • Slot: Type 2 PCMCIA
    • Input:
      • Receiver Type: SN75ALS175
      • # of Channels: 2
      • Input Voltage Range: ñ12VDC
      • Input Sensitivity: ñ200mV
      • Input Hysteresis: 50mV typ
      • Input Impedance: 12K? min
      • Propagation Delay: 27ns max
    • Counter:
      • Counter Type: LS7266R1 24-bit Dual-Axis
      • Quadrature Mode:
        • Clock Frequency: 4.3MHz Max
        • Separation: 57ns min
        • Clock Pulse Width: 115ns min
        • Index Pulse Width: 85ns min
      • Count Mode :
        • Clock Frequency: 30MHz Max
        • Clock A Pulse Width: 16ns min
      • Filter clock: 10 MHz
      • Digital Filter Rate 10 MHz Software Selectable
        Crystal Oscillator:
        • Frequency: 10MHz
        • Frequency Accuracy: 100ppm

Item Specifics & Seller Notes:
Writing is present on the front of the card.
