Specifications:

• Model #: 2375
• More Information:

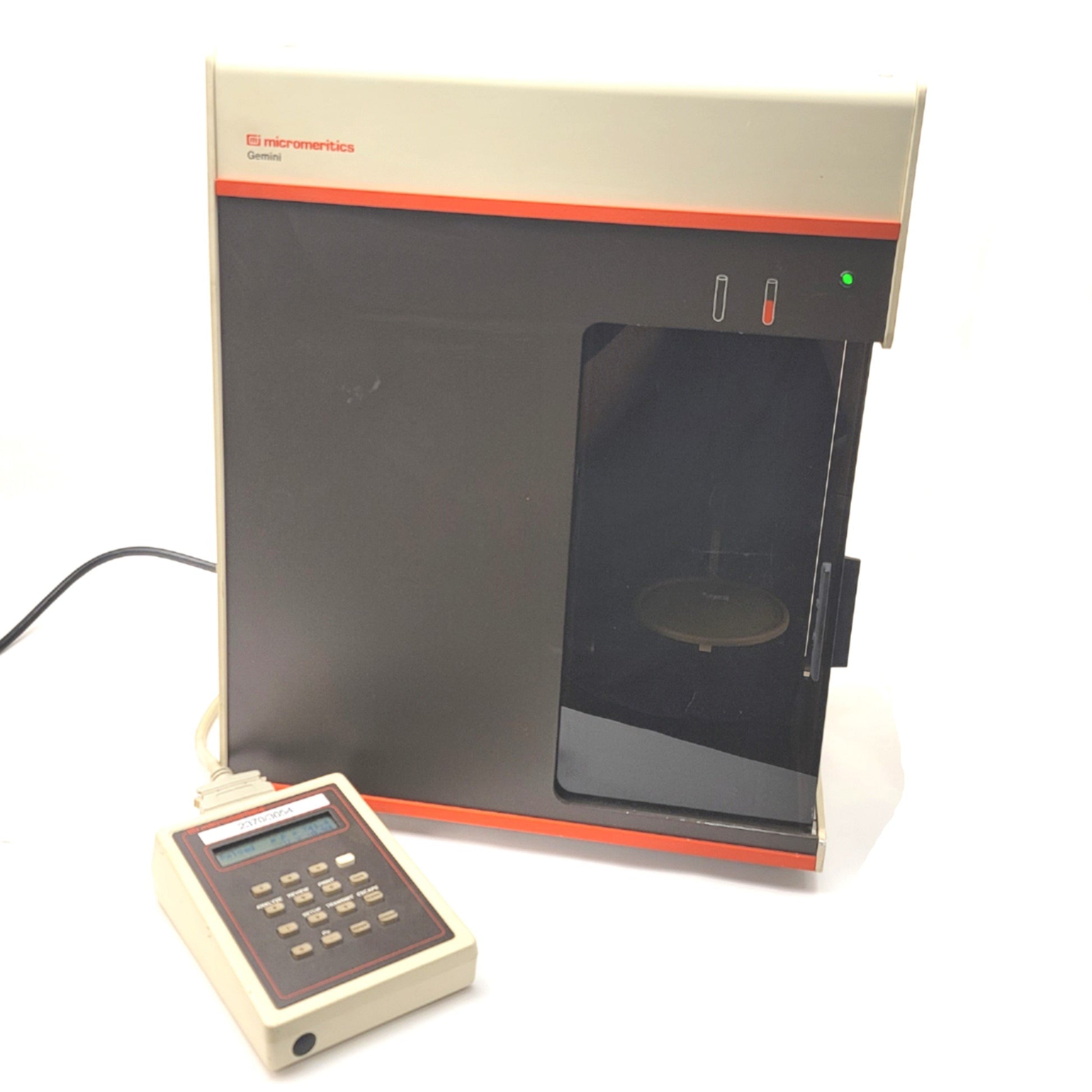

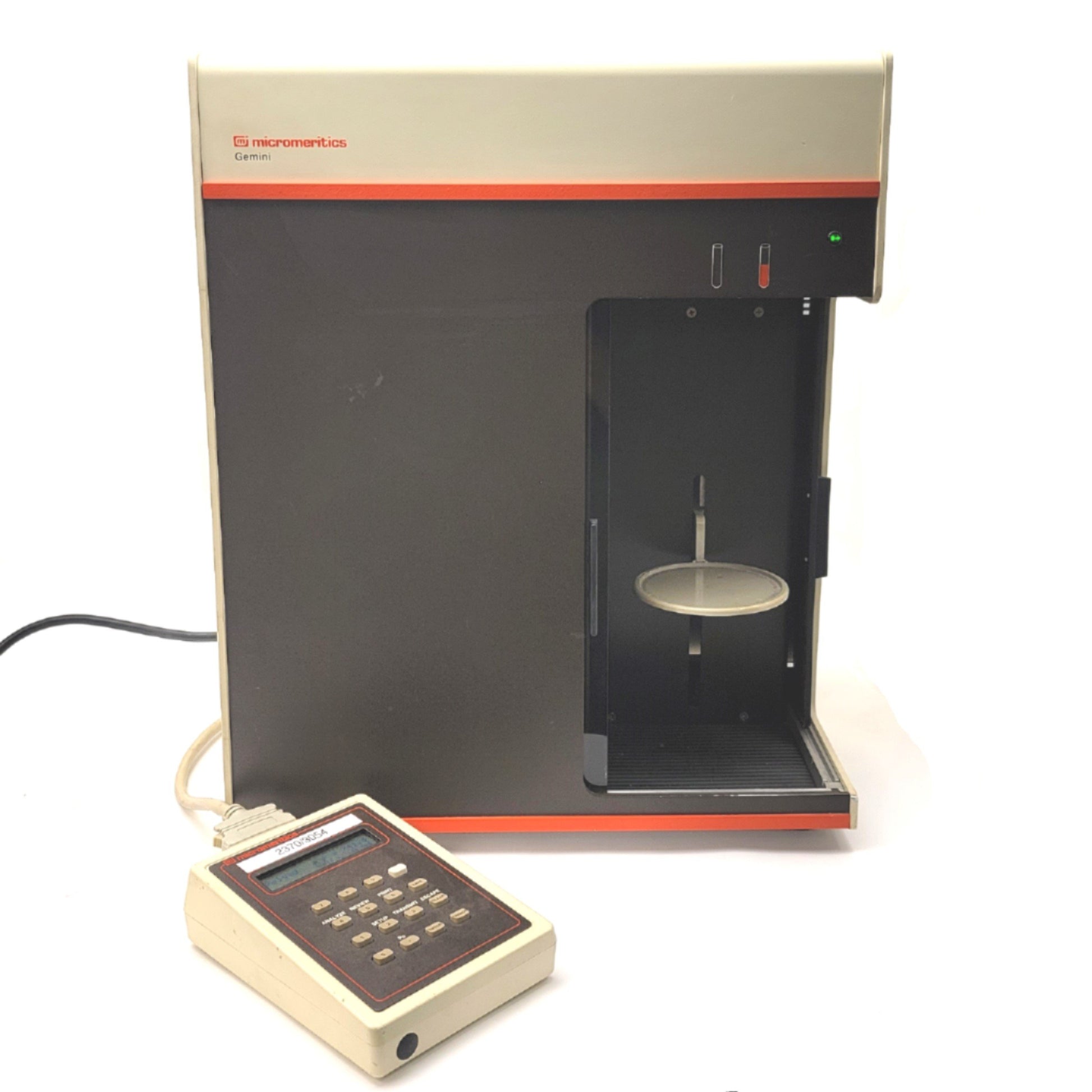

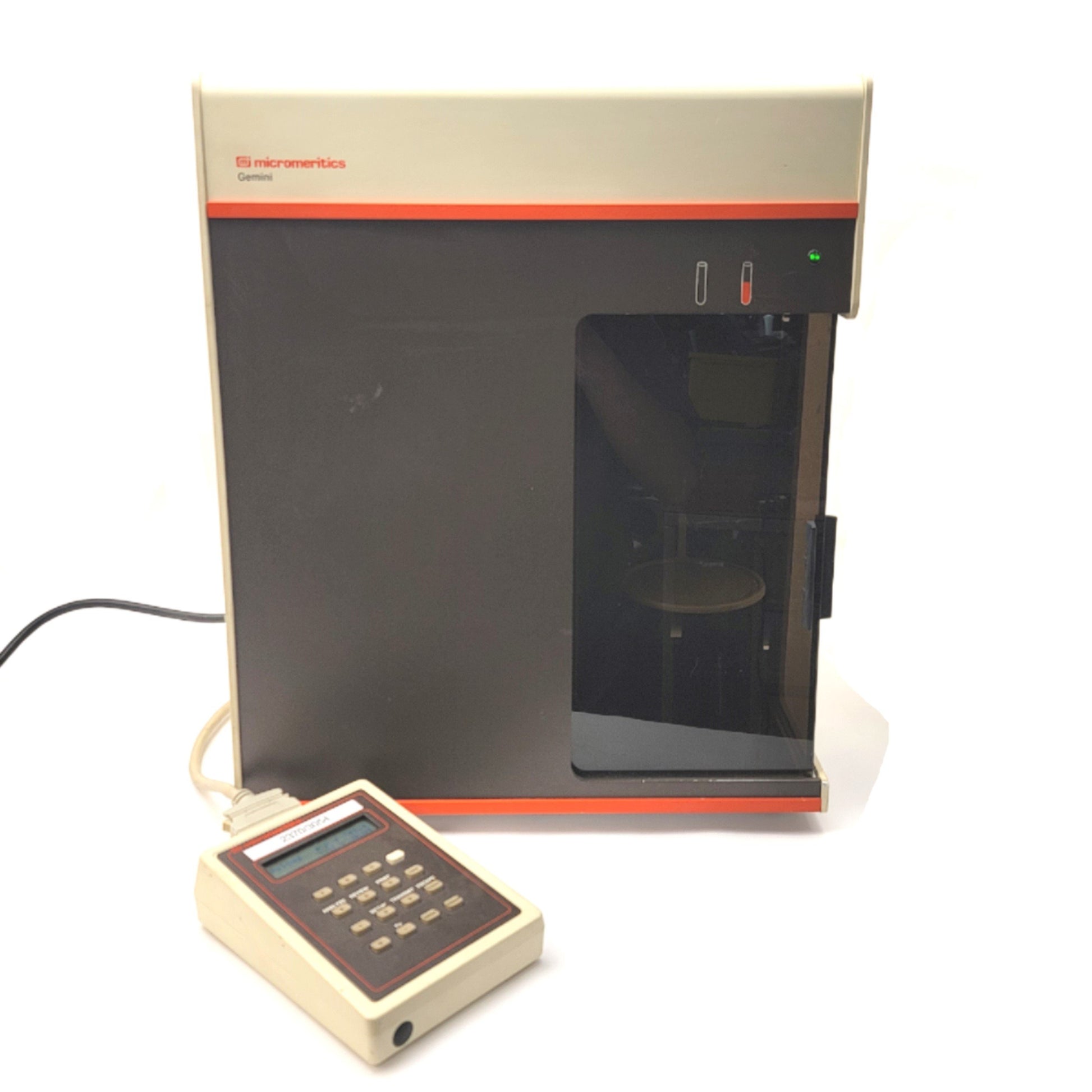

  • Micromeritics GEMINI Surface Area Pore Size Analyzer
  • Surface Area:
    • Specific: 0.01 m2/g and Higher
    • Total: 0.1 m2 and Higher, +\- 0.03 m2
    • Pore Volume: 4 x 10-6 cm3/g and Higher
  • Relative Pressure Range:
    • Adsorption: 0 to 0.98 P/Po
    • Desorption: 1 to 0.1 P/Po
    • Isotherm Closure: To within 0.5% of maximum volume adsorbed
  • Pressure Measurement:
    • Range: 0 to 950 mmHg
    • Minimum Resolvable Relative Pressure (P/Po): less than 1 x 10-4
    • Pressure Resolution: less than 0.1 mmHg
    • Accuracy and Linearity: Better than +/-0.5% (Transducer manufacturer's specification)
  • Sample Tubes:
    • Straight Wall Tube:
      • Outside Diameter: 0.95 cm (3/8 in.)
      • Length: 15.5 cm (6.1 in.)
      • Volume: 6 cm3, approx.
      • Capacity: 1.8 cm3, approx.
    • Bulb Tube:
      • Outside Diameter: 1.9 cm (3/4 in.)
      • Length: 15.5 cm (6.1 in.)
      • Volume: 12 cm3, approx.
      • Capacity: 6 cm3, approx.
  • Gases:
    • Optimized for nitrogen in a liquid nitrogen sample bath. The Gemini analyzer may be used with non-corrosive adsorptives having vapor pressures at both room and bath temperatures that are acceptably high relative to the resolution of the 1,000 mmHg pressure transducer. Typically, oxygen, argon, carbon dioxide, butane, methane, and other light hydrocarbons will produce useful data above absolute pressures of a few mmHg.
  • Vacuum System:
    • External; any vacuum source achieving better than 20 x 10-3 mmHg at the instrument inlet.
  • Electrical:
    • Voltage: 100, 120, 220, 240 VAC +/-10%
    • Frequency: 50/60 Hz
    • Power:150 VA maximum
  • Dimensions:
    • Height: 52.4 cm (20.6 in.)
    • Width: 43.8 cm (17.3 in.)
    • Depth: 30.5 cm (12.0 in.)

Item Specifics & Seller Notes:

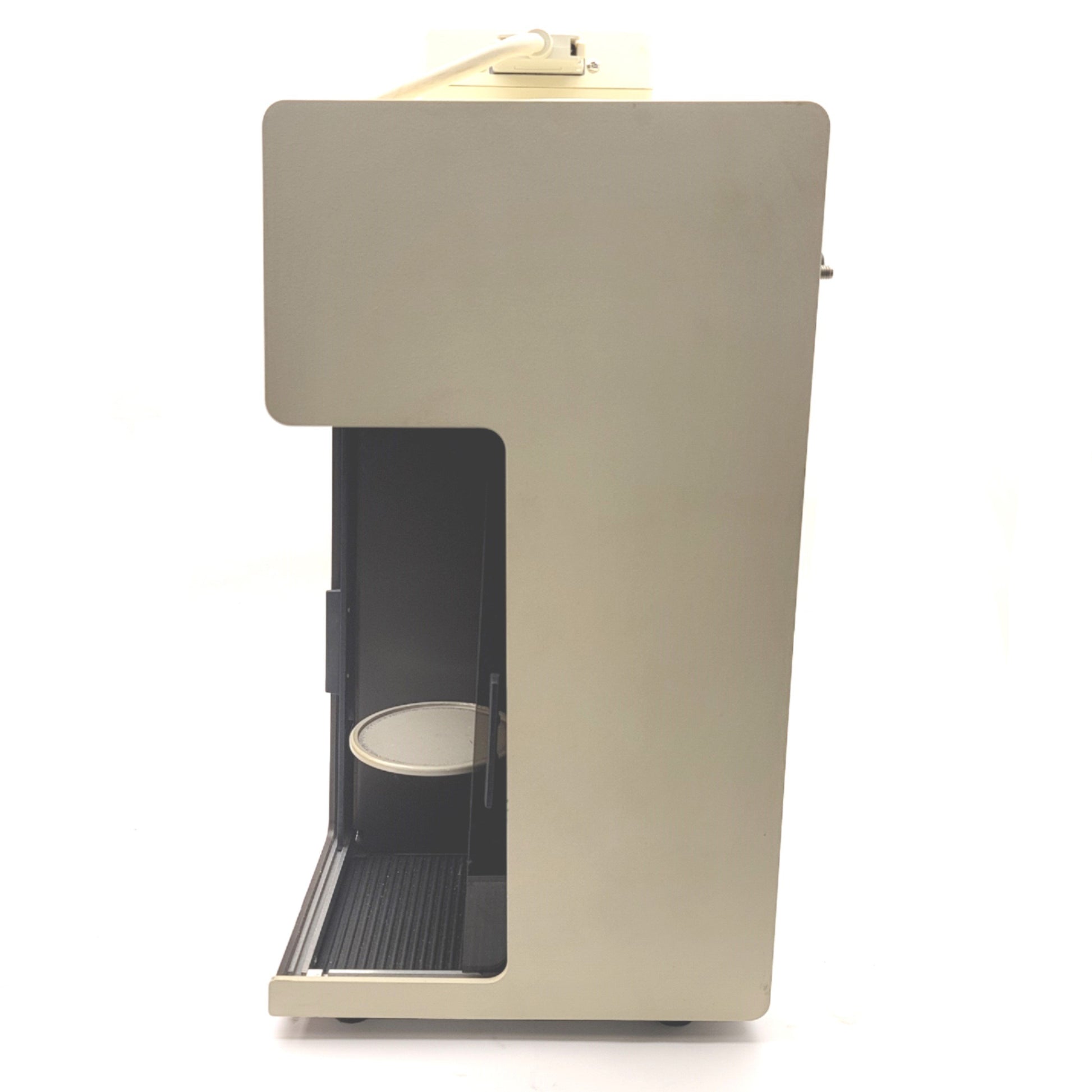

Does Not Include Test Tubes See Pictures.

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
