Specifications:

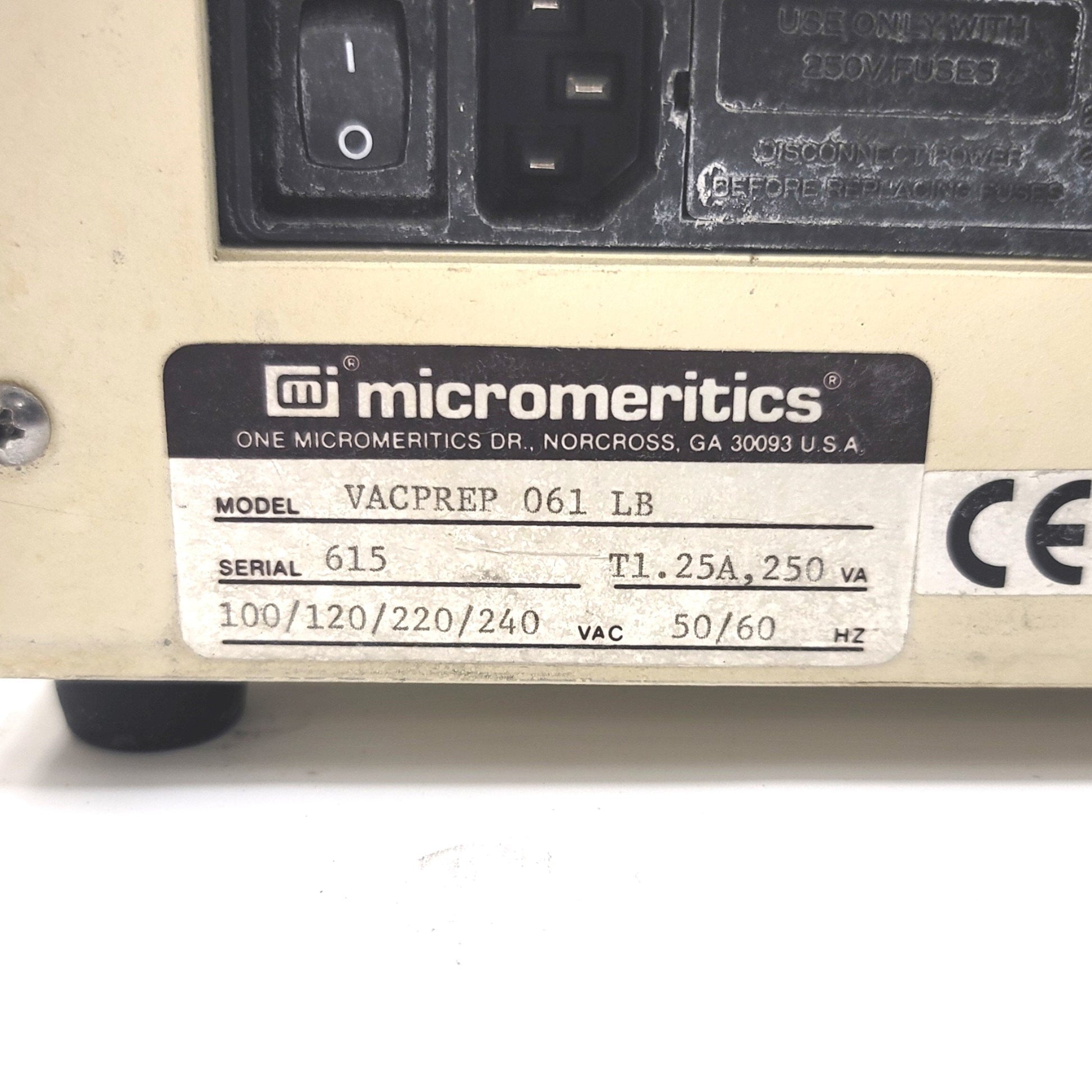

• Model #: VACPREP 061 LB
• More Information:

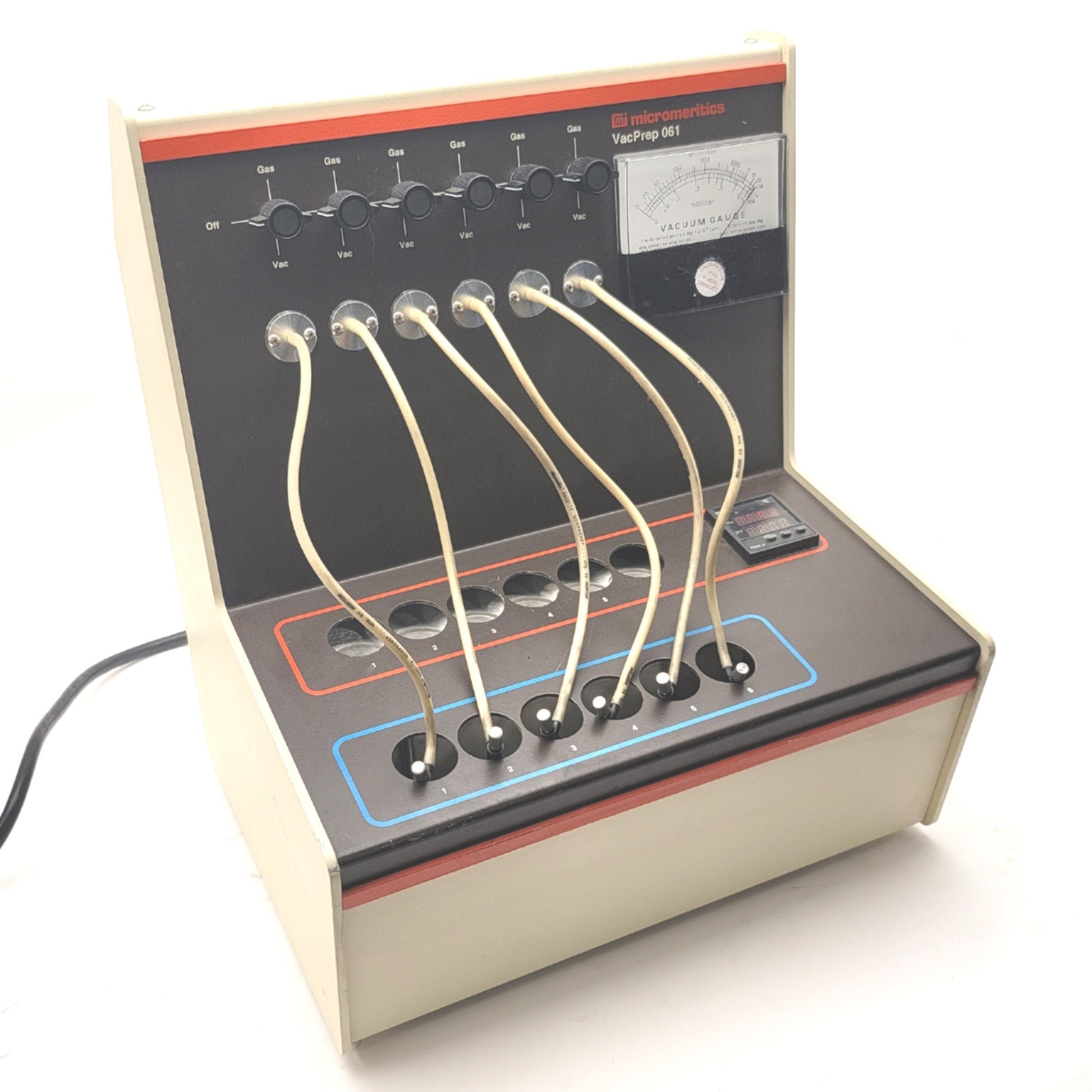

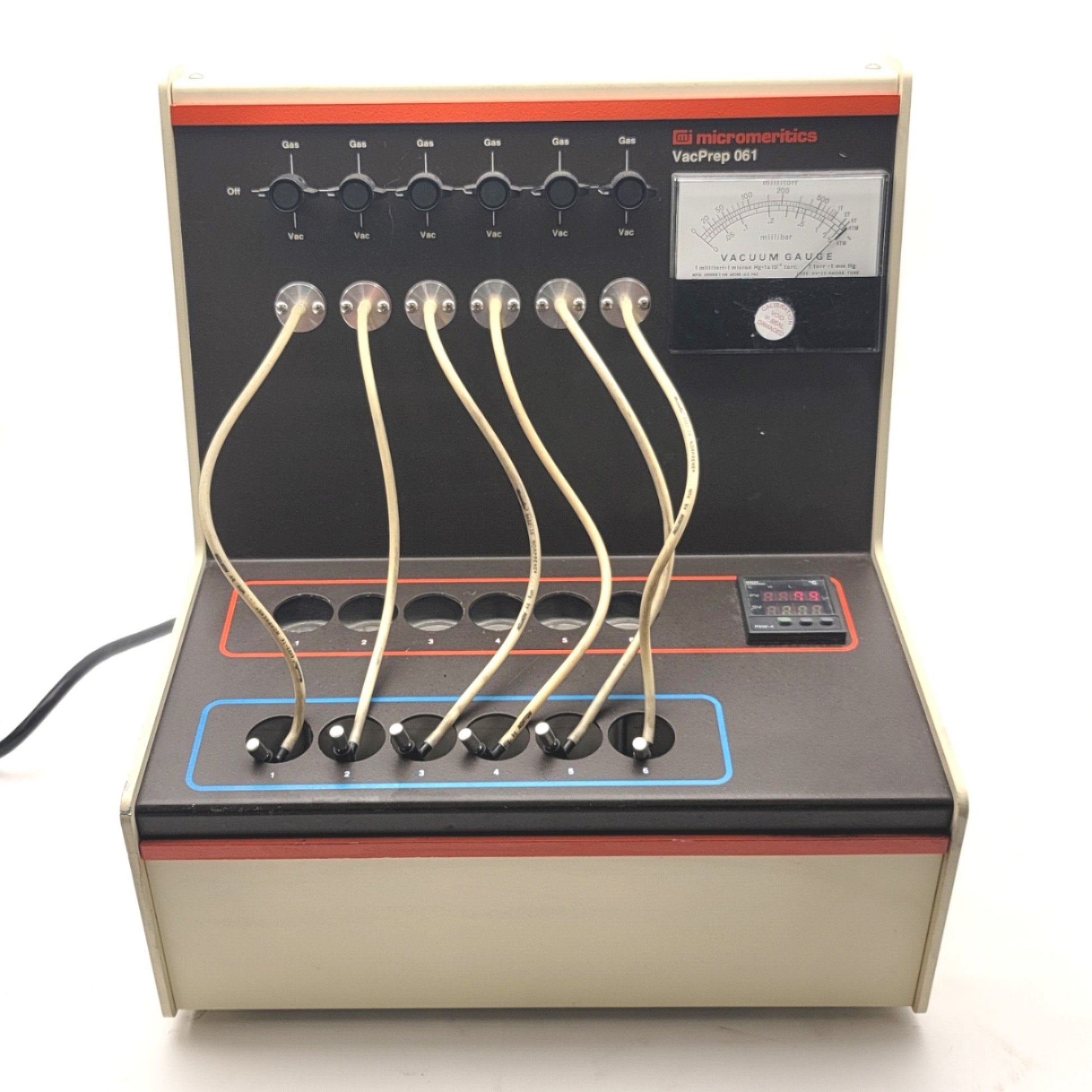

• Micromeritics Sample Degasser 6-Station
• Sample Tubes:
• Up to 3.0-cm (1 3/16-in.) OD bulbs with 1/4-, 3/8-, or 1/2-in., 9mm, 12mm OD stems.
• Heating Blocks:
• Temperature: 10 §C above ambient to 400 §C
• Temperature Accuracy: ñ10 §C
• Electrical:
• Voltage: 100, 120, 220, 240 VAC
• Power: 250 VA maximum
• Frequency: 50/60 Hz
• Gases Used:
• Helium, nitrogen, argon, or any other pure gas that does not adsorb at room temperature.
• Flow Rate:
• Up to 50 cm3/min.
• Vacuum System:
• A vacuum source achieving better than 20æmHg at the instrument inlet, and having a device to reduce oil vapor backstreaming is recommended. The vacuum system must also have an anti-suckback valve to prevent oil from flowing into the VacPrep should there be a power failure
• Sample Capacity:
• Six ports, each with a heating and a cooling station
• Dimensions:
• Height: 43 cm (16.95 in.)
• Width: 36 cm (14.3 in.)
• Depth: 30 cm (11.87 in.)
