Specifications:

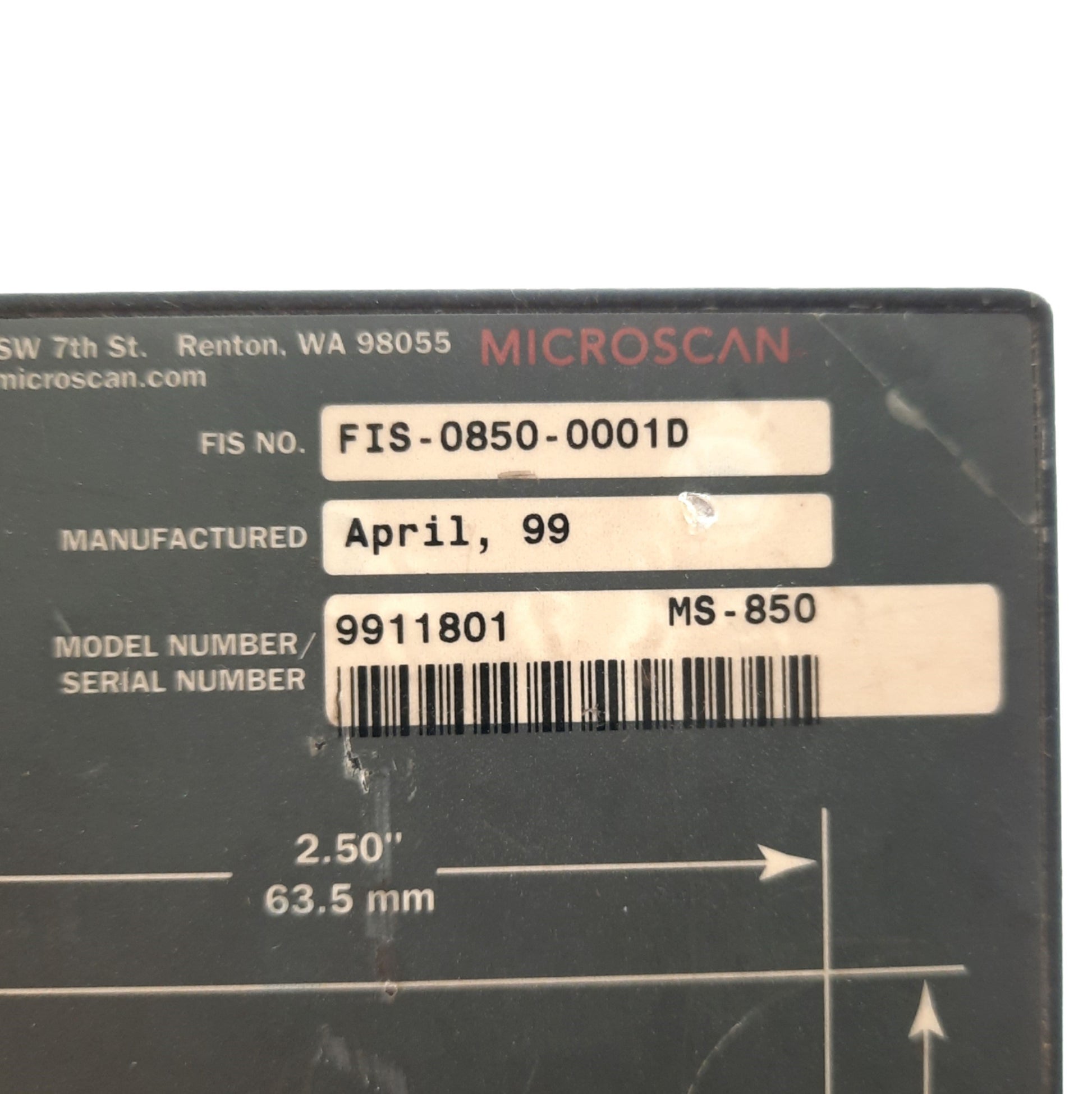

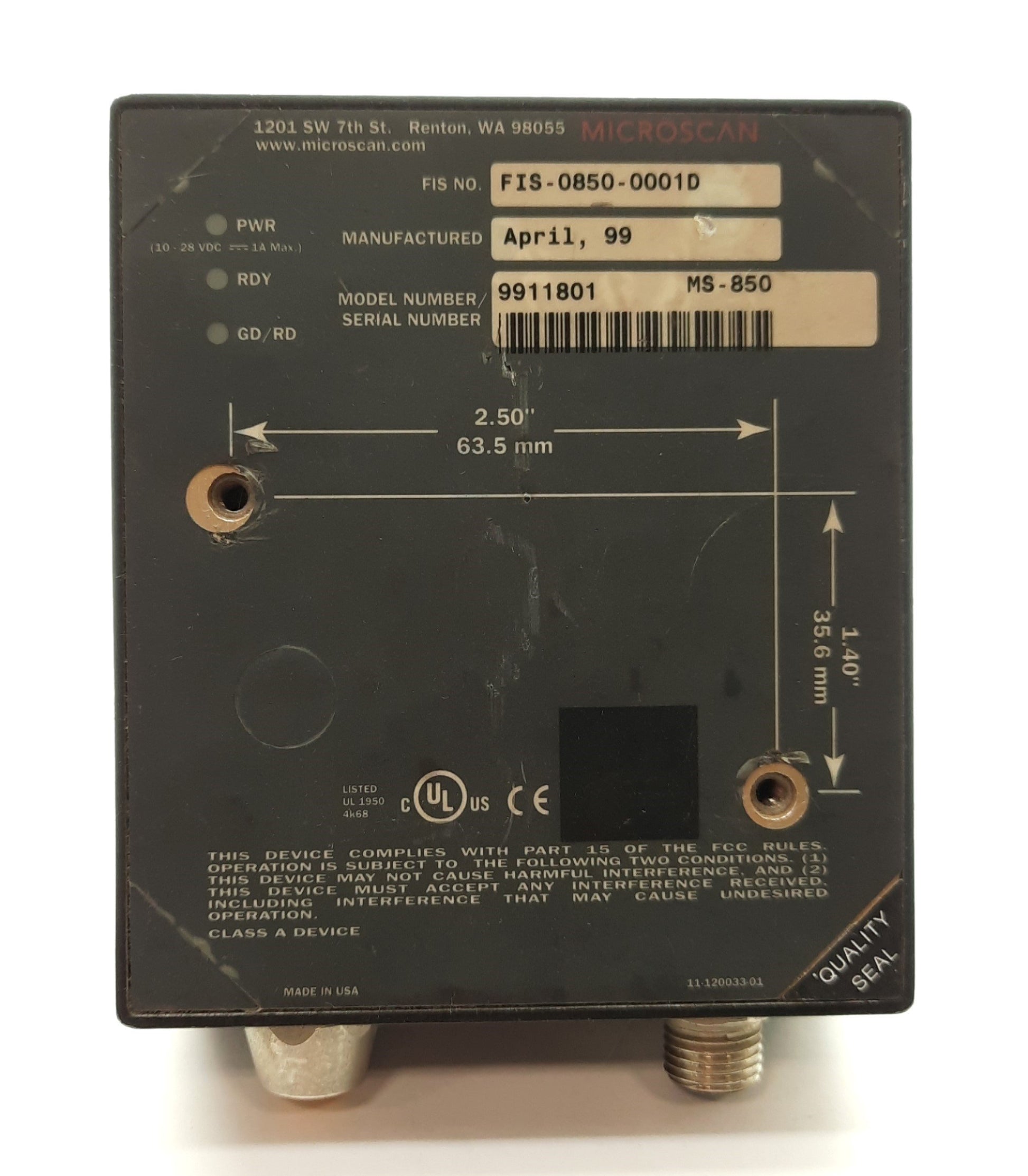

• Model #: FIS-0850-0001D
• More Information:

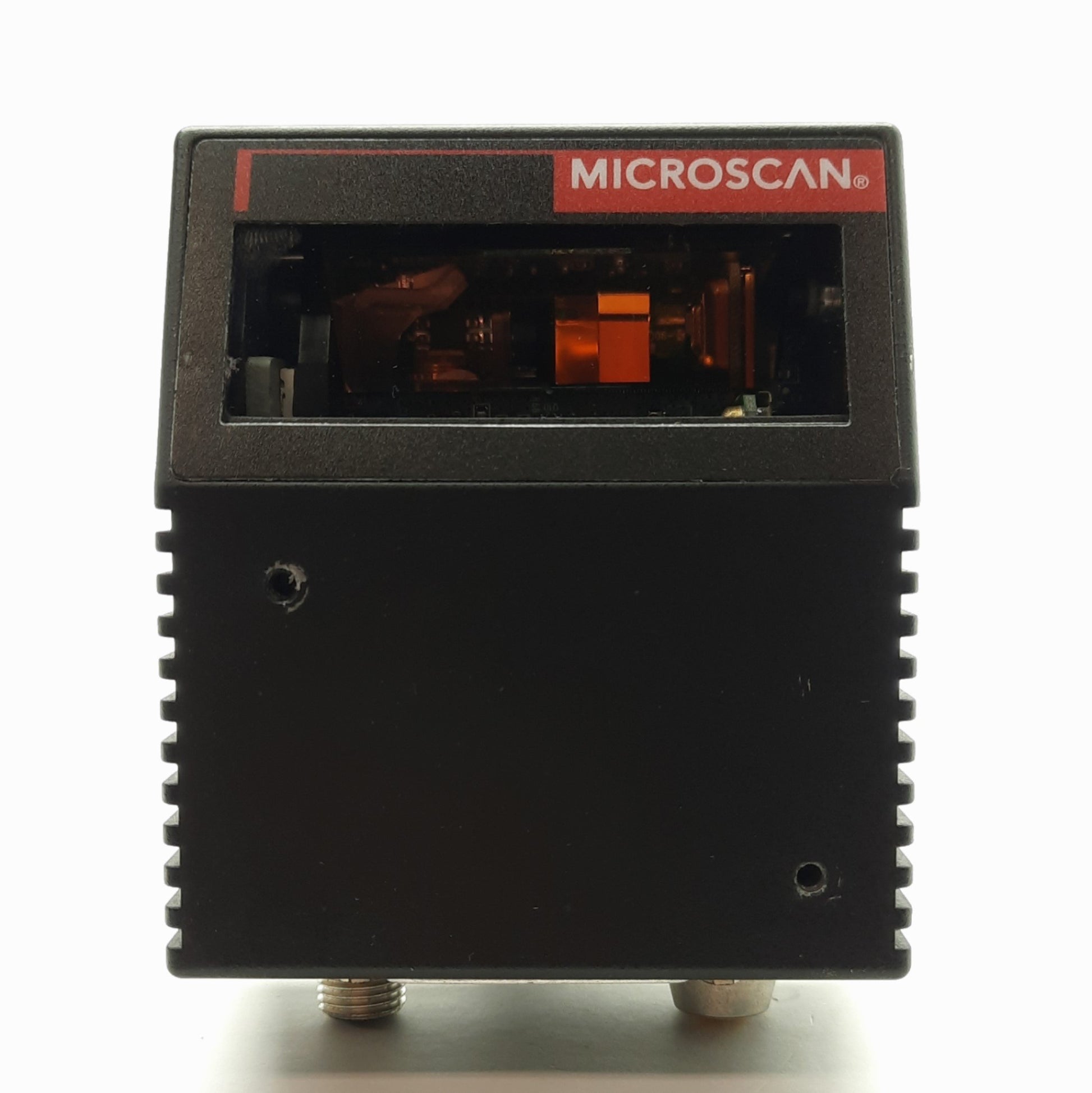

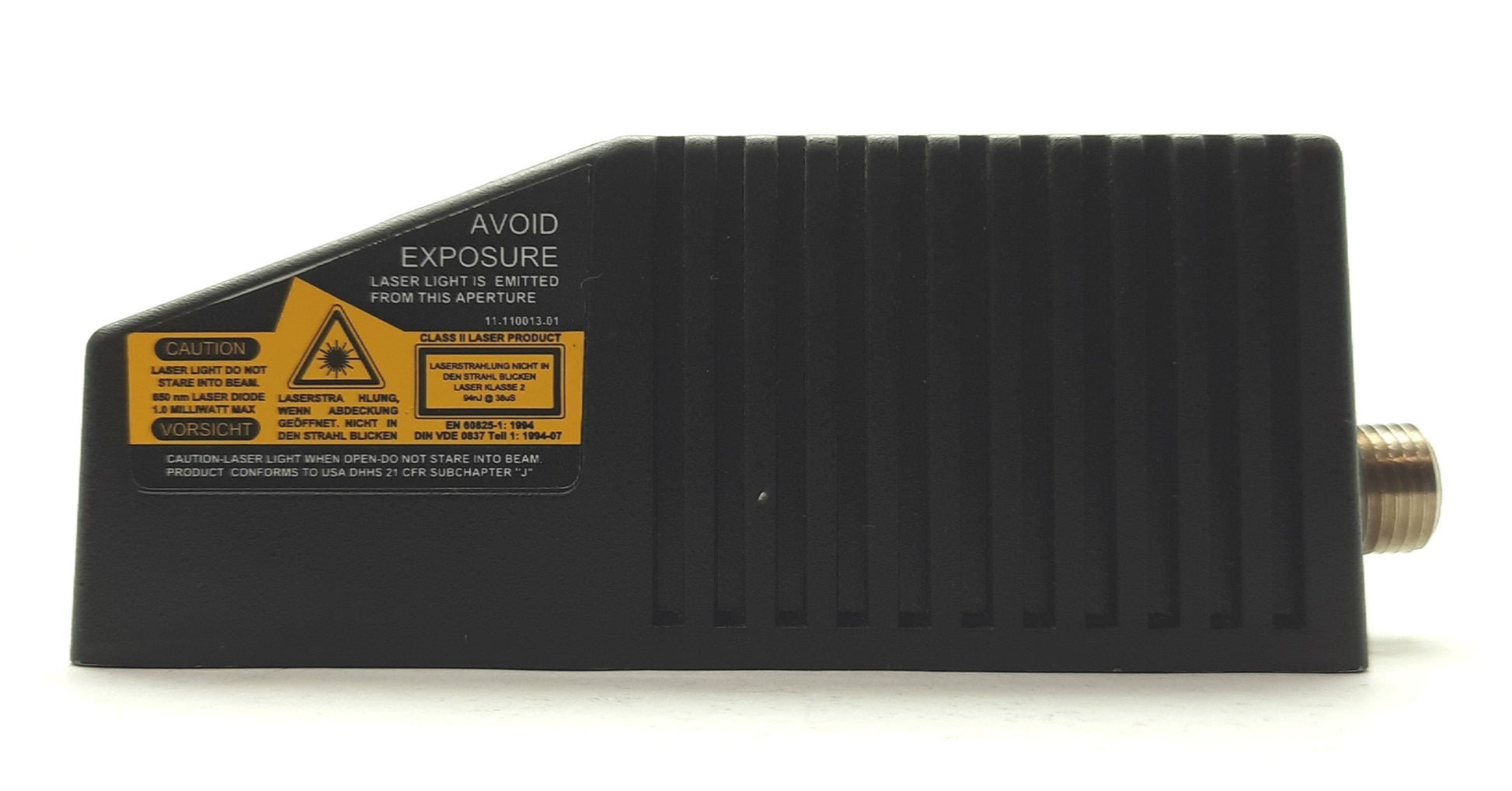

• MS-850 Fixed Bar Code Scanner
• Type: Raster
• Laser:
• Type: Semiconductor visible laser diode (650 nm nominal)
• Operating life: 50,000 hours @ 25øC
• Safety class: CDRH Class II
• Bar Codes:
• Interleaved 2 of 5, Codabar, PDF417, UPC/EAN, Code 39, Code 93, UCC/EAN-128, Code 128, AIAG
• Scanning Parameters:
• Scanner Mirror Type: Rotating, 10-faceted
• Scan Rate: Adjustable From 350 to 1100scans/second (Default = 500sps)
• Scan Width Angle: Typically 60ø
• Pitch: ñ50ø max
• Skew: ñ40ø max
• Label Contrast: 25% min. Absolute Dark to Light Differential at 650nm Wavelength
• Raster Mirror Performance:

• Raster Sweep Angle	Max Sweeps Per Second
  1ø?10ø	30
  11ø?20ø	20
  21ø?30ø (max.)	10

• Trigger Input: Optoisolated 5-28VDC 12mA
• Outputs: 3x Optoisolated 10-28VDC 100mA
• Communication: RS-232, RS-422/485, SDS, DeviceNet, Profibus, Ethernet, Daisy Chain/ Aux Port Capable

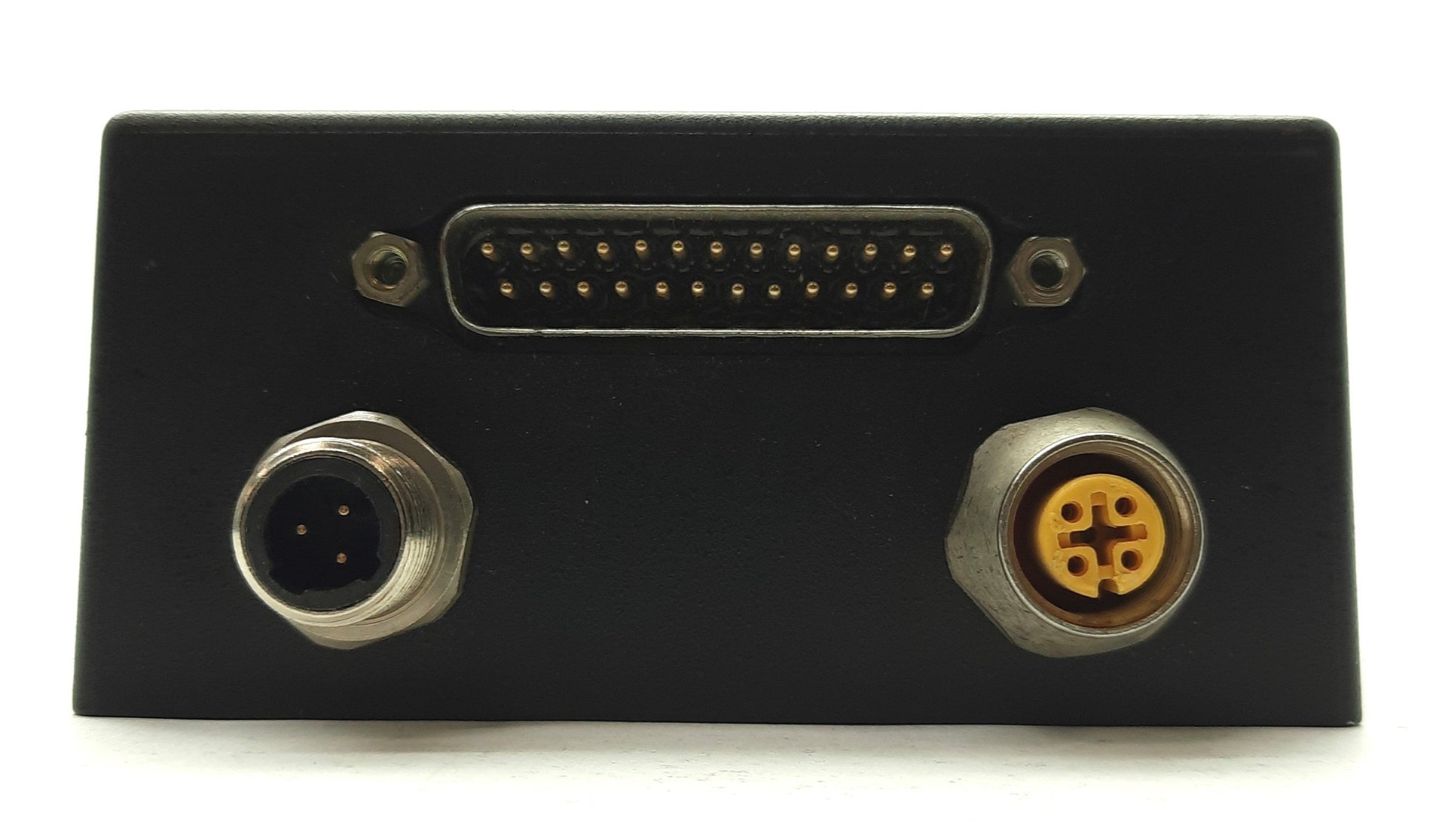

• Connector: 25-Pin Male D-Sub Male I/O, M12 4-Pin Female Trigger, 3-Pin Round Male Power
• Power Requirements: 10-28VDC
• Dimensions: 10.9 x 9.5 x 4.5cm
