Used National Instruments PCI-7350 Motion Controller, PCI, 8-Axes, Servo/Stepper
$3,626.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for National Instruments. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-182990
ST74-3-H

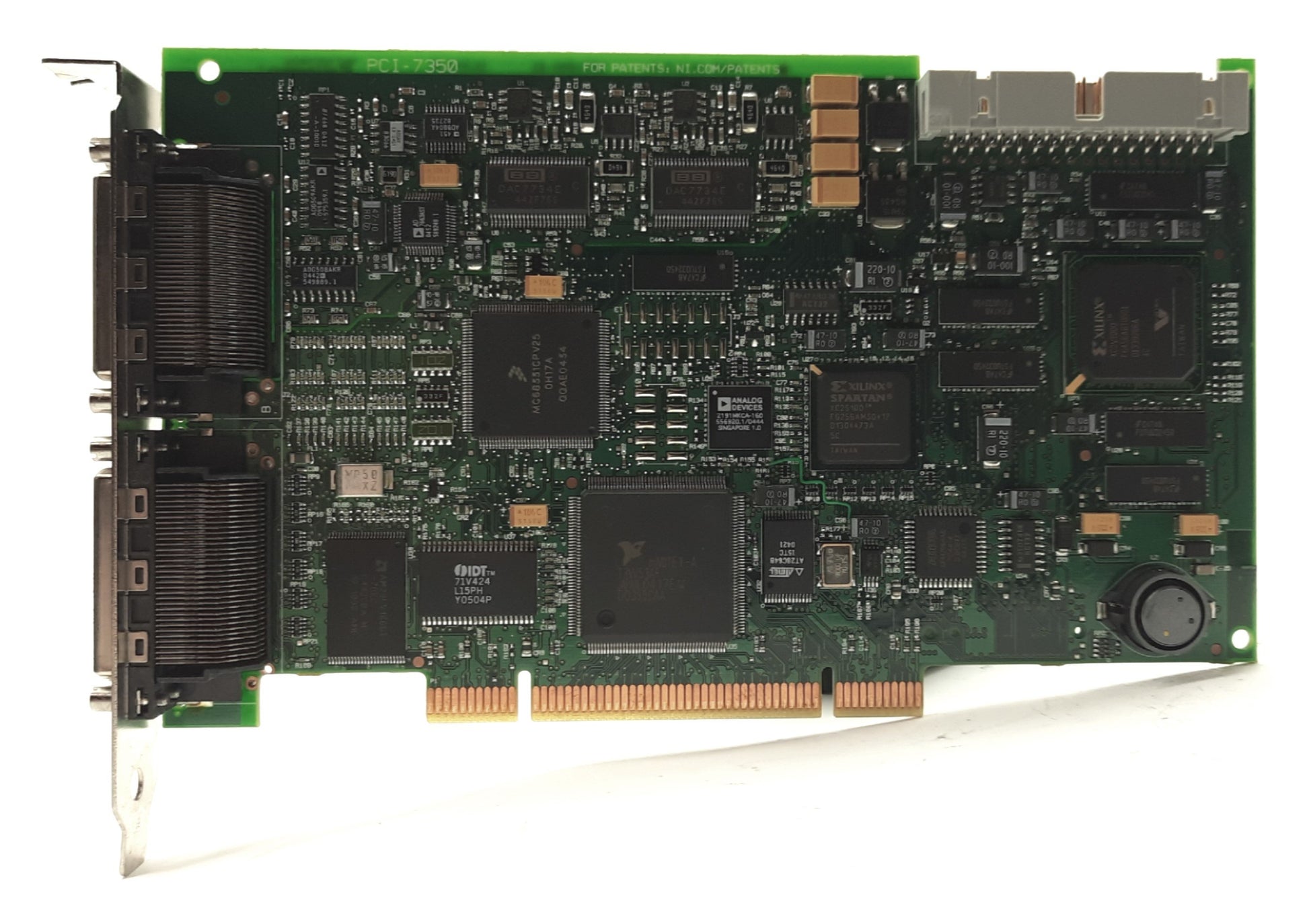

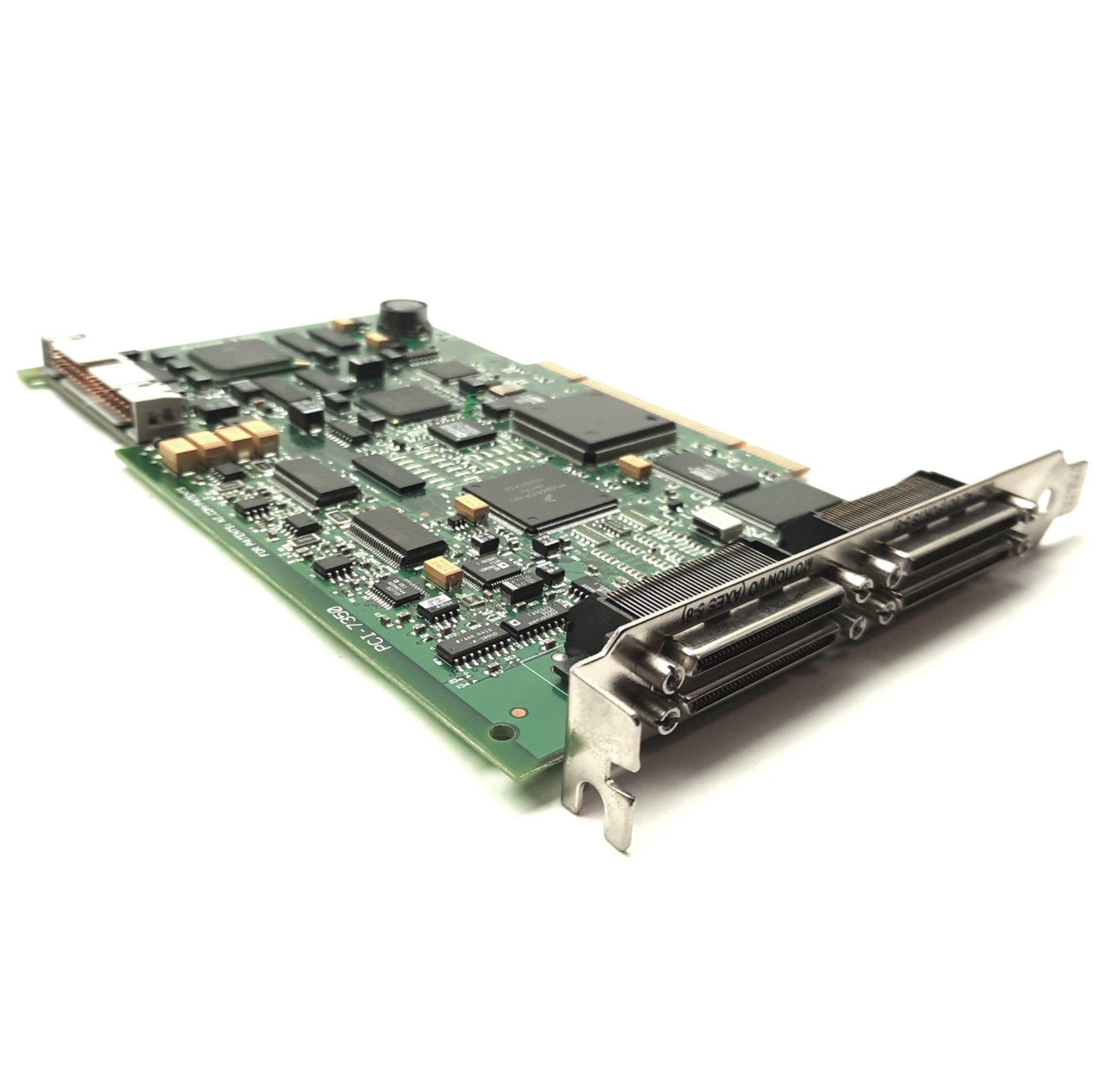

From our inventory we are selling a National Instruments PCI-7350 Motion Controller, PCI, 8-Axes, Servo/Stepper.

Specifications:

  • Model #: PCI-7350
  • More Information:
    • Motion Controller
    • Slot: PCI
    • # of Axes: 8
    • Compatible Motors: Servo, Steppers
    • Servo Command Signals:
      • Voltage: ±10VDC
      • Resolutions: 16-bits
    • Stepper Outputs:
      • Max Pulse Rate 8MHz (Full, Half, and Microstep)
      • Max Pulse Width: 6.5µs at <40kHz
      • Min Pulse Width: 40ns at >4MHz
      • Step Output Mode: Step and Direction or CW/CCW
      • Voltage Range: 0-5VDC
    • Encoder Inputs: Quadrature, Incremental, Single-Ended @ 20MHz Max
    • I/O:
      • Analog:
        • Input: 8x, Multiplexed, Single-Ended ±10VDC, ±5VDC, 0–10VDC, 0–5VDC (Selectable)
        • Output: 8x Single-Ended ±10VDC
      • Digital: 8x 8-bit Ports 0–5VDC
      • PWM Outputs: 2x 50kHz 8-bit Internal or External Clock

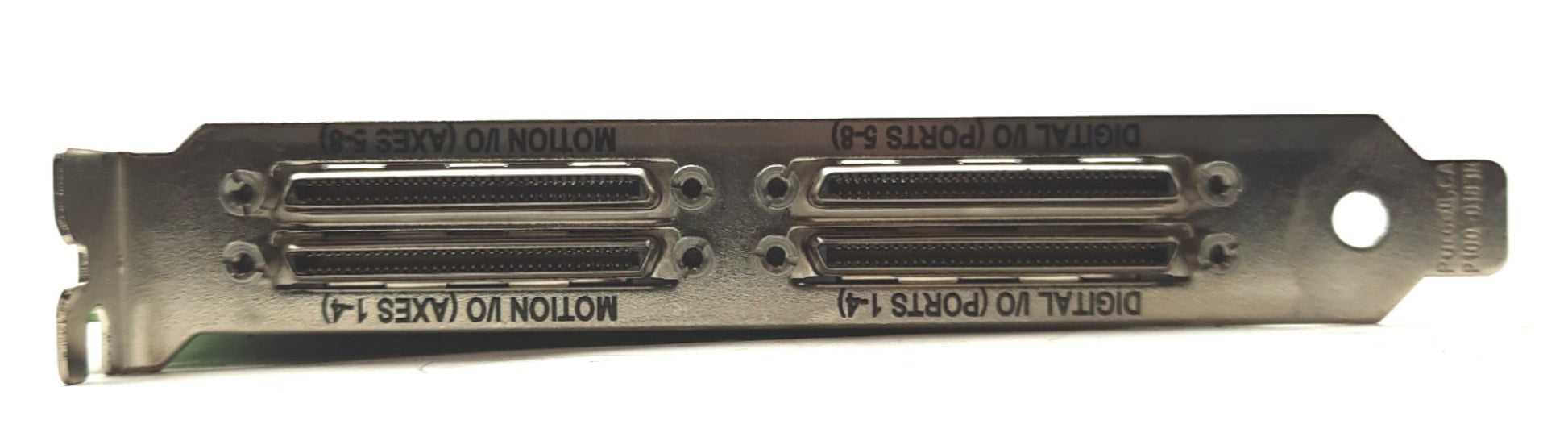

    • Connectors: 4x 68-Pin Female High-Density VHDCI
    • Length: 6.3"
