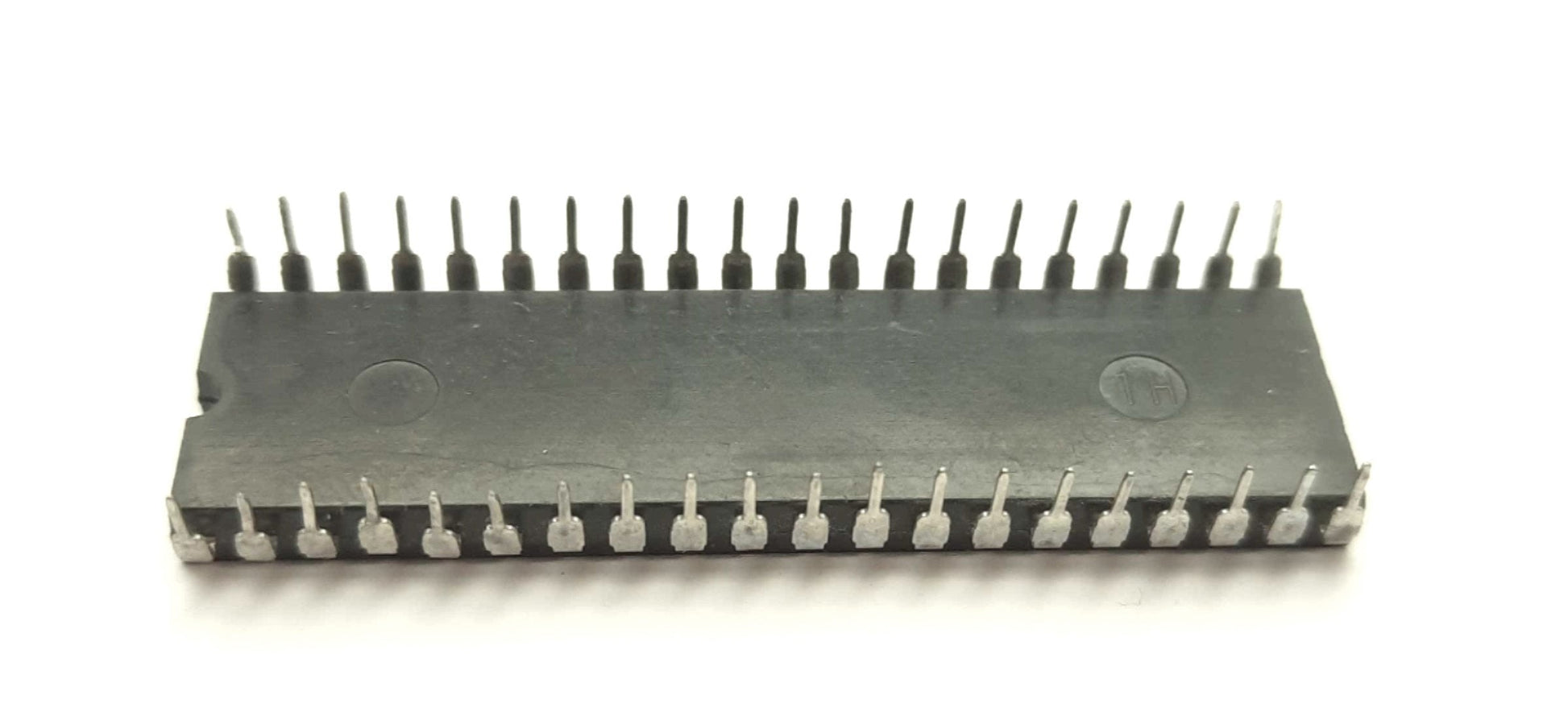

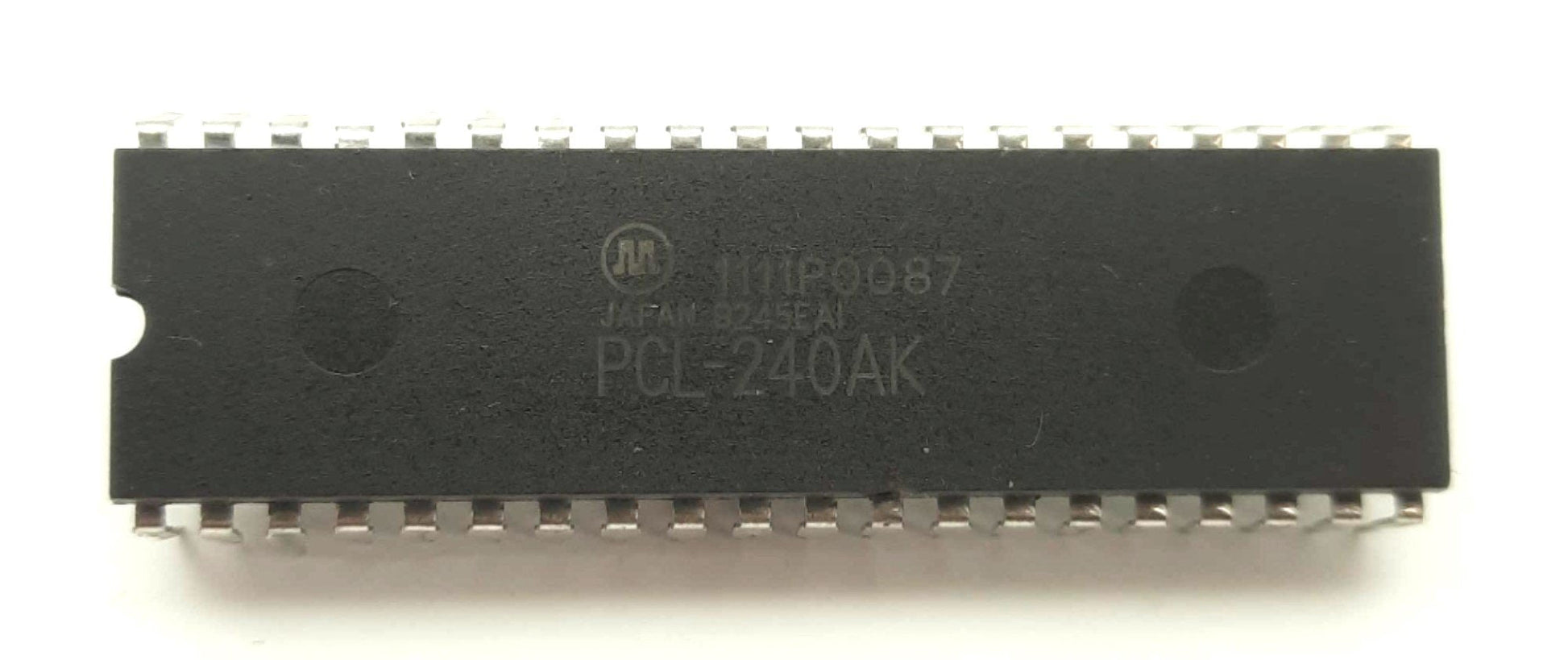

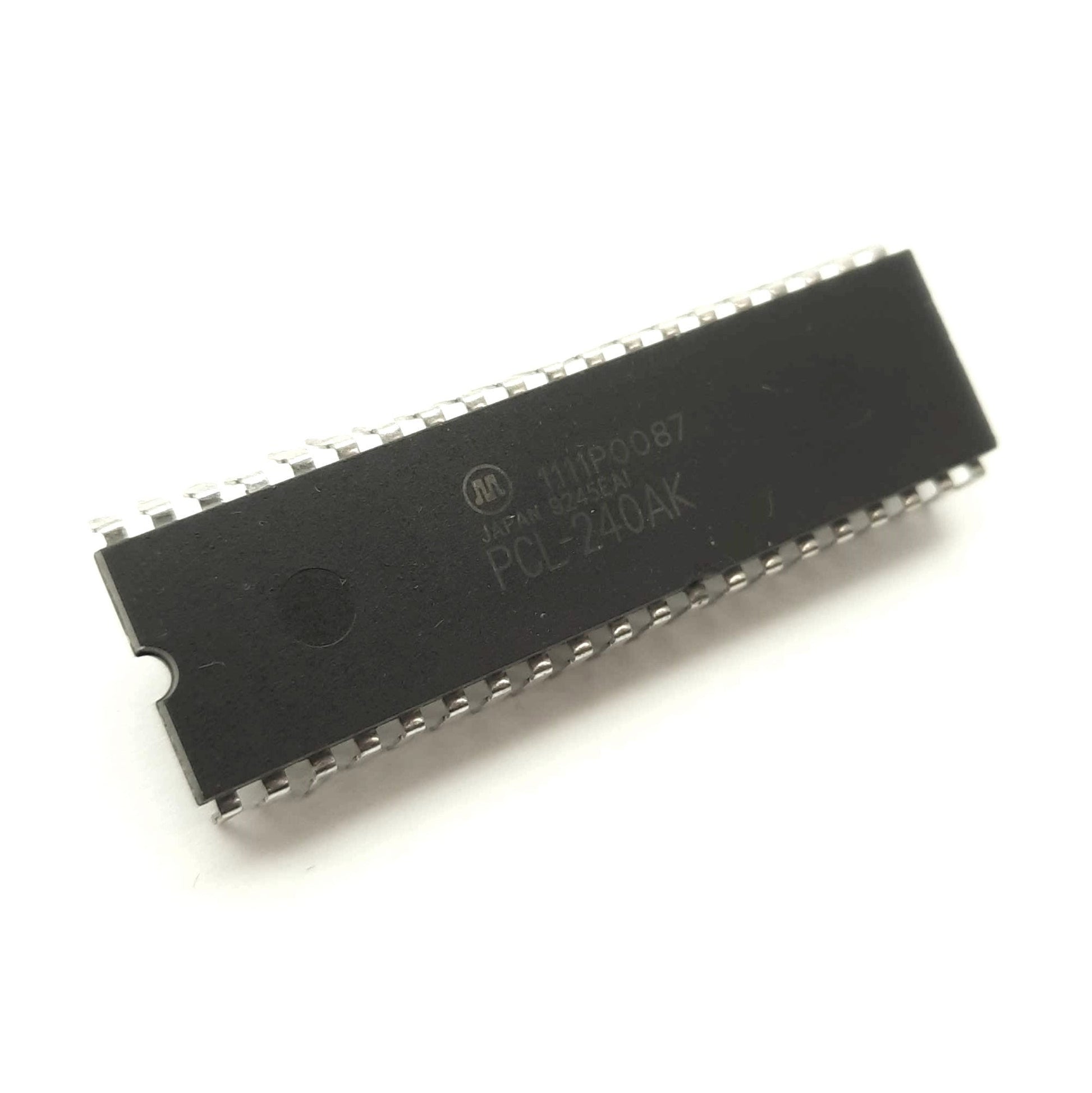

Used NPM PCL-240AK Programmable Single-Chip High Speed Pulse Generator 40-Pin DIP
$40.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have more than 5 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Nippon Pulse Motor Co.. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-174245
ST73-3-B

From our inventory we are selling a NPM PCL-240AK Programmable Single-Chip High Speed Pulse Generator 40-Pin DIP.

Specifications:

  • Model #: PCL-240AK
  • More Information:
    • Programmable Single-Chip High Speed Pulse Generator
    • Package: 40-Pin DIP
    • Power Requirement: 5VDC ñ5 %
    • Reference Clock: 4.9152MHz (Standard)
    • Pulse Rate Setting Range: 1 to 16777215
    • Pulse Rate Setting Steps:  8191
    • Pulse Rate Multiplication:  0.01 to 30
    • Typica1Output Pulse Rate Range:
      • 1x Mode: 1 to 8191pps
      • 10x Mode: 30 to 245730pps
    • Pulse Rate Setting Registers: 3 Types of FL, FH1 and FH2
    • Ramping-Down Point Setting Range: 1 to 1048575
    • Acceleration Setting Range: 2 to 16383
    • Deceleration Setting Range: 2 to 16383
    • Current Position Counting Units: 1 to 16 Pulses/Count
    • Current Position Counter: 24-bit Up/Down Counter (0 to 16777215) or (-8388608 to +8388607)
