Used Parker 506008ET Ball Screw Linear Actuator, 8" Travel, .2" Lead, 200lbs, NEMA 23
$1,600.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for Parker. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-158672
PX-2-A

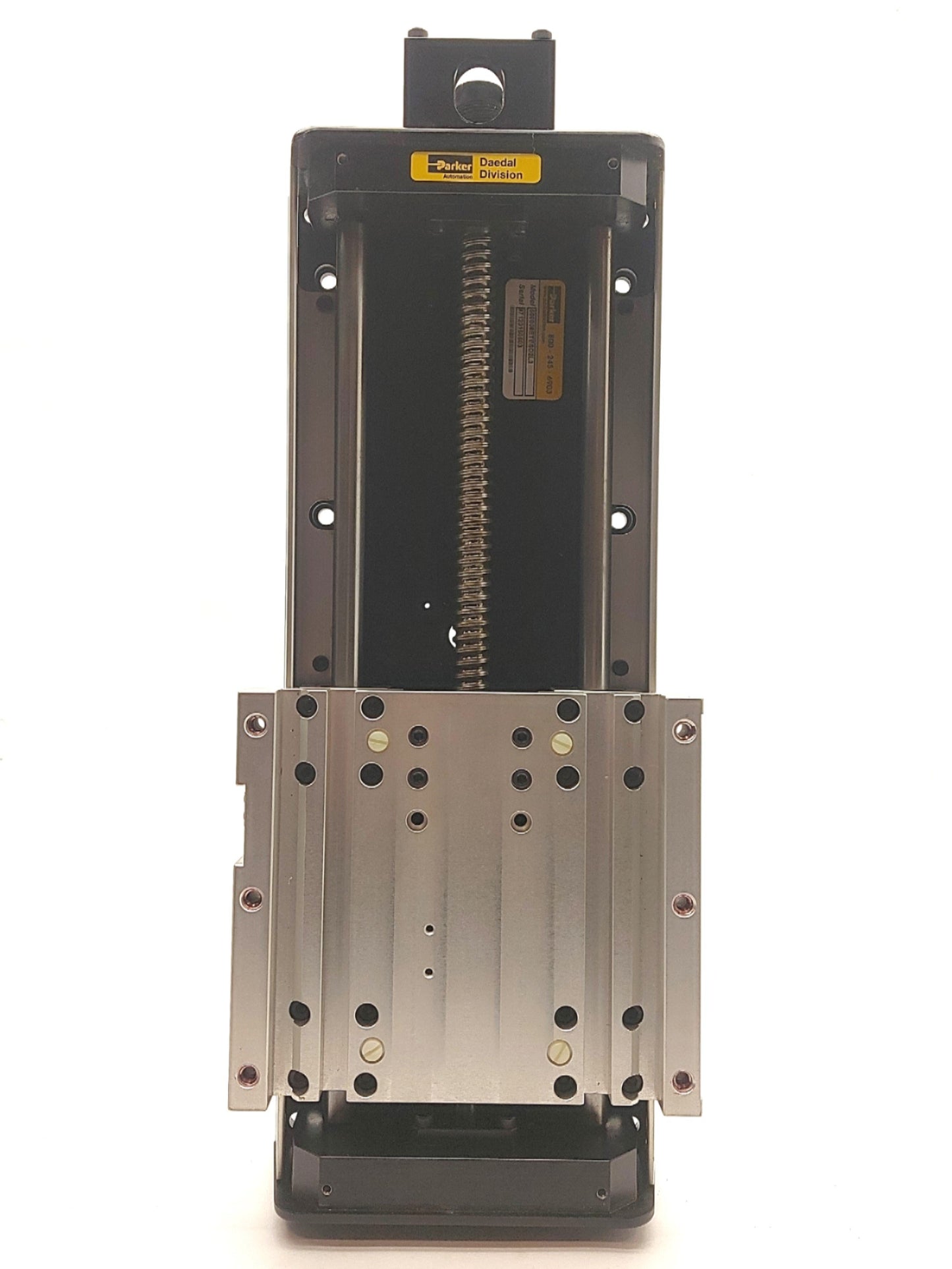

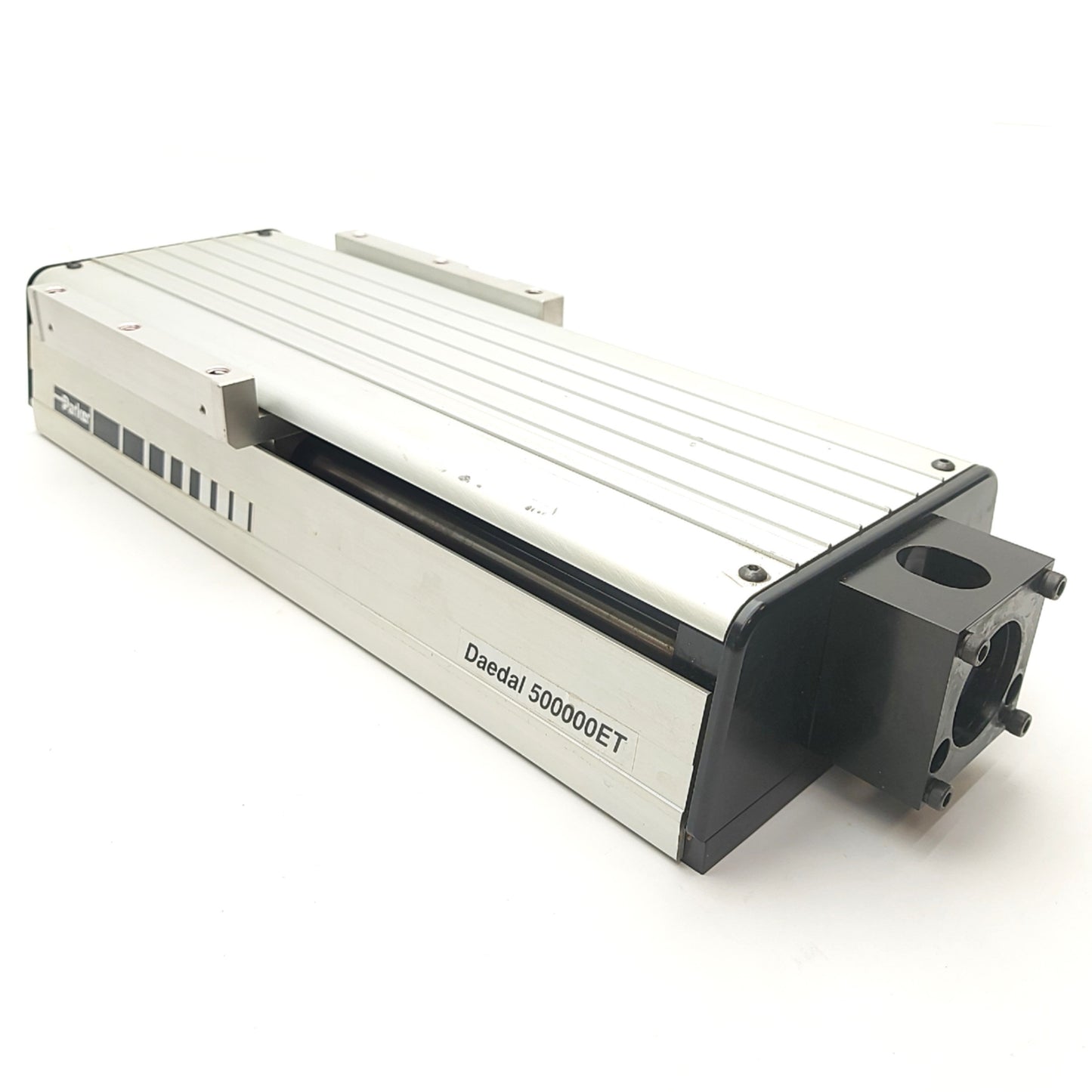

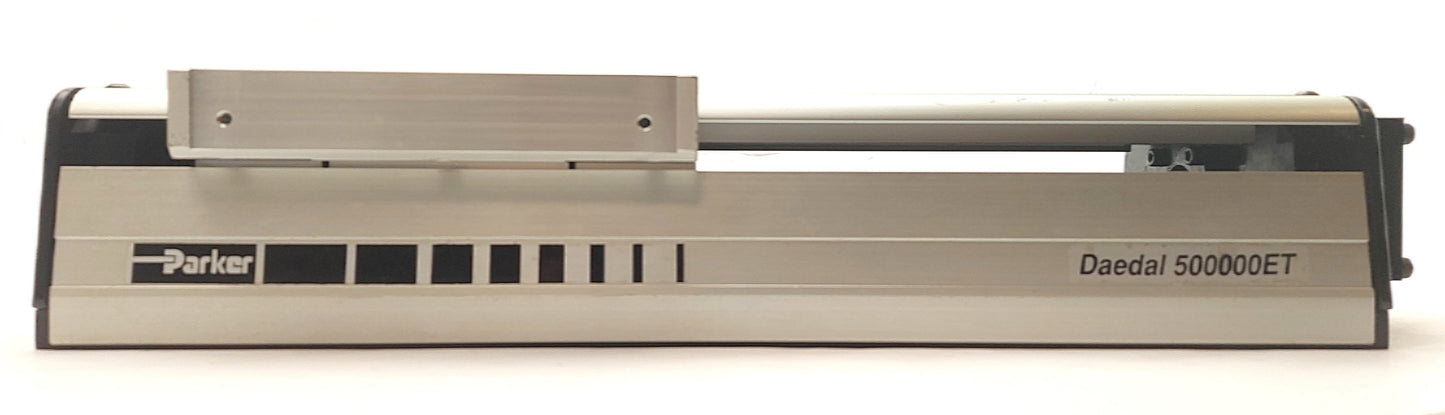

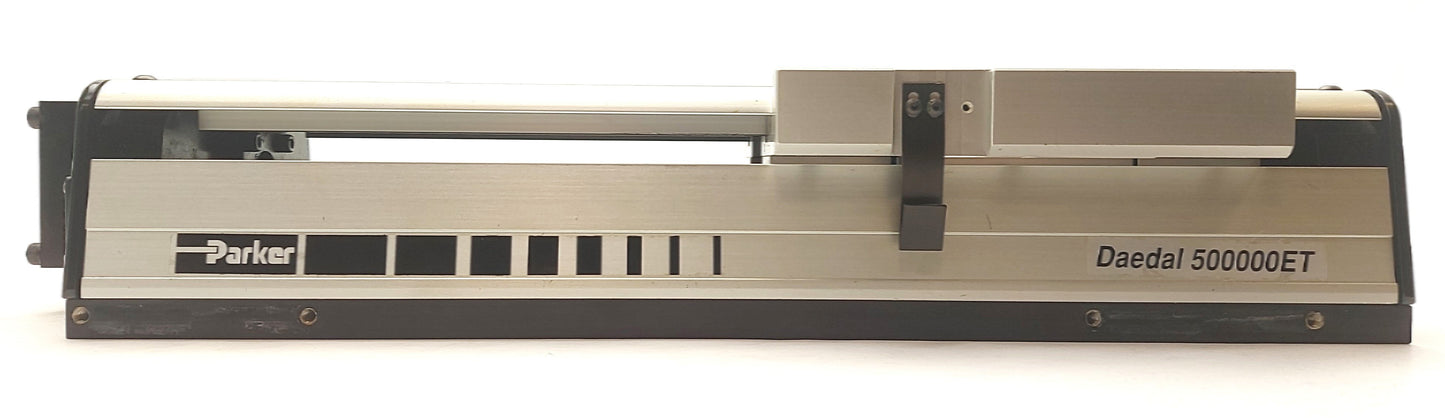

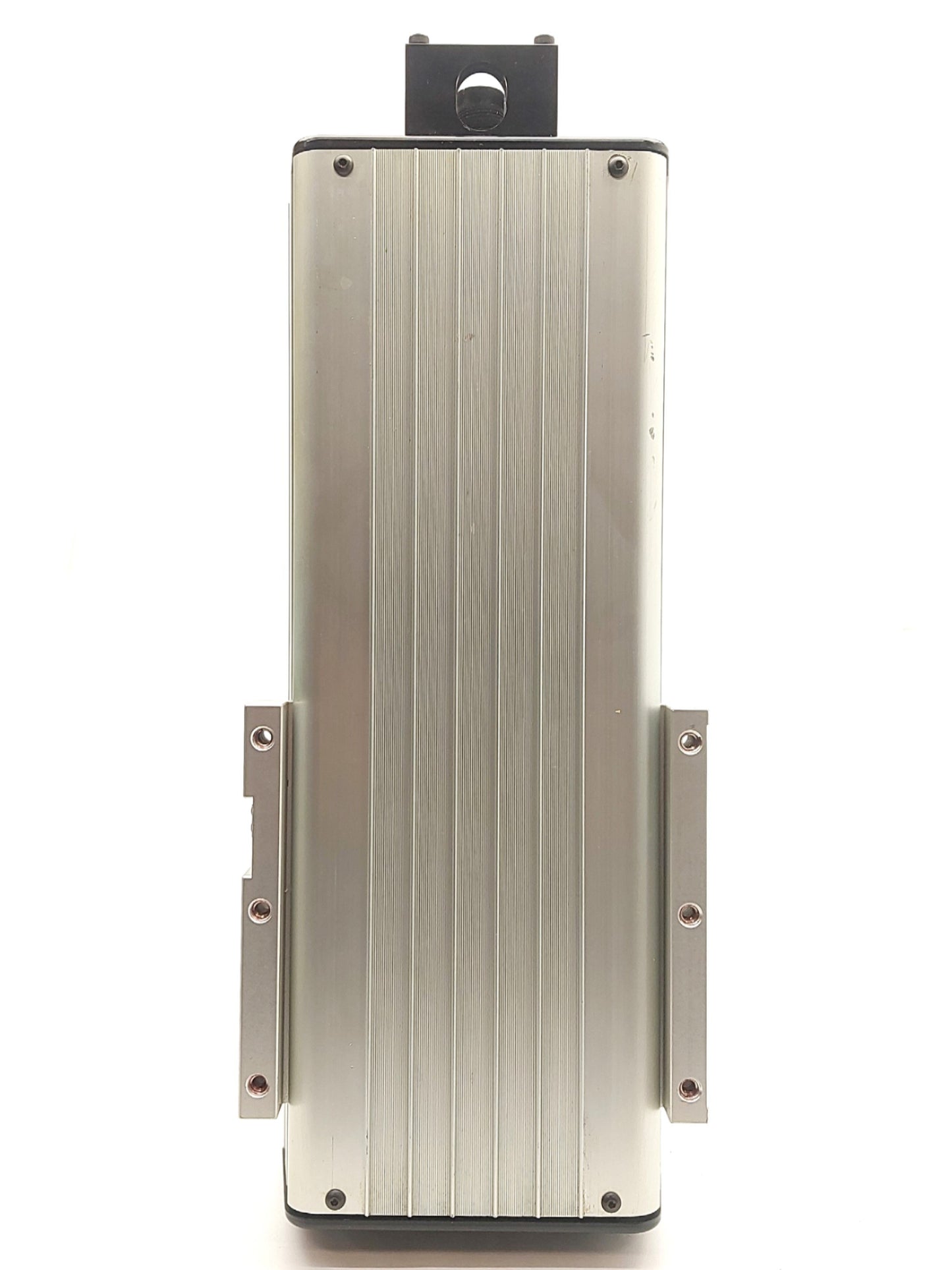

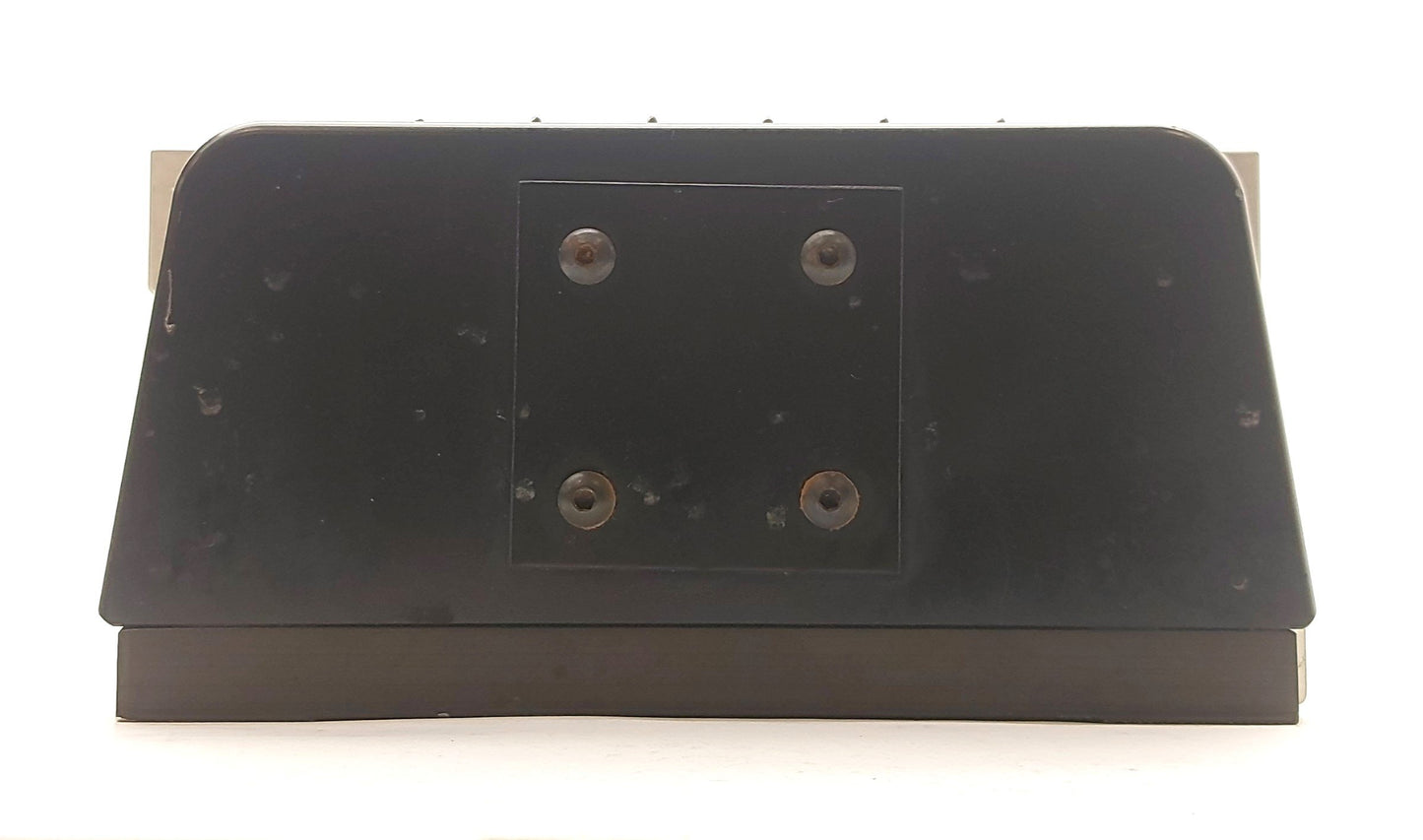

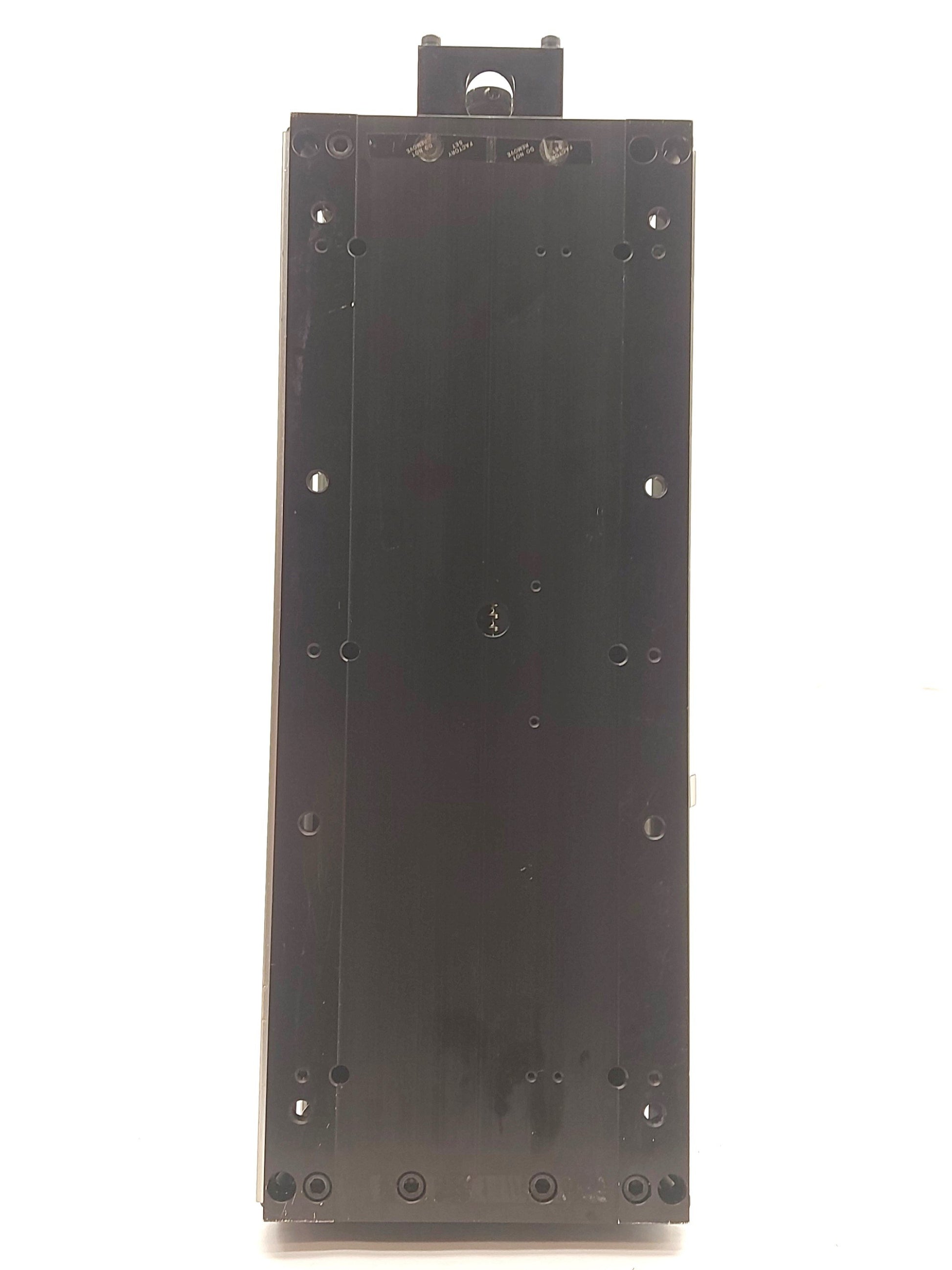

From our inventory we are selling a Parker 506008ET Ball Screw Linear Actuator, 8" Travel, .2" Lead, 200lbs, NEMA 23.

Specifications:

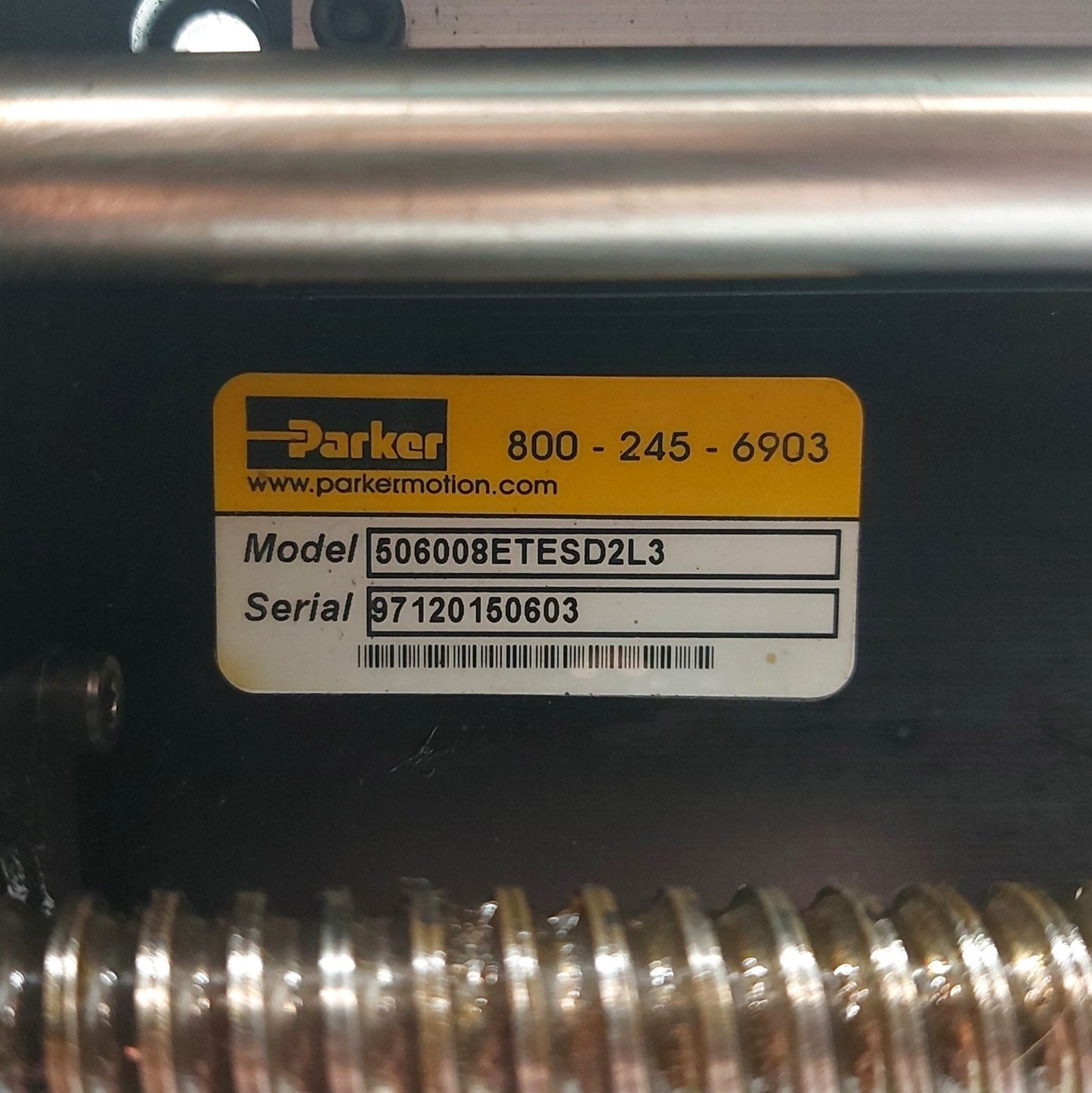

  • Model #: 506008ET-ES-D2L1C2M2E1W1
  • More Information:
    • Belt Screw Linear Actuator

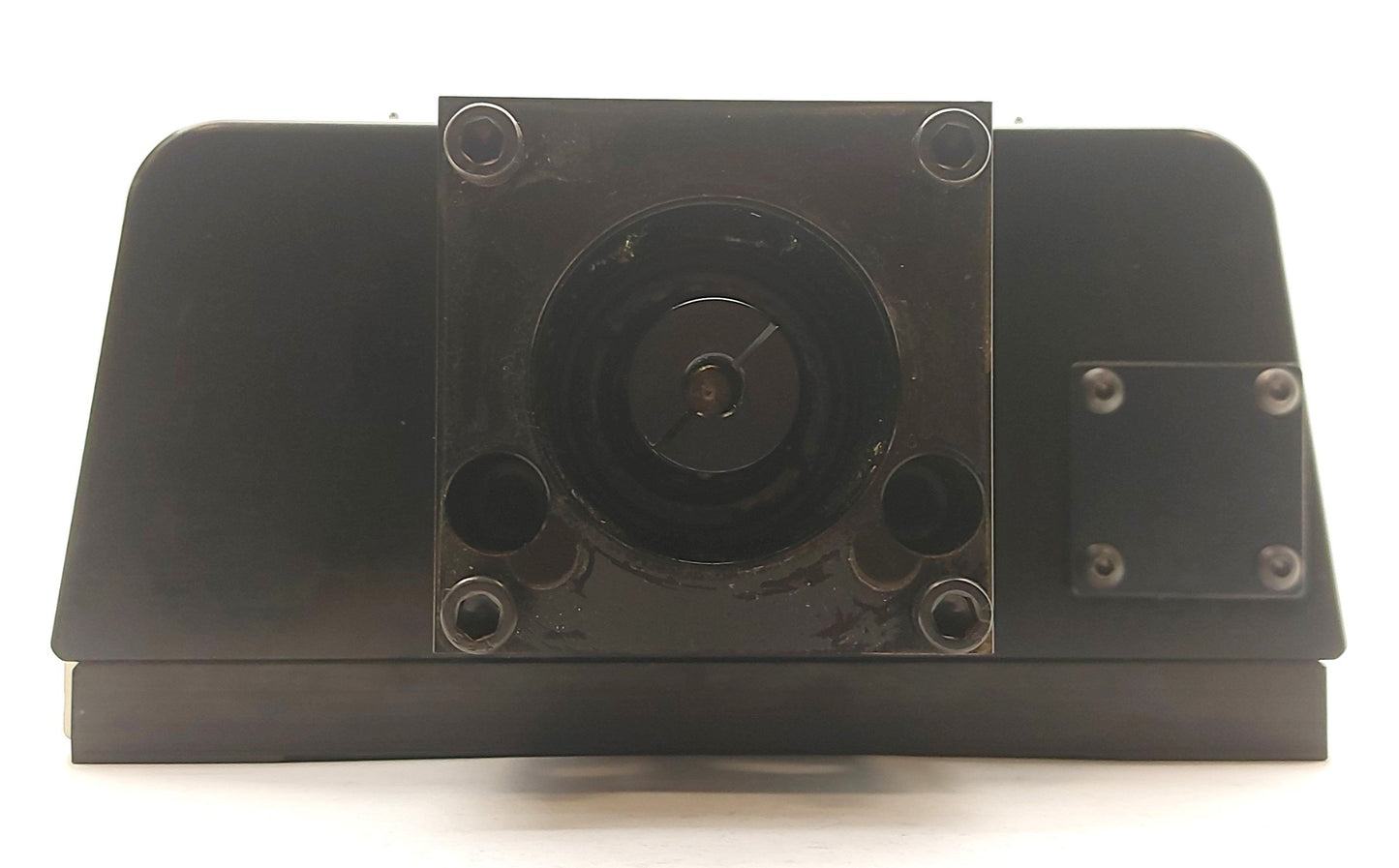

    • Motor Frame Size: NEMA 23
    • Motor Coupler Bore: 1/4"
    • Travel: 8"
    • Lead: .2"
    • Position:
      • Accuracy: 86æm
      • Repeatability: ñ14æm
    • Max Screw Speed: 50RPS
    • Torque:
      • Max Running: 24oz-in
      • Max Breakaway: 26oz-in
    • Load:
      • Normal: 200lbs
      • Inverted: 100lbs
      • Side: 168lbs
    • Table Dimensions: 6 13/16 x 6"
    • Table Thread: 1/4-20
    • Dimensions: 17 11/16 x 6 13/16 x 3 1/4"

Item Specifics & Seller Notes:
Does not include sensors/switches.
