Used RDP ACT1000A LVDT Displacement Transducer, ±25mm Range, 5VAC rms 5kHz, ±0.5% Lin
$315.00 USD
Shipping calculated at checkout.
Warranty Terms and Conditions
We have 1 in stock!

Not finding what you need?‎ ‎ Let us find it!

Next Day Automation is NOT an authorized distributor for RDP. The Original Manufacturer's warranty may not apply. This is a surplus item.

Product Description

Item Condition: Used
SKU: SB-202652
ST17-1-I

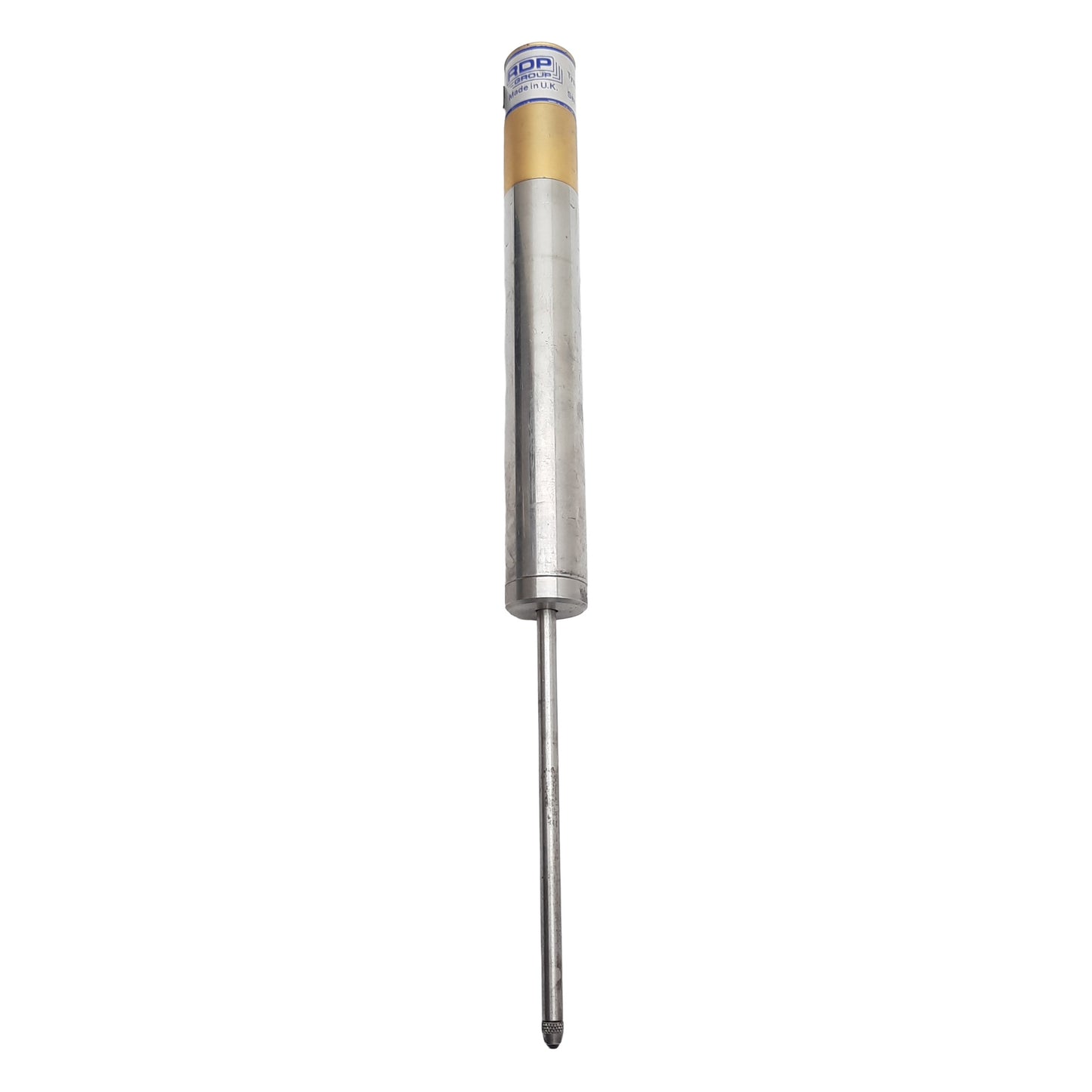

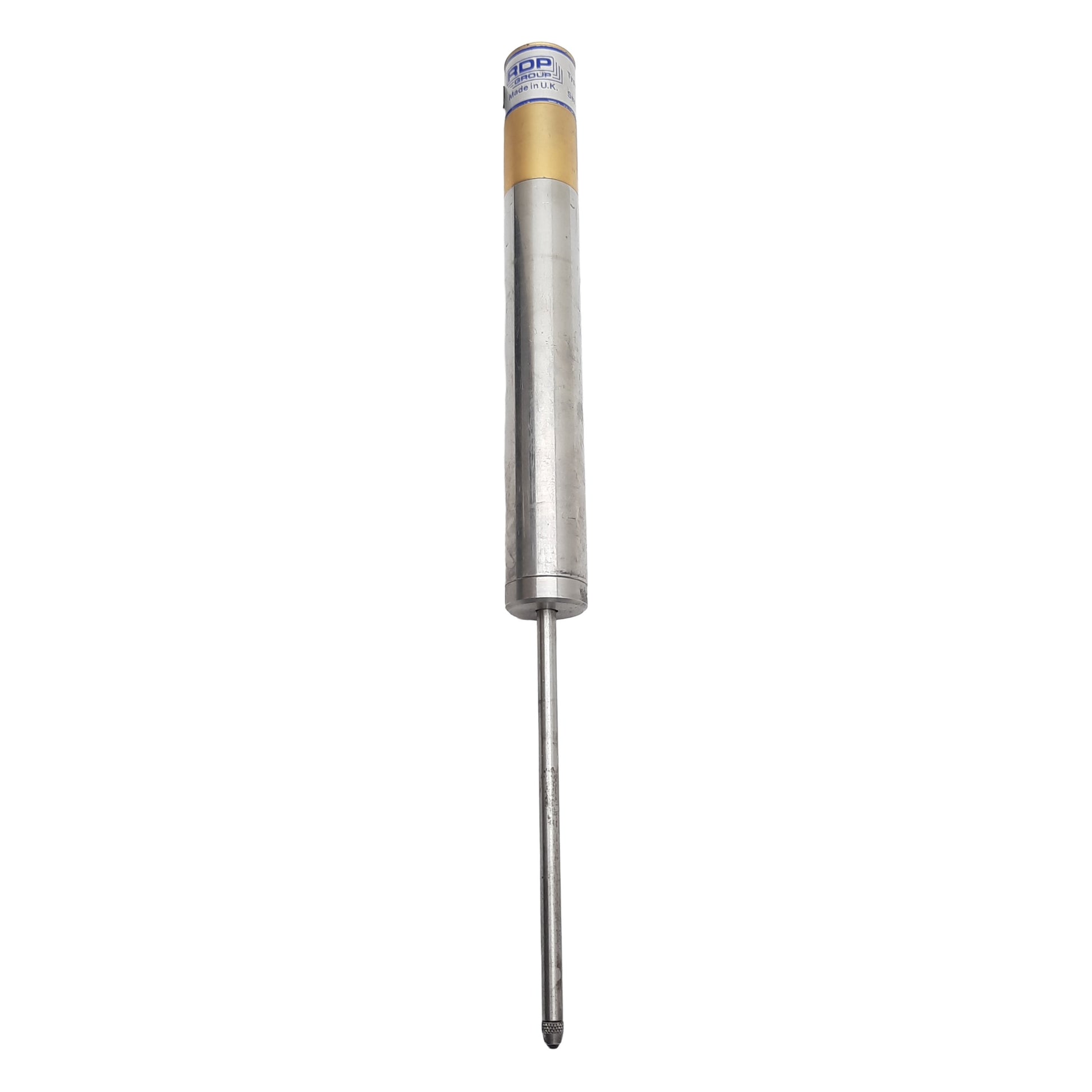

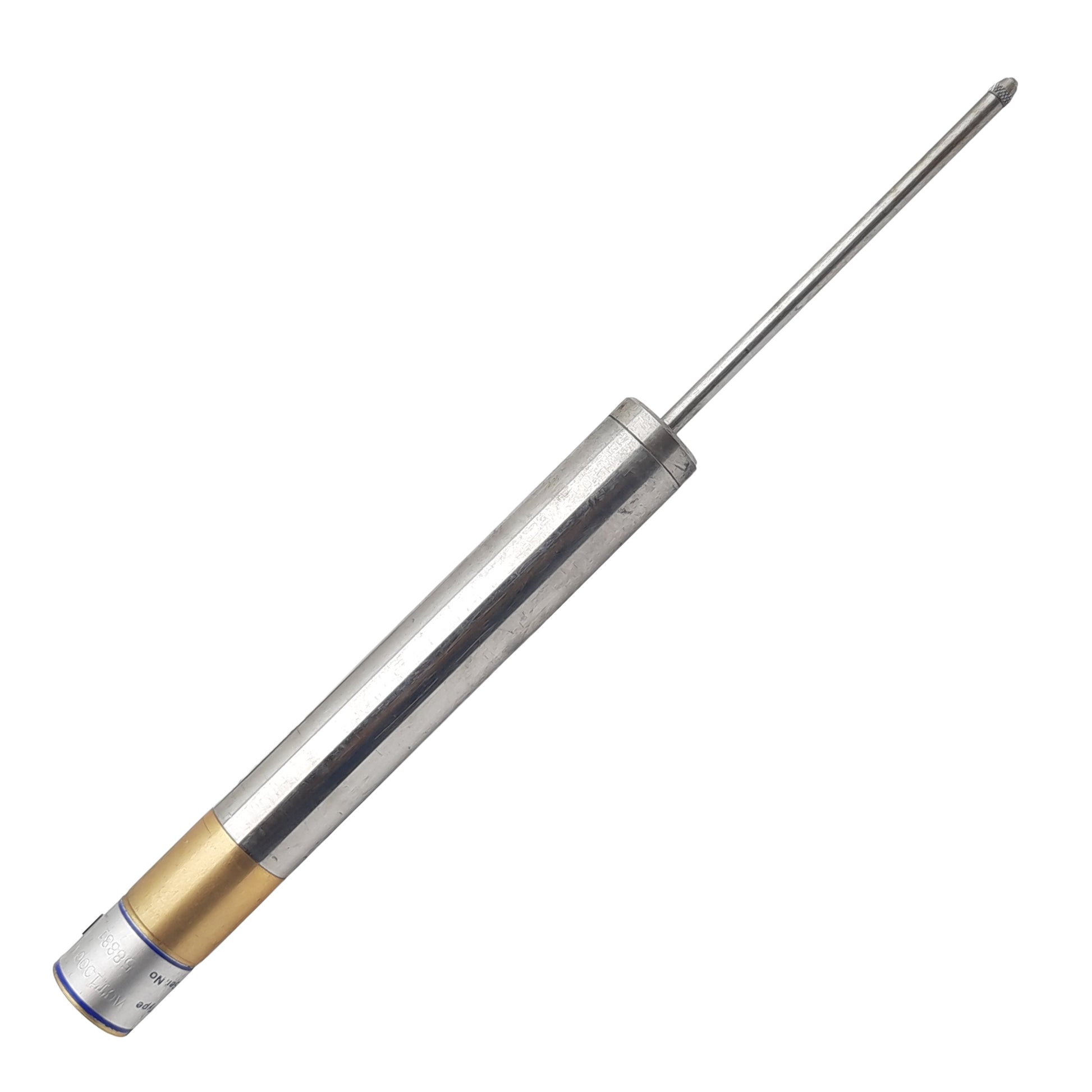

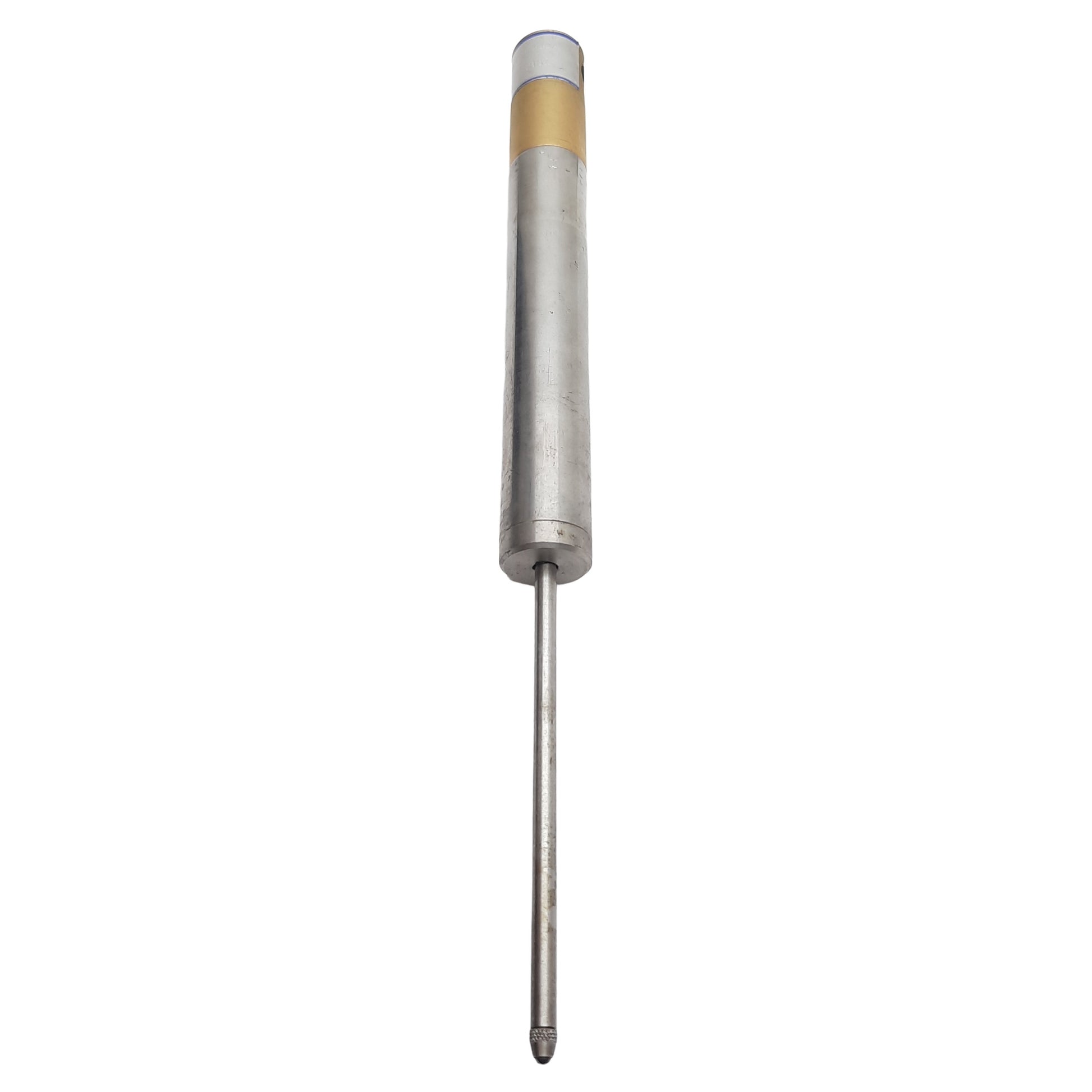

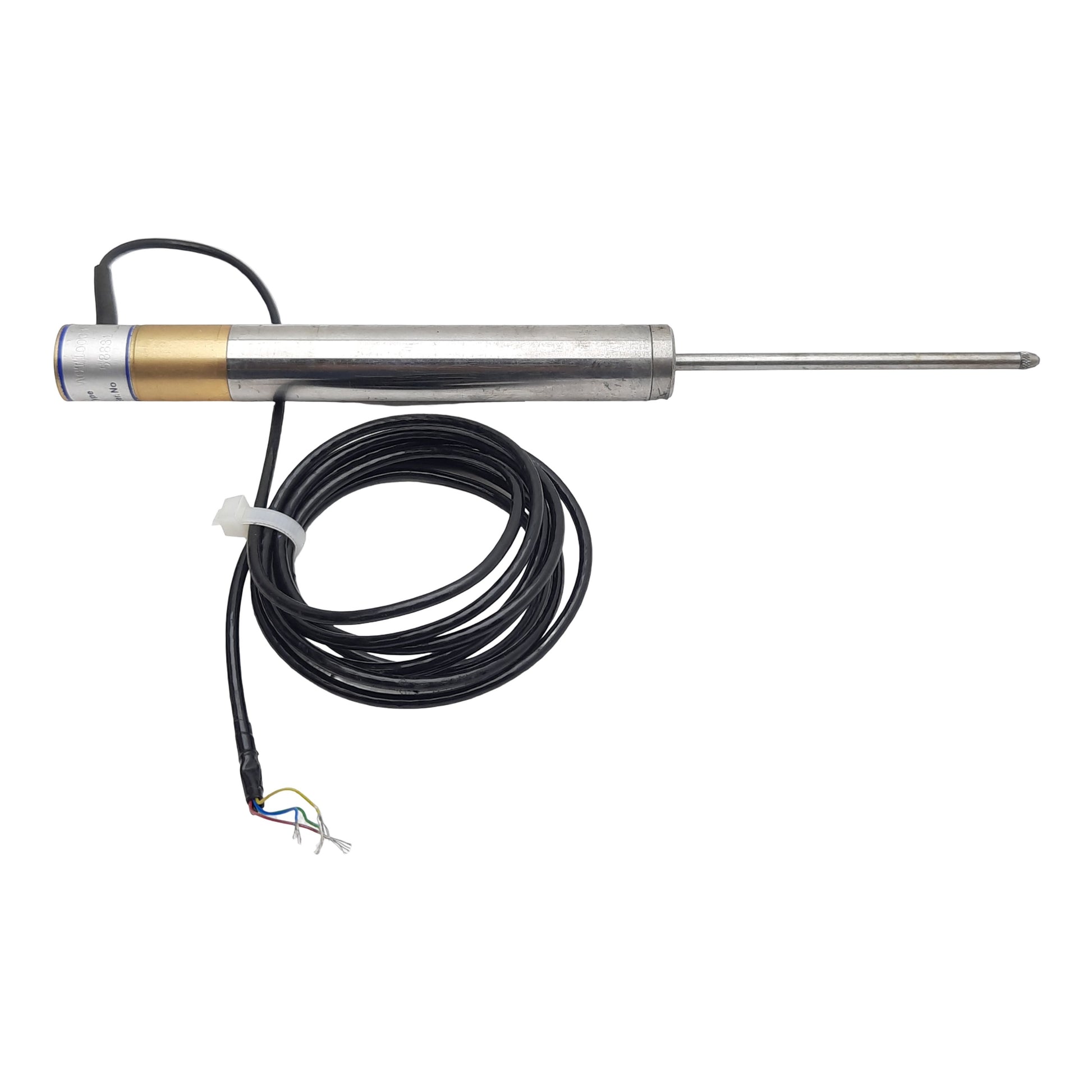

From our inventory we are selling a RDP ACT1000A LVDT Displacement Transducer, ±25mm Range, 5VAC rms 5kHz, ±0.5% Lin.

Specifications:

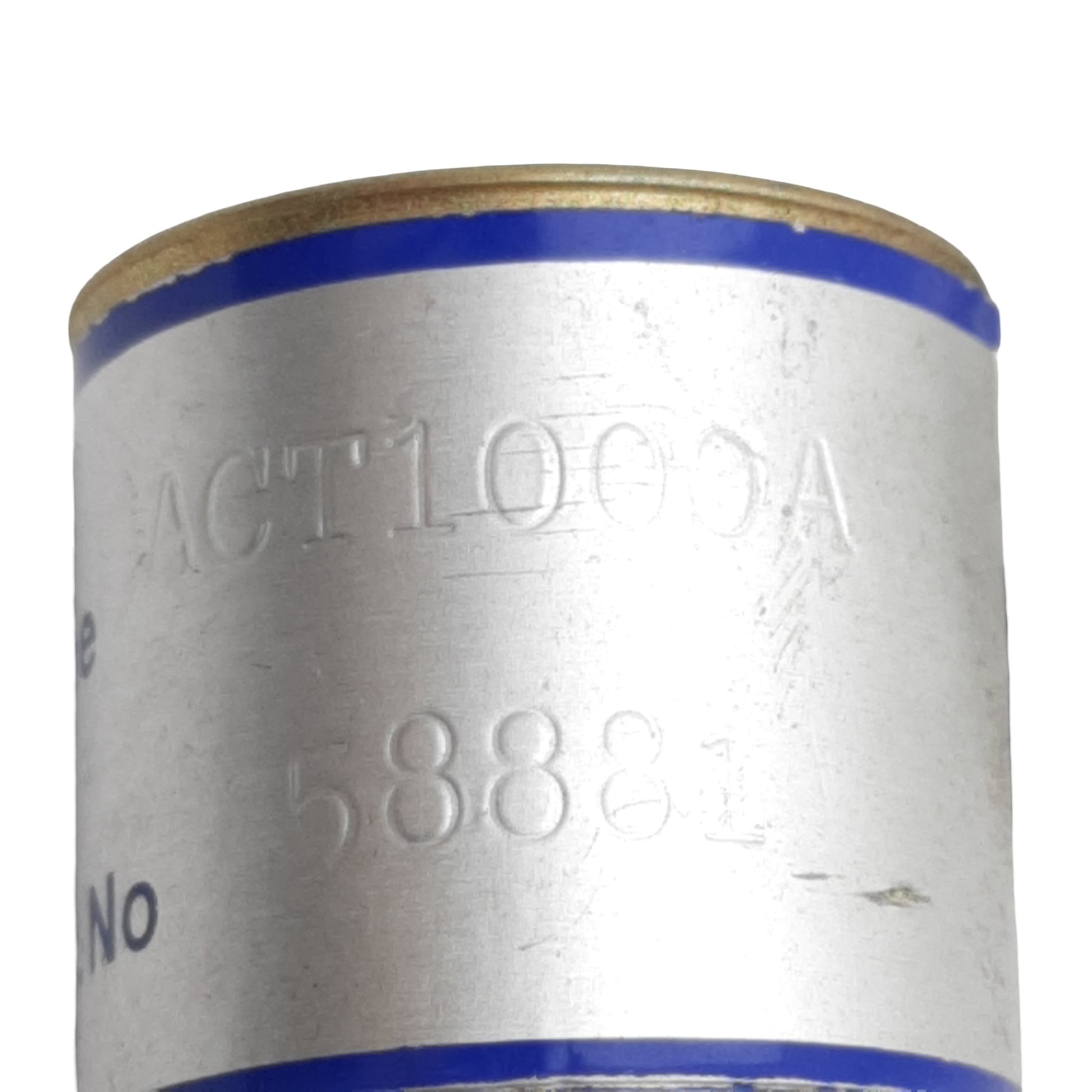

  • Model #:  ACT1000A
  • More Information:
    • RDP LVDT Displacement Transducer Spring Return
      • Range: ±25mm
      • Linearity Error: <±0.5/±0.25/±0.1
      • Spring Force: 2N
      • Spring Rate: 0.3N/cm
      • Inward Over-Travel: 3mm
      • Outward Over-Travel: 10mm
      • Sensitivity: 0.9V/V
      • Excitation/Supply (Acceptable): 0.5-7VAC rms, 2-10kHz (Sinusoidal)
      • Excitation/Supply (Calibrated): 5VAC rms, 5kHz (Sinusoidal)
      • Output Load: 100k Ohms

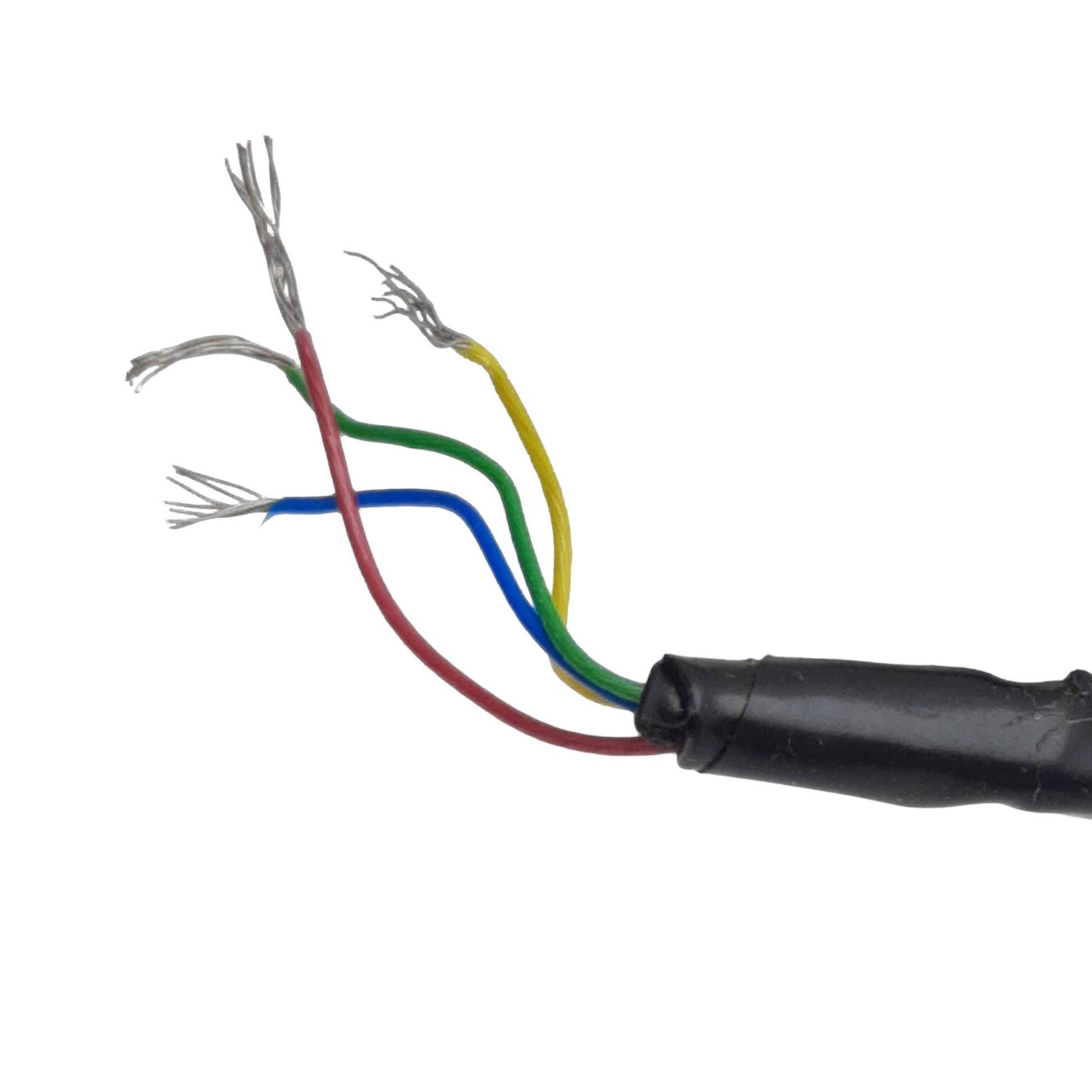

      • Electrical Connection: 4-Wire Flying Leads
      • Material: Stainless Steel
