Specifications:

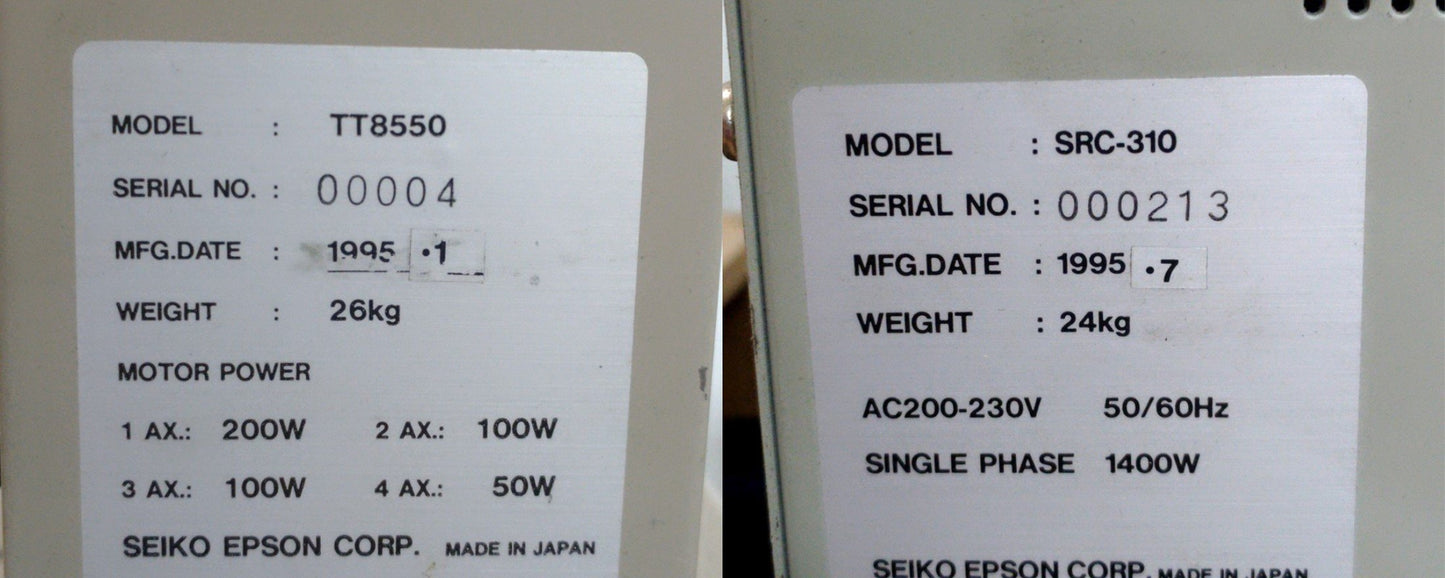

• Model #: TT8550, SC-310
• More Information:

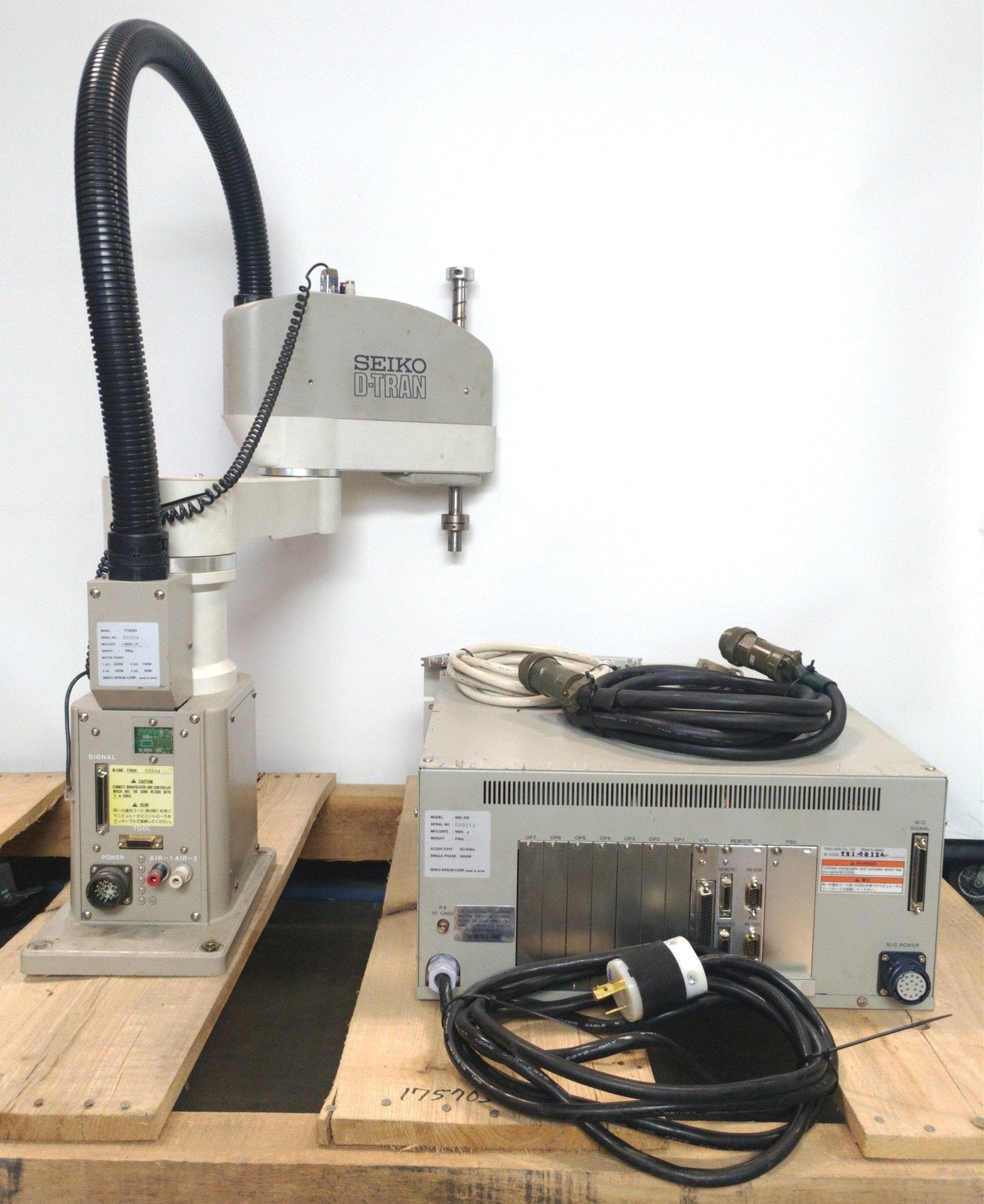

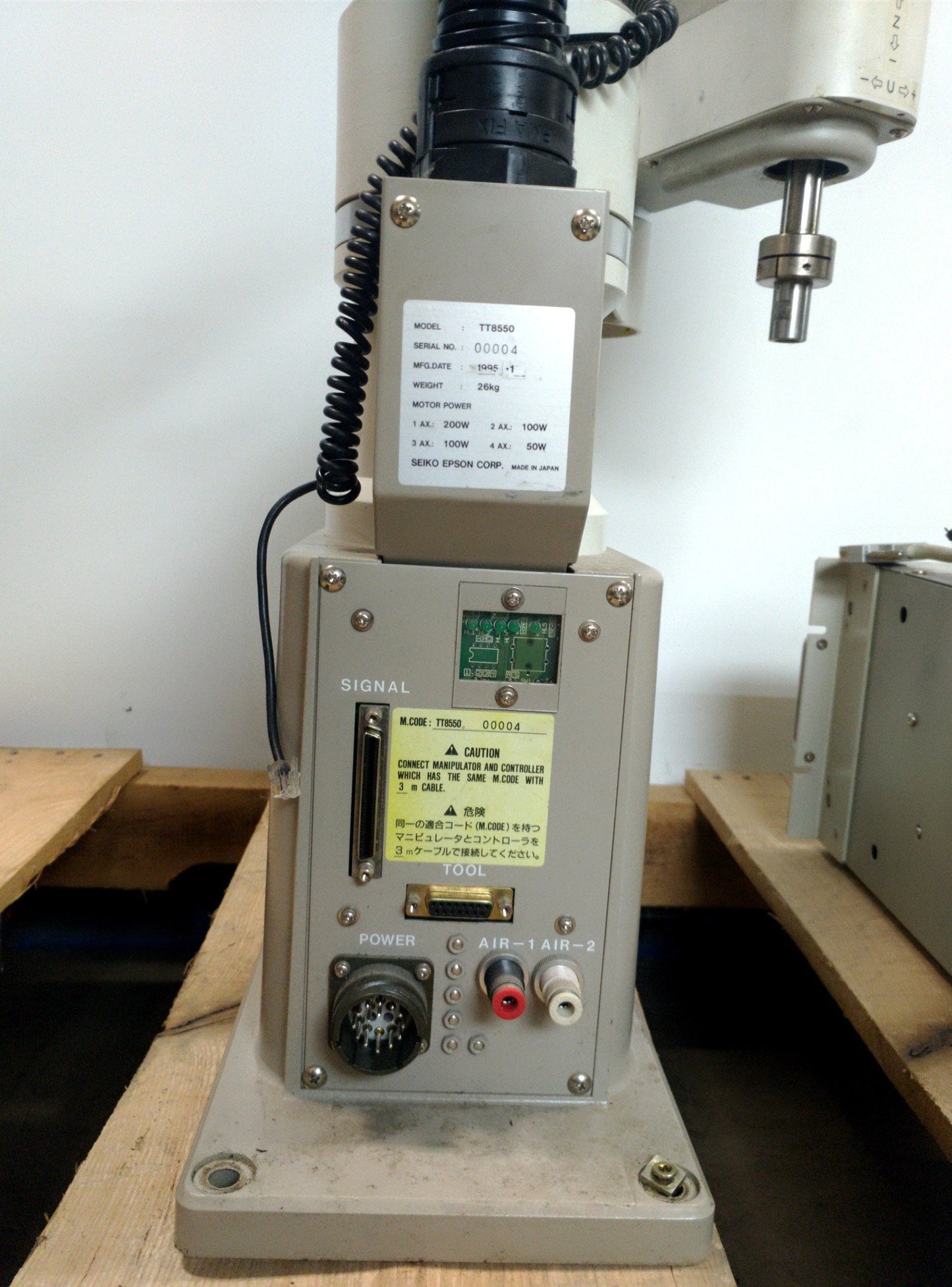

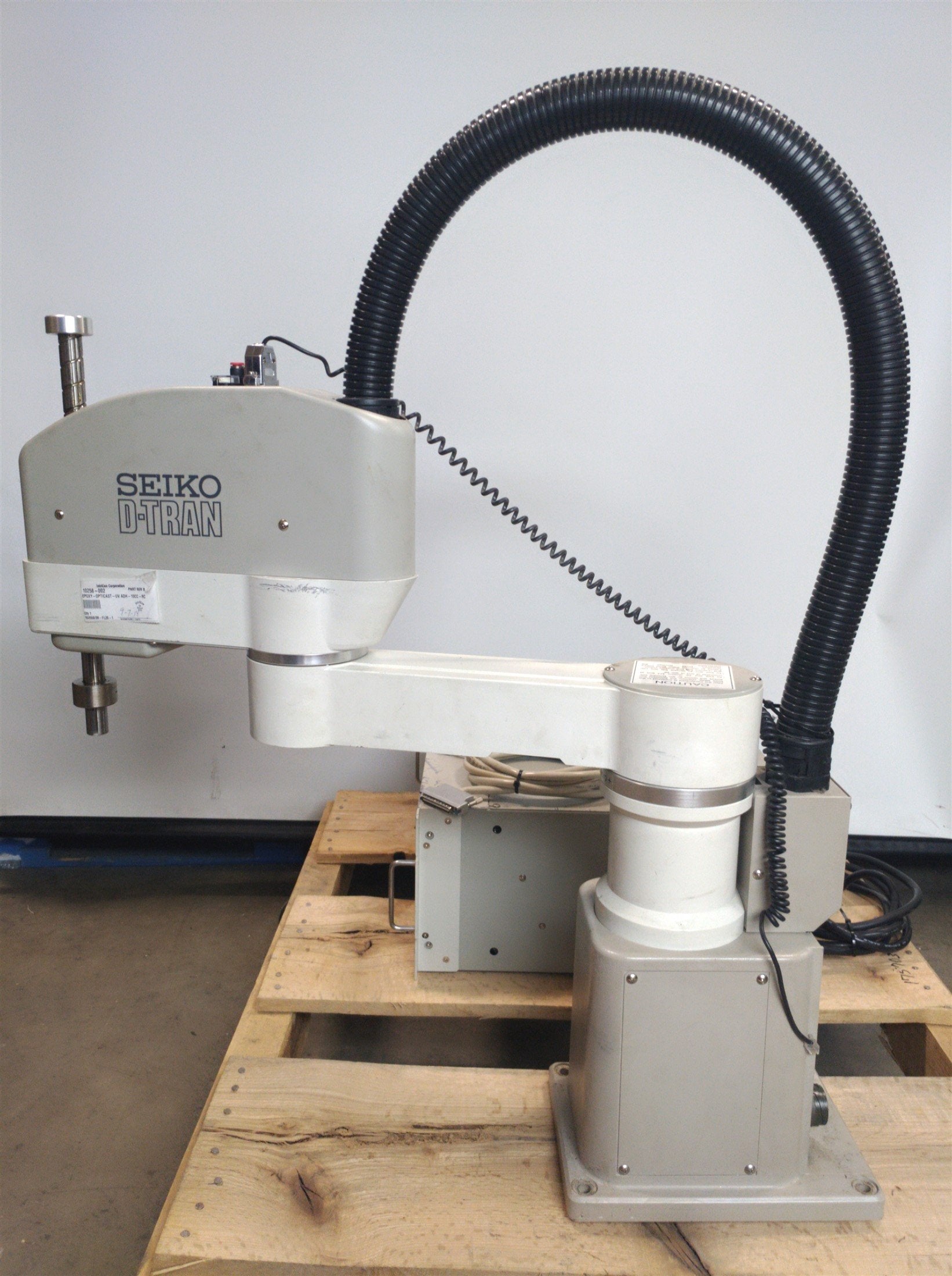

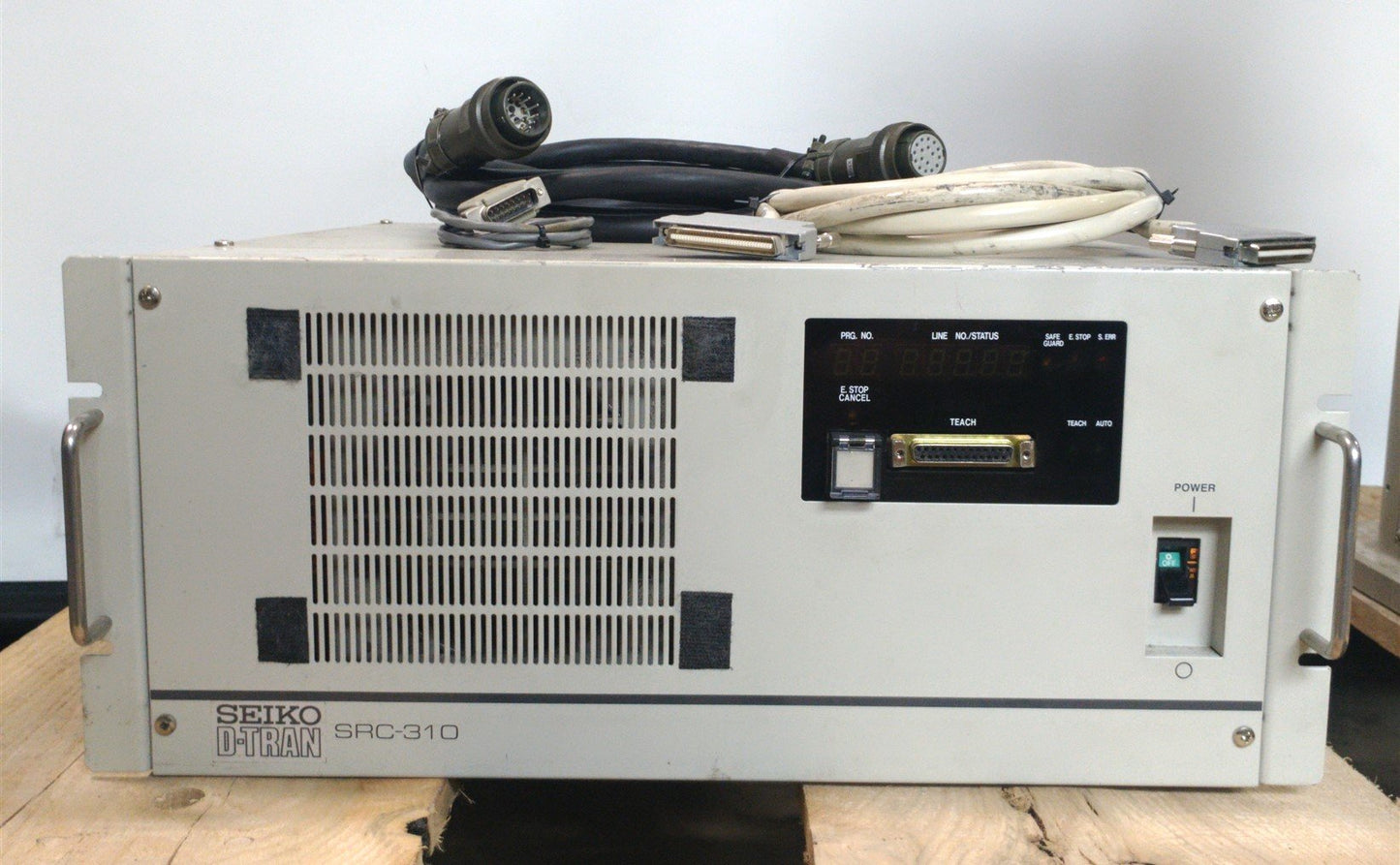

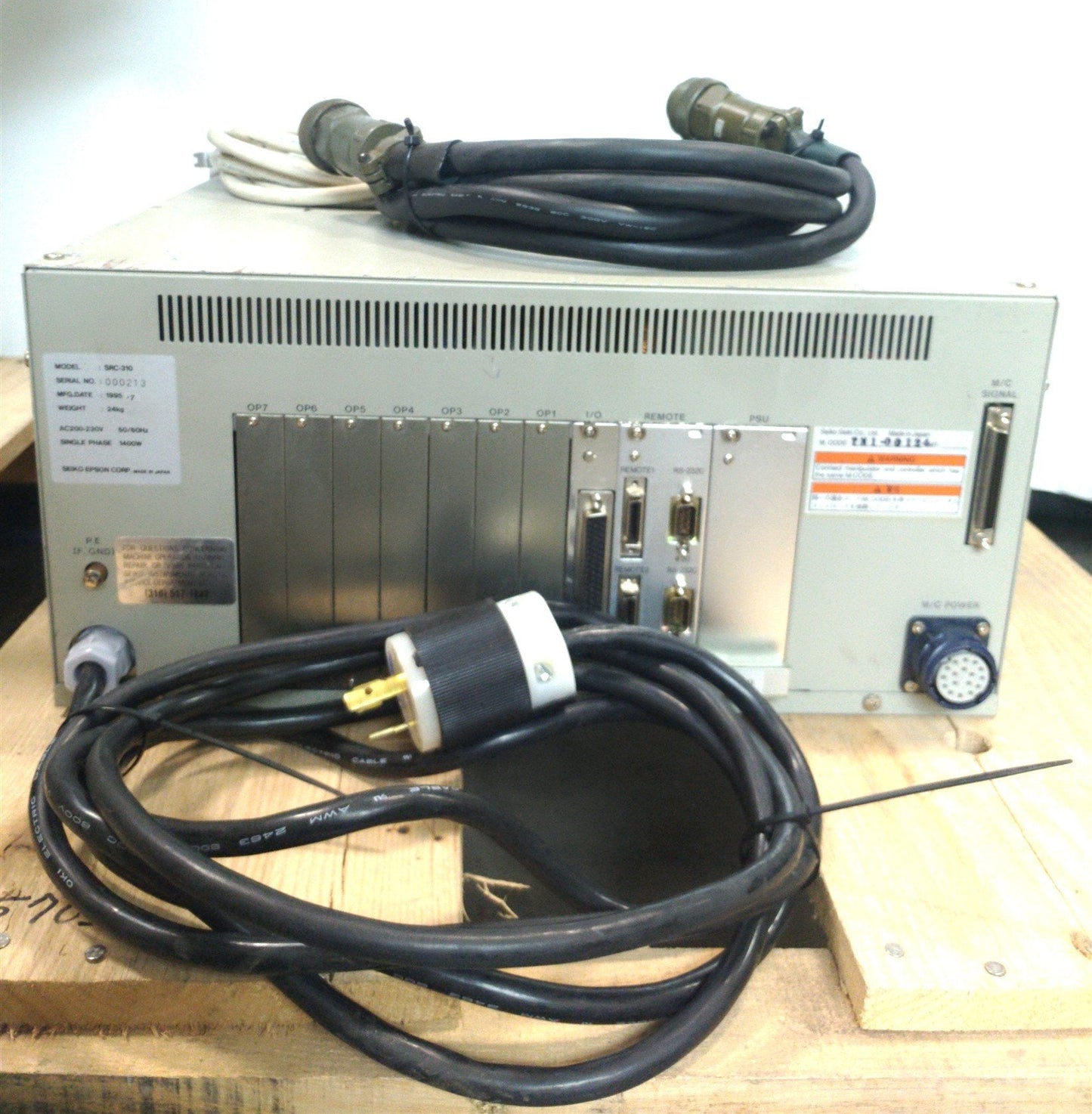

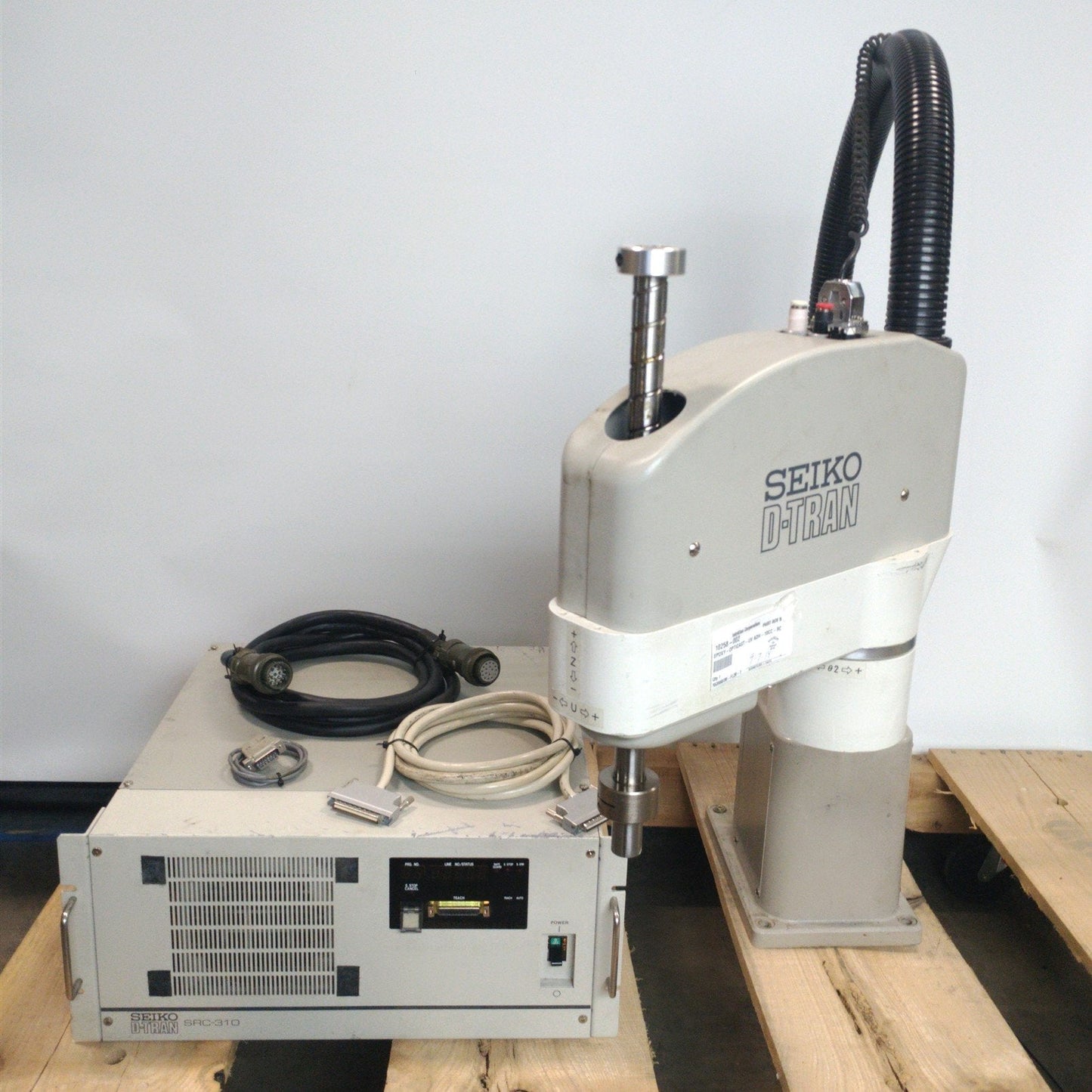

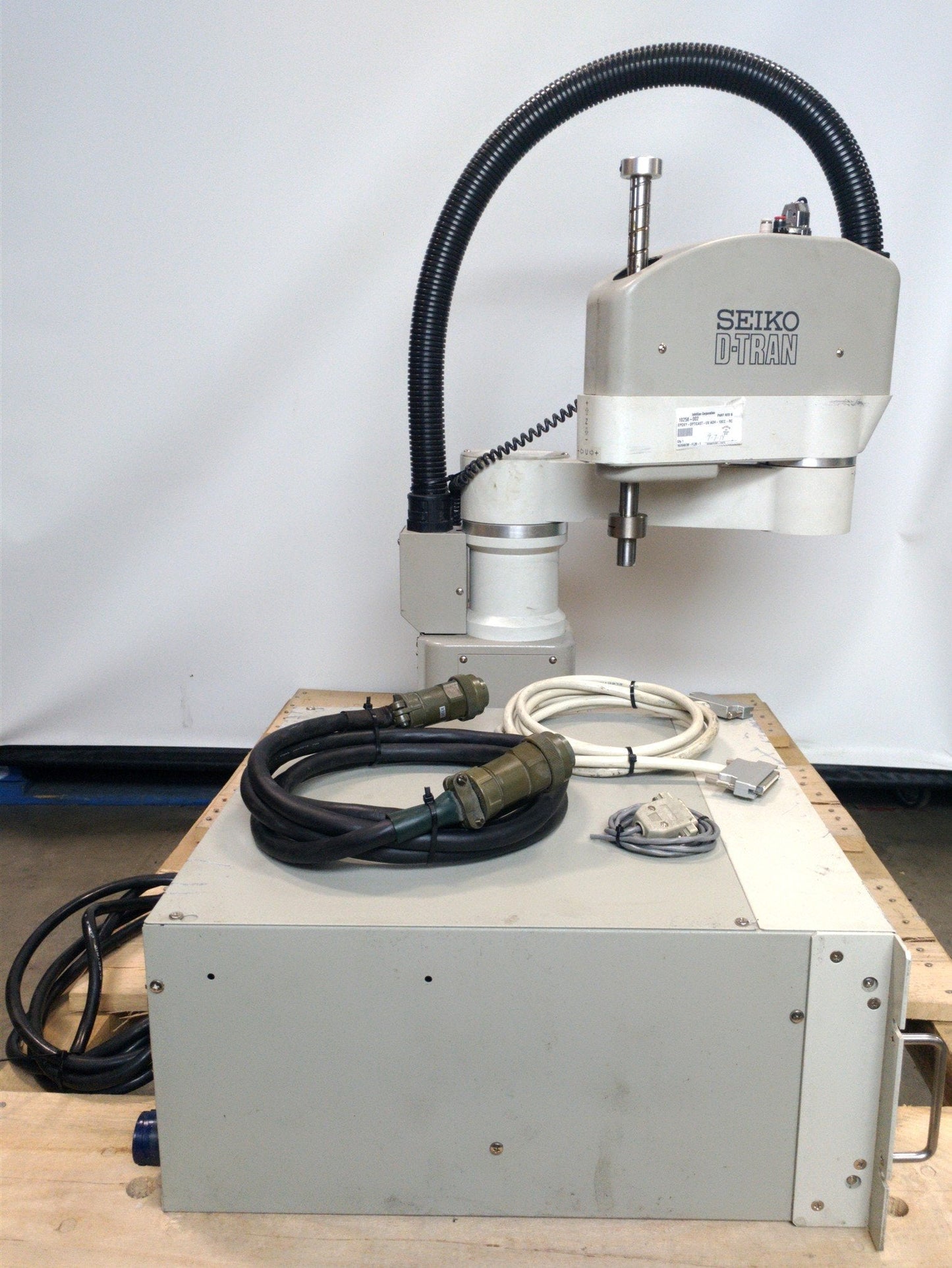

  • SCARA Robot Arm & Controller
  • # of Axis: 4
  • Arm Length: 325 + 225mm
  • Max Payload: 5kg
  • Motor Type: AC Servo
  • Motor Power:
    • Axis T1: 200W
    • Axis T2: 100W
    • Axis Z: 100W
    • Axis U: 50W
  • Max Speed:
    • Axis T1: 4760mm/s
    • Axis T2: 4760mm/s
    • Axis Z: 1000mm/s
    • Axis U: 1140ø/s
  • Max Motion Range:
    • Axis T1: ñ110ø
    • Axis T2: ñ140ø
    • Axis Z: 150mm
    • Axis U: ñ360ø
  • Accuracy:
    • Axis T1: ñ0.02mm
    • Axis T2: ñ0.02mm
    • Axis Z: ñ0.01mm
    • Axis U: ñ0.03ø
  • Pneumatic Fittings: 2x 6mm QD
  • Max Pressure: 85PSI
  • Power Requirements: 1? 200-230VAC 50/60Hz 1400W
  • Cables: M/C Signal, M/C Power, Tool

Item Specifics & Seller Notes:
Robots were pulled from a retired line.

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
