Specifications:

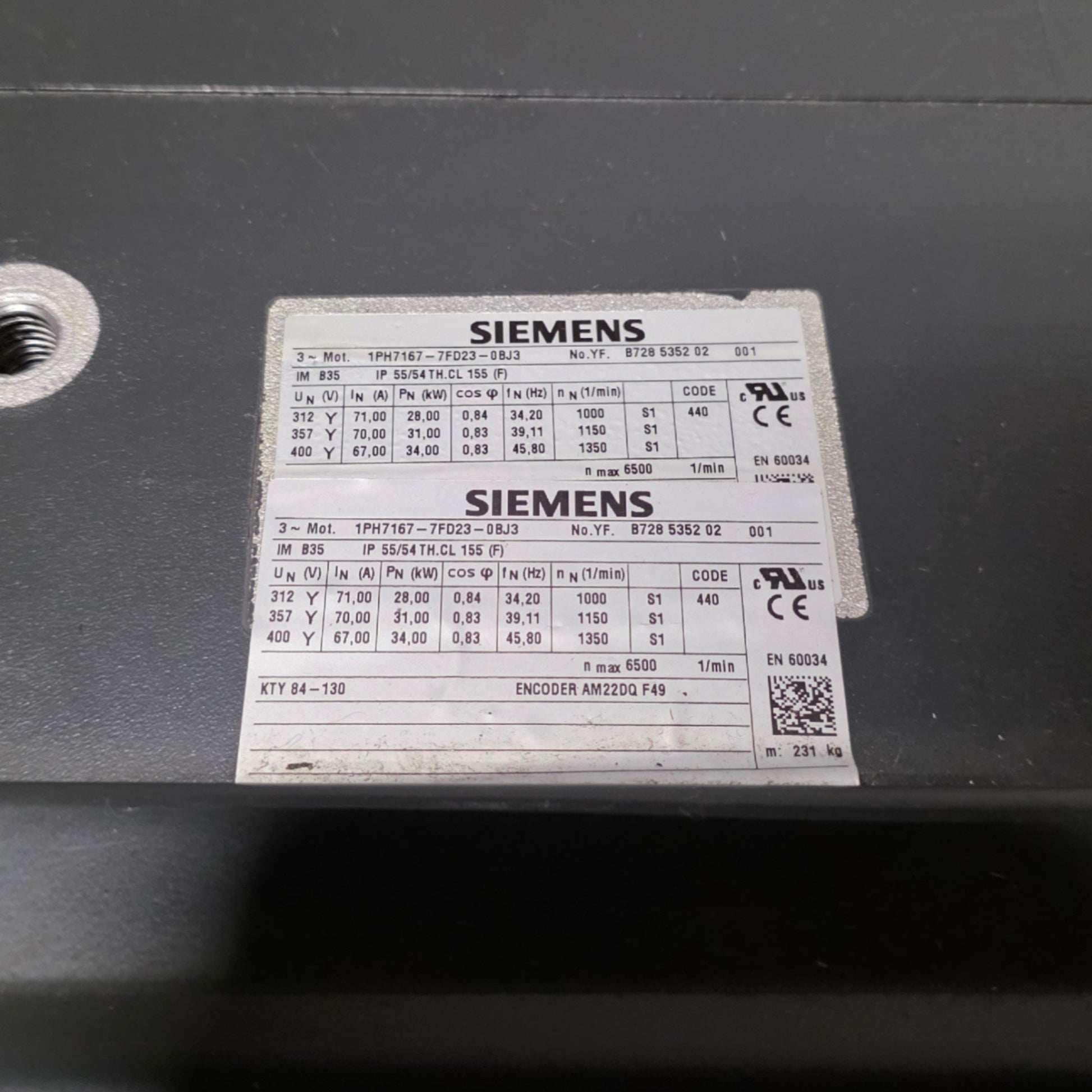

• Model #: 1PH7167-7FD23-0BJ3
• More Information:

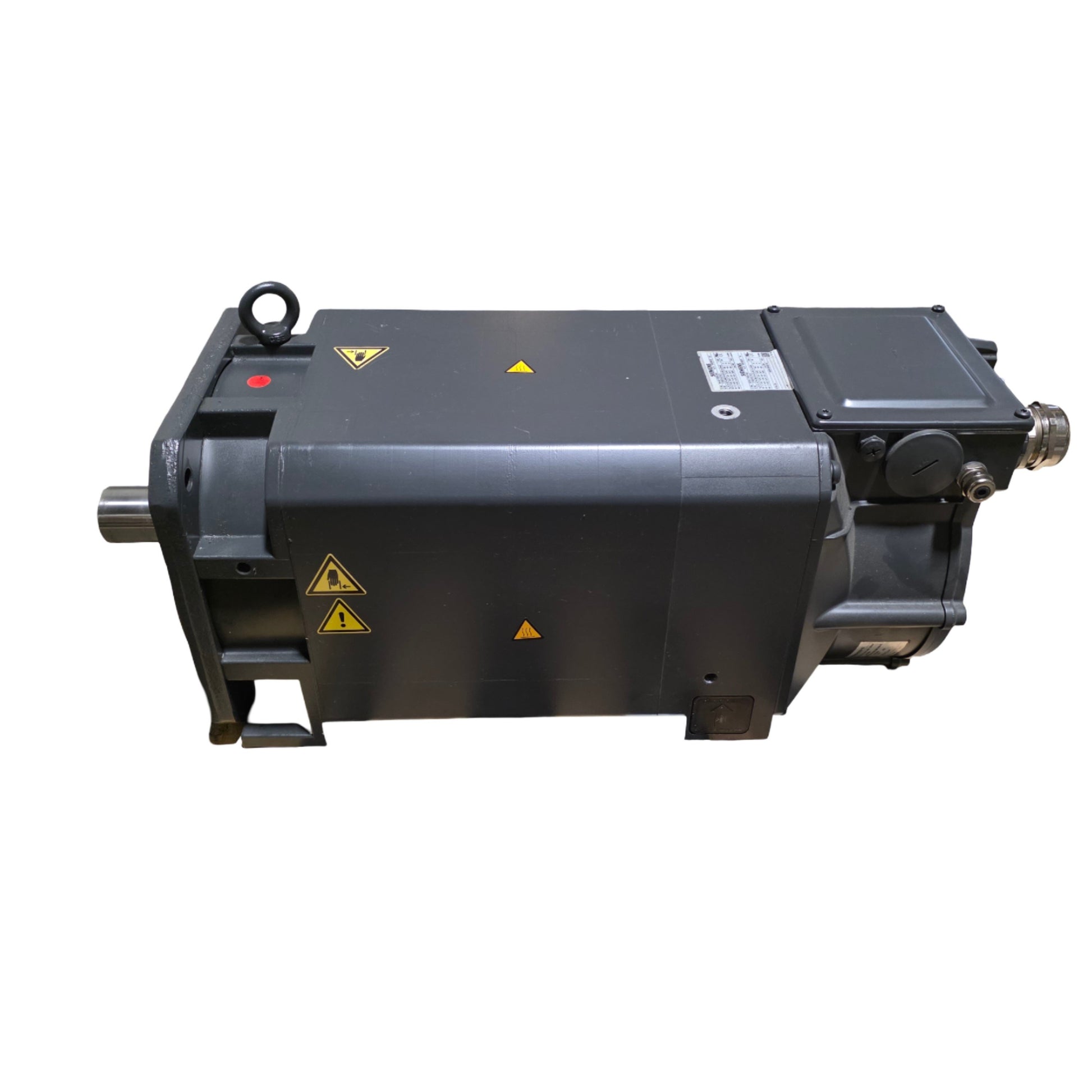

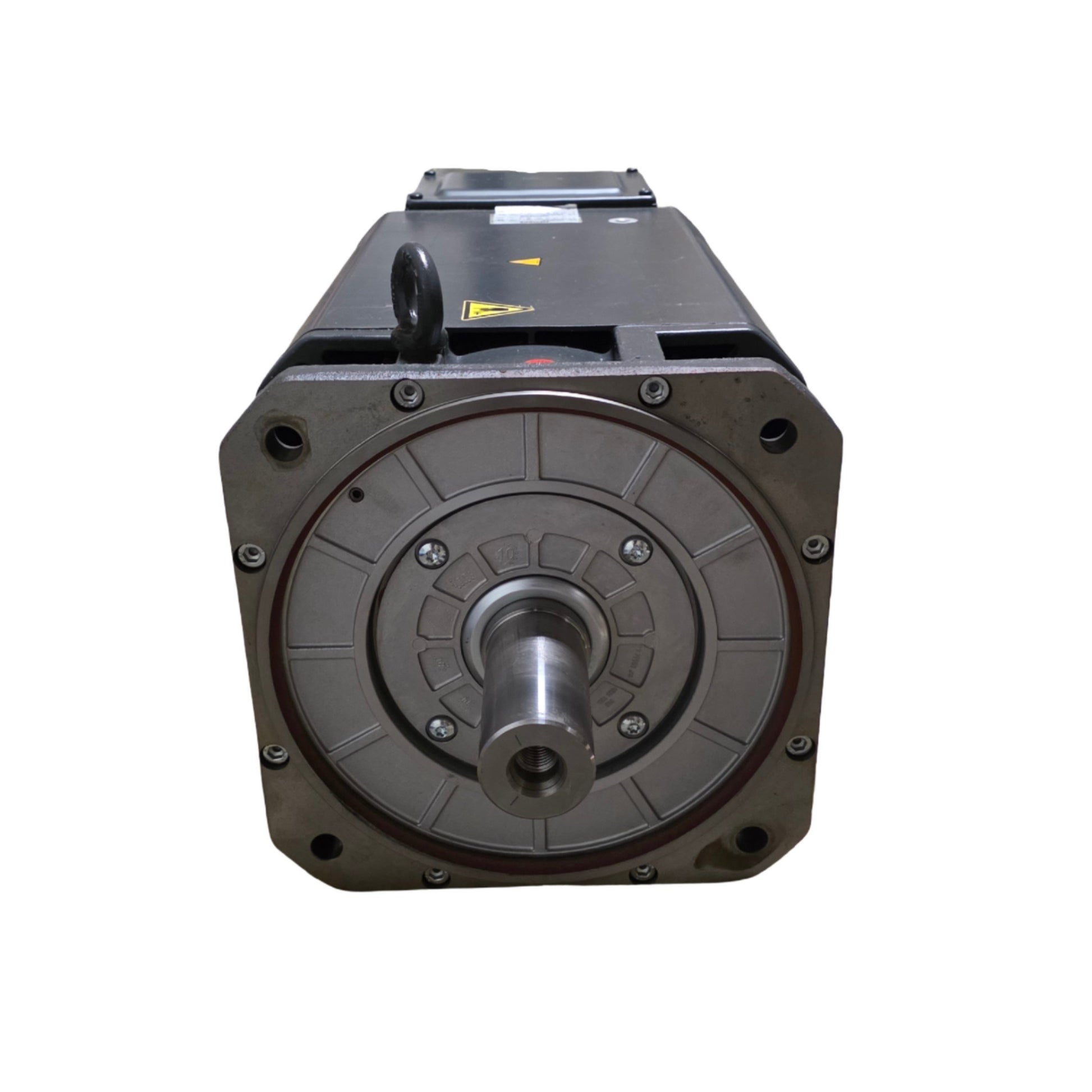

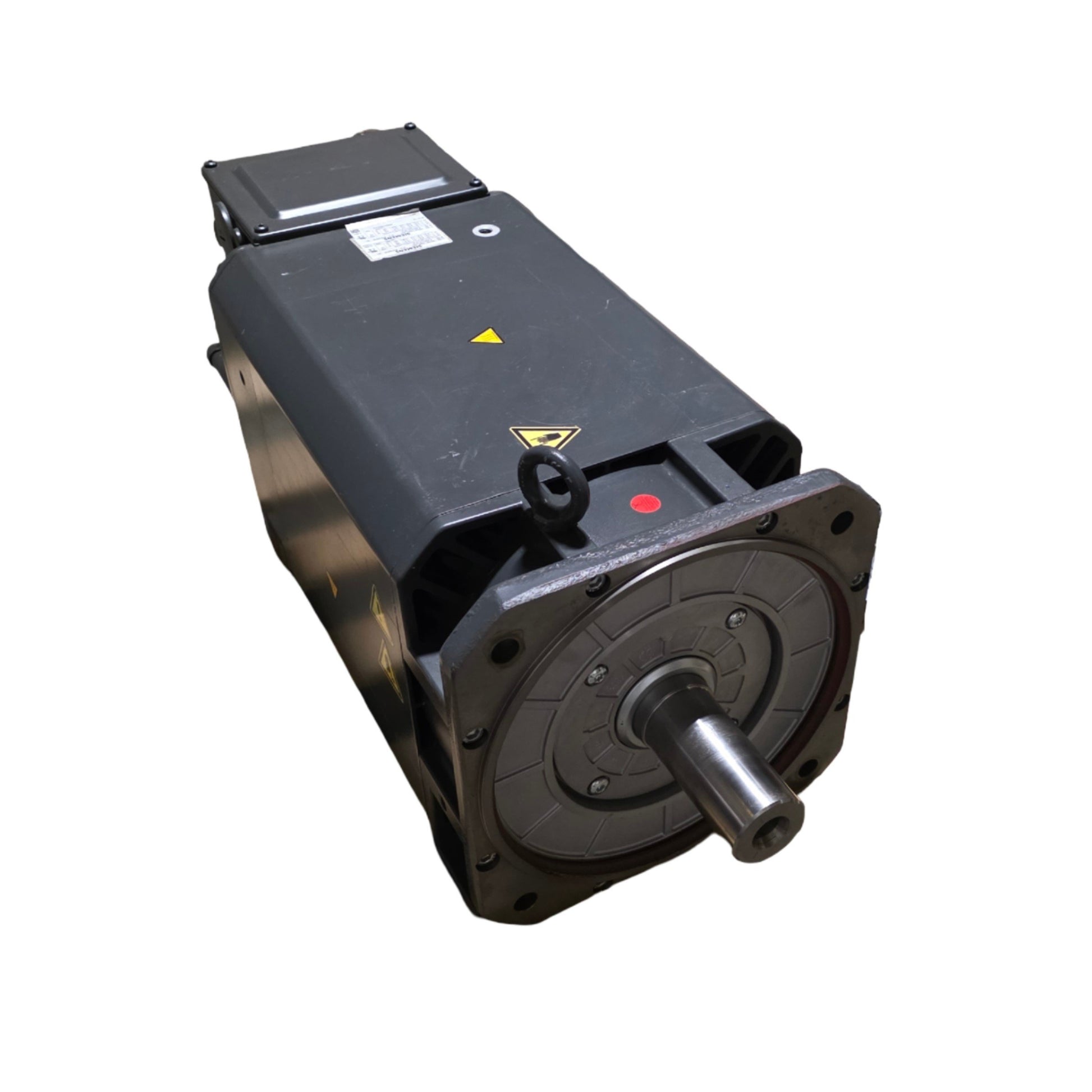

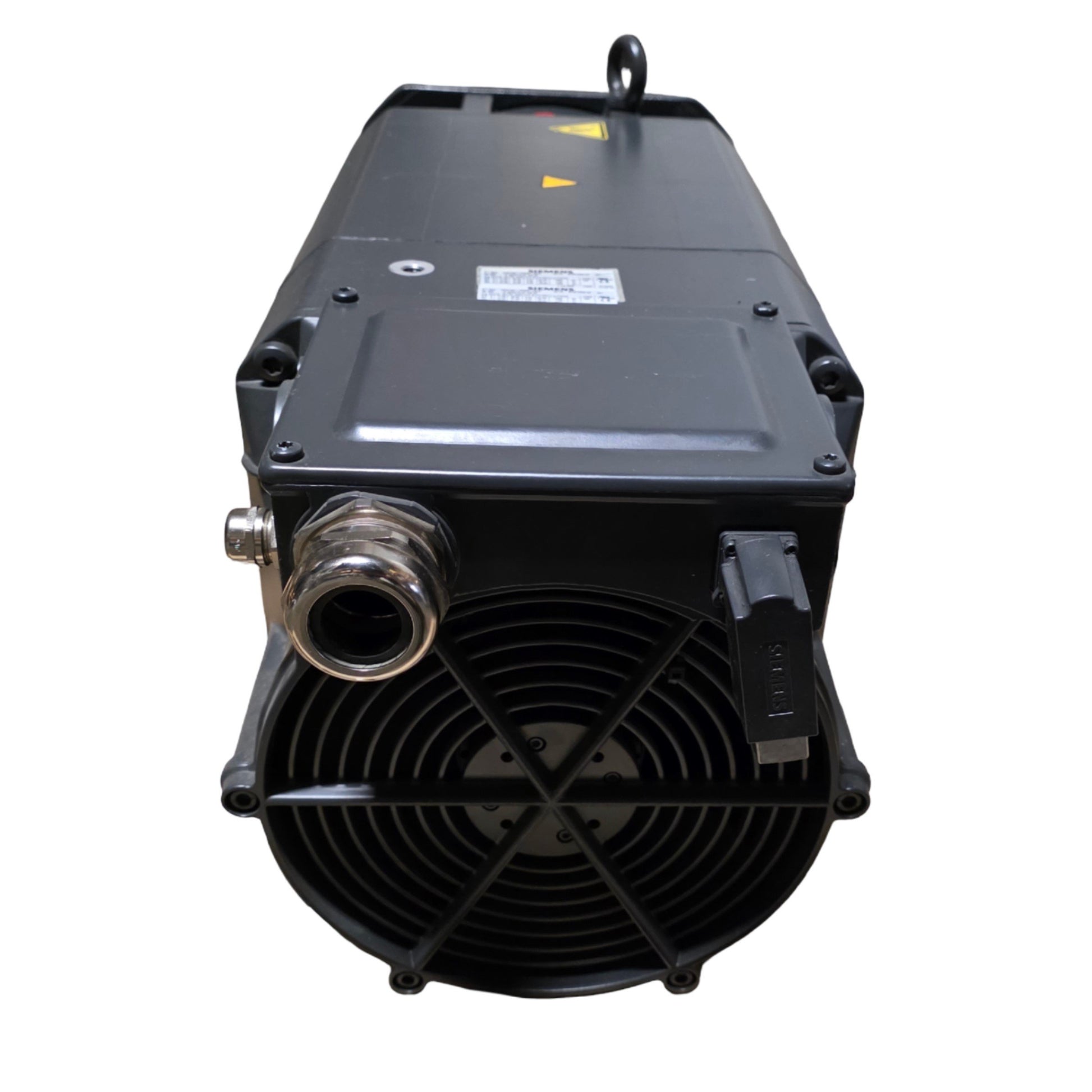

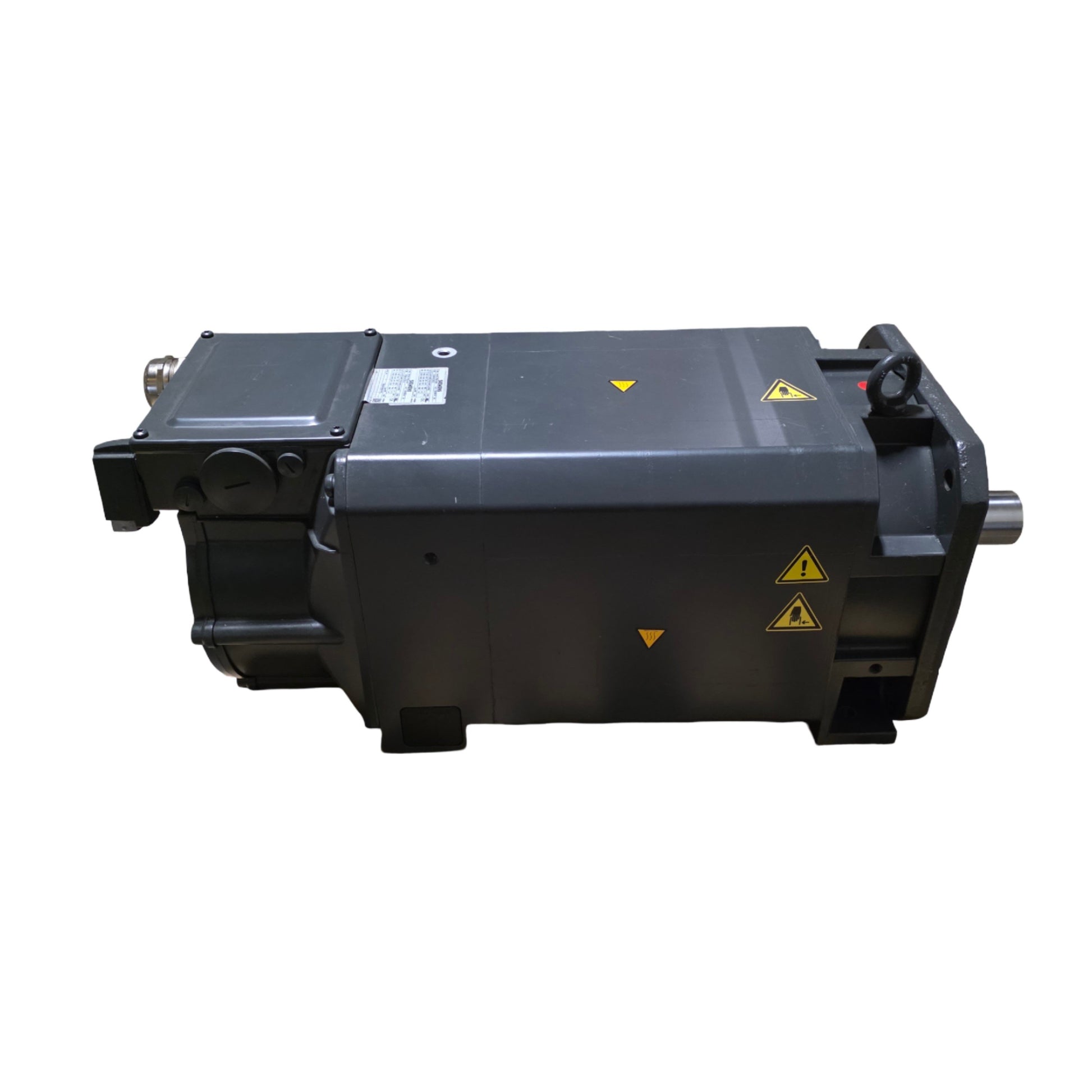

  • Siemens Asynchronous Motor
  • Shaft Height: 160mm
  • Rated Torque: 267Nm
  • Rated Output Power: 28kW
  • Shaft Diameter: 55mm
  • Rated Speed: 1000RPM
  • Speed During Field Weakening: 4090RPM
  • Max Permissiable Continuous Speed: 3700RPM
  • Max Speed: 6500RPM
  • Encoder: Absolute encoder 22-bit Singleturn + 12-bit Multiturn
  • Mounting: IM B35
  • Protection Class: IP55
  • Power Requirements: 312VAC 3-Ph 71A

This item will be shipped freight. Freight shipping cost is included to a location with a truck height loading dock and full size semi truck and trailer access. Full size truck access and forklift is acceptable. Deliveries to limited access/residential and/or requiring a liftgate will be subject to additional fees. Please contact us for additional information and quotes.
